# Plotting solutions to an equation for varying parameter value produces empty graphs

Posted 9 months ago
 Consider an objective function v = ((i + lambda) Uem - (-1 + e) Uun)/(i (1 - e + i + lambda))  where n = 1; beta = 0.6; W = 60; i=0.05; L = (w/(beta (a e)^beta))^(1/(beta - 1)); lambda = ((1 - e) n L)/(1 - e n L); Uem = w - 1/(w (1 - e)); b[e_] := b /. Solve[a W (1 + i)^(1/(1 - e) + 1/lambda - 1)- b \!$$\*UnderoverscriptBox[\(\[Sum]$$, $$j = 1$$, $$\*FractionBox[\(1$$, $$lambda$$] - 1\)]$$\((1 + i)$$^j\)\) == b + a W, b][[1]]; Uun = b[e] - 1/b[e];  under the conditions of $0\leq e \leq 1$ and $U_{em} > U_{un}$. I would like to do some plotting by taking the following steps. Step 1: Find e that maximizes v which will be yielded as a function of w with the parameter a, i.e., $e = f(w; a)$. Step 2: Find e and w as the solution of $\frac{\partial f}{\partial w}=\frac{e}{w}$ for varying values of a $\in [0,1]$. Step 3: Plot e and w obtained in Step 2 against a $\in [0,1]$. My entire code for this is: Clear["Global*"]; n = 1; beta = 0.6; W = 60; L = (w/(beta (a e)^beta))^(1/(beta - 1)); lambda = ((1 - e) n L)/(1 - e n L); Uem = w - 1/(w (1 - e)); b[e_] := b /. Solve[a^2 W (1 + i)^(1/(1 - e) + 1/lambda -1) - b \!$$\*UnderoverscriptBox[\(\[Sum]$$, $$j = 1$$, $$\*FractionBox[\(1$$, $$lambda$$] - 1\)]$$\((1 + i)$$^j\)\) ==b + a^2 W, b][[1]]; Uun = b[e] - 1/b[e]; v = ((i + lambda) Uem - (-1 + e) Uun)/(i (1 - e + i + lambda)); f[e_, w_, a_, i_] = ArgMax[{v, e >= 0, e <= 1, Uem > Uun}, e]; With[{i = 5/100}, sol[a_] := sol[a] = FindRoot[D[f[e, w, a, i], w] == e/w, {{e, 0.5}, {w, 0.5}}]; {estar[a_], wstar[a_]} := {e /. sol[a], w /. sol[a]}; estarplot = Plot[estar[a], {a, 0, 1}, AxesLabel -> {s, SuperStar[\[CurlyEpsilon]]}, PlotRange -> {{0, 1}, {0, 1}}]; wstarplot = Plot[wstar[a], {a, 0, 1}, AxesLabel -> {s, SuperStar[w]}, PlotRange -> {{0, 1}, {0, 10}}];] e = estarplot; w = wstarplot; Style[Row[{e, w}], ImageSizeMultipliers -> {0.6, 0.6}]  And I get empty graphs along with a list of error messages as follows. I also tried f[e0_?NumericQ, a0_?NumericQ, w0_?NumericQ, i0_?NumericQ] := Block[{e = e0, a = a0, w = w0, i = i0}, ArgMax[{v, e >= 0, e <= 1, Uem > Uun}, e]];  in place of f[e_, w_, a_, i_] = ArgMax[{v, e >= 0, e <= 1, Uem > Uun}, e];  but the result is the same. Can anyone help please?

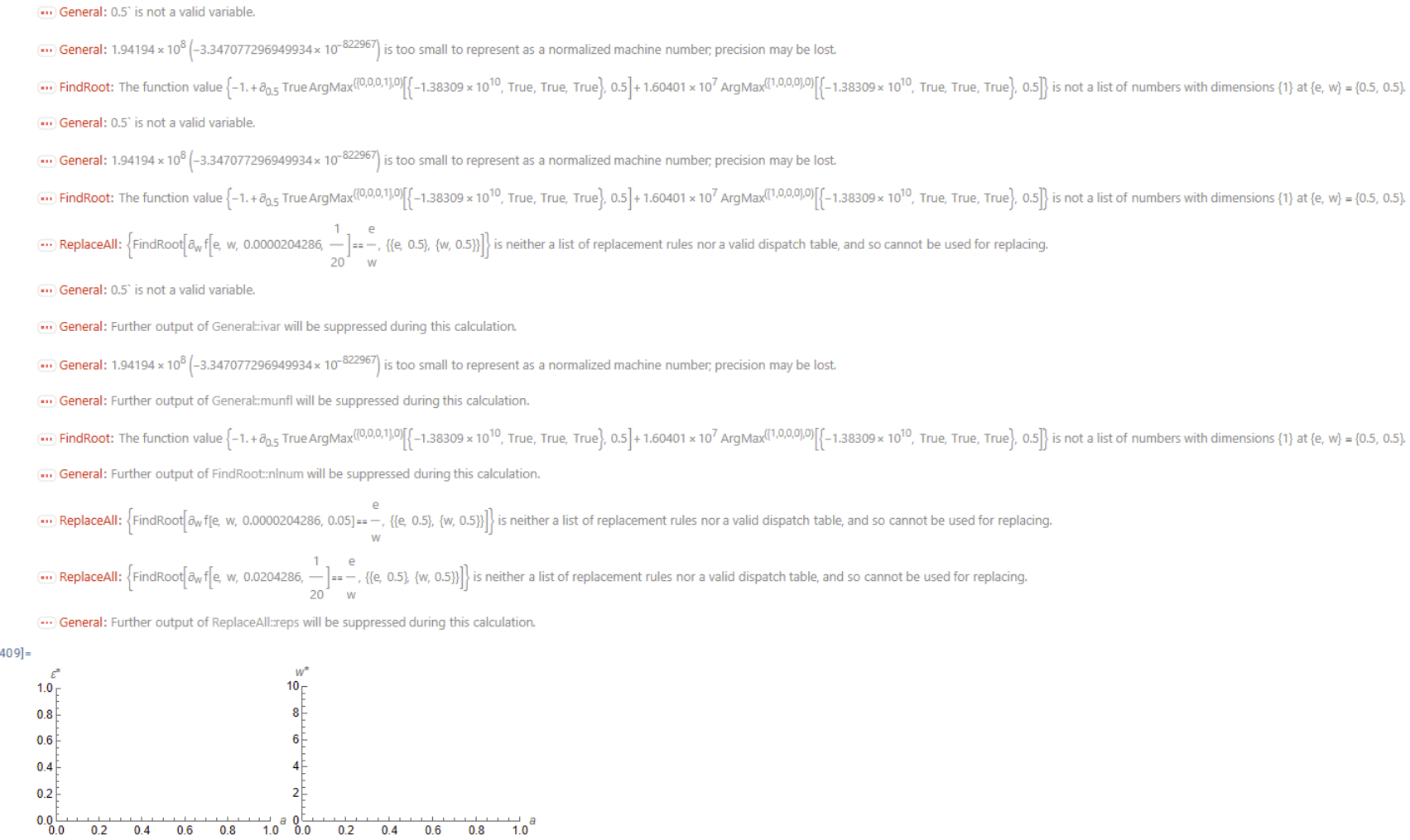

11 Replies
Sort By:
Posted 9 months ago
 The expression D[f[e, w, a, i], w] == e/w makes little sense to me, because (1) how do you calculate the derivative of ArgMax? (2) the function f cannot depend on e, but e appears on the right hand side.
Posted 9 months ago
 Thanks. This is my understanding: (1) ArgMax will generate e that maximizes v, and that e will come out as a function of w, a, and i, i.e., $e=f(w,a,i)$. So we can calculate the derivative of f[] with respect to w. (2) Yes, you are correct, I removed e from f[]. Please do let me know if I misunderstood. Thanks for your help in advance!
Posted 9 months ago
 The value of e that maximizes v is not a simple function of the parameters. Its derivative is even more complicated, if it exists at all.What is the e in the right hand side of D[f[w, a, i], w] == e/w ?With FindRoot you are trying to solve one equation in two unknowns. What do you expect to find?
Posted 9 months ago

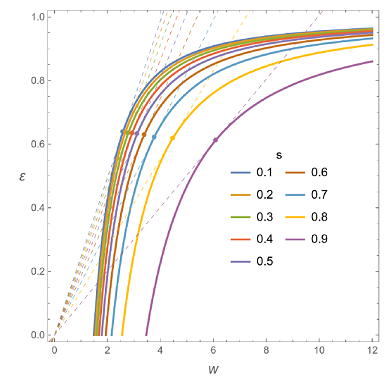

 Thanks, Gianluca! Let me clarify my goal by referring to the following graph: Each curve is a plot of $e$ that maximizes $v$ as a function of $w$ for a given $a$, and the curve shifts rightward with an increase in $a$. (Typo in the graph: $s$ should be $a$.) I would like to find an equilibrium pair of $(e,w)$ for different level of $a$, and that is indicated by the dot in each curve. And the equilibrium condition is $\frac{\partial e}{\partial w} = \frac{e}{w}$, i.e. the point where the ray from the origin meets the curve tangentially.I'm also attaching a Notebook file which contains my previous code where I used f[...] = D[v,e] instead of f[...] = ArgMax[v,e] and hence what's inside FindRoot[] was also different. As you can see in the file, this code did generate a result. But I was dubious of the shape of the plots obtained. And I was suspecting D[v,e] could be the problem since in this code, only the first-order condition, but not the second-order condition, was verified; hence we cannot guarantee whether it is maximum or minimum. That is why I have changed over to ArgMax[v,e], which however does not yield an outcome at all in the first place. I hope this clarifies what my goal is. If not, please let me know. Thank you so much for taking time to help! Attachments:
Posted 9 months ago
 If I understand it correctly, the e in D[f[w, a, i], w] == e/w should be f[w, a, i]. However, the calculation of f[w, a, i] is terribly complicated, just as the inequality Uem > Uun.
Posted 9 months ago
 In fact, f[w, a, i] is the curve in the figure whereas e in e/w is on the straight ray (dotted line) from the origin. The equality D[f[w, a, i], w] == e/w defines the dot where the two meet tangentially. I hope this clarifies.
Posted 9 months ago
 I think you should write not D[f[w, a, i], w] == e/w but D[f[w, a, i], w] == f[w, a, i]/w because your e and f[w, a, i] are not independent objects.
Posted 9 months ago
 Thanks for your comment, Gianluca! I looked at it several times but it seems to me that the code for $\frac{\partial e}{\partial w} = \frac{e}{w}$ is D[f[w, a, i], w] == e/w. I think this can also be verified graphically by referring to the graph above.
Posted 9 months ago
 If you are right then the equation D[f[w, a, i], w] == e/w is trivially solved as e == w D[f[w, a, i], w] and w is arbitrary.
Posted 9 months ago
 I stopped at the first error I caught: f[e_, w_, a_, i_] = ArgMax[{v, e >= 0, e <= 1, Uem > Uun}, e] The variable e is dummy inside ArgMax. You cannot refer to it in the definition of f`.
