# 3DPlot is coming out empty

Posted 6 months ago
 PValue = 1; RValue = 1; {x0Value, y0Value, z0Value} = {28, 5, 20}; kValue = 1; {nValue, mValue, lValue} = {1, 1, 1}; dValue = 2; (*Определение функции c*) cFunction[x_, y_, z_, kk_] := ((x - kk)/(x - x0Value))* Sqrt[(x - x0Value)^2 + (y - y0Value)^2 + (z - z0Value)^2] (*Определение уравнения*) equationFunction[x_, y_, z_, x0_, y0_, z0_] := P*R^2*\!$$\*UnderoverscriptBox[\(\[Sum]$$, $$x = kValue$$, $$kValue + nValue$$]$$\*UnderoverscriptBox[\(\[Sum]$$, $$y = lValue$$, $$mValue$$]$$\*UnderoverscriptBox[\(\[Sum]$$, $$z = lValue$$, $$lValue$$]$$(\((1/\((\((x - x0)$$^2 + $$(y - y0)$$^2 + $$(z - z0)$$^2)\)*$$( \*SuperscriptBox[\(2$$, $$c/d$$])\))\))\)\)\)\) (*Построение 3D-графика*) Plot3D[equationFunction[x, y, z, x0Value, y0Value, z0Value, dValue, cFunction, PValue, RValue], {x, -10, 20}, {y, -10, 20}, PlotRange -> All, AxesLabel -> {"x", "y", "Intensity"}, PlotLabel -> "3D модель"]  Initially, there was a schedule, but then for some reason it disappeared. Changed the original data, reworked the equations, but later gives an error in the form of problems with iteration. Tell me, what could be the reason? Attachments:
7 Replies
Sort By:
Posted 6 months ago
 Hello, Alex! Firstly, parameters P, R, c, d are not defined in this part of code!Secondly, Plot3D use only two coordinates: x, y, so this code should be corrected.But firstly you have to define P, R, c, d and than I could help you.
Posted 6 months ago
 Why? I described such values as PValue and cFunction. All this data is present. I tried to move everything to P R c d k and so on, but the same problem.
Posted 6 months ago

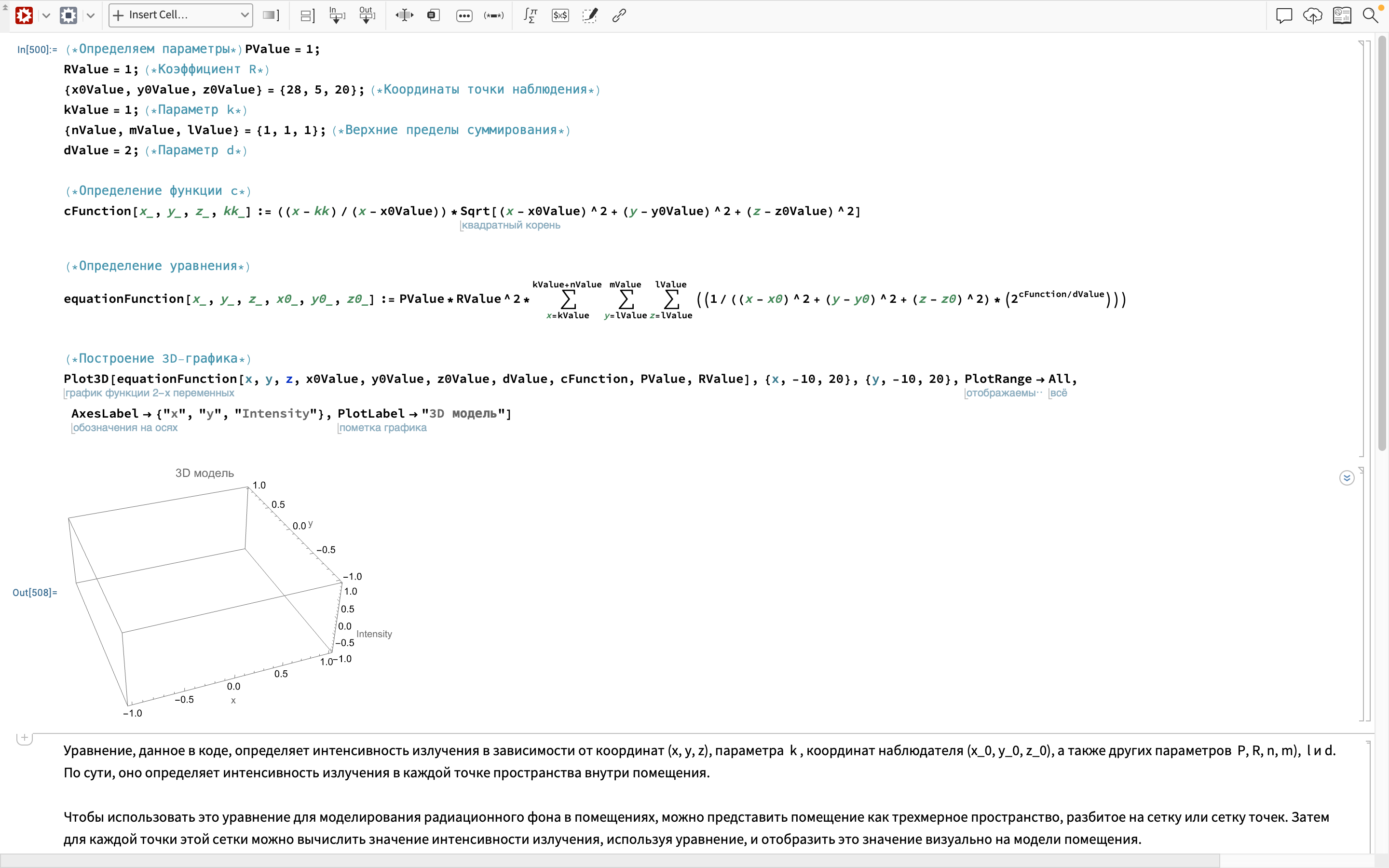

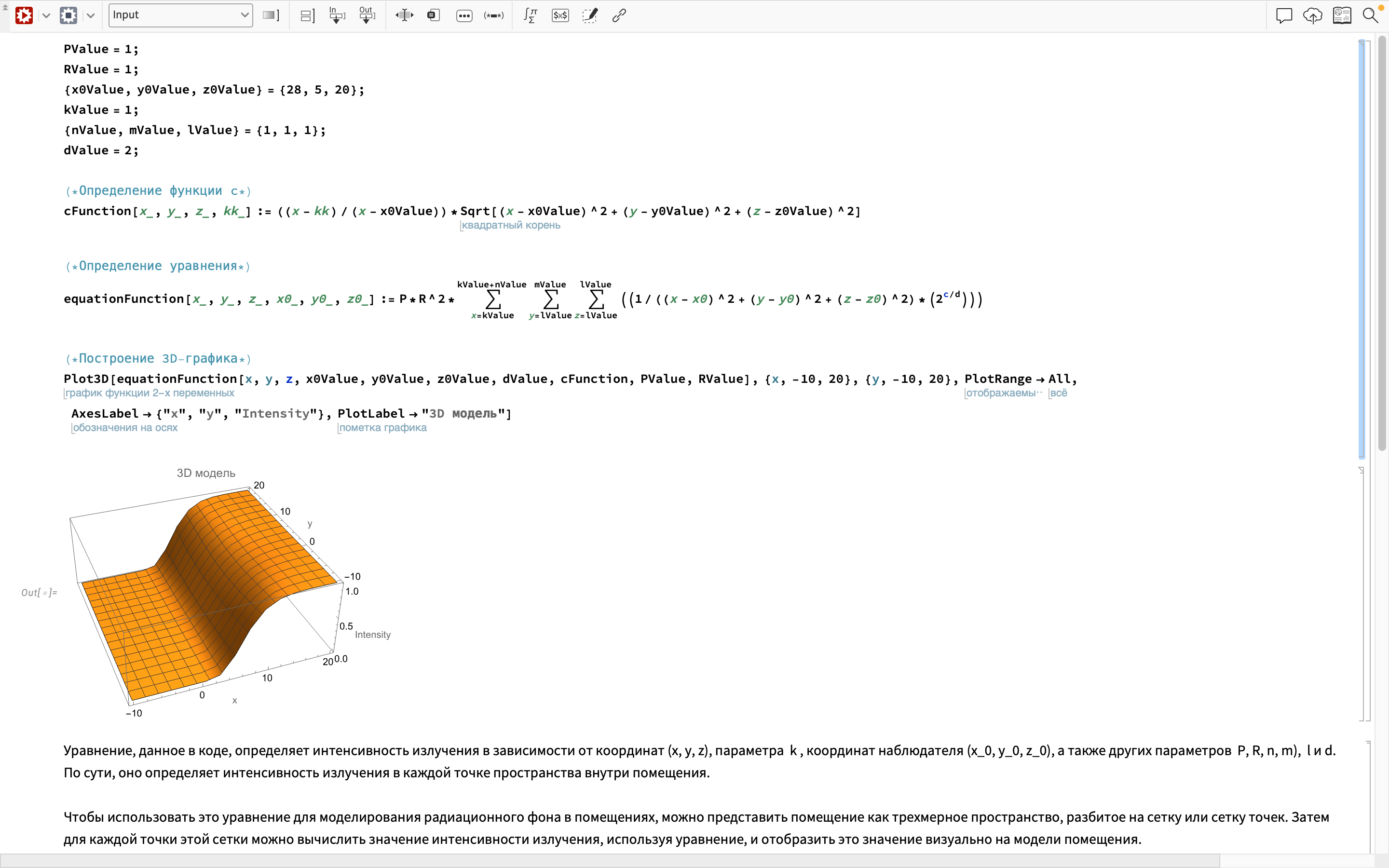

 Hi. Here are the changes. As you can see, the schedule has stopped working. Attachments:
Posted 6 months ago
 Dear Alex, this is much better attached notebook, not screenshot!At least text of full code.For now:1. cFunction inside equationFunction should have arguments2. And what argument of equationFunction pass to cFunction as kk?
Posted 6 months ago
 I'd love to, but I don't understand how to do it. Now I'll send the material, it will probably work. kk_ is the value of kValue. Can you tell me more about cFunction's arguments?ucan describe or russian if u want.
Posted 6 months ago
 When you write Plot3D[equationFunction[x, y, z, x0Value, y0Value, z0Value, dValue, cFunction, PValue, RValue]... what is the value of cFunction?
Posted 6 months ago
 The value was based on the original data that I described from above
