How to constrain a mechanical component to be vertical at all times using the Multibody library?

Fabián Peña

Posted 7 months ago

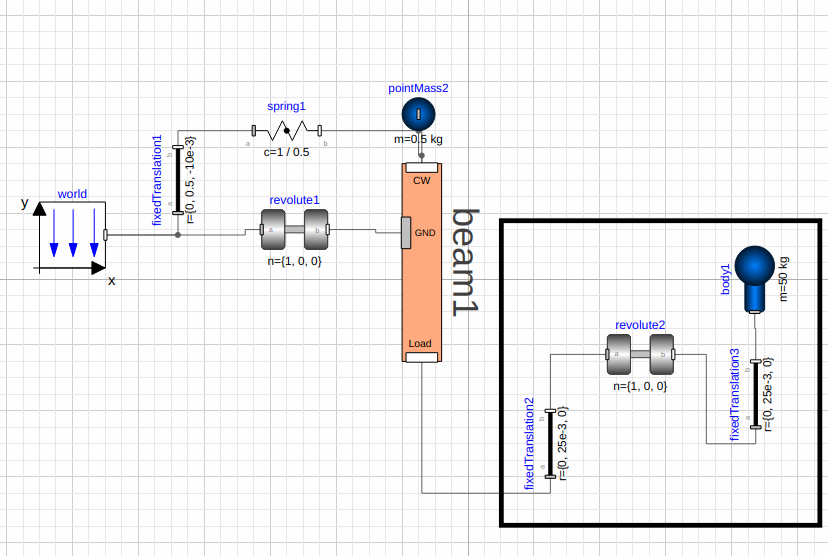

As suggested by the title, I'm using the Modelica.Mechanics.Multibody library, and I need to constrain a component such that it must remain vertical. The mechanical system is a beam, hinged at top to the ground so it can oscillate like a pendulum, and at its bottom it holds a body. As shown in the figure below, the body, represented by the sphere, is housed within a cavity of the beam, and it's coupled to it via two relative Fixed Translation parts and a Revolute Joint in between them, depicted as a red cylinder. A wall of the cavity has been removed so the components can be seen in the screenshot. As written, the boundary conditions are such that I need to keep the upper relative Fixed Translation part vertical. Rotation will happen at the revolute joint because the beam tilts as it oscillates like a pendulum. How to set this constraint? I tried using the constraints given in the Mechanics.Multibody package, but the documentation hasn't been useful and my efforts failed. The overall system is this The components that couple the mass to the bottom of the beam are shown within the black rectangle. The component called beam1 is just a fancy combination of BodyBox components from the MultiBody package: Any help will be highly appreciated. Regards, Fabián

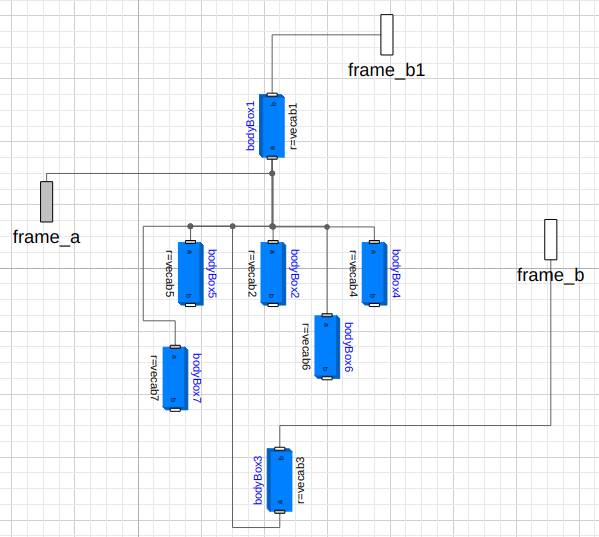

POSTED BY: Fabián Peña

4 Replies

Sort By:

Fabián Peña

Posted 6 months ago

Hello Ankit, Thank you for your kind answer again. The strategy you propose does exactly what I need. The tilt angle of the pendulum is measured and the value it's used to drive the component that must remain vertical. It's a simple solution! Thank you very much! Cheers, Fabián

POSTED BY: Fabián Peña

Updating Name

Posted 6 months ago

How about this model? model KeepVertical Modelica.Blocks.Math.Gain gain1(k = -1) annotation(Placement(visible = true, transformation(origin = {50, -10}, extent = {{10, -10}, {-10, 10}}, rotation = 0))); Modelica.Mechanics.MultiBody.Sensors.RelativeAngles relativeAngles1 annotation(Placement(visible = true, transformation(origin = {80, -40}, extent = {{-10, 10}, {10, -10}}, rotation = 0))); Modelica.Mechanics.Rotational.Sources.Position position1 annotation(Placement(visible = true, transformation(origin = {14.21, -10}, extent = {{10, -10}, {-10, 10}}, rotation = 0))); Modelica.Mechanics.MultiBody.Parts.Body body(r_0.start = {0.0, 2, 0.0}) annotation(Placement(visible = true, transformation(origin = {-80, -120}, extent = {{-10, -10}, {10, 10}}, rotation = -90))); inner Modelica.Mechanics.MultiBody.World world annotation(Placement(visible = true, transformation(origin = {-120, 80}, extent = {{-10, -10}, {10, 10}}, rotation = -360))); Modelica.Mechanics.MultiBody.Parts.FixedTranslation fixedTranslation1(r = {0.0, -1, 0.0}) annotation(Placement(visible = true, transformation(origin = {-80, 0}, extent = {{-10, -10}, {10, 10}}, rotation = -90))); Modelica.Mechanics.MultiBody.Parts.FixedTranslation fixedTranslation2(r = {0.0, -1, 0.0}) annotation(Placement(visible = true, transformation(origin = {-80, -80}, extent = {{-10, -10}, {10, 10}}, rotation = -90))); Modelica.Mechanics.MultiBody.Joints.Revolute revolute2(phi.start = 0.174532925199433, useAxisFlange = false) annotation(Placement(visible = true, transformation(origin = {-80, 40}, extent = {{10, -10}, {-10, 10}}, rotation = 90))); Modelica.Mechanics.MultiBody.Parts.Body body1(r_0.start = {0.0, 2, 0.0}) annotation(Placement(visible = true, transformation(origin = {-40, 60}, extent = {{-10, -10}, {10, 10}}, rotation = -270))); Modelica.Mechanics.MultiBody.Joints.Revolute revolute3(useAxisFlange = true) annotation(Placement(visible = true, transformation(origin = {-40, -10}, extent = {{-10, -10}, {10, 10}}, rotation = -90))); Modelica.Mechanics.MultiBody.Parts.FixedTranslation fixedTranslation3(r = {0.0, -0.5, 0.0}) annotation(Placement(visible = true, transformation(origin = {-40, 20}, extent = {{-10, 10}, {10, -10}}, rotation = 270))); equation connect(fixedTranslation2.frame_b, body.frame_a) annotation(Line(visible = true, origin = {-80, -100}, points = {{0, 10}, {0, -10}}, color = {95, 95, 95}, thickness = 0.5)); connect(world.frame_b, revolute2.frame_a) annotation(Line(visible = true, origin = {-90, 70}, points = {{-20, 10}, {10, 10}, {10, -20}}, color = {95, 95, 95}, thickness = 0.5)); connect(revolute2.frame_b, fixedTranslation1.frame_a) annotation(Line(visible = true, origin = {-80, 20}, points = {{0, 10}, {0, -10}}, color = {95, 95, 95}, thickness = 0.5)); connect(fixedTranslation2.frame_a, fixedTranslation1.frame_b) annotation(Line(visible = true, origin = {-80, -40}, points = {{0, -30}, {0, 30}}, color = {95, 95, 95}, thickness = 0.5)); connect(fixedTranslation1.frame_b, revolute3.frame_b) annotation(Line(visible = true, points = {{-20, 2.912}, {-20, -27.088}, {20, -27.088}, {20, -7.088}}, color = {95, 95, 95}, thickness = 0.5, origin = {-60, -12.912})); connect(fixedTranslation3.frame_a, body1.frame_a) annotation(Line(visible = true, origin = {-40, 40}, points = {{0, -10}, {0, 10}}, color = {95, 95, 95}, thickness = 0.5)); connect(revolute3.frame_a, fixedTranslation3.frame_b) annotation(Line(visible = true, origin = {-40, 5}, points = {{0, -5}, {0, 5}}, color = {95, 95, 95}, thickness = 0.5)); connect(world.frame_b, relativeAngles1.frame_b) annotation(Line(visible = true, origin = {43.879, 40}, points = {{-153.879, 40}, {56.121, 40}, {56.121, -80}, {46.121, -80}}, color = {95, 95, 95}, thickness = 0.5)); connect(gain1.u, relativeAngles1.angles[3]) annotation(Line(visible = true, origin = {74, -16.333}, points = {{-12, 6.333}, {6, 6.333}, {6, -12.667}}, color = {0, 0, 127})); connect(revolute3.axis, position1.flange) annotation(Line(visible = true, origin = {-12.895, -10}, points = {{-17.105, 0}, {17.105, 0}})); connect(position1.phi_ref, gain1.y) annotation(Line(visible = true, origin = {32.605, -10}, points = {{-6.395, 0}, {6.395, 0}}, color = {0, 0, 127})); connect(revolute3.frame_b, relativeAngles1.frame_a) annotation(Line(visible = true, origin = {-3.333, -33.333}, points = {{-36.667, 13.333}, {-36.667, -6.667}, {73.333, -6.667}}, color = {95, 95, 95}, thickness = 0.5)); annotation(uses(Modelica(version = "4.0.0")), Diagram(coordinateSystem(extent = {{-240, -143.033}, {210, 100}}, preserveAspectRatio = true, initialScale = 0.1, grid = {10, 10}))); end KeepVertical;

How about this model?

model KeepVertical
  Modelica.Blocks.Math.Gain gain1(k = -1) annotation(Placement(visible = true, transformation(origin = {50, -10}, extent = {{10, -10}, {-10, 10}}, rotation = 0)));
  Modelica.Mechanics.MultiBody.Sensors.RelativeAngles relativeAngles1 annotation(Placement(visible = true, transformation(origin = {80, -40}, extent = {{-10, 10}, {10, -10}}, rotation = 0)));
  Modelica.Mechanics.Rotational.Sources.Position position1 annotation(Placement(visible = true, transformation(origin = {14.21, -10}, extent = {{10, -10}, {-10, 10}}, rotation = 0)));
  Modelica.Mechanics.MultiBody.Parts.Body body(r_0.start = {0.0, 2, 0.0}) annotation(Placement(visible = true, transformation(origin = {-80, -120}, extent = {{-10, -10}, {10, 10}}, rotation = -90)));
  inner Modelica.Mechanics.MultiBody.World world annotation(Placement(visible = true, transformation(origin = {-120, 80}, extent = {{-10, -10}, {10, 10}}, rotation = -360)));
  Modelica.Mechanics.MultiBody.Parts.FixedTranslation fixedTranslation1(r = {0.0, -1, 0.0}) annotation(Placement(visible = true, transformation(origin = {-80, 0}, extent = {{-10, -10}, {10, 10}}, rotation = -90)));
  Modelica.Mechanics.MultiBody.Parts.FixedTranslation fixedTranslation2(r = {0.0, -1, 0.0}) annotation(Placement(visible = true, transformation(origin = {-80, -80}, extent = {{-10, -10}, {10, 10}}, rotation = -90)));
  Modelica.Mechanics.MultiBody.Joints.Revolute revolute2(phi.start = 0.174532925199433, useAxisFlange = false) annotation(Placement(visible = true, transformation(origin = {-80, 40}, extent = {{10, -10}, {-10, 10}}, rotation = 90)));
  Modelica.Mechanics.MultiBody.Parts.Body body1(r_0.start = {0.0, 2, 0.0}) annotation(Placement(visible = true, transformation(origin = {-40, 60}, extent = {{-10, -10}, {10, 10}}, rotation = -270)));
  Modelica.Mechanics.MultiBody.Joints.Revolute revolute3(useAxisFlange = true) annotation(Placement(visible = true, transformation(origin = {-40, -10}, extent = {{-10, -10}, {10, 10}}, rotation = -90)));
  Modelica.Mechanics.MultiBody.Parts.FixedTranslation fixedTranslation3(r = {0.0, -0.5, 0.0}) annotation(Placement(visible = true, transformation(origin = {-40, 20}, extent = {{-10, 10}, {10, -10}}, rotation = 270)));
equation
  connect(fixedTranslation2.frame_b, body.frame_a) annotation(Line(visible = true, origin = {-80, -100}, points = {{0, 10}, {0, -10}}, color = {95, 95, 95}, thickness = 0.5));
  connect(world.frame_b, revolute2.frame_a) annotation(Line(visible = true, origin = {-90, 70}, points = {{-20, 10}, {10, 10}, {10, -20}}, color = {95, 95, 95}, thickness = 0.5));
  connect(revolute2.frame_b, fixedTranslation1.frame_a) annotation(Line(visible = true, origin = {-80, 20}, points = {{0, 10}, {0, -10}}, color = {95, 95, 95}, thickness = 0.5));
  connect(fixedTranslation2.frame_a, fixedTranslation1.frame_b) annotation(Line(visible = true, origin = {-80, -40}, points = {{0, -30}, {0, 30}}, color = {95, 95, 95}, thickness = 0.5));
  connect(fixedTranslation1.frame_b, revolute3.frame_b) annotation(Line(visible = true, points = {{-20, 2.912}, {-20, -27.088}, {20, -27.088}, {20, -7.088}}, color = {95, 95, 95}, thickness = 0.5, origin = {-60, -12.912}));
  connect(fixedTranslation3.frame_a, body1.frame_a) annotation(Line(visible = true, origin = {-40, 40}, points = {{0, -10}, {0, 10}}, color = {95, 95, 95}, thickness = 0.5));
  connect(revolute3.frame_a, fixedTranslation3.frame_b) annotation(Line(visible = true, origin = {-40, 5}, points = {{0, -5}, {0, 5}}, color = {95, 95, 95}, thickness = 0.5));
  connect(world.frame_b, relativeAngles1.frame_b) annotation(Line(visible = true, origin = {43.879, 40}, points = {{-153.879, 40}, {56.121, 40}, {56.121, -80}, {46.121, -80}}, color = {95, 95, 95}, thickness = 0.5));
  connect(gain1.u, relativeAngles1.angles[3]) annotation(Line(visible = true, origin = {74, -16.333}, points = {{-12, 6.333}, {6, 6.333}, {6, -12.667}}, color = {0, 0, 127}));
  connect(revolute3.axis, position1.flange) annotation(Line(visible = true, origin = {-12.895, -10}, points = {{-17.105, 0}, {17.105, 0}}));
  connect(position1.phi_ref, gain1.y) annotation(Line(visible = true, origin = {32.605, -10}, points = {{-6.395, 0}, {6.395, 0}}, color = {0, 0, 127}));
  connect(revolute3.frame_b, relativeAngles1.frame_a) annotation(Line(visible = true, origin = {-3.333, -33.333}, points = {{-36.667, 13.333}, {-36.667, -6.667}, {73.333, -6.667}}, color = {95, 95, 95}, thickness = 0.5));
  annotation(uses(Modelica(version = "4.0.0")), Diagram(coordinateSystem(extent = {{-240, -143.033}, {210, 100}}, preserveAspectRatio = true, initialScale = 0.1, grid = {10, 10})));
end KeepVertical;

POSTED BY: Updating Name

Fabián Peña

Posted 6 months ago

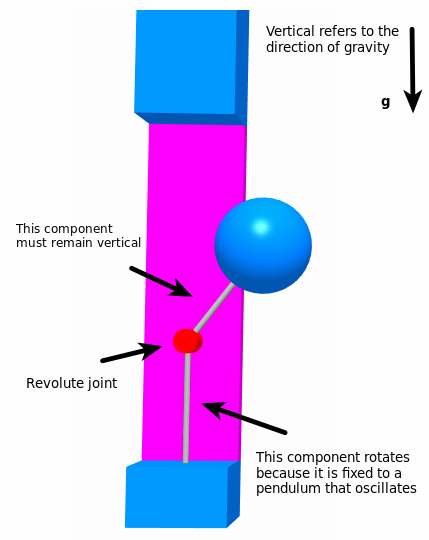

Hello Ankit, Thank you very much for your kind reply. I checked the solution you proposed, and saw that the angle between the frames in the revolute joint is fixed with an angle source. This configuration makes the joint rigid, forcing the components connected to it rotate together. However, it does not keep one of the components vertical. By vertical, I mean parallel to the gravitational field. I see now that my original post was not clear enough. I hope the requirement is better described with this screenshot: Any help will be highly appreciated. Cheers, Fabián

POSTED BY: Fabián Peña

Ankit Naik

Ankit Naik, Wolfram Mathcore

Posted 7 months ago

You could set the "useAxisFlange" option to "true" and provide it with an angle source. model KeepVertical Modelica.Mechanics.MultiBody.Parts.Body body(r_0.start = {0.0, 2, 0.0}) annotation(Placement(visible = true, transformation(origin = {90, -40}, extent = {{-10, -10}, {10, 10}}, rotation = 0))); inner Modelica.Mechanics.MultiBody.World world annotation(Placement(visible = true, transformation(origin = {-120, -40}, extent = {{-10, -10}, {10, 10}}, rotation = 0))); Modelica.Mechanics.MultiBody.Joints.Revolute revolute1(useAxisFlange = true) annotation(Placement(visible = true, transformation(origin = {0, -40}, extent = {{-10, -10}, {10, 10}}, rotation = 0))); Modelica.Mechanics.Rotational.Sources.Position position1 annotation(Placement(visible = true, transformation(origin = {-20, -0}, extent = {{-10, -10}, {10, 10}}, rotation = 0))); Modelica.Blocks.Sources.Constant const annotation(Placement(visible = true, transformation(origin = {-80, -0}, extent = {{-10, -10}, {10, 10}}, rotation = 0))); Modelica.Mechanics.MultiBody.Parts.FixedTranslation fixedTranslation1(r = {0.0, 1, 0.0}) annotation(Placement(visible = true, transformation(origin = {-50, -40}, extent = {{-10, -10}, {10, 10}}, rotation = 0))); Modelica.Mechanics.MultiBody.Parts.FixedTranslation fixedTranslation2(r = {0.0, 1, 0.0}) annotation(Placement(visible = true, transformation(origin = {50, -40}, extent = {{-10, -10}, {10, 10}}, rotation = 0))); Modelica.Mechanics.MultiBody.Joints.Revolute revolute2(useAxisFlange = false, phi.start = 0.0174532925199433) annotation(Placement(visible = true, transformation(origin = {-82.531, -40}, extent = {{-10, -10}, {10, 10}}, rotation = 0))); equation connect(position1.flange, revolute1.axis) annotation(Line(visible = true, origin = {-3.333, -10}, points = {{-6.667, 10}, {3.333, 10}, {3.333, -20}})); connect(const.y, position1.phi_ref) annotation(Line(visible = true, origin = {-50.5, -0}, points = {{-18.5, -0}, {18.5, 0}}, color = {0, 0, 127})); connect(fixedTranslation1.frame_b, revolute1.frame_a) annotation(Line(visible = true, origin = {-25, -40}, points = {{-15, 0}, {15, 0}}, color = {95, 95, 95}, thickness = 0.5)); connect(revolute1.frame_b, fixedTranslation2.frame_a) annotation(Line(visible = true, origin = {25, -40}, points = {{-15, 0}, {15, 0}}, color = {95, 95, 95}, thickness = 0.5)); connect(fixedTranslation2.frame_b, body.frame_a) annotation(Line(visible = true, origin = {70, -40}, points = {{-10, 0}, {10, 0}}, color = {95, 95, 95}, thickness = 0.5)); connect(world.frame_b, revolute2.frame_a) annotation(Line(visible = true, origin = {-101.265, -40}, points = {{-8.735, 0}, {8.735, 0}}, color = {95, 95, 95}, thickness = 0.5)); connect(revolute2.frame_b, fixedTranslation1.frame_a) annotation(Line(visible = true, origin = {-66.265, -40}, points = {{-6.265, 0}, {6.265, 0}}, color = {95, 95, 95}, thickness = 0.5)); annotation(uses(Modelica(version = "4.0.0")), Diagram(coordinateSystem(extent = {{-150, -100}, {138.043, 100}}, preserveAspectRatio = true, initialScale = 0.1, grid = {10, 10}))); end KeepVertical;

You could set the "useAxisFlange" option to "true" and provide it with an angle source.

model KeepVertical
  Modelica.Mechanics.MultiBody.Parts.Body body(r_0.start = {0.0, 2, 0.0}) annotation(Placement(visible = true, transformation(origin = {90, -40}, extent = {{-10, -10}, {10, 10}}, rotation = 0)));
  inner Modelica.Mechanics.MultiBody.World world annotation(Placement(visible = true, transformation(origin = {-120, -40}, extent = {{-10, -10}, {10, 10}}, rotation = 0)));
  Modelica.Mechanics.MultiBody.Joints.Revolute revolute1(useAxisFlange = true) annotation(Placement(visible = true, transformation(origin = {0, -40}, extent = {{-10, -10}, {10, 10}}, rotation = 0)));
  Modelica.Mechanics.Rotational.Sources.Position position1 annotation(Placement(visible = true, transformation(origin = {-20, -0}, extent = {{-10, -10}, {10, 10}}, rotation = 0)));
  Modelica.Blocks.Sources.Constant const annotation(Placement(visible = true, transformation(origin = {-80, -0}, extent = {{-10, -10}, {10, 10}}, rotation = 0)));
  Modelica.Mechanics.MultiBody.Parts.FixedTranslation fixedTranslation1(r = {0.0, 1, 0.0}) annotation(Placement(visible = true, transformation(origin = {-50, -40}, extent = {{-10, -10}, {10, 10}}, rotation = 0)));
  Modelica.Mechanics.MultiBody.Parts.FixedTranslation fixedTranslation2(r = {0.0, 1, 0.0}) annotation(Placement(visible = true, transformation(origin = {50, -40}, extent = {{-10, -10}, {10, 10}}, rotation = 0)));
  Modelica.Mechanics.MultiBody.Joints.Revolute revolute2(useAxisFlange = false, phi.start = 0.0174532925199433) annotation(Placement(visible = true, transformation(origin = {-82.531, -40}, extent = {{-10, -10}, {10, 10}}, rotation = 0)));
equation
  connect(position1.flange, revolute1.axis) annotation(Line(visible = true, origin = {-3.333, -10}, points = {{-6.667, 10}, {3.333, 10}, {3.333, -20}}));
  connect(const.y, position1.phi_ref) annotation(Line(visible = true, origin = {-50.5, -0}, points = {{-18.5, -0}, {18.5, 0}}, color = {0, 0, 127}));
  connect(fixedTranslation1.frame_b, revolute1.frame_a) annotation(Line(visible = true, origin = {-25, -40}, points = {{-15, 0}, {15, 0}}, color = {95, 95, 95}, thickness = 0.5));
  connect(revolute1.frame_b, fixedTranslation2.frame_a) annotation(Line(visible = true, origin = {25, -40}, points = {{-15, 0}, {15, 0}}, color = {95, 95, 95}, thickness = 0.5));
  connect(fixedTranslation2.frame_b, body.frame_a) annotation(Line(visible = true, origin = {70, -40}, points = {{-10, 0}, {10, 0}}, color = {95, 95, 95}, thickness = 0.5));
  connect(world.frame_b, revolute2.frame_a) annotation(Line(visible = true, origin = {-101.265, -40}, points = {{-8.735, 0}, {8.735, 0}}, color = {95, 95, 95}, thickness = 0.5));
  connect(revolute2.frame_b, fixedTranslation1.frame_a) annotation(Line(visible = true, origin = {-66.265, -40}, points = {{-6.265, 0}, {6.265, 0}}, color = {95, 95, 95}, thickness = 0.5));
  annotation(uses(Modelica(version = "4.0.0")), Diagram(coordinateSystem(extent = {{-150, -100}, {138.043, 100}}, preserveAspectRatio = true, initialScale = 0.1, grid = {10, 10})));
end KeepVertical;

POSTED BY: Ankit Naik
