Introduction

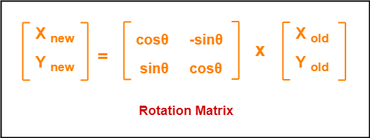

During my time at Lawrence Technological University, researching under Dr. Bhubanjyoti Bhattacharya, I developed code using Wolfram Mathematica to help visualize the 2-dimensional rotation matrix. The 2D rotation matrix rotates an object by an angle and determines its new components:
![enter image description here](https://community.wolfram.com//c/portal/getImageAttachment?filename=Rotation-Matrix-in-Computer-Graphics-1.png&userId=3234202)
My code uses algebraic and trigonometric calculations to animate both a pair of axes rotating about a vector and the vector's components.
Program Breakdown
a = Graphics[Arrow[{{0, 0}, {5, 5}}], Axes -> True];
axis2vectorangle = ArcTan[1];
The variable, "a," represents a set vector in 2-dimensional space. The variable, "axis2vectorangle," represents the angle between the original axis and set vector; because the vector's x and y coordinates are equal to each other, "axis2vectorangle" equals the inverse tangent of '1.'
x[[Theta]_] :=
Graphics[{Dashed,
Line[{{5,
5}, {-5 Sqrt[2]
Sin[axis2vectorangle - [Theta] Degree] Sin[[Theta] Degree],
5 Sqrt[2]
Sin[axis2vectorangle - [Theta] Degree] Cos[[Theta]
Degree]}}]}];
y[[Theta]_] :=
Graphics[{Dashed,
Line[{{5,
5}, {5 Sqrt[2]
Cos[axis2vectorangle - [Theta] Degree] Cos[[Theta] Degree],
5 Sqrt[2]
Cos[axis2vectorangle - [Theta] Degree] Sin[[Theta]
Degree]}}]}];
p[[Theta]_] :=
Show[{a, x[[Theta]], y[[Theta]],
Plot[{Tan[[Theta] Degree] x,
Tan[([Theta] + 90) Degree] x}, {x, -10, 10},
PlotRange -> {-10, 10}, Axes -> True, AxesStyle -> Dashed,
AspectRatio -> 1, PlotStyle -> {Gray}]}];
figure =
Animate[p[[Theta]], {{[Theta], 45}, 0, 360},
ControlPlacement -> Top];
The functions x[[Theta]] and y[[Theta]] define the x and y components, respectively, of the vector, with respect to an axis rotated by [Theta] degrees.
x[[Theta]]
Multiplying the length of "a," '5Sqrt[2],' by the sine of [axis2vectorangle - [Theta] degrees] results in the hypotenuse of the x and y components of the vector's x component, post-axis-rotation. Then, multiplying by the sine of [Theta] degrees yields the x coordinate, while multiplying by the cosine of [Theta] degrees yields the y coordinate.
y[[Theta]]
Using the same length of the vector, "a," but multiplying by the cosine of [axis2vectorangle - [Theta] degrees] results in the hypotenuse of the x and y components of the vector's y component, post-axis-rotation. Then, multiplying by the cosine of [Theta] degrees yields the x coordinate, while multiplying by the sine of [Theta] degrees yields the y coordinate.
Finally, p[[Theta]] graphs "a," x[[Theta]], y[[Theta]], and the pair of axes rotated by an angle [Theta]. This function is animated to clearly visualize the 2D rotation group through the rotation of a pair of axes.

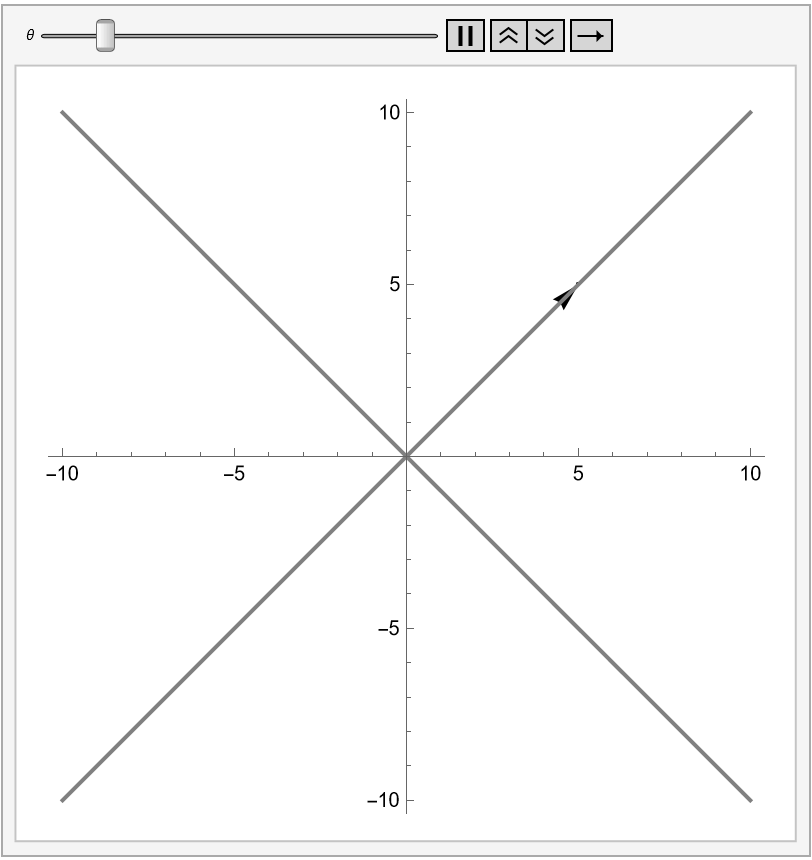

Animation
![enter image description here](https://community.wolfram.com//c/portal/getImageAttachment?filename=figure.gif&userId=3234202)
Conclusion
Generally, this code uses algebraic and trigonometric calculations in an attempt to help visualize the 2D rotation matrix for those unfamiliar with the concept. Attached is a notebook that contains this program and the same breakdown text interspersed through it.
