How to get nontrivial solution of differential equation (Euler buckling load)?

Posted 21 days ago
DSolve[{yy''''[x]+Mu^2*yy''[x]==0,
yy[0]==0,yy[l]==0,
yy''[0]==0, yy''[l]==0},
yy[x],x]

returned result is {{yy(x)->0}}

But i want a solution like

yy[x] == C1*Sin[(C2*Pi)/l*x] (0 <= x <= l)

POSTED BY: Ralph Schenn
8 Replies
Posted 13 days ago

Im afraid that i have to revisit this issue later when i have gained more experience with Mathematica. I have much more experience with AMS on TI-89 and compatibles in Basic and also with lower level programming for that System in C but at the moment this ist to hard for me. I was thinking it would be much simpler, probably just something like adding an assumption.

POSTED BY: Ralph Schenn

Since DSolve[] won't solve the eigenvalue problem by itself, one has to use Solve[] or something else to finish the job. Of course, there are different approaches and stages where one might do that. Given the general solution to a linear ODE, the boundary conditions (BCs) lead to a linear problem plus a condition that defines the eigenvalues. The extra condition is usually nonlinear, which might complicate solving the problem. In the OP's example, it's a trigonometric equation that is readily solved.

DSolve[] will try to solve eigenvalue problems when there are exactly two boundary conditions, but that's not the case in the problem at hand. Since there are four BCs, DSolve[] solves the system as a BVP, treating mu as a fixed parameter.

Note that the harmonic oscillator equation is handled as a special case by the eigenvalue-problem solver in DSolve[]. One advantage of the special handling is that you get one family of eigenvalues, instead of the two families that Solve[] and Reduce[] usually return when you solve Sin[u] == 0, one for u == 2n Pi (even multiplies) and one for u == (2n+1) Pi (odd multiples). In the approach below, we get two families of these types.

solToFunction = # /. {y_[x__] -> val_} :> {y -> Function[{x}, val]} &; (* utility *)

(* Set up the problem *)
ClearAll[yy, x, l, \[Mu]];
ode = yy''''[x] + \[Mu]^2 yy''[x] == 0;
bcs = {yy[0] == 0, yy[l] == 0, yy''[0] == 0, yy''[l] == 0};
(* get general solution *)
gensol = DSolve[ode, yy[x], x];
(* matrix of linear system from BCs == Part [[2]] *)
bcsys = CoefficientArrays[
    Subtract @@@ First[bcs /. solToFunction@gensol], Array[C, 4]][[2]];
(* solve the boundary conditions *)
bcsol = Simplify[
    Reduce[{
      bcsys . Array[C, 4] == {0, 0, 0, 0}, (* solve for nullspace *)
      Det[bcsys] == 0},(* nontrivial nullspace/eigenvalue condition *)
     Array[C, 4]],
    l > 0 && \[Mu] > 0] // (* extra conditions *)
   (* solve for parameter mu and whichever C[k]'s Solve can *)
   Solve[#, Array[C, 4]~Append~\[Mu]] &;
First[gensol] /. bcsol (* plug in values of parameters *)

Solve::svars: Equations may not give solutions for all "solve" variables.

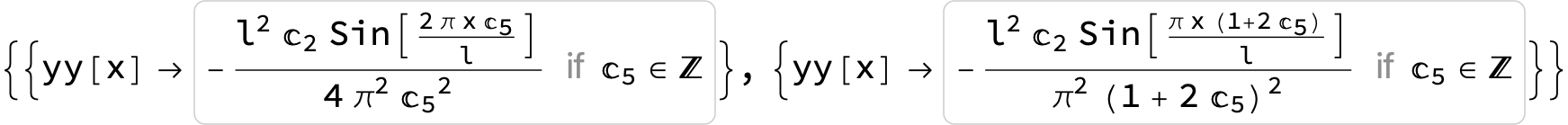

output

The warning message is because Solve[] cannot solve for all the C[k] parameters of integration (C[2] in this case). That is, of course, exactly what we want to have happen.

POSTED BY: Michael Rogers
Posted 19 days ago

Thanks for the replies. Will try to understand them when i have more time then at the moment

POSTED BY: Ralph Schenn

I guess I could add that DSolve[] treats μ as a given parameter, not as an unknown to be solved for. The only solution that is generically true — that is, true for almost all values of μ and l — is the trivial solution. You have to take special steps, such as you've shown, to solve the eigenvalue problem. Was that what you were trying to demonstrate?

POSTED BY: Michael Rogers

In the second order case DSolve provides conditions on the parameters:

DSolve[{yy''[x] + Mu^2*yy[x] == 0,
  yy[0] == 0, yy[l] == 0},
 yy[x], x]

In the fourth order case, we may impose the initial conditions first and the final conditions later:

sol0 = DSolve[{yy''''[x] + Mu^2*yy''[x] == 0,
   yy[0] == 0, yy''[0] == 0}, yy, x]
conditionsAtL = {yy[l] == 0, yy''[l] == 0, Mu > 0, l > 0} /. sol0[[1]]
paramConditions = conditionsAtL // Solve
finalSols = yy[x] /. sol0 /. paramConditions
POSTED BY: Gianluca Gorni

To follow up on my remark about DSolve[] not solving for parameters, if one makes mu a dependent variable, then DSolve[] will solve for it. This can be done by replacing μ by μ[x] and adding the differential equation μ'[x] == 0. Unfortunately, the default solver uses inverse functions in this case. That yields only one solution, the trivial solution, instead of all solutions:

ode = yy''''[x] + \[Mu]^2 yy''[x] == 0;
bcs = {yy[0] == 0, yy[l] == 0, yy''[0] == 0, yy''[l] == 0};
DSolve[{ode /. \[Mu] -> \[Mu][x], \[Mu]'[x] == 0, bcs}, {yy[x], \[Mu][x]}, x,
 Assumptions -> \[Mu][x] > 0 && l > 0]

(*  `DSolve::ifun`: Inverse functions are being used by DSolve, so some solutions may not be found.  *)
(*  {{yy[x] -> 0, \[Mu][x] -> C[1]}}  *)

However, we can use what is often called the Villegas-Gayley trick to adjust how Solve[] works:

Internal`InheritedBlock[{Solve},
 Unprotect[Solve];
 Solve[eq_, v_, opts___] /; ! TrueQ[$in] := Block[{$in = True},
   Simplify@Solve[Flatten@{eq, $Assumptions}, v, Method -> Reduce, opts]];
 Protect[Solve];
 DSolve[{ode /. \[Mu] -> \[Mu][x], \[Mu]'[x] == 0, bcs}, {yy[x], \[Mu][x]}, x,
  Assumptions -> \[Mu][x] > 0 && l > 0 && C[1] > 0]
 ]
(*
{{yy[x] -> 0, \[Mu][x] -> C[1]},
  {yy[x] -> ConditionalExpression[
     -((l^3*C[3] Sin[(2*Pi*x*C[6])/l])/(8*Pi^3*C[6]^3)),
     Element[C[6], Integers] && C[6] >= 1],
   \[Mu][x] -> ConditionalExpression[
     (2*Pi*C[6])/l,
     Element[C[6], Integers] && C[6] >= 1]},
  {yy[x] -> ConditionalExpression[
     -((l^3*C[3] Sin[(x*(Pi + 2*Pi*C[6]))/l])/(Pi^3*(1 + 2*C[6])^3)),
     Element[C[6], Integers] && C[6] >= 0],
   \[Mu][x] -> ConditionalExpression[
     (Pi + 2*Pi*C[6])/l,
     Element[C[6], Integers] && C[6] >= 0]}}
*)

The extra condition C[1] > 0 is not necessary but simplifies the output. It was added as an afterthought, after seeing \[Mu][x] was solved as \[Mu][x] -> C[1] in terms of C[1]. The assumption \[Mu][x] > 0 is not automatically extended to include C[1].

One could simplify the values in the solution to C[3] Sin[2 π x C[6] / l] and C[3] Sin[x (π + 2 π C[6]) / l], if one wanted to. A general code to do so takes some work.

POSTED BY: Michael Rogers
Posted 20 days ago

I removed the constants to make the ODE simple and used constants for initial conditions, which can be modified, accordingly.

(* 1st approach *)
dsolSDL03 = DSolve[
  {D[y[x], {x, 4}] + D[y[x], {x, 2}] == 0,
   y[0] == 4, y'[0] == 3, y''[0] == 2, y'''[0] == 1 },
  {y}, {x, 0, 10}]

(* 2nd approach *)
dsolSDL04 = DSolve[
  {D[y0[x], {x, 1}] == y1[x]    (* 1st derivative of y[x] *),
   D[y1[x], {x, 1}] == y2[x]    (* 2nd derivative of y[x] *),
   D[y2[x], {x, 1}] == y3[x]    (* 3rd derivative of y[x] *),
   D[y3[x], {x, 1}] == -y2[x]   (* 4th derivative of y[x] *),
   y0[0] == 4, y1[0] == 3, y2[0] == 2, y3[0] == 1 },
  {y0, y1, y2, y3}, {x, 0, 10}]

{Plot[Evaluate[{y[x], y'[x], y''[x], y'''[x]} /. dsolSDL03], {x, 0, 10}],
 Plot[Evaluate[{y0[x], y1[x], y2[x], y3[x]} /. dsolSDL04], {x, 0, 10}]}
POSTED BY: Sangdon Lee

This post is tagged as a question, and the title is a question; but the code seems to be a solution. Is it good enough, or are you looking for some kind of help?

POSTED BY: Michael Rogers
