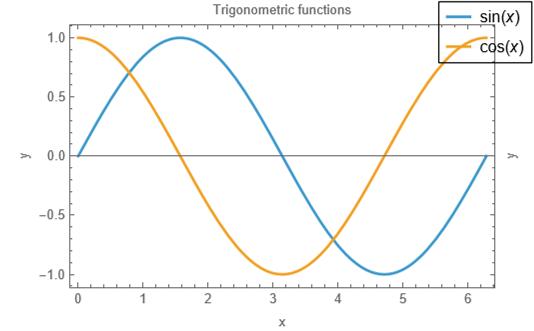

i think the problem is that Frame is not a Graphics objects. The coordinate issue (which is a bug I guess) can be solved by doing:

Placed[… , {Scaled[{1, 1}], Scaled[{1, 1}]}]

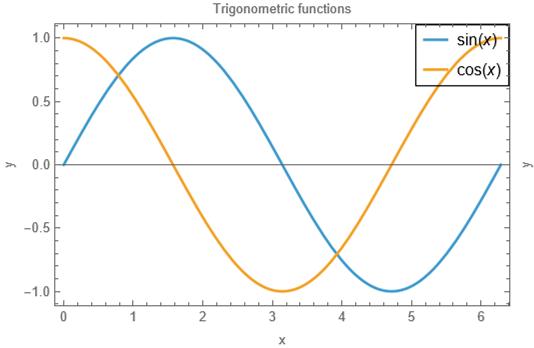

And not-so-nice solution would be to add the 'box' manually:

Plot[{Sin[x], Cos[x]}, {x, 0, 2 \[Pi]}, Frame -> True,
 FrameLabel -> {{"y", "y"}, {"x", "Trigonometric functions"}},
 ImageSize -> 400, PlotRange -> {{0, 2 Pi}, {-1.1, 1.2}},
 PlotRangePadding -> None,
 PlotLegends ->
  Placed[LineLegend["Expressions"], {Scaled[{1, 1}], Scaled[{1, 1}]}],
  Epilog -> {EdgeForm[Black], FaceForm[],
   Line[{{5, 1.2}, {5, 0.65}, {2 Pi, 0.65}}]}, FrameStyle -> Black]
