How do I connect VoltageSource to Star in Wolfram SystemModeler?

Posted 10 years ago

In Wolfram System Modeler I cannot connect VoltageSource to Star. The system returns 'Error Incompatible components... '. Such a connection is used in system example PermanentMagnetSynchronousMotor. What is wrong?

POSTED BY: Melvin Klein
Posted 9 years ago

See the attached example (based on Modelica.Electrical.MultiPhase.Examples.TestSensors) for how to connect voltage sources with Star.

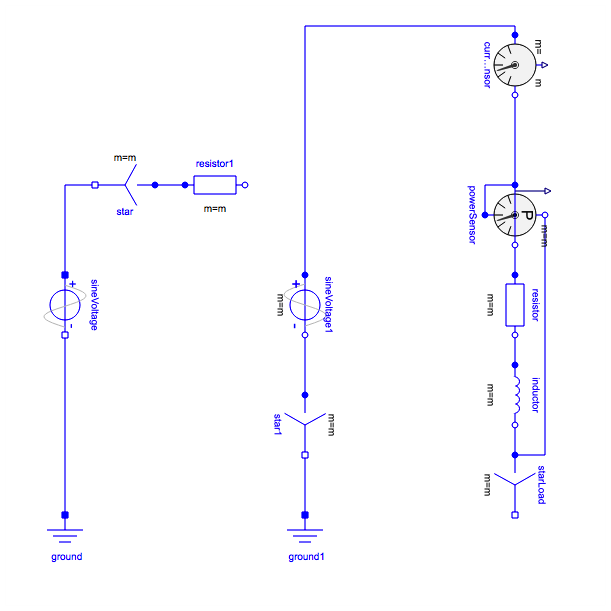

Electric circuit with star

Note that Modelica.Electrical.Analog.Interfaces.VoltageSource is a partial model and cannot be used directly.

Attachments:
POSTED BY: Johan Rhodin
