Palette created in v14.3 ignores magnification control

Hans Milton
Posted 22 days ago

It appears that a palette created in version 14.3 cannot include control of magnification

The code:

CreatePalette[
  Style["ABC",Bold,24]//Framed,
  WindowSize->{100,60},
  TextAlignment->Center,
  WindowTitle->"Palette example",
  WindowElements->{"MagnificationPopUp"}
]

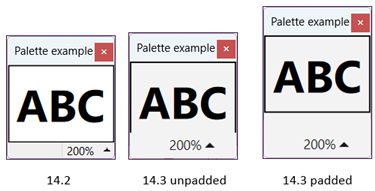

Result in 14.2: enter image description here

Result in 14.3: enter image description here
POSTED BY: Hans Milton
4 Replies
Sort By:

Adding "StatusArea" to WindowElements will bring it back.
POSTED BY: Ian Hojnicki
Hans Milton
Hans Milton
Posted 21 days ago

Thanks Ian for quick response. Adding “StatusArea” to WindowElements does bring back the magnification control. But there is a drawback: The area now obscures the lower part of the palette content. A workaround is to “pad” the content expression with an empty string. But this will also result in increasing palette size. Hard to see that this change in 14.3 is intentional, looks more like a bug.

enter image description here
POSTED BY: Hans Milton

I would report the clipped content as a bug to tech support.
POSTED BY: Ian Hojnicki
Hans Milton
Hans Milton
Posted 19 days ago

I will. Thanks.
POSTED BY: Hans Milton
