CH4 molecular geometry: model verification and minimal enclosing tetrahedron

Posted 10 hours ago

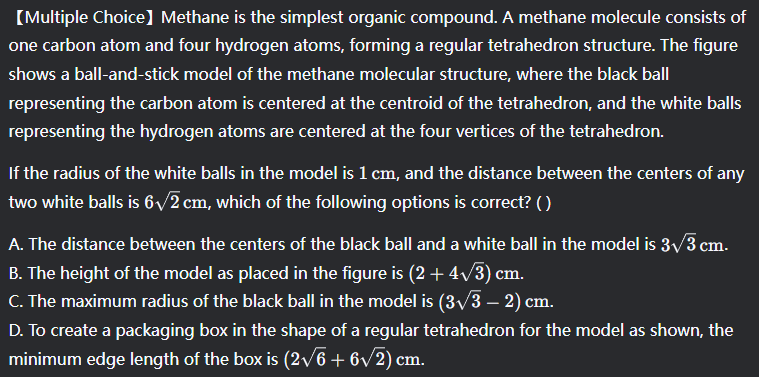

The question is:

enter image description here

vertices = {{0, 0, Sqrt[2/3] - 1/(2 Sqrt[6])}, {0,
    Sqrt[3]/3, -1/(2 Sqrt[6])}, {-1/2, -Sqrt[3]/
     6, -1/(2 Sqrt[6])}, {1/2, -Sqrt[3]/6, -1/(2 Sqrt[6])}   };


scale = (6 Sqrt[2])/Sqrt[Total[(vertices[[1]] - vertices[[2]])^2]];
scaledVertices = scale*vertices;


center = Mean[scaledVertices];


a = 6 Sqrt[2];
h = a Sqrt[2/3];
R = 3/4 h;
r_inner = h/4;
maxBlackRadius = R - 1;


hydrogenBalls = Table[Sphere[scaledVertices[[i]], 1], {i, 4}];
carbonBall = Sphere[center, maxBlackRadius];
sticks = Table[Cylinder[{center, scaledVertices[[i]]}, 0.1], {i, 4}];

modelPlot =
 Graphics3D[{{White, Opacity[0.8], hydrogenBalls}, {Black,
    Opacity[0.8], carbonBall}, {Gray, Opacity[0.6], sticks}, {Red,
    PointSize[0.02], Point[center]}, {Blue, PointSize[0.02],
    Point[scaledVertices]}}, Boxed -> True, Lighting -> "Neutral",
  ViewPoint -> {1, 1, 1}, ImageSize -> 500, PlotLabel -> "Model"]

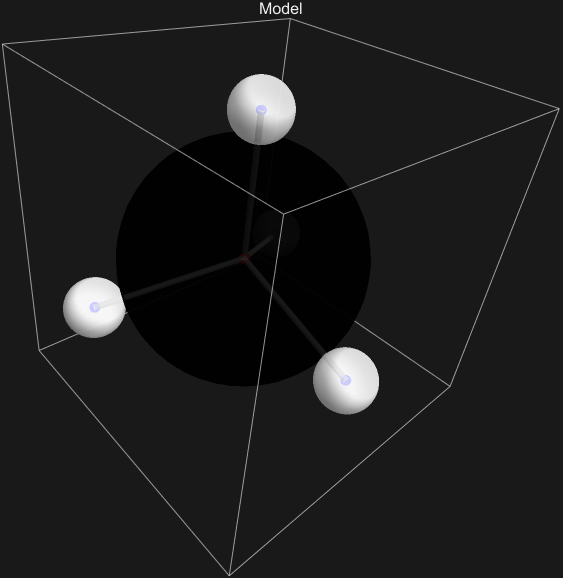

enter image description here

My question is: According to the requirements of the problem, what are some good methods to draw the three-dimensional structure of methane, and to draw a circumscribed regular tetrahedron that can accommodate this structure while meeting the requirements, and to determine the correctness of the four options.
