How to speed up code for solving complex equations

Posted 10 days ago
{pM = {xM, yM, 2}, pD = {0, 0, 0}, pN = {0, 2, h}, pA = {2, 0, 0},
     relcir = (xM - 1)^2 + (yM - 1)^2 == 1, pQ = {a, b, c}}
    slq = Solve[{pQ - pA == \[Lambda] (pN - pA)}][[1]]
    pQ = pQ /. slq
    AbsoluteTiming@
     Reduce[{Norm[pQ - pA] == Norm[pQ - pN] == Norm[pQ - pM] ==
        Norm[pQ - pD], relcir, 0 <= h <= 2,
       0 <= \[Lambda] <= 1}, {\[Lambda], h}, {xM, yM}, Reals]

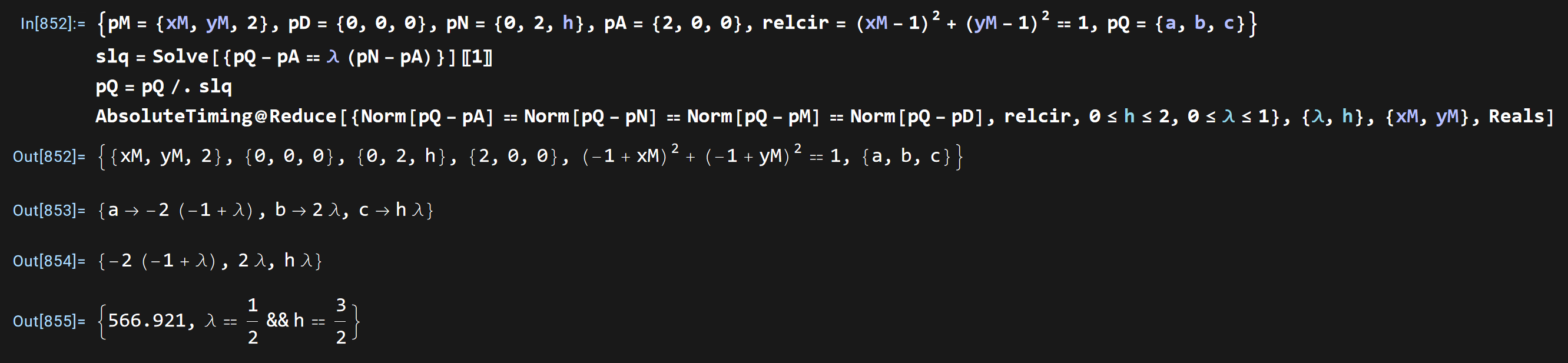

How to Speed Up Code for Solving Complex Equations. As shown in the figure below, the code takes nearly 10 minutes to obtain a solution. How can I improve the running efficiency?

enter image description here

POSTED BY: David carl
4 Replies

I wonder if the problem with Norm is that internally it calls Abs, which is not holomorph:

Norm[{x, y}] == Sqrt[Abs[x]^2 + Abs[y]^2]

and it causes trouble with derivatives, for example:

D[Norm[{x, y}], x]

I wish there was a RealNorm that avoids the Abs, just as we have RealAbs already.

POSTED BY: Gianluca Gorni

Since you're working over the domain Reals, use Sqrt[#.#] & or better in this case, its square, #.# &.

{pM = {xM, yM, 2}, pD = {0, 0, 0}, pN = {0, 2, h}, pA = {2, 0, 0},
  relcir = (xM - 1)^2 + (yM - 1)^2 == 1, pQ = {a, b, c}};
slq = Solve[{pQ - pA == \[Lambda] (pN - pA)}][[1]];
pQ = pQ /. slq;
Block[{Norm = # . # &},
 AbsoluteTiming@
  Reduce[{Norm[pQ - pA] == Norm[pQ - pN] == Norm[pQ - pM] ==
     Norm[pQ - pD], relcir, 0 <= h <= 2,
    0 <= \[Lambda] <= 1}, {\[Lambda], h}, {xM, yM}, Reals]
 ]
(*  {0.051348, \[Lambda] == 1/2 && h == 3/2}  *)
POSTED BY: Michael Rogers
Posted 10 days ago

Converting to an equivalent computational process and using a custom function for the calculation is much faster. Thank you — that's an excellent method, and it has solved the problem.

POSTED BY: David carl

I suppose I should have mentioned that what guided me was old-Mathematica, when polynomial systems and systems that could be converted to polynomial systems were the principal strength of Mathematica in symbolic equation-solving. The complex (numbers) function Abs[] that appears in Norm[] adds a level of complexity that apparently invokes a lot of algebra or a lot of checking, or both. While equation-solving has greatly improved over the years, this drawback of using Norm[] in real-algebraic equations has persisted. Similarly, Sqrt[] means extra branch-checking and extra time. The Reals specification means that Reduce[] has to check that the value of each Sqrt[] is real in its operations.

POSTED BY: Michael Rogers
