why does FindRoot with Integrate inside not always work correctly

Posted 10 years ago

I would like, for a function that I have defined, to find a limit of integration that results in a given value of integration. I am using findroot to find the limit of integration but one way of calling findroot works and another does not and I do not understand the difference in the two ways of calling findroot. With one way of calling I get

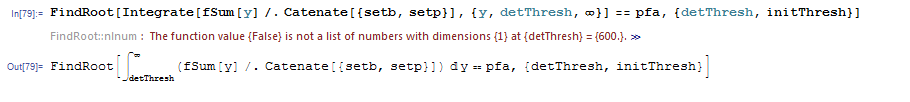

findroot fails

and the other way I get

findroot works

The only difference in the two ways of calling is that I changed the format of the call from

FindRoot[f[x]==a,{x,x0}]

to

FindRoot[f[x]-a,{x,x0}]

Can anyone explain why there is a difference in the way Mathematica responds?

POSTED BY: Mike Luntz
6 Replies

For reference, the related discussion is probably http://community.wolfram.com/groups/-/m/t/415464.

POSTED BY: Bruce Miller
Posted 10 years ago

Thanks for the help Daniel. Although I am no longer a youngster I started using Mathematica only recently and am still a novice in its use, a fact that may be obvious from my questions. I will need to think about your replies and those of a similar question I posed on the forum recently before I fully comprehend all the implications of the answers.

POSTED BY: Mike Luntz

Thank you, that is much better.

I played around with this and I can say a couple of things.

(1) This next variant works as expected.

threshold = FindRoot[Integrate[
    fSum[y] /. Catenate[{setb, setp}], {y, detThresh, \[Infinity]},
    Assumptions -> Element[detThresh, Reals]] == pfa, {detThresh, initThresh}]

I suspect this means FindRoot has a problem in this case with the ConditionalExpression result from that Integrate (without the Assumptions specification). Offhand I do not know why. I'll poke around if I get a chance.

(2) As I believe was noted in a related thread, it might be better to define the function as a "black box" that only exists when given explicitly numeric input. That would forestall any issues FindRoot might be having with the symbolic Integrate result.

Upshot: there may be a bug, and there are definitely workarounds.

POSTED BY: Daniel Lichtblau

Michael Trott suggests the following variant, as it can be used to handle the issue of ConditionalExpression swallowing Equal.

threshold = FindRoot[Integrate[
    fSum[y] /. Catenate[{setb, setp}], {y, detThresh, \[Infinity]},
    Assumptions -> Element[detThresh, Reals]] == pfa, {detThresh, initThresh}, Evaluated->False]

It seems that this Evaluated option is not documented though.

POSTED BY: Daniel Lichtblau
Posted 10 years ago

Daniel,

Sorry for the terse initial post. I mistakenly assumed that the remainder of the code was irrelevant, Here is an example of the complete code.

In[1]:= Clear["Global`*"]

In[2]:= f[x_, b_, p_] =
 DiracDelta[x] (1 - Exp[-b/p]) + Exp[-(x + b)/p]/p

Out[2]= E^((-b - x)/p)/p + (1 - E^(-(b/p))) DiracDelta[x]

In[3]:= capF[s_] =
 Assuming[b \[Element] Reals && b > 0,
  Simplify[LaplaceTransform[f[x, b, p], x, s]]]

Out[3]= (1 + p s - E^(-(b/p)) p s)/(1 + p s)

In[4]:= g[s_, k_] =
 capF[s] /. {b -> Subscript[b, k], p -> Subscript[p, k]}

Out[4]= (1 + s Subscript[p, k] -
 E^(-(Subscript[b, k]/Subscript[p, k])) s Subscript[p, k])/(1 +
 s Subscript[p, k])

In[5]:= fSum[y_] =
  InverseLaplaceTransform[Expand[Product[g[s, k], {k, 1, 6}]], s, y];

In[6]:= bdb = {83, 92, 96, 99, 100, 95} - 15 - 80

Out[6]= {-12, -3, 1, 4, 5, 0}

In[7]:= setb = Table[Subscript[b, k] -> 10^(.1 bdb[[k]]), {k, 1, 6}]

Out[7]= {Subscript[b, 1] -> 0.0630957, Subscript[b, 2] -> 0.501187,
 Subscript[b, 3] -> 1.25893, Subscript[b, 4] -> 2.51189,
 Subscript[b, 5] -> 3.16228, Subscript[b, 6] -> 1.}

In[8]:= setp =
 Table[Subscript[p, k] -> 10^(.1 (bdb[[k]] + 15)), {k, 1, 6}]

Out[8]= {Subscript[p, 1] -> 1.99526, Subscript[p, 2] -> 15.8489,
 Subscript[p, 3] -> 39.8107, Subscript[p, 4] -> 79.4328,
 Subscript[p, 5] -> 100., Subscript[p, 6] -> 31.6228}

In[9]:= pfa = .01;
initThresh = 700

Out[10]= 700

In[11]:= threshold =
 FindRoot[Integrate[
    fSum[y] /. Catenate[{setb, setp}], {y, detThresh, \[Infinity]}] ==
    pfa, {detThresh, initThresh}]

During evaluation of In[11]:= FindRoot::nlnum: The function value {False} is not a list of numbers with dimensions {1} at {detThresh} = {700.}. >>

During evaluation of In[11]:= FindRoot::nlnum: The function value {False} is not a list of numbers with dimensions {1} at {detThresh} = {700.}. >>

Out[11]= FindRoot[\!\(
\*SubsuperscriptBox[\(\[Integral]\), \(detThresh\), \
\(\[Infinity]\)]\(\((fSum[y] /.
      Catenate[{setb, setp}])\) \[DifferentialD]y\)\) ==
  pfa, {detThresh, initThresh}]

In[12]:= threshold =
 FindRoot[Integrate[
    fSum[y] /. Catenate[{setb, setp}], {y, detThresh, \[Infinity]}] -
   pfa, {detThresh, initThresh}]
   {detThresh -> 697.83}

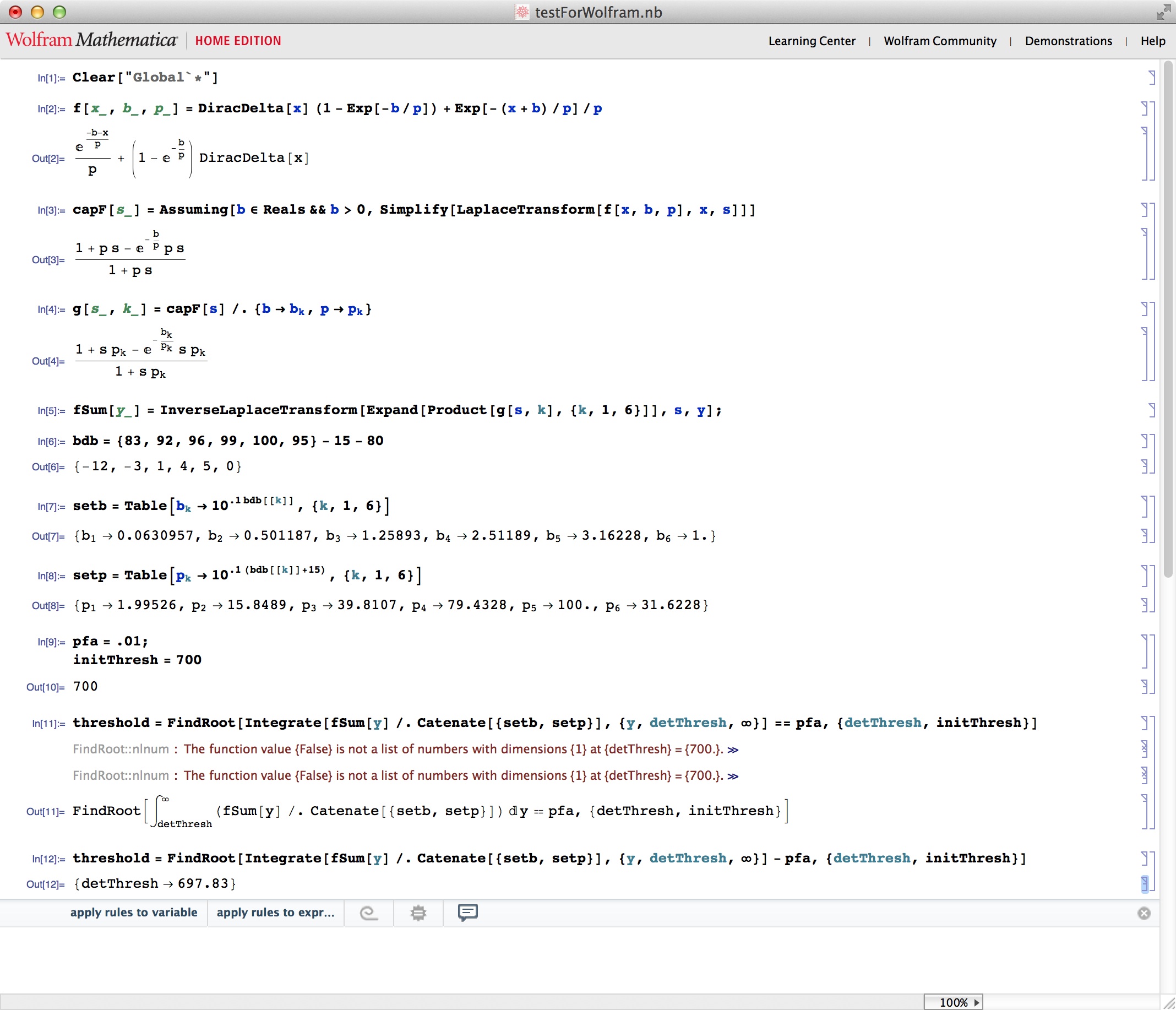

The notebook doesn't look quite like the code above so I am also including an image. If it would help I can also attach the file.

enter image description here

POSTED BY: Mike Luntz

If you post full code to reproduce the problem, rather than an image of incomplete code, you will increase the chance of someone figuring out what might be at issue.

I say this quite often, actually. It was less of an issue back in the days before gifs.

POSTED BY: Daniel Lichtblau
