There are a lot of arcade games realized with MMA, including: 2048 (2D and 3D), Sokoban, point 24, Gomoku, Snake, Minesweeper and Tetris. As well as video games like minecraft and SimCity 3000.
However, one classic scrolling shooter arcade game named "Raiden" (means "thunder and lighting") is missing.
Raiden is a 1990 vertically scrolling shooter arcade video game developed by Seibu Kaihatsu and published by Tecmo in Japan. The game's story takes place in the year 2090, when an alien species known as the Crystals invaded Earth. Players assume the roles of the Vanquish Crystal Defense pilot duo, taking control of two state of the art Fighting Thunders aircraft to defeat the Crystals and save the Earth.

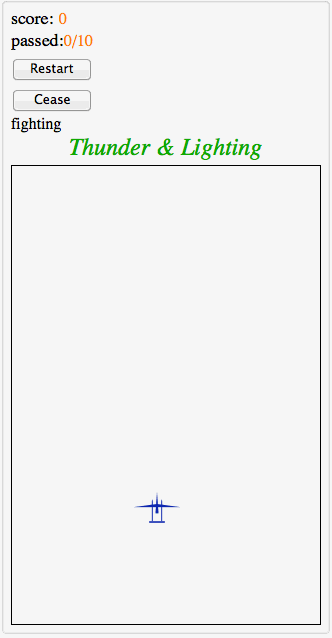

Here is a prototype of that:
ClearAll["Global`*"]
ClearSystemCache[]
RemoveScheduledTask[ScheduledTasks[]];
DynamicModule[
{
army = {},
bullet = {},
missle = {},
direct = {},
reach = 0,
score = 0,
toClean,
num = 5,
pos,
(*reach=0,*)
reachNum = 10,
RestartAll,
pausing = True,
stop = True,
rand,
least,
launcher,
target,
hit,
explosion = 10,
crash = 10,
bulletSpeed = .6,
enermySpeed = .1,
jet = Graphics[
{Darker@Blue, Polygon[{{0, 0}, {1, 0}, {1, .1}, {0, .1}}],
Polygon[{{0.5, 2}, {.4, .6}, {.6, .6}}],
Polygon[{{-1, 1}, {2, 1}, {.5, 1.2}}],
Thickness -> .02, Arrow[{{.2, .1}, {.2, 1.5}}],
Arrow[{{.8, .1}, {.8, 1.5}}]}, ImageSize -> Tiny],
enermy = Graphics[
{Gray, Polygon[{{.1, 2}, {.9, 2}, {.9, 1.9}, {.1, 1.9}}],
Polygon[{{.5, 0}, {.4, 1.9}, {.6, 1.9}}],
Polygon[{{-1, 1.1}, {2, 1.1}, {.5, .9}}],
Thickness -> .02, Arrow[{{.2, 1.4}, {.2, 0.6}}],
Arrow[{{.8, 1.4}, {.8, .6}}]}, ImageSize -> Tiny]
},
least[bullets_, army_] :=(*Get the local (pseduo) minimum distance between bullets and enermy army*)
Module[{len1 = Length@bullets, len2 = Length@army, frontList, postList, dist, loc, short, long, locShort, locLong},
If[len1 >= len2, frontList = bullets; postList = army, frontList = army; postList = bullets];
dist = (EuclideanDistance @@@ Partition[Riffle[frontList, postList], 2, 1]);
loc = First@Flatten@Position[dist, Min[dist], 1(*,1*)];
locShort = Mod[Mod[loc, 2] + Quotient[loc, 2], Length@postList, 1];
locLong = Quotient[loc, 2] + 1;
short = postList[[locShort]];
long = frontList[[locLong]];
Return[If[len1 >= len2, {locShort, locLong, Min@dist}, {locLong, locShort, Min@dist}]]
];
rand[] := {RandomReal[{-30, 40}], 160};(*Randomly generate enermy flights*)
RestartAll[] := (RemoveScheduledTask[ScheduledTasks[]];
RunScheduledTask[
If[! pausing,
If[(*Randomly generate enermy flights*)
MemberQ[
RandomChoice[
{(Length@army)/num, 1 - (Length@army)/num} -> {False, True},
1
],
True],
AppendTo[army, {enermy, rand[]}]
];
If[(*Handle the situate of collision between the jet and enermy army*)
MemberQ[
Norm[
#[[2]] - MousePosition["Graphics", {0, 0}]
] < crash & /@ army,
True],
(*Speak["Bang"];*)
RemoveScheduledTask[ScheduledTasks[]];
CreateDialog[{TextCell["You Crash!", "Title"], Column@{Row@{"Score: ", score}, Row@{"Passed:", reach}}, DefaultButton[]}]
];
If[(*Handle the situate of enermy army be hit by our bullets*)
Length@army > 0 \[And] Length@bullet > 0,
hit = least[bullet, army[[All, 2]]];
(*Print[hit];*)
If[
Last@hit < explosion,
score += 10;
army = Delete[army, First@hit];
bullet = Delete[bullet, hit[[2]] ]
]
];
If[(*enermy gives out missles*)
Length@army > 0 && RandomReal[] > .05,
launcher = RandomChoice@army[[All, 2]];
(AppendTo[missle, launcher];
AppendTo[direct, Normalize[-launcher + MousePosition["Graphics", {0, 0}]]]);
];
If[(*Handle the situate of being hit*)
MemberQ[
Norm[
# - MousePosition["Graphics", {0, 0}]
] < crash & /@ missle,
True],
RemoveScheduledTask[ScheduledTasks[]];
CreateDialog[{TextCell["You are hit!", "Title"], Column@{Row@{"Score: ", score}, Row@{"Passed:", reach}}, DefaultButton[]}]
];
If[(*If more than reachNum of enermies reach the bottom, lose the game*)
reach >= reachNum,
RemoveScheduledTask[ScheduledTasks[]];
CreateDialog[{TextCell["You Lost the Base!", "Title"], Column@{Row@{"Score: ", score}, Row@{"Passed:", reach}}, DefaultButton[]}]
];
];
1
]);
Panel[ Column@{
Column@{Row@{Text[Style["score: ", Black, 18]], Text[Style[Dynamic[score], Orange, 16]]},
Row@{Text[Style["passed:", Black, 18]], Text[Style[Dynamic[reach], Orange, 16]],
Text[Style["/", Orange, 16]], Text[Style[reachNum, Orange, 16]]},
Button[
Dynamic[If[! stop, "Restart", "Start"]],
RestartAll[];
stop = pausing = False;
score = 0; reach = 0],
Button[
Dynamic[If[! pausing, "Cease", "Resume"]],
If[pausing, pausing = False, pausing = True],
Enabled -> Dynamic[! stop]],
Dynamic[Text[Style[If[! stop, If[! pausing, "fighting", "pausing"], "Stop"], Black, 16]]]},
MouseAppearance[
EventHandler[
Labeled[Deploy@Framed@Graphics[{
PointSize[Large],
Blue,
Dynamic[
Point[(bullet[[All, 2]] += bulletSpeed(*.5*); bullet = Select[bullet, #[[2]] < 150 &]; bullet)], TrackedSymbols :> {bullet}(*Handle the bullets*)
],
Red,
Dynamic[
Point[
(
pos = Position[missle, #] & /@ Select[missle, #[[1]] < -50 || #[[1]] > 50 || #[[2]] > 150 || #[[2]] < 10 &, 1];
If[Length@pos > 0,
toClean = # & @@ pos;
(*Print[toClean];*)
missle = Delete[missle, toClean];
direct = Delete[direct, toClean]];
missle += .5 direct)
],
TrackedSymbols :> {missle}(*Handle the missles*)
],
Dynamic[Thread[Inset[(*Handle the enermy army*)
Magnify[enermy, .5], #
] &[
If[! pausing, reach += Length@Select[army, #[[2, 2]] < 5 &]];
army = Select[army, #[[2, 2]] > 5 &];
army[[All, 2, 2]] -=(*.4*)enermySpeed;
army[[All, 2]]
]],
TrackedSymbols :> {army}]
},
PlotRange -> {{-50, 50}, {0, 150}},
ImageSize -> 300
], Text[Style["Thunder & Lighting", Darker@Green, Italic, 24]], Top],
{"MouseClicked" :> {(*Speak["Shu"];*)AppendTo[bullet, MousePosition["Graphics", {0, 0}]]}}(*Shoot on Mouse Click Action*)
],
Magnify[jet, .5]
]
}]
]
