Simple 2D Fluid dynamics pipe flow model.

Posted 9 years ago

I am trying to visualise contours for a simple pipe flow, I can't seem to find a notebook online. I want to write a little about the capabilities of mathematica for computational fluid dynamics as part of my masters thesis.

I tried importing the code in the following documentation for the simple fluid flow at the bottom of the page, however it seems to bring errors. http://reference.wolfram.com/language/FEMDocumentation/tutorial/SolvingPDEwithFEM.html

the pipe only needs to be a simple rectangle with an inlet on the left and outlet on the right.

Can anyone point me in the right direction?

Thank you for your time.

POSTED BY: Ahmed Hagi
2 Replies
Posted 9 years ago

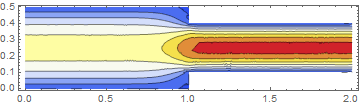

I copied the cells out of the reference. It does seem to work in 10.3. I attach the notebook. enter image description here

Attachments:
POSTED BY: David Keith
Posted 9 years ago

Thank you so much for the reply. Sorry about the late response, I am currently without internet. Perhaps the problem was that I was using Mathematica 9.

POSTED BY: Ahmed Hagi
