2D Mesh with QuadElement in Non-uniform Region.

Posted 6 years ago
2594 Views
|
0 Replies
|
0 Total Likes
|

Hi, I want to mesh with quad element a non-uniform region. I think that the simplest way is to mesh different region and than merge them but I don't find the comand. There is someone that can help me?

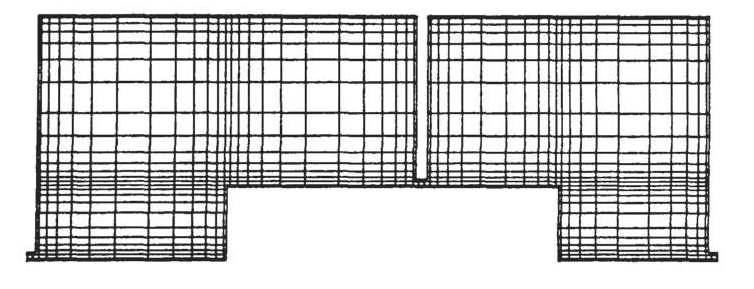

I would like to create a mesh like that in the figure.

enter image description here
