In this post I'd like to present how we can implement Tetris using Mathematica's Dynamic[] interactivity. I am aware of two existing implementations of Tetris so far. The first one utilizes GUIKit and dates back to 2005. The second one is a demonstration on Demonstrations Project.

Our version presented below is fully independent of the aforementioned projects and is aimed at maximum playability and code minimalization. At the same time we tried to implement as much of standard tetris rules as possible.

WARNING: the gameplay is implemented using a combination of CreateScheduledTask[] and EventHandler[] and is not bulletproof. Sporadic errors can be encoutered which are difficult to debug since they are hard to reproduce. Most likely the reason lies in thread synchronization issues. You can also try to enable simple sounds by setting sounds = True, but this can lead to frontend freeze.

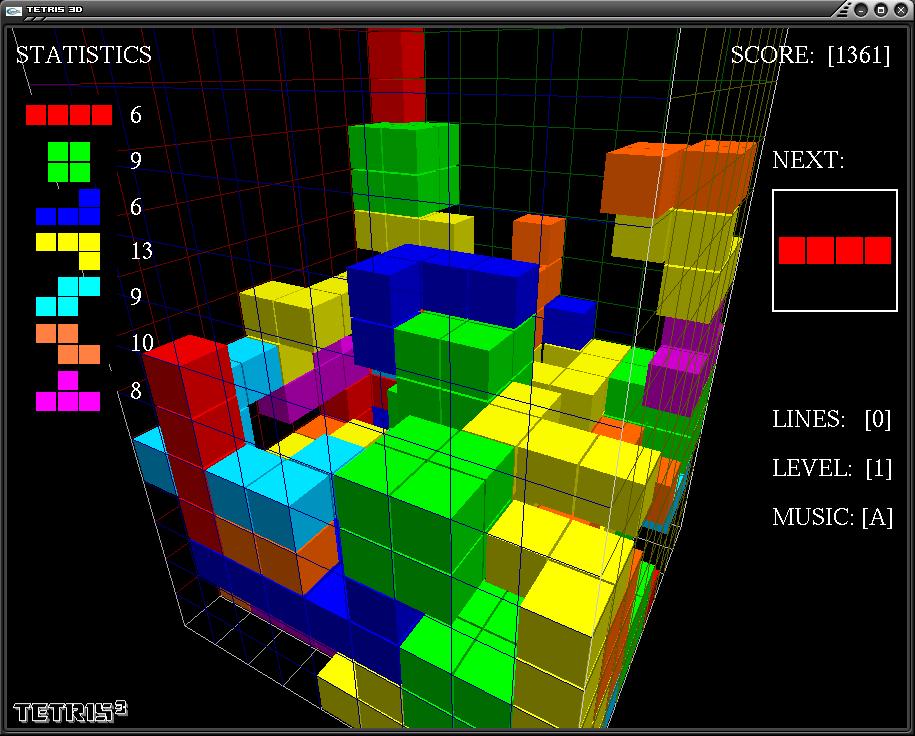

Here is a screen capture:

The main code goes below.

(* ::Package:: *)

BeginPackage["Tetris`"]

Tetris::usage = "Tetris[] starts game";

Begin["Private`"]

{w, h} = {14, 26};
bg = {0, 0, 0}; (* background color *)
br = {.3, .3, .3}; (* border color *)
speed0 =.6; (* initial speed *)
fallspeed = 0.001;
acc = 0.8; (* speed acceleration factor *)
sounds = False;
lpl = 2; (* lines per level *)
sndbrick = Play[Sin[1000 t] + Cos[1100 t], {t, 0, .1}];
gomsg = "GAME OVER";
bcaption = "  New game  ";

figs = { (* figure: {coords, color} *)
   {{{0, -1}, {0, 0}, {0, 1}, {1, -1}}, {0.1, 0.1, 1.0}}(*J*)
   , {{{0, -1}, {0, 0}, {0, 1}, {1, 1}}, {1.0, 0.5, 0.0}}(*L*)
   , {{{1, 0}, {0, 0}, {1, -1}, {0, 1}}, {1.0, 0.0, 0.0}}(*Z*)
   , {{{1, 0}, {0, 0}, {0, -1}, {1, 1}}, {0.1, 1.0, 0.1}}(*S*)
   , {{{0, 1}, {0, 0}, {0, 2}, {0, -1}}, {0.1, 0.9, 1.0}}(*I*)
   , {{{0, 0}, {1, 0}, {1, 1}, {0, 1}}, {1.0, 1.0, 0.1}}(*O*)
   , {{{0, -1}, {0, 0}, {0, 1}, {1, 0}}, {0.9, 0.1, 1.0}}(*T*)
   };

init[] := (
   oldspeed = 0;
   speed = speed0;
   lines = score = level = 0;
   glass = Table[
     If[1 < j < w && i > 1, bg, br]
     , {i, h}, {j, w}
     ];
   nextglass = Table[bg, {4}, {6}];
   fig7 = RandomSample@figs;
   nfig = First@fig7; fig7 = Rest@fig7;
   newmask[];
   playing = False;
   benabled = True;
   msg = "";
   RemoveScheduledTask/@ScheduledTasks[];
   );

newmask[] := (mask = Map[# == bg &, glass, {2}]);

newfig[] := (
  put[nextglass, nfig[[1]], {2, 3}, bg];
  {fig, fc} = nfig;
  nfig = First@fig7; fig7 = Rest@fig7;
  If[fig7 === {}, fig7 = RandomSample@figs];
  put[nextglass, nfig[[1]], {2, 3}, nfig[[2]]];
  {y, x} = {h - 3, Floor[w/2]};
  If[check[fig, {y, x}]
  , put[glass, fig, {y, x}, fc]
  , stop[]
  ; playing = False
  ; benabled = True
  ; msg = gomsg
  ; Return[]
  ];
  If[oldspeed != 0
  , stop[]
  ; speed = oldspeed
  ; oldspeed = 0
  ; start[]
  ];
);

rotate[f_] := If[f[[1]] == {0, 0}, f, {{0, -1}, {1, 0}}.# & /@ f];

SetAttributes[do, HoldAll];
do[act_] := If[playing, act];

stop[] := RemoveScheduledTask[t];
start[] := StartScheduledTask[t = CreateScheduledTask[move[], speed]];

move[] := (
   If[check[fig, {y - 1, x}]
    , put[glass, fig, {y, x}, bg]
    ; put[glass, fig, {--y, x}, fc]
    , es@sndbrick
    ; newmask[]; del[]; newfig[]
    ]
   );

turn[] := Block[{newf},
   newf = rotate@fig;
   If[check[newf, {y, x}]
    , put[glass, fig, {y, x}, bg]
    ; fig = newf
    ; put[glass, fig, {y, x}, fc]]
   ];

shift[dx_] := If[check[fig, {y, x + dx}]
    , put[glass, fig, {y, x}, bg]
    ; x += dx;
    ; put[glass, fig, {y, x}, fc]
    ];

SetAttributes[es, HoldFirst];
es[s_] := If[sounds, EmitSound@s];

price[n_] := Switch[n, 1, 40, 2, 100, 3, 300, 4, 1200];

del[] := Module[{sel, g, ln},
   sel = Not[Or @@ #] & /@ mask;
   sel[[1]] = False;
   g = Pick[glass, Not /@ sel];
   If[(ln = h - Length@g) > 0
    , glass = g~Join~Table[If[1 < i < w, bg, br], {ln}, {i, w}]
    ; es@Play[UnitStep@Sin[2000 t] Sin[5000 t t], {t, 0, .2 (ln)}]
    ; lines += ln
    ; score += price[ln]*(level + 1)
    ; cl = Quotient[lines, lpl];
    ; If[cl > level, level = cl; stop[]; speed *= acc;
     oldspeed *= acc; start[]]
    ; newmask[]
    ];
   ];

SetAttributes[#, HoldFirst] & /@ {set, put};

set[g_, p_, c_] := (g[[Sequence @@ p]] = c);

put[g_, f_, p_, c_] := set[g, #, c] & /@ (# + p & /@ f);

get[p_] := mask[[Sequence @@ p]];

check[f_, p_] := And @@ (get /@ (# + p & /@ f));

drop[] := If[speed != fallspeed
   , stop[]; playing = False;
   ; oldspeed = speed
   ; speed = fallspeed
   ; start[]; playing=True;
   ];

  menu = Button[bcaption
    , init[]
    ; newfig[]
    ; playing = True
    ; start[]
    ; benabled = False;
    , Enabled -> Dynamic@benabled
  ];


Tetris[] := DynamicModule[{},
  init[];
  EventHandler[
   Graphics[{
     Raster@Dynamic@glass[[;; -4]]
     , Raster[Dynamic@nextglass, {{w, h - 7}, {w + 6, h - 3}}]
     , Text[Style["Score", 24, White, Bold], {w, 17}, {-1, 0}]
     , Text[Style[Dynamic@score, 24, White, Bold], {w + 6, 17}, {1, 0}]
     , Text[Style["Lines", 24, Green, Bold], {w, 14}, {-1, 0}]
     , Text[Style[Dynamic@lines, 24, Green, Bold], {w + 6, 14}, {1, 0}]
     , Text[Style["Level", 24, Cyan, Bold], {w, 11}, {-1, 0}]
     , Text[Style[Dynamic@level, 24, Cyan, Bold], {w + 6, 11}, {1, 0}]
     , Text[Style[Dynamic@msg, 24, White, Bold], {w + 3, 7}, {0, 0}]
     , Inset[menu, {w + 3, 2}]
     }
    , PlotRange -> {{0, w + 7}, {0, h - 2}}
    , Background -> RGBColor@br
    , ImageSize -> 600]
   , {"RightArrowKeyDown" :> do@shift@1
    , "LeftArrowKeyDown" :> do@shift@-1
    , "UpArrowKeyDown" :> do@turn[]
    , "DownArrowKeyDown" :> do@drop[]
    }
   ]
];

End[]

EndPackage[]

You can start the game by executing

<< "Tetris`"
Tetris[]

CREDITS: this is a joint work with my student Nikita Seredinski.
