A new SystemModeler example has been added to the list of downloadable models available on the SystemModeler site, Allosteric Regulation.

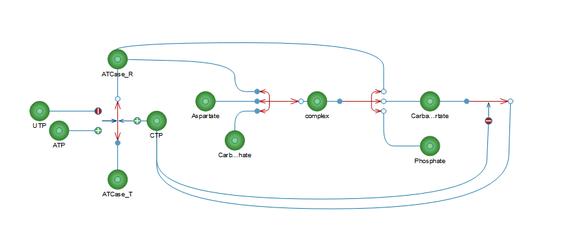

Allosteric regulation is a prime drug target because it reduces the risk of overdose and side effects and can be used to fine-tune pharmacological processes. This model studies a naturally occurring allosteric reaction: the first step in the pyrimidine synthesis, catalyzed by the allosteric enzyme aspartate carbamoyltransferase (ATCase). The free BioChem Modelica library is needed to run this example; it can be downloaded here.

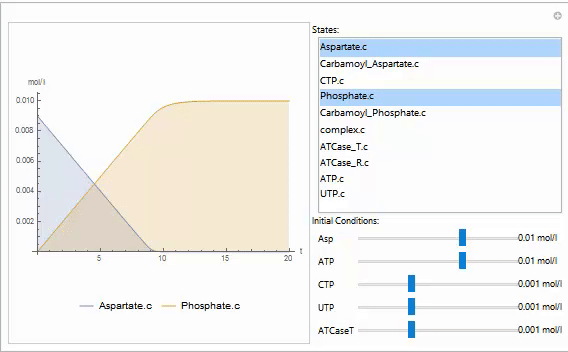

In the accompanying notebook, you can explore the model using dynamic interactivity in the Wolfram Language. This is an expansion of what I presented in my previous community post. Since this example contains a lot more substances than the previous example, a list is used where you can choose which variables to plot. You can select multiple variables from the list using Ctrl+Click (Cmd+Click on Mac).

Expanding on the example code I used in the previous post, you can add a list of variables to plot on your own examples.

Needs["WSMLink`"]
plotVars = {"x", "der(x)"};
Manipulate[WSMPlot[
    WSMSimulate["HelloWorld", WSMInitialValues -> {"x" -> x0}], p],
    {x0, 0, 10},
    {{p, {"x"}}, plotVars, ControlType -> ListPicker},
 ContinuousAction -> False]

The plotVars variable then contains a list of which variables to display in the list. You could potentially also set this to be all system variables:

plotVars = WSMModelData[modelname, "SystemVariables"]

or all system outputs:

plotVars = WSMModelData[modelname, "OutputVariables"]
