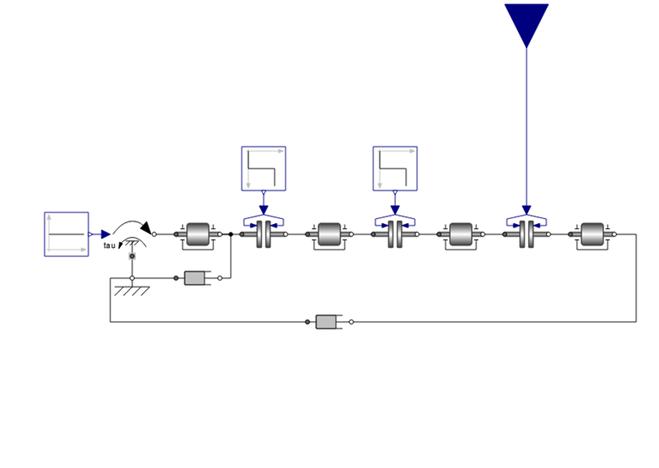

A new SystemModeler example has been added to the list of downloadable models available on the SystemModeler site, Coupled Clutches.

In the example, a new functionality in SystemModeler 4.3 is explored. Using the new WSMCreateTemplateCells and WSMCreateTemplateNotebook functions, you can easily set up standard model analytics tasks. This includes things such as performing parameter sweeps, specifying initial values, model calibrations, Fourier analysis and more.

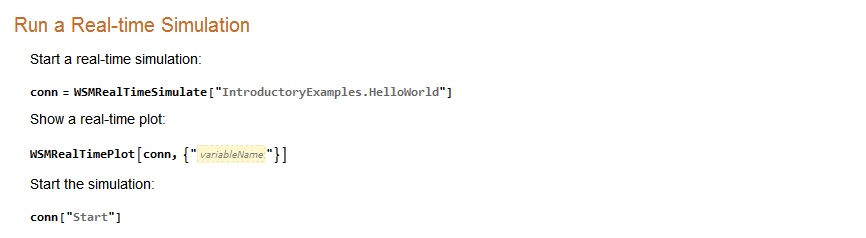

WSMCreateTemplateNotebook["HelloWorld", "SimulateInRealTime"]

For example, will create a notebook that performs a real time simulation of the included "HelloWorld" model. You just have to specify which variable(s) you want to plot and you will be good to go.

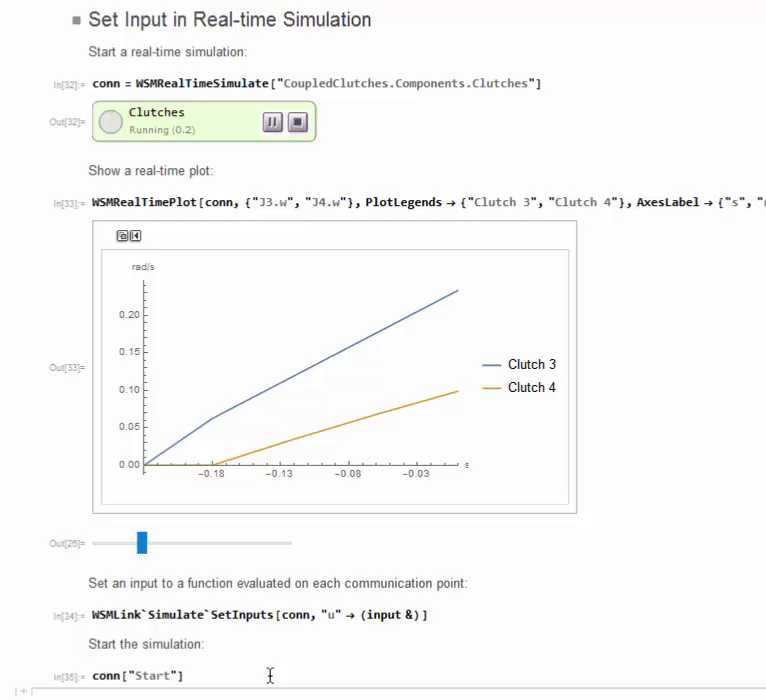

In the Coupled Clutches example, a similar template is used to control the model in real time using a Mathematica slider.
