Context
This YT video shows an optical illusion animation. Below is a gif presenting the idea. In the following I will show, given a set of images of a bird, how to slice, rearrange, reassemble and resize them, as well as how to construct a mask for the printouts. Gifs are generated for a computer preview.

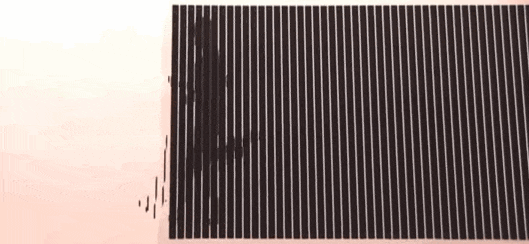

![enter image description here](http://community.wolfram.com//c/portal/getImageAttachment?filename=10225ezgif.com-optimize%281%29.gif&userId=11733)
TUTORIAL
Import Image -
img = Import["https://i.stack.imgur.com/xzcUg.jpg"]
![enter image description here](https://i.stack.imgur.com/Fkj0k.png)
Split into Components -
Using this approach (credit: nikie):
m = MorphologicalComponents[Binarize@ColorNegate[ColorConvert[img, "Grayscale"]]];
Colorize[m]
![enter image description here](https://i.stack.imgur.com/JRpG7.png)
components = ComponentMeasurements[{m, img}, {"Area", "BoundingBox"}, #1 > 100 &];
trim = ImageTrim[img, #] & /@ components[[All, 2, 2]]
![enter image description here](https://i.stack.imgur.com/iaAQK.png)
There's a problem with trim[[3]]
and trim[[4]]
, so:
Trim Component nr 3 -
trim[[3]] = RemoveBackground @ DeleteSmallComponents @ RemoveBackground @ trim[[3]]
![enter image description here](https://i.stack.imgur.com/SG7dX.png)
Trim Component nr 4 -
trim[[4]] = RemoveBackground @ DeleteSmallComponents @ RemoveBackground @ trim[[4]]
![enter image description here](https://i.stack.imgur.com/UnR9a.png)
Component Images -
trim
![enter image description here](https://i.stack.imgur.com/3RnUR.png)
dim = ImageDimensions /@ trim
{{299, 272}, {301, 256}, {262, 231}, {262, 253}, {302, 255}, {281, 269}, {261, 252}, {261, 231}}
ListAnimate @ trim
trim = ImageResize[#, {304, 270}] & /@ trim
I decided on the above {304, 270}
so that 304
will be easily divisible by 8 later.
dim = ImageDimensions /@ trim
ListAnimate @ trim
![enter image description here](https://i.stack.imgur.com/aL1Qq.gif)
Image Cuts -
This is the proper part; I made it very crude just to show the approach and how does it work. The details, like the number of slices, their widths and heights etc. should be thought through.
cuts = Plus[#, {1, 0}] & /@ Partition[FindDivisions[{1, 304, 38}, 8], 2, 1]
{{1, 38}, {39, 76}, {77, 114}, {115, 152}, {153, 190}, {191, 228}, {229, 266}, {267, 304}}
slices = Table[ImageTake[trim[[i]], {1, 270}, #] & /@ cuts, {i, 8}]
![enter image description here](https://i.stack.imgur.com/QHHvQ.png)
Reassemble -
reas = Flatten @ Table[Flatten[slices][[i ;; 64 ;; 8]], {i, 8}]
![enter image description here](https://i.stack.imgur.com/d2LIp.png)
reas2 = ImageAssemble[ConformImages @ reas]
![enter image description here](https://i.stack.imgur.com/Utjcc.png)
Moving Window -
ImageDimensions @ reas2
{2432, 270}
window = ImageAssemble @
Table[ImagePad[#, {{38, 0}, {0, 0}}, Directive@Transparent] & @
ImageResize[Graphics[Rectangle[]], {304 - 38, 270}], 8]
![enter image description here](https://i.stack.imgur.com/HZbxC.png)
Overlay[{reas2, window}]
![enter image description here](https://i.stack.imgur.com/P6GjP.png)
Slide -
Make a set of windows:
windows =
Table[ImageAssemble @
RotateRight[First @ ImagePartition[window, {38, 270}], i], {i, 0, 7}]
![enter image description here](https://i.stack.imgur.com/63dur.png)
Make a set of Overlay
s:
seq = Overlay[{reas2, #}] & /@ windows
![enter image description here](https://i.stack.imgur.com/MvZ75.png)
Finally:
ListAnimate @ seq
![enter image description here](https://i.stack.imgur.com/uWgQF.gif)
![enter image description here](https://i.stack.imgur.com/shjCN.png)
The last gif doesn't really look like a flying bird due to the ratios etc. So now I'll repeat the steps from Image Cuts on with modifications to make it look nicer.
Image Cuts -
Let's stick to the width of each component equal to 304
;
Divisors @ 304
{1, 2, 4, 8, 16, 19, 38, 76, 152, 304}
Let's make 16
slices of each component, each slice be of width 19
pixels:
cuts = Plus[#, {1, 0}] & /@ Partition[FindDivisions[{1, 304, 19}, 16], 2, 1]
{{1, 19}, {20, 38}, {39, 57}, {58, 76}, {77, 95}, {96, 114}, {115, 133}, {134, 152}, {153, 171}, {172, 190}, {191, 209}, {210, 228}, {229, 247}, {248, 266}, {267, 285}, {286, 304}}
slices = Table[ImageTake[trim[[i]], {1, 270}, #] & /@ cuts, {i, 8}]
![enter image description here](https://i.stack.imgur.com/0jA86.png)
Reassemble -
There are
Length @ Flatten @ slices
128
slices, so
reas = Flatten @ Table[Flatten[slices][[i ;; 128 ;; 16]], {i, 16}]
reas2 = ImageAssemble[ConformImages @ reas]
![enter image description here](https://i.stack.imgur.com/p6k1p.png)
But here the image is stretched only horizontally, which makes it unproportional. Since
ImageDimensions @ reas2
{2432, 270}
where $2432=304\times 8$, we need to ImageResize
the image also vertically by a factor of 8
:
reas2 = ImageResize[reas2, {2432, 270*8}]
![enter image description here](https://i.stack.imgur.com/Du9Xo.jpg)
Moving Window -
Now the same trick with window
:
window = ImageAssemble @
Table[ImagePad[#, {{19, 0}, {0, 0}}, Directive@Transparent] & @
ImageResize[Graphics[Rectangle[]], {304/2 - 19, 270 8}], 16]
![enter image description here](https://i.stack.imgur.com/1yFDv.png)
Note the rather high resolution:
ImageDimensions @ window
{2432, 2160}
The Overlay
of two images looks nice:
Overlay[{reas2, window}]
![enter image description here](https://i.stack.imgur.com/CC7Ru.png)
Slide -
The same as before:
windows =
Table[ImageAssemble @
RotateRight[First @ ImagePartition[window, {19, 270 8}], i], {i, 0, 7}]
![enter image description here](https://i.stack.imgur.com/ntA7o.png)
seq = Overlay[{reas2, #}] & /@ windows
![enter image description here](https://i.stack.imgur.com/0C1eA.png)
and finally
gif3 = ListAnimate@seq
Unfortunately, the gif is rather big (2.3 MB), so let's create a smaller one.
Smaller-sized gif
The high-resolution (i.e., final reas2
and window
) should be perfect if one would really want to print it like on the YT video. To make a reasonable-size gif, let's resize reas2
and windows
:
reas3 = ImageResize[reas2, {304, 270}]
windows2 = ImageResize[#, {304, 270}] & /@ windows
seq2 = Overlay[{reas3, #}] & /@ windows2
ListAnimate @ seq2
and the gif is exported with
Export["gif4.gif", seq2, "DisplayDurations" -> 0.25]
![enter image description here](https://i.stack.imgur.com/DsR3H.gif)
There's also this YT video showing how to draw a pacman by hand. That approach is equivalent to taking only four components, meaning that the black lines were 3x thicker than the transparent one (I refer to the window
now), i.e. 75% of the window is black. In the above bird, $7/8=87.5\%$ is black, so there's not much space left to see the actual figure. So I'd say that the fewer the component images, the better. And also the animation rate is crucial.
This post is a result of this question on Mathematica.SE.
