[Reddit-DiBB0118] Bubble chart for 4D data

Posted 8 months ago
1232 Views
|
1 Reply
|
8 Total Likes
|

Click on the image to zoom. Then click your browser back button to return to reading the post.


enter image description here

Intro

This is a response to the [CALL] Reddit DataViz Battle JAN2018: Visualize the Growth Rates of Algae:

http://community.wolfram.com/groups/-/m/t/1257547

Details

Here is my go at it. It is difficult to visualize 4D data (name, divisionrate, temperature, and light intensity). So this is some kind of bubble chart.

Let's first get the data and transform it:

raw=Import["http://archive.is/Pcb1G","Data"]/."0..06"->.06;
ClearAll[CombineMe]
CombineMe[row_List,headers_List]:=Prepend[First[row]]/@(Flatten/@Transpose[{Rest[row],headers}])
data=Cases[raw,{_String,__?NumberQ},Infinity]/.x_List/;First[x]=="Temperature":>{"Temperature",5,5,10,10,25,25,30,30};
header=Transpose[data[[;;2,2;;]]];
rows=data[[3;;]];
alldata=SortBy[Join@@(CombineMe[#,header]&/@rows),{First,Minus@*Last}];

Now define the colors, legend, and so on:

types=DeleteDuplicates[alldata[[All,1]]];
heights=1+Length[types]-Range[Length[types]];
heightrules=Thread[types->heights];
labels=MapThread[Text[#1,{-1,#2},{1,0}]&,{types,heights}];
temps=Union[alldata[[All,3]]];
colors=Lighter[#,0.25]&@*ColorData["ThermometerColors"]/@Rescale[temps];
temprules=Thread[temps->colors];
sizes=Union[alldata[[All,4]]];

f=115000.0;
pts=With[{p={#2,#1/.heightrules},s=#4/f},{Black,PointSize[s+0.005],Point[p],#3/.temprules,PointSize[s],Point[p]}]&@@@alldata;
pr={{-0.75,1.3},{0,20}};
hticks={#,NumberForm[#,{\[Infinity],2}]}&/@Range[-0.75,1.25,0.25];
vticks=MapThread[List[##,0]&,{heights,types}];

legend=Table[With[{p={1.3+0.1si,7+ti},s=sizes[[si]]/f},{Black,PointSize[s+0.005],Point[p],temps[[ti]]/.temprules,PointSize[s],Point[p]}],{ti,Length[temps]},{si,Length@sizes}];
legend={legend,Table[Text[ToString[temps[[ti]]]<>"  \[Degree]C",{1.75,7+ti},{1,0}],{ti,Length[temps]}]};
legend={legend,Table[Text[ToString[sizes[[si]]]<>" lux",{1.3+0.1 si,13},{0,0.4},{0,1}],{si,Length@sizes}]};

Graphics[{pts,legend},Frame->True,AspectRatio->1,ImageSize->600,PlotRange->pr,FrameLabel->{"Divisions  /  day",""},FrameTicks->{{vticks,None},{hticks,hticks}},GridLines->{{{0,Gray}},{}},FrameStyle->Directive[Black,12],PlotRangeClipping->False,ImagePadding->{{165, 100}, {40,20}}]

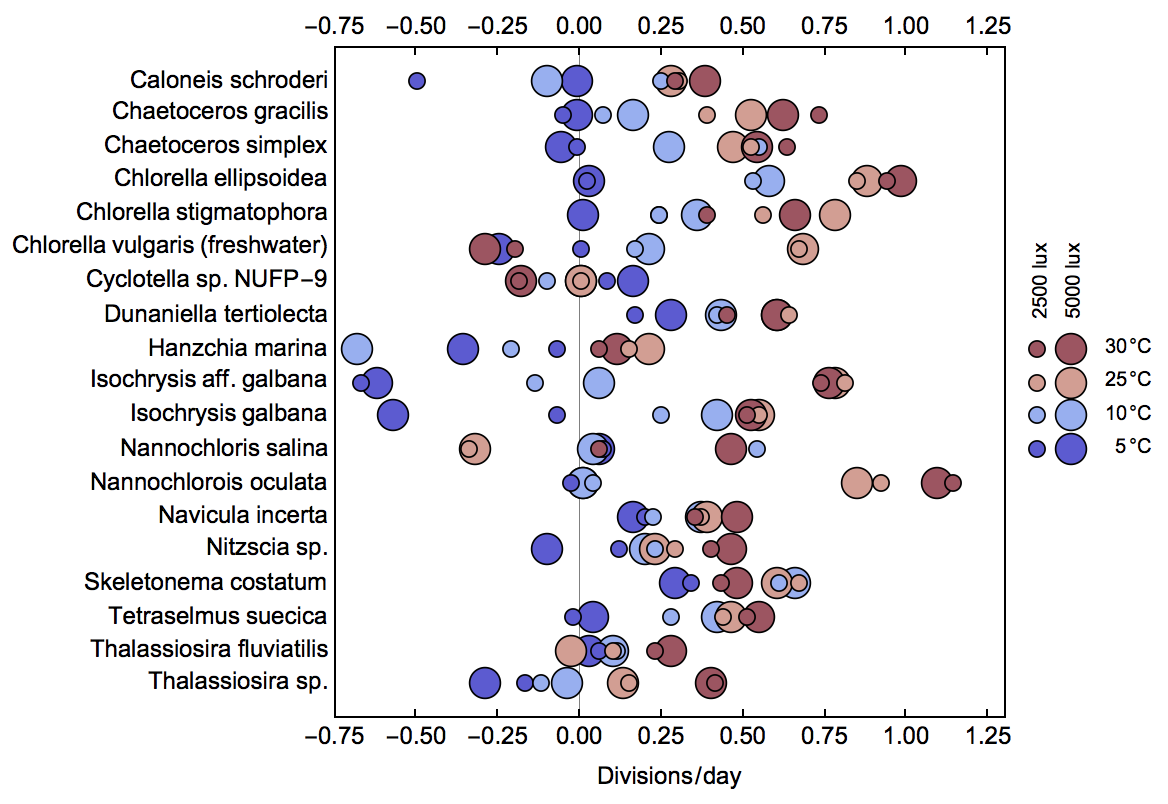

It is important to be able to read the division rate precisely so it can not be encoded in colors, so it is encoded here as the x-position. The size and color encode the luminous emittance and temperature, respectively:

enter image description here

enter image description here - Congratulations! This post is now a Staff Pick as distinguished by a badge on your profile! Thank you, keep it coming!

If you wish you now can submit your post to Reddit competition simply by entering your post link:

http://community.wolfram.com/groups/-/m/t/1257885

in a comment here: https://redd.it/7nm6ed
