# Image Correlation in Particle Image Velocimetry is behaving strangely

Posted 2 years ago
3862 Views
|
8 Replies
|
7 Total Likes
|

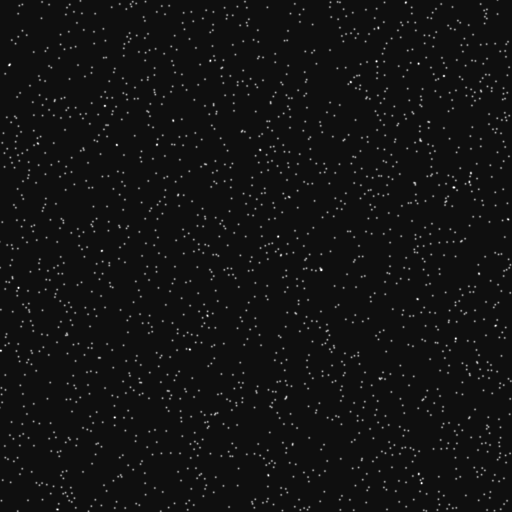

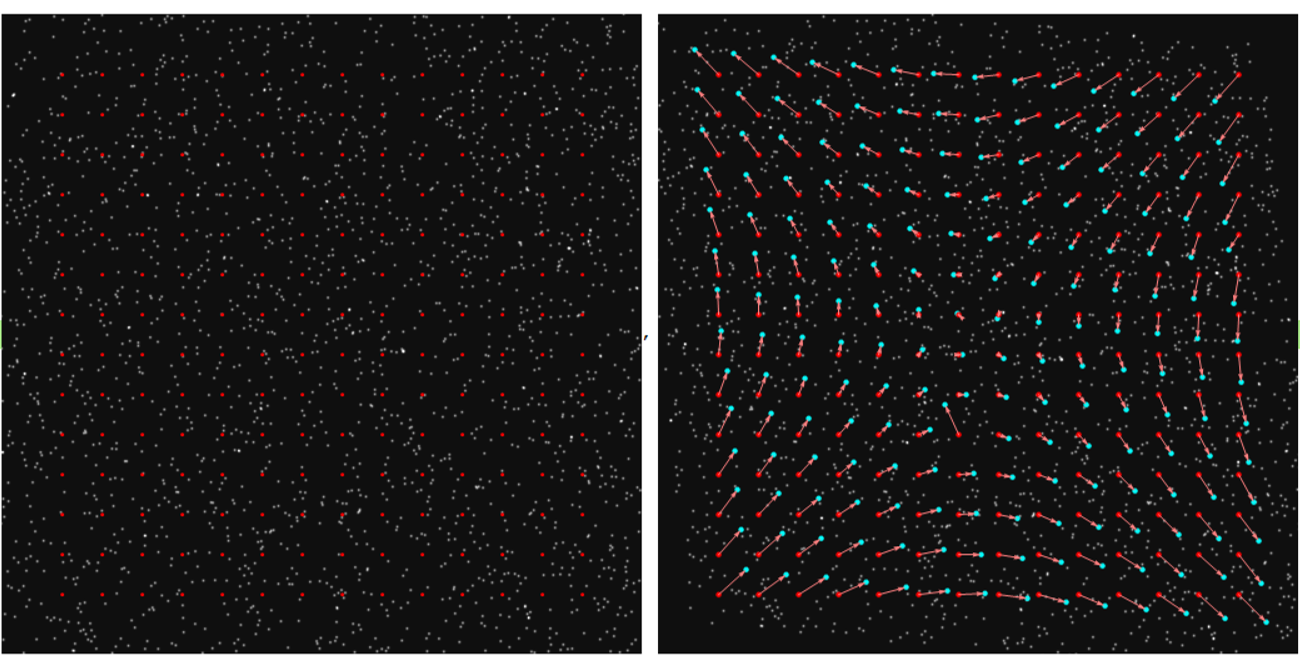

 Note: i have posted the same question on MSE: https://mathematica.stackexchange.com/questions/148739/image-correlation-in-particle-image-velocimetry-is-behaving-strangelyI have been trying to implement a code for determining flow-field using Particle Image Velocimetry.In this technique a user can take two images. Using small windows from the first image (which act as kernels) and search windows from the second image one can determine the cross-correlation which simply tells where the small window moves within a given search window. This process can be repeated between the second and the third image and so on.A clear detail can be found in the second paragraph: http://www.physics.emory.edu/faculty/weeks//idl/piv.htmlI have two images here (posting as a gif, you can save this and import it in mathematica as a list of two images): I use the following code to generate the flow-field. windowsize = 32; (* select window size *) imgDim = ImageDimensions[images[[1]]]; (* dimensions for the images *) imgone = ImageCrop[images[[1]], imgDim - (2*windowsize)]; (* removing border from first image: we dont want to create windows at the borders *) firstimgsplits = ImagePartition[imgone, windowsize]; (* breaking the first image into small windows *) searchwindows = ImagePartition[images[[2]], windowsize*3, {windowsize, windowsize}]; (* breaking the second image into search windows *) {dim1, dim2} = Dimensions@searchwindows; H = Last@ImageDimensions[imgone]; (* get midpoints of the windows of the first frame *) midptsFirst = Flatten[Table[{i windowsize + windowsize/2, j (windowsize) + windowsize/2}, {i, 1, dim1}, {j, 1, dim2}], 1]; (* pts in the second image where correlation is max *) correlationPts = Table[MorphologicalComponents[ImagePad[ ImageAdjust@ImageCorrelate[searchwindows[[i + 1, j + 1]], firstimgsplits[[i + 1, j + 1]], NormalizedSquaredEuclideanDistance, PerformanceGoal -> "Quality"], {{j*windowsize, H - windowsize (j + 1)}, {H - windowsize (i + 1), windowsize i}}, White]]~Position~0, {i, 0, dim1 - 1}, {j, 0, dim2 - 1}]~Flatten~2; now when i create a flow-field from the displacement of points (red pts in the first image and cyan pts in second image) I can see that something is not right. My eyes tell me that the particles have move in a direction different from the ones found using ImageCorrelateThis should be rather straightforward for Mathematica. I do not know what is wrong in this simple piece of code. I will appreciate if someone can help me with this question. ListAnimate@{Show[images[[1]], Graphics[{Red, Point@midptsFirst}]], Show[images[[2]], Graphics[{Cyan, PointSize[Medium], Point@correlationPts, {Pink, Arrowheads[Small], MapThread[Arrow[{#1, #2}] &, {midptsFirst, correlationPts}]}}]]}  Attachments:
8 Replies
Sort By:
Posted 2 years ago
 Hi Ali,What commercial codes does is a bit more elaborate. Generally one uses multi-pass processing: For a course window (e.g. 128x128) one does the piv like you did. This will give you the rough motion for that area. Now one does the smaller scale: (64x64 or 32x32). But one does not compare the same pixels from each image; one already shifts the window by this approximate large-scale PIV. This will give much stronger correlation, because the overlap will be much larger. This can be seen in your bottom-left, the displacement is large (~10-12 pixels i estimate) which is large fraction of your window. By selecting a windows that is roughly 10 pixels displaced already the correlation is much better. In PIV one generally aims for 5-6 pixels displacement. Too small and one loses precision in determining the displacement. Too large and your windows need to be very large or many 'passes'.
Posted 2 years ago

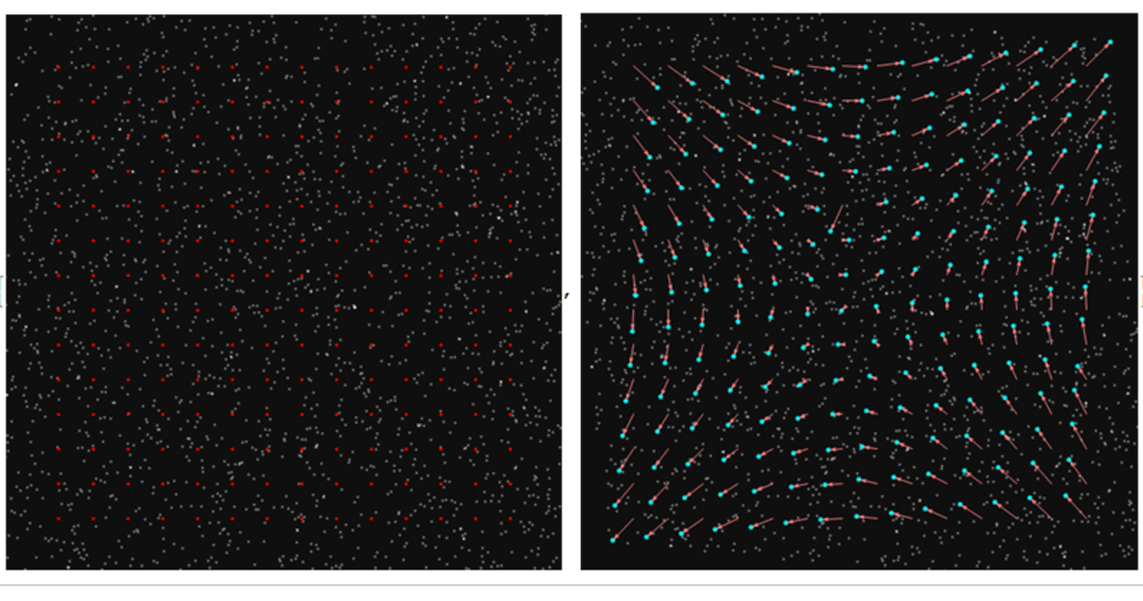

 Hi Sander,I need time to understand what you mentioned in point #2. Btw i think i found a mistake which atleast solves the issue. The position that are returned needs to be converted to image coordinate system. Silly mistake i would say.See github code for the fix: https://github.com/alihashmiii/simple-piv/blob/master/flowtrack.m
Posted 2 years ago

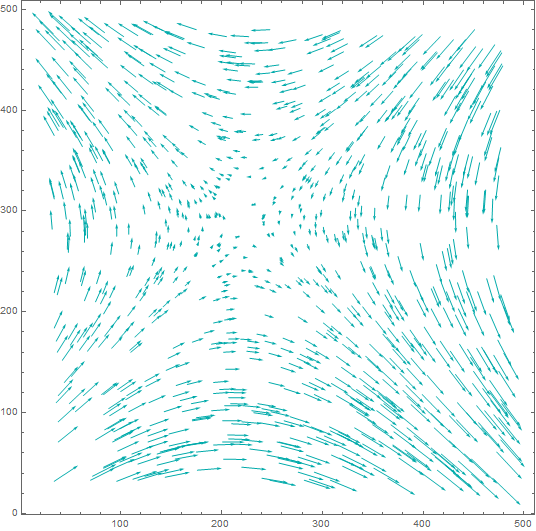

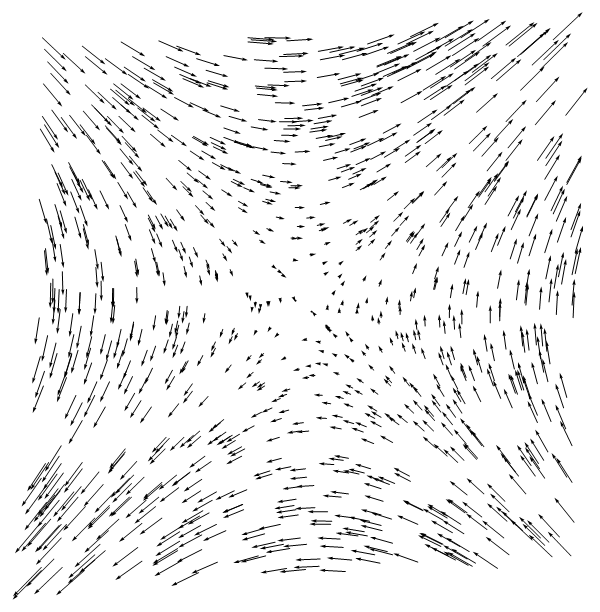

 Hi Ali,maybe I do not really understand your question, but is it not as simple as: img = Binarize /@ Import["Testpiv3.gif"]; gtrf = Last[FindGeometricTransform @@ img]; Ready! -- Now one can do e.g.: rpts = RandomInteger[{1, First@ImageDimensions[First@img]}, {1000, 2}]; Graphics[{Arrowheads[.01], Arrow /@ Transpose[{rpts, gtrf[rpts]}]}, ImageSize -> 600] which gives:Regards -- Henrik
Posted 2 years ago
 Hi Henrik, This is a very nice implementation. The advantage of using Mathematica is that solutions can be implemented using multiple approaches. Btw i have a little to offer to your code. We need to make sure that the points are in the image coordinate system. This was a mistake I made earlier when the flow-field looked queer. We can use a modified version of your code below: images = Import["C:\\Users\\Ali Hashmi\\Desktop\\PIV\\Testpiv3.gif"]; imgDim = ImageDimensions[First@images]; windowsize = 32; imgCorrD = First@imgDim; img = ImageCrop[#, imgDim - (2*windowsize)] & /@ images; gtrf = Last[FindGeometricTransform @@ img]; rpts = RandomInteger[{windowsize, windowsize+First@ImageDimensions[First@img]}, {1000, 2}]; Graphics[{Arrowheads[.01], Darker@Cyan, Arrow /@ Transpose[{Map[Abs[# - {0, imgCorrD}] &, #] &@rpts, Map[Abs[# - {0, imgCorrD}] &, #] &@gtrf[rpts]}]}, ImageSize -> 600]
Posted 2 years ago
 Also, I I think we should crop the image so that the edges are not taken into account during computation. But overall your procedure is way faster !! so thumbs up :)
Posted 2 years ago
 Hi Henrik,I had a a quick question. Will Geometric Transformation work in a complex case: for example, consider some particles in one region of the image rotate a little whereas particles in the second region of the image undergo a linear translation?Regards, Ali
 Hi Ali,yes, I do think so: See documentation about FindGeometricTransform ->"Details and Options" -> TransformationClass.Regards -- Henrik
