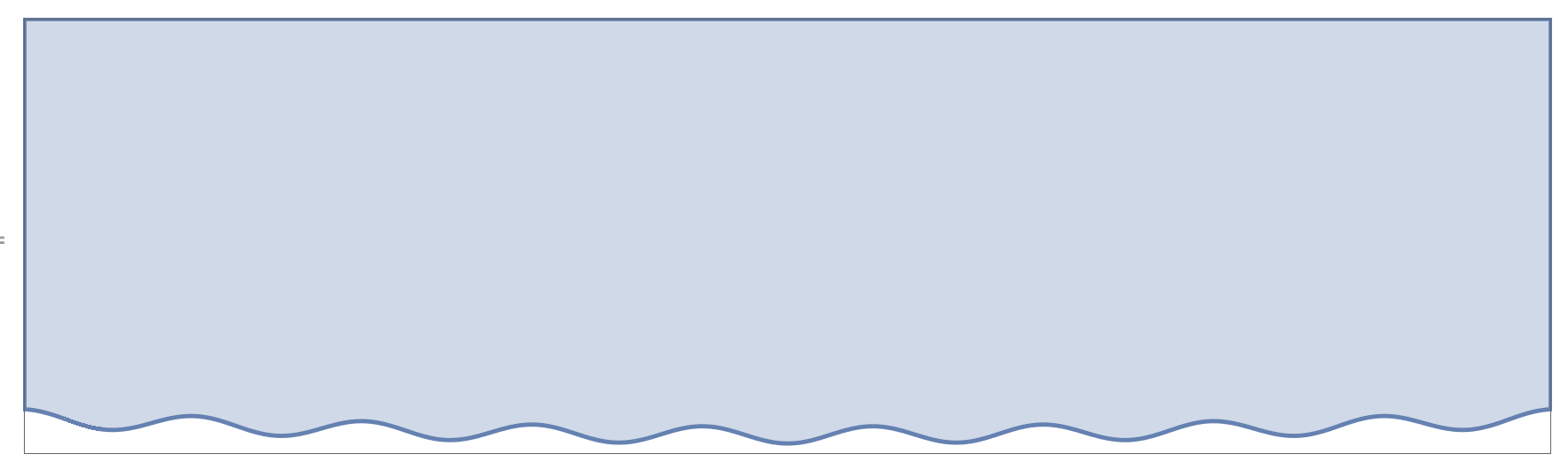

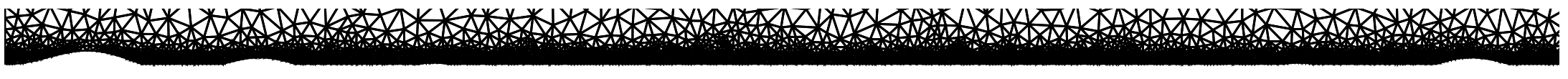

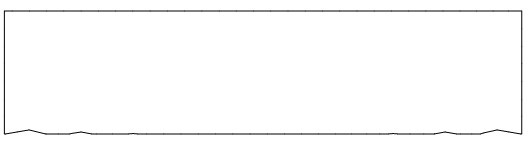

[?] Get an accurate smooth boundary of the mesh generated by ToElementMesh?

Posted 7 years ago
POSTED BY: Wilhelm Deng
2 Replies

Extend the bounding box to include a little outside the region:

\[ScriptCapitalR] =
  ImplicitRegion[
   Abs[x] <= width/2 && y <= heigth + ydatum &&
    y >= x^2/(2 radius) + Aw (1 - Cos[(2 \[Pi] x)/\[Lambda]w]) + ydatum,
    {{x, -0.36, 0.36}, {y, -0.02, 0.3}}];    (* <--- N.B. *)
mesh1 = ToElementMesh[\[ScriptCapitalR], "MeshOrder" -> 1,
  MaxCellMeasure -> {"Length" -> 0.01},
  MeshRefinementFunction -> meshrefine]

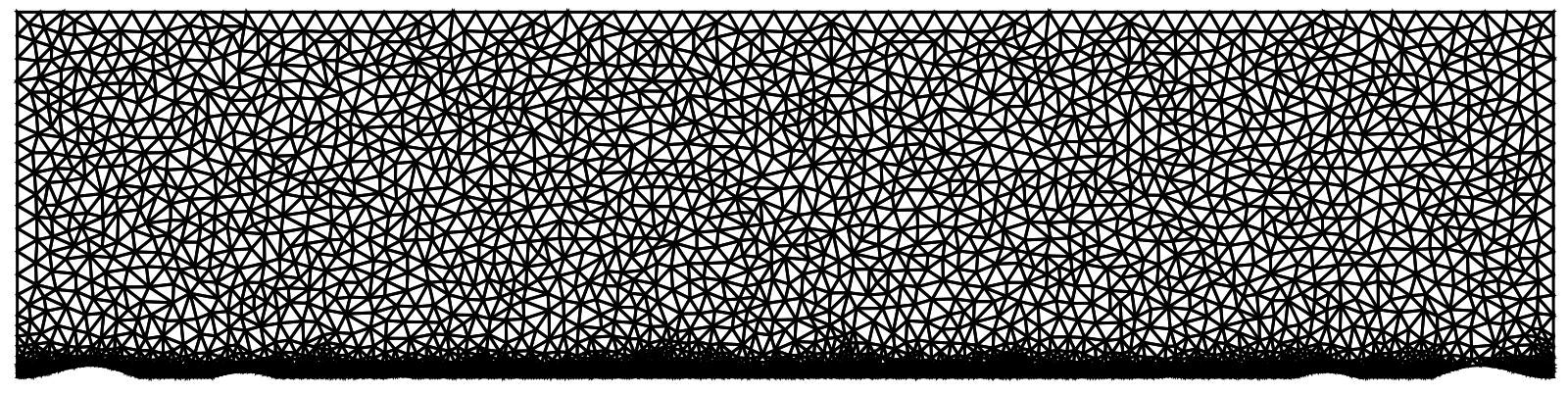

mesh1["Wireframe"]
POSTED BY: Michael Rogers
Posted 7 years ago
POSTED BY: Wilhelm Deng
