[?] Plot both lines of p (for price) and b (for ad)?

Fangqing Pu

Posted 7 years ago

Consider the following code: =. s =. x = 1 - (2 s)^0.5 \[Alpha] = 0.5 n = 4 A = 1 - x^n - \!\( \UnderoverscriptBox[\(\[Sum]\), \(k = 0\), \(\(-1\) + n\)] \FractionBox[\( \(\SuperscriptBox[\(x\), \(k\)]\)[1 - \SuperscriptBox[\(x\), \(\(-k\) + n\)]]\), \(\(-k\) + n\)]\) p = 1 - x b = \[Alpha] A*(1 - x)^2/(A + 1 - x^n) data = Table[Table[{s, f}, {s, 0, 1, 0.01}], {f, {p, b}}]; ListLinePlot[data, PlotLegends -> {price, ad}] In Mathematica, I want to show both lines of p (for price) and b (for ad), but why line of b is missing?

Consider the following code:

=.
    s =.
    x = 1 - (2 s)^0.5
    \[Alpha] = 0.5
    n = 4
    A = 1 - x^n - \!\(
    \*UnderoverscriptBox[\(\[Sum]\), \(k = 0\), \(\(-1\) + n\)]
    \*FractionBox[\(
    \(\*SuperscriptBox[\(x\), \(k\)]\)[1 -
    \*SuperscriptBox[\(x\), \(\(-k\) + n\)]]\), \(\(-k\) + n\)]\)
    p = 1 - x
    b = \[Alpha] A*(1 - x)^2/(A + 1 - x^n)
    data = Table[Table[{s, f}, {s, 0, 1, 0.01}], {f, {p, b}}];
    ListLinePlot[data, PlotLegends -> {price, ad}]

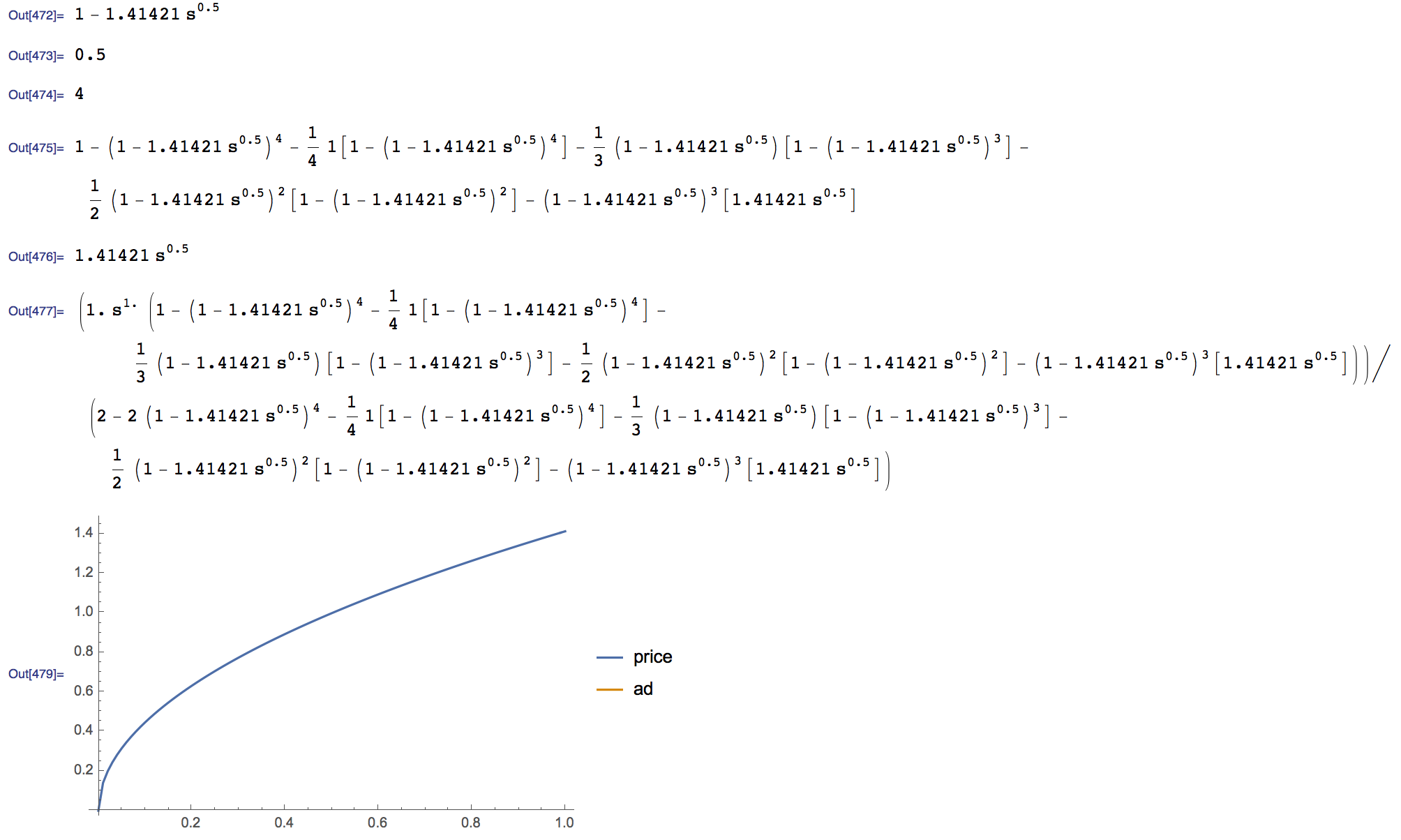

In Mathematica, I want to show both lines of p (for price) and b (for ad), but why line of b is missing? enter image description here

POSTED BY: Fangqing Pu

5 Replies

Sort By:

Alexander Trounev

Alexander Trounev, A&E Trounev IT Consulting

Posted 7 years ago

Thank You! There are two errors - square brackets in Sum and zero initial value s, after fix it works x =. s =. x = 1 - (2 s)^0.5 \[Alpha] = 0.5 n = 4 A = 1 - x^n - \!\( \UnderoverscriptBox[\(\[Sum]\), \(k = 0\), \(\(-1\) + n\)] \FractionBox[\( \SuperscriptBox[\(x\), \(k\)] \((1 - \SuperscriptBox[\(x\), \(\(-k\) + n\)])\)\), \(\(-k\) + n\)]\) p = 1 - x b = \[Alpha] A*(1 - x)^2/(A + 1 - x^n) data = Table[Table[{s, f}, {s, 0.0001, 1, 0.01}], {f, {p, b}}]; ListLinePlot[data, PlotLegends -> {price, ad}]

Thank You! There are two errors - square brackets in Sum and zero initial value s, after fix it works

x =.
s =.
x = 1 - (2 s)^0.5
\[Alpha] = 0.5
n = 4
A = 1 - x^n - \!\(
\*UnderoverscriptBox[\(\[Sum]\), \(k = 0\), \(\(-1\) + n\)]
\*FractionBox[\(
\*SuperscriptBox[\(x\), \(k\)] \((1 -
\*SuperscriptBox[\(x\), \(\(-k\) + n\)])\)\), \(\(-k\) + n\)]\)
p = 1 - x
b = \[Alpha] A*(1 - x)^2/(A + 1 - x^n)
data = Table[Table[{s, f}, {s, 0.0001, 1, 0.01}], {f, {p, b}}];
ListLinePlot[data, PlotLegends -> {price, ad}]

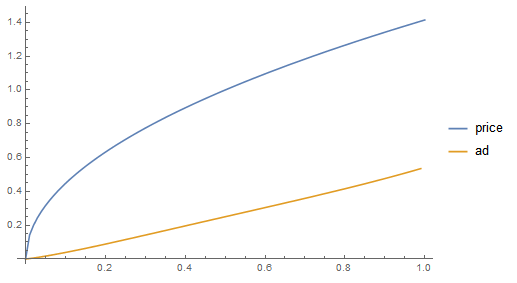

Fig

POSTED BY: Alexander Trounev

Fangqing Pu

Posted 7 years ago

thanks a lot

POSTED BY: Fangqing Pu

Mariusz Iwaniuk

Mariusz Iwaniuk, engineer, math hobbyist.

Posted 7 years ago

x = 1 - (2 s)^0.5; \[Alpha] = 0.5; n = 4; A = 1 - x^n - Sum[(x^k(1 - x^(-k + n)))/(-k + n), {k, 1, n - 1}]; p = 1 - x; b = \[Alpha]A*(1 - x)^2/(A + 1 - x^n); data = Table[{s, p}, {s, 0, 1, 0.01}]; data2 = Table[{s, b}, {s, 0.0001, 1, 0.01}]; ListLinePlot[{data, data2}, PlotLegends -> {price, ad}]

   x = 1 - (2 s)^0.5;
   \[Alpha] = 0.5;
   n = 4;
   A = 1 - x^n - Sum[(x^k*(1 - x^(-k + n)))/(-k + n), {k, 1, n - 1}];
   p = 1 - x;
   b = \[Alpha]*A*(1 - x)^2/(A + 1 - x^n);
   data = Table[{s, p}, {s, 0, 1, 0.01}];
   data2 = Table[{s, b}, {s, 0.0001, 1, 0.01}];
   ListLinePlot[{data, data2}, PlotLegends -> {price, ad}]

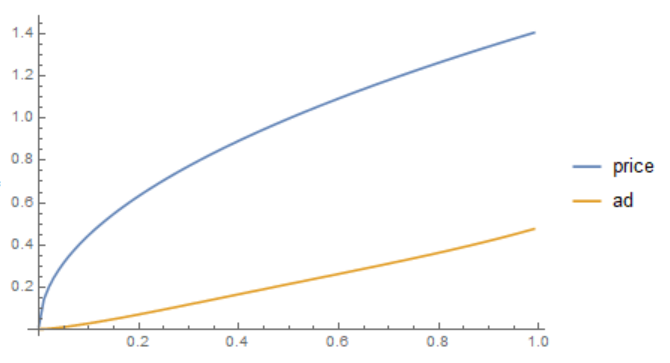

enter image description here
