Avoid problem with graphical transformation?

Michael Steffen

Posted 7 years ago

Hello, 3 months ago I saved a notebook which was fine - but I am not sure which version was available at this point. However, actually I am using 11.2.0.0. The code is WrapText[str_, transformation_] := Rasterize[ Module[{text}, text = Style[str, Bold, FontFamily -> "Helvetica", FontSize -> 12, LineBreakWithin -> False]; Graphics@ Cases[ImportString[ExportString[text, "PDF"], "TextMode" -> "Outlines"][[1, 1]], FilledCurve[a__] :> FilledCurve[a], Infinity] /. transformation], ImageSize -> {300, 300}] Export[NotebookDirectory[] <> "Test.jpg", transformationSpiral = {x_Real, y_Real} :> {Cos[-x/(12 Pi)](y + 4 + x/18), Sin[-x/(12 Pi)](y + 4 + x/18)}; WrapText[ "All human beings are born free and equal in dignity and rights. \ They are endowed with reason and conscience and should act towards \ one another in a spirit of brotherhood.", transformationSpiral]] with following result: The code is from here and should look like this (and definately did it 3 months ago...): . On an old os-backup with MMA 11.0.1 it works fine - except that it looks a bit different and the message "file was created with a newer version"...any ideas whats going on here? Was there any version between 11.0.1 and 11.2 on the Raspberry? I am almost sure I saved it with actual 11.2 - but why does the output look so 'corrupted' now? And how could I fix it? Many thanks for your help and ideas,

Hello, 3 months ago I saved a notebook which was fine - but I am not sure which version was available at this point. However, actually I am using 11.2.0.0. The code is

WrapText[str_, transformation_] :=

 Rasterize[
  Module[{text},
   text = Style[str, Bold, FontFamily -> "Helvetica", FontSize -> 12,
     LineBreakWithin -> False];
   Graphics@
     Cases[ImportString[ExportString[text, "PDF"],
        "TextMode" -> "Outlines"][[1, 1]],
      FilledCurve[a__] :> FilledCurve[a], Infinity] /.
    transformation], ImageSize -> {300, 300}]

Export[NotebookDirectory[] <> "Test.jpg",
 transformationSpiral = {x_Real,
    y_Real} :> {Cos[-x/(12 Pi)]*(y + 4 + x/18),
    Sin[-x/(12 Pi)]*(y + 4 + x/18)};
 WrapText[
  "All human beings are born free and equal in dignity and rights. \
They are endowed with reason and conscience and should act towards \
one another in a spirit of brotherhood.", transformationSpiral]]

with following result:

enter image description here

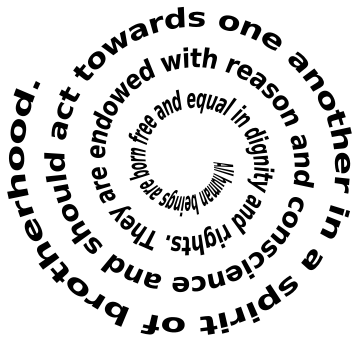

The code is from here and should look like this (and definately did it 3 months ago...):

enter image description here .

On an old os-backup with MMA 11.0.1 it works fine - except that it looks a bit different and the message "file was created with a newer version"...any ideas whats going on here?

Was there any version between 11.0.1 and 11.2 on the Raspberry? I am almost sure I saved it with actual 11.2 - but why does the output look so 'corrupted' now? And how could I fix it?

Many thanks for your help and ideas,

POSTED BY: Michael Steffen

6 Replies

Sort By:

Michael Steffen

Posted 7 years ago

The problem seems to be somewhere in my OS I think (but where/why?). I did an apt-get update+upgrade on my os-backup - and this sd-card with MMA 11.2 now renders it as it should. Strange...but, however, it works fine now....as I saved it. How on earth you could come up with ImportString[< data.pdf >, "TextMode" -> "Outlines"] Interesting code. Why do you write the replacement rule FilledCurve[a__] :> FilledCurve[a] that weren't my ideas, I just found it in the mentioned link in my first post (on Stackexchange) and modified it slightly. For questions you have to ask the person who posted it there.

POSTED BY: Michael Steffen

Henrik Schachner

Henrik Schachner, Radiation Therapy Center, Weilheim, Germany

Posted 7 years ago

I meanwhile found the probably original source of this code: It is contained in the documentation on `FilledCurve` (the last one of the "Neat Examples"). But the question remains: How could one find the useful option `"TextMode" -> "Outlines"` of the function `ImportString` other than by chance and what are possibly other options? To me it seems that `ImportString` is poorly documented.

POSTED BY: Henrik Schachner

Gianluca Gorni

Gianluca Gorni, University of Udine

Posted 7 years ago

Interesting code. Why do you write the replacement rule FilledCurve[a__] :> FilledCurve[a] in Cases? Wouldn't the simple pattern `FilledCurve[a__]` have the same effect?

POSTED BY: Gianluca Gorni

Henrik Schachner

Henrik Schachner, Radiation Therapy Center, Weilheim, Germany

Posted 7 years ago

Hi Michael, no problem on `11.3.0 for Linux x86 (64-bit) (March 7, 2018)`. Nice code, thanks for sharing! How on earth you could come up with ImportString[< data.pdf >, "TextMode" -> "Outlines"] I cannot find this anywhere in the documentation. Regards -- Henrik
