Question on discrete time model

Posted 11 years ago
Hello,

In designing a control system in the continuous frequency domain, and then converting it to a discrete time system, I get to the result below.
 In[24]:= discreteClosedLoop =
  ToDiscreteTimeModel[closedLoop, .5, z] // FullSimplify

 Out[24]= TransferFunctionModel[{{{(
      3.1886932013146107`*^25 + z (-4.875667541784289*^25 + z (-2.\
 668411863050167*^25 + 5.395948880048733*^25 z))) \[Alpha]}}, {{
    9.419520692765025*^25 (-1. + 1. z)^3 + (
       3.1886932013146004`*^25 + z (-4.875667541784272*^25 + z (-2.\
 6684118630501584`*^25 + 5.395948880048714*^25 z))) \[Alpha]}}}, z,
SamplingPeriod -> 0.5, SystemsModelLabels -> {{None}, {None}}]

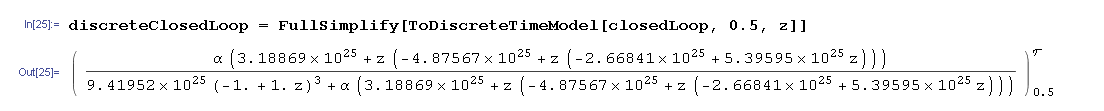

It's a bit hard to read in that view. Here is a screen capture:


First, it appears there is a factor of at least 10^25 that can be extracted from both the numerator and denominator and cancelled. Does anyone know how I wind up with that, and what to do about it?

Second, is there a way to get the polynomial in z out of the model, so it can be worked with using InverseZTransform? "Normal" does not extract it, like it would for other encapsulations in Mathematica.

Thanks and best regards,

David
POSTED BY: David Keith
3 Replies
Posted 11 years ago
Thank you both. Just what I needed!
POSTED BY: David Keith
Another way is as follows
  • The given transfer function
discreteClosedLoop = TransferFunctionModel[{{{(3.1886932013146107`*^25+
       z (-4.875667541784289*^25+z (-2. 668411863050167*^25+5.395948880048733*^25 z))) ?}},
     {{9.419520692765025*^25 (-1.+1. z)^3+(3.1886932013146004`*^25+z (-4.875667541784272*^25+
       z (-2. 6684118630501584`*^25+5.395948880048714*^25 z))) ?}}},
    z,SamplingPeriod->0.5,SystemsModelLabels->{{None},{None}}]
  • Extract the discrete transfer function:
discreteClosedLoop[z]
  • Perform the simplification:
Expand[discreteClosedLoop[z]]//Simplify

you could also remove the braces, as Bruce did, using the part function([[1,1]]).
POSTED BY: Ahmed Mogahed
 In[34]:= discreteClosedLoop = TransferFunctionModel[{{{(3.1886932013146107`*^25+
       z (-4.875667541784289*^25+z (-2. 668411863050167*^25+5.395948880048733*^25 z))) \[Alpha]}},
     {{9.419520692765025*^25 (-1.+1. z)^3+(3.1886932013146004`*^25+z (-4.875667541784272*^25+
       z (-2. 6684118630501584`*^25+5.395948880048714*^25 z))) \[Alpha]}}},
    z,SamplingPeriod->0.5,SystemsModelLabels->{{None},{None}}]

 (* Pull out the numerator and denominator using the Part function. *)
 In[35]:= num = discreteClosedLoop[[1,1,1,1]]
 In[36]:= denom = discreteClosedLoop[[1,2,1,1]]

In[37]:= Expand[num * 10.^-25] / Expand[denom * 10.^-25]
Out[37]= (3.18869 \[Alpha]-4.87567 z \[Alpha]-1.33682*10^15 z^2 \[Alpha]+5.39595 z^3 \[Alpha])/(-9.41952+28.2586 z-28.2586 z^2+9.41952 z^3+3.18869 \[Alpha]-4.87567 z \[Alpha]-1.33682*10^16 z^2 \[Alpha]+5.39595 z^3 \[Alpha])

Not super elegant, but does what you want.

Functions such as FactorTerms choke on the floating-point (i.e., approximate) numbers.

You can give this to InverseZTransform,
InverseZTransform[%, z, n]
The output is large.

As for where the 10^25 factors come from, a Control Systems whiz would need to see your data.
POSTED BY: Bruce Miller
