[GIF] Double Projection (Projected rotating 16-cell)

Posted 25 days ago
281 Views
|
1 Reply
|
2 Total Likes
|

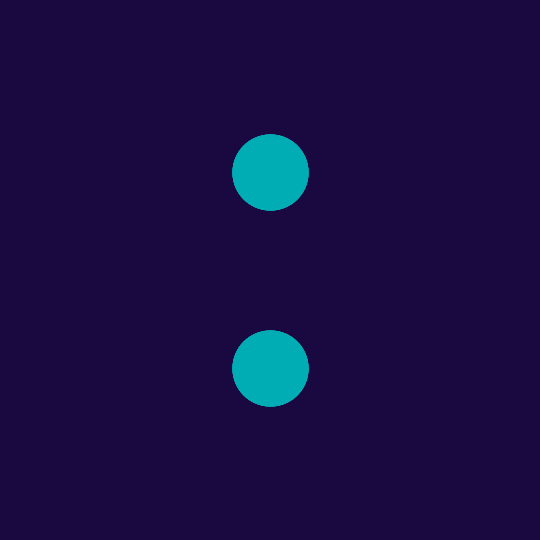

Projected rotating 16-cell

Double Projection

This is a similar idea to J34: starting with the vertices of the 16-cell (a.k.a. cross polytope, a.k.a. orthoplex) and thinking of them as points on the 3-sphere, I'm applying a rotation, then projecting down to the 2-sphere using the Hopf map. From there, the difference from J34 is that I'm taking those points on the 2-sphere, forming a spherical disk of radius 0.4, then stereographically projecting down to the plane (this last step uses the ProjectedSphericalCircle[] function from Small Changes which, given the center and radius of a disk on the sphere, outputs a Disk[] in the plane which is its stereographic image).

First of all, we need the Hopf map and the smootherstep function:

Hopf[{x_, y_, z_, w_}] := {x^2 + y^2 - z^2 - w^2, 2 y z - 2 w x, 2 w y + 2 x z};
smootherstep[t_] := 6 t^5 - 15 t^4 + 10 t^3;

And the vertices of the 16-cell:

sixteencellvertices =
  Normalize /@
   Flatten[Permutations[{-1, 0, 0, 0}]^# & /@ Range[1, 2], 1];

And then this is the animation code:

With[{pts = Normalize /@ sixteencellvertices, viewpoint = 2 {1, 0, 0},
   cols = RGBColor /@ {"#00adb5", "#f8b500", "#1a0841"}},
 Manipulate[
  Graphics[
   {Blend[
     cols[[;; 2]], (Floor[t] + Sign[1 - t] smootherstep[Mod[t, 1]])],
    Table[
     ProjectedSphericalCircle[
      RotationMatrix[π/2, {0, 0, 1}].
       Hopf[
        RotationMatrix[π/2 (Floor[t] + smootherstep[Mod[t, 1]]), {{1, 1, 0, 0}, {0, 0, 1, 1}}].pts[[i]]
        ],
      .4],
     {i, 1, Length[pts]}]},
   PlotRange -> 3, ImageSize -> 540, Background -> cols[[-1]]],
  {t, 0, 2}]
 ]

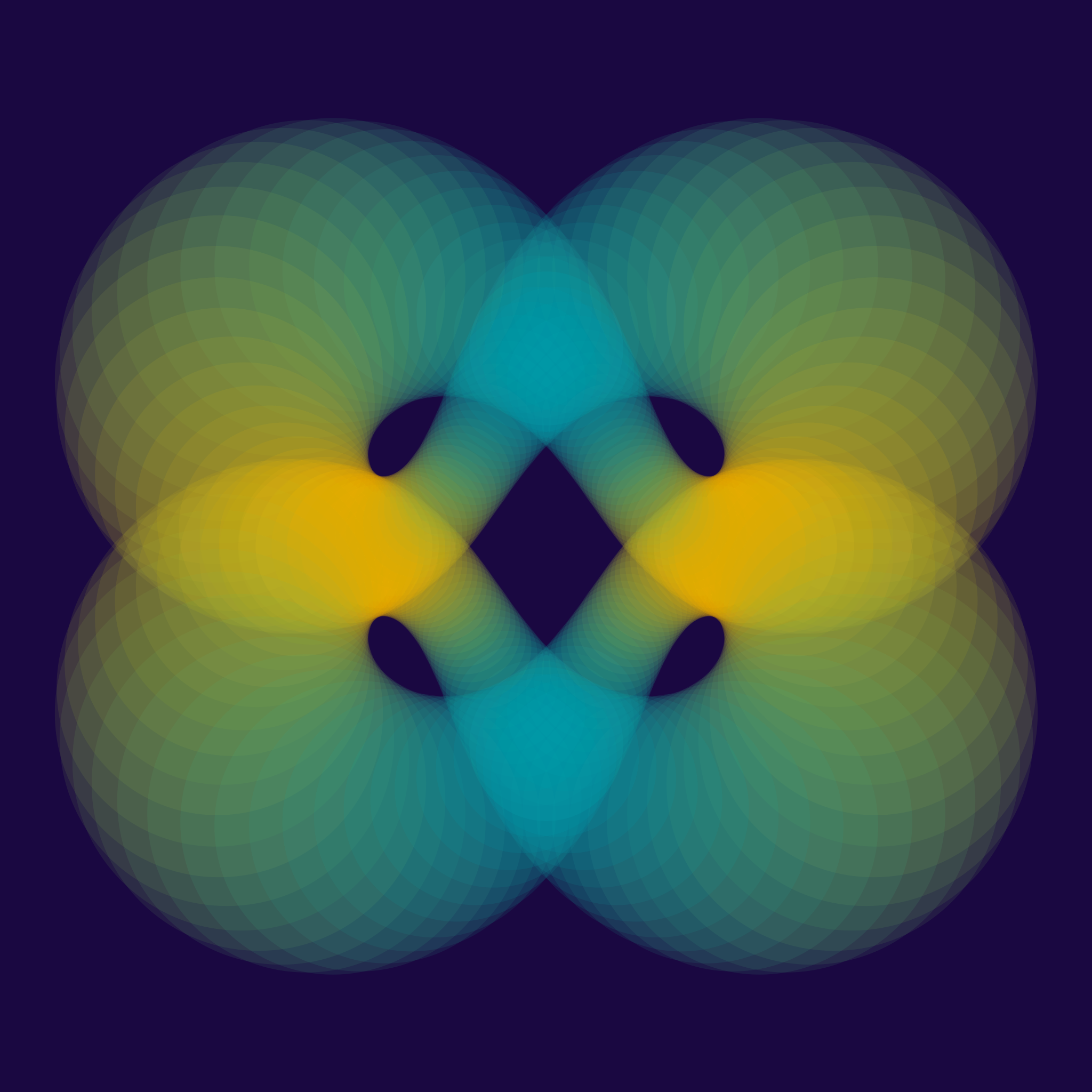

Finally, here's an image where I've composited together all of the frames of a similar animation (essentially the same thing without the smootherstep function, so it's just a constant-speed rotation):

All frames of the animation composited together
