[GIF] Fitting In (Stereographic projection of 124-circle packing on sphere)

Posted 3 months ago
727 Views
|
1 Reply
|
4 Total Likes
|

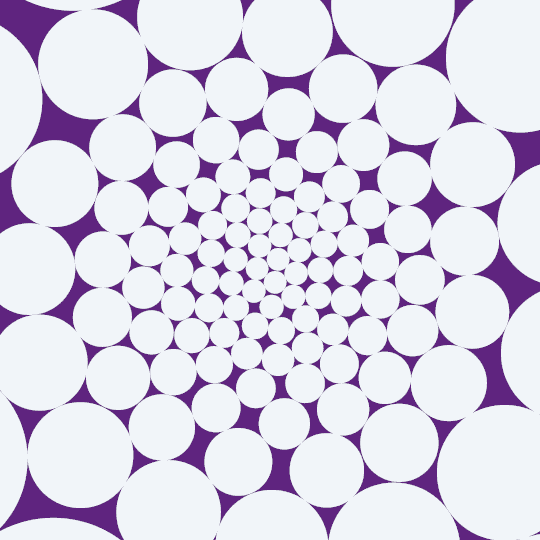

Stereographic projection of optimal packing of 124 circles on the sphere

Fitting In

For various reasons I've spent some time recently playing around with Neil Sloane's tables of putatively optimal packings of points on spheres and Grassmannians. This particular animations shows the best known way to put 124 points on the standard unit 2-sphere that maximizes the minimal distance between points. Here's how to import the points:

pack124 = Normalize /@
   (Partition[
     Import[
       URLDownload[
        "http://neilsloane.com/packings/dim3/pack.3.124.txt",
        NotebookDirectory[] <> "pack.3.124.txt"], "List"][[2 ;;]],
     3]);

Now, I put spherical circles of radius equal to half the minimal distance between points and stereographically project to the plane using the ProjectedSphericalCircle[] function defined first for Small Changes. Add in a little rotation, and here's the code for the animation:

With[{cols = RGBColor /@ {"#f2f4fb", "#5e227f"}},
 Manipulate[
  Graphics[
   {PointSize[Large], Thickness[.004], cols[[1]],
    If[#[[3]] < .95, ProjectedSphericalCircle[#, 18.9539116*π/360], Nothing]
      & /@ ((RotationMatrix[θ, {1., 1., 1.}].RotationMatrix[{Mean[pack124[[{32, 85, 124}]]], {0, 0, -1.}}].#)
        & /@ pack124)},
   PlotRange -> 2, ImageSize -> 540, Background -> cols[[-1]]],
  {θ, 0, 2 π}]
 ]

enter image description here - Congratulations! This post is now a Staff Pick as distinguished by a badge on your profile! Thank you, keep it coming, and consider contributing your work to the The Notebook Archive!
