Labeled Cube

Posted 6 years ago

How to label faces of a cube with numbers 1 to 6? First, I'll turn text outlines into polygons.

SymbolToPolygon[symbol_, dimension_: "3D"] :=
 Module[{pol, poly, index, pos, minmax, diffs, poly2D},
  pol = (Cases[ImportString[ExportString[symbol, "PDF"],  "PDF"], _FilledCurve, \[Infinity]][[1, 2]]);
  poly = pol[[1]];
  index = 2;
  While[index <= Length[pol],
   pos = Position[poly, Nearest[poly, pol[[index, 1]]][[1]]][[1, 1]] ;
   poly = Join[Take[poly, pos], Reverse[pol[[index]]], Drop[poly, pos - 1]];
   index++];
  minmax = MinMax /@ Transpose[poly];
  diffs = #[[2]] - #[[1]] & /@ minmax;
  poly2D = (# - Mean /@ minmax)/Max[diffs] & /@ poly;
  If[dimension === "2D", Polygon[poly2D], Polygon[Append[#, 1] & /@ poly2D]]]

After that, rotations and the cube

tab={{0,{0,1,0}},{Pi/2,{0,1,0}},{Pi/2,{1,0,0}},{-Pi/2,{1,0,0}},{-Pi/2,{0,1,0}},{Pi,{0,1,0}} };

Graphics3D[Table[Polygon[SymbolToPolygon[ToString[n]][[1]].RotationMatrix[tab[[n,1]],
tab[[n,2]]]],{n,1,6}]]

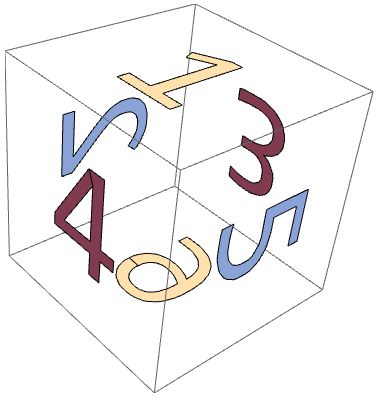

labeled cube

Can anyone improve on that?

POSTED BY: Ed Pegg
