Add contour lines on a map?

Hi,

I would like to know how I can add Contour lines on the map?

X = {1, 2, 4, 5, 7, 9};

Y = {3, 8, 9, 2, 6, 3};

Z = {100, 110, 120, 60, 90, 70};

T = Transpose[{X, Y, Z}];

ListContourPlot[T1, ColorFunction -> "BlueGreenYellow",
 PlotLegends -> Automatic]

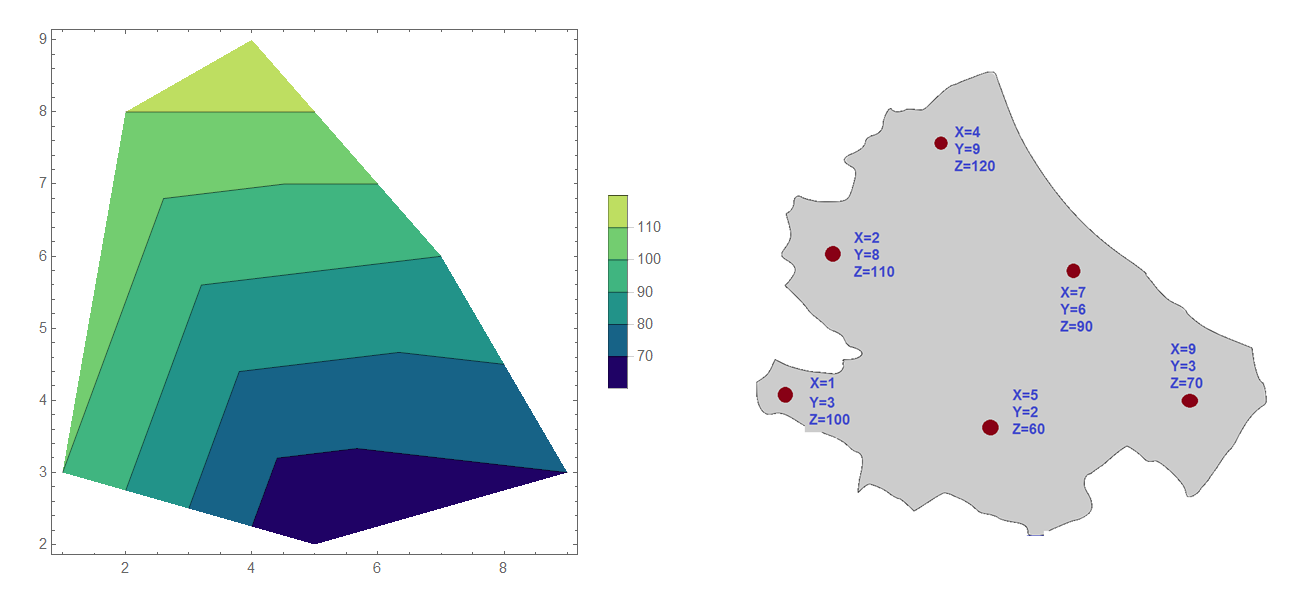

enter image description here

Thanks for your help.
POSTED BY: M.A. Ghorbani
8 Replies
Sort By:

Maybe like so (the exact relation/reference of a graphic with an image is always problematic ...):

mapImg = ImageCrop[
   Import["https://community.wolfram.com//c/portal/getImageAttachment?\
filename=6501Untitled.png&userId=943918"]];

imgDim = ImageDimensions[mapImg];

cp = ImageResize[
   Image[ContourPlot[fT[x, y], {x, y} \[Element] poly,
     ColorFunction -> "BlueGreenYellow", PlotLegends -> None,
     Epilog -> {Red, PointSize[.03], Point[Thread[{xData, yData}]]},
     ContourShading -> None, Frame -> True, FrameTicks -> None,
     PlotRangePadding -> None, ImageSize -> Large]], imgDim];

Show[mapImg, cp]

enter image description here
POSTED BY: Henrik Schachner

Wow. Thanks Henrik :)
POSTED BY: M.A. Ghorbani

Please - do not call here your polygon data simple data, because it will break my code. The area itself now is most obviously not convex, but a general polygon. Let polyData be the points describing the area (which already are in correct order!), then:

xData = {52, 128, 300, 375, 510, 693};
yData = {228, 451, 624, 173, 419, 214};
zValues = {100, 110, 120, 60, 90, 70};
data = MapThread[{{#1, #2}, #3} &, {xData, yData, zValues}];
poly = Polygon[polyData];
fT = Quiet@Interpolation[data, InterpolationOrder -> 1];
ContourPlot[fT[x, y], {x, y} \[Element] poly,
 ColorFunction -> "BlueGreenYellow", PlotLegends -> Automatic,
 Epilog -> {Red, PointSize[.03], Point[Thread[{xData, yData}]]}]

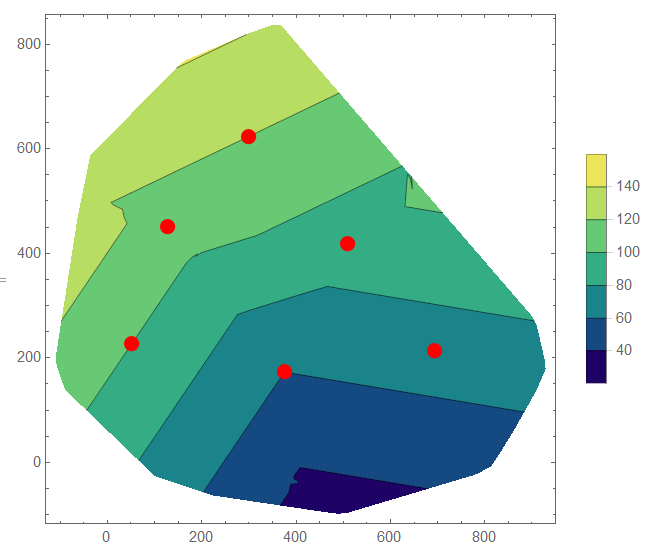

enter image description here
POSTED BY: Henrik Schachner

Now we are in an important point, and it is overlain two images.It is not interesting.!

m = ContourPlot[fT[x, y], {x, y} \[Element] poly,
  ContourShading -> None, ImageSize -> 500,
  Epilog -> {Red, PointSize[.03], Point[Thread[{xData, yData}]]}]

enter image description here

enter image description here
POSTED BY: M.A. Ghorbani

Hello Prof. Ghorbani,

this gives more or less exactly the graphic you were showing:

xData = {1, 2, 4, 5, 7, 9};
yData = {3, 8, 9, 2, 6, 3};
zValues = {100, 110, 120, 60, 90, 70};

data = MapThread[{{#1, #2}, #3} &, {xData, yData, zValues}];
poly = ConvexHullMesh[Thread[{xData, yData}]];
fT = Quiet@Interpolation[data, InterpolationOrder -> 1];
ContourPlot[fT[x, y], {x, y} \[Element] poly,
 ColorFunction -> "BlueGreenYellow", PlotLegends -> Automatic]

Regards -- Henrik

EDIT:

Because we can have here only linear interpolation we can extent the area, maybe this makes some sense too:

polyS = RegionResize[poly, Scaled[1.3]];
ContourPlot[fT[x, y], {x, y} \[Element] polyS,
 ColorFunction -> "BlueGreenYellow", PlotLegends -> Automatic,
 Epilog -> {Red, PointSize[.03], Point[Thread[{xData, yData}]]}]

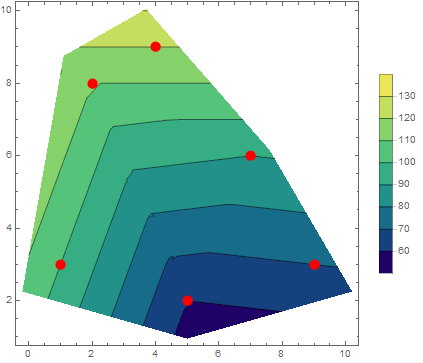

enter image description here
POSTED BY: Henrik Schachner

Dear Henrik,

Many thanks for the solution.

But I want to plot contour lines on the below map. How do I plot it? enter image description here
POSTED BY: M.A. Ghorbani

Well, then you have to create a polygon or region representing you map, call it poly and repeat the above ContourPlot command.
POSTED BY: Henrik Schachner

Dear Henrik,

Many thanks again. I used coordinates tools for the map and extracted (x,y) coordinates as below. I appreciate you really.

data = {{69.94439117929088`, 530.9875359539778`}, {63.58581016299169`,
     518.2703739213795`}, {61.99616490891691`,
    507.1428571428559`}, {58.81687440076732`,
    492.8360498561828`}, {58.81687440076732`,
    478.5292425695097`}, {52.45829338446816`,
    467.4017257909861`}, {46.09971236816898`,
    446.7363374880139`}, {58.81687440076732`,
    443.55704697986425`}, {61.99616490891691`,
    443.55704697986425`}, {69.94439117929088`,
    424.48130393096676`}, {60.4065196548421`,
    405.40556088206927`}, {54.047938638542945`,
    395.8676893576204`}, {61.99616490891691`,
    383.15052732502215`}, {69.94439117929088`,
    373.6126558005734`}, {79.48226270373962`,
    364.07478427612466`}, {90.60977948226318`,
    357.7162032598254`}, {98.55800575263714`,
    349.7679769894514`}, {108.09587727708586`,
    338.6404602109279`}, {120.81303930968423`,
    330.69223394055393`}, {133.5302013422826`,
    322.74400767018005`}, {139.88878235858172`,
    319.56471716203043`}, {152.6059443911801`,
    306.84755512943207`}, {160.55417066155402`,
    298.8993288590581`}, {163.73346116970365`,
    294.1303930968337`}, {162.14381591562884`,
    283.0028763183102`}, {147.83700862895572`,
    278.2339405560858`}, {138.29913710450697`,
    263.9271332694127`}, {122.40268456375904`,
    254.38926174496396`}, {108.09587727708586`,
    255.9789069990387`}, {93.78906999041274`,
    260.7478427612631`}, {73.12368168744047`,
    262.33748801533784`}, {58.81687440076732`,
    271.8753595397867`}, {34.97219558964542`,
    273.46500479386145`}, {22.255033557047085`,
    255.9789069990387`}, {11.127516778523557`,
    244.8513902205152`}, {11.127516778523557`,
    230.5445829338421`}, {19.075743048897493`,
    208.28954937679498`}, {25.434324065196677`,
    192.393096836047`}, {44.5100671140942`,
    189.2138063278975`}, {68.35474592521606`,
    179.67593480344863`}, {81.0719079578144`,
    168.54841802492513`}, {96.96836049856233`,
    162.189837008626`}, {120.81303930968423`,
    155.83125599232676`}, {141.47842761265653`,
    147.88302972195288`}, {154.1955896452549`,
    139.9348034515789`}, {170.09204218600277`,
    135.1658676893545`}, {174.8609779482272`,
    125.62799616490577`}, {170.09204218600277`,
    108.14189837008303`}, {168.50239693192802`,
    89.06615532118553`}, {171.68168744007758`,
    65.22147651006367`}, {176.45062320230195`,
    76.34899328858717`}, {189.16778523490032`,
    74.75934803451241`}, {206.653883029723`,
    73.16970278043755`}, {213.0124640460222`,
    71.5800575263628`}, {220.96069031639618`,
    63.6318312559888`}, {238.44678811121886`,
    55.68360498561481`}, {254.3432406519668`,
    46.14573346116606`}, {267.06040268456513`,
    36.60786193671731`}, {281.36720997123825`,
    52.5043144774653`}, {300.44295302013575`,
    58.86289549376443`}, {316.33940556088373`,
    63.6318312559888`}, {333.8255033557065`,
    55.68360498561481`}, {375.1562799616511`,
    36.60786193671731`}, {349.72195589645435`,
    47.73537871524093`}, {365.61840843720233`,
    35.01821668264256`}, {387.87344199424945`,
    28.659635666343434`}, {405.3595397890721`,
    20.71140939596944`}, {418.07670182167044`,
    23.89069990411906`}, {432.38350910834356`,
    14.352828379670314`}, {470.53499520613866`,
    9.583892617445827`}, {486.43144774688653`,
    11.173537871520693`}, {492.79002876318566`,
    15.942473633745067`}, {505.507190795784`,
    19.121764141894687`}, {518.2243528283824`,
    35.01821668264256`}, {534.1208053691303`,
    33.42857142856781`}, {538.8897411313546`,
    44.55608820709131`}, {532.5311601150555`,
    58.86289549376443`}, {530.9415148609808`,
    76.34899328858717`}, {534.1208053691303`,
    89.06615532118553`}, {538.8897411313546`,
    97.01438159155941`}, {543.658676893579`,
    101.7833173537839`}, {557.9654841802522`,
    106.55225311600827`}, {569.0930009587757`,
    119.26941514860653`}, {573.8619367210001`,
    131.9865771812049`}, {578.6308724832245`,
    143.1140939597285`}, {596.1169702780472`,
    144.70373921380326`}, {607.24`, 139.93`}, {618.3720038350943`,
    127.21764141898052`}, {629.4995206136178`,
    116.09012464045702`}, {635.8581016299171`,
    116.09012464045702`}, {646.9856184084406`,
    116.09012464045702`}, {650.1649089165902`,
    116.09012464045702`}, {661.2924256951137`,
    112.9108341323074`}, {667.6510067114128`,
    98.60402684563428`}, {681.9578139980861`,
    90.65580057526029`}, {686.7267497603104`,
    76.34899328858717`}, {693.0853307766096`,
    66.81112176413842`}, {701.0335570469836`,
    69.99041227228804`}, {707.3921380632827`,
    76.34899328858717`}, {720.109300095881`,
    79.52828379673679`}, {724.8782358581054`,
    89.06615532118553`}, {731.2368168744046`,
    93.8350910834099`}, {740.7746883988533`,
    108.14189837008303`}, {745.5436241610777`,
    124.0383509108309`}, {758.260786193676`,
    133.57622243527965`}, {766.20901246405`,
    146.293384467878`}, {774.157238734424`,
    159.01054650047638`}, {780.5158197507232`,
    179.67593480344863`}, {794.8226270373963`,
    192.393096836047`}, {802.7708533077703`,
    209.87919463086973`}, {809.1294343240694`,
    222.5963566634681`}, {807.5397890699946`,
    236.90316395014122`}, {799.5915627996206`,
    265.51677852348746`}, {794.8226270373963`,
    273.46500479386145`}, {794.8226270373963`,
    286.1821668264598`}, {786.8744007670223`,
    300.48897411313294`}, {780.5158197507232`,
    303.66826462128245`}, {774.157238734424`,
    305.2579098753573`}, {761.4400767018257`,
    311.61649089165644`}, {750.312559923302`,
    316.3854266538808`}, {734.4161073825542`,
    325.92329817832956`}, {723.2885906040307`,
    332.2818791946288`}, {712.1610738255071`,
    340.2301054650027`}, {702.6232023010583`,
    344.99904122722705`}, {693.0853307766096`,
    349.7679769894514`}, {683.5474592521608`,
    359.3058485139003`}, {680.3681687440112`,
    364.07478427612466`}, {669.2406519654877`,
    370.4333652924238`}, {653.3441994247397`,
    389.5091083413213`}, {659.702780441039`,
    381.5608820709473`}, {642.2166826462162`,
    400.6366251198449`}, {626.3202301054682`,
    411.7641418983684`}, {621.5512943432439`,
    414.943432406518`}, {618.3720038350943`,
    419.7123681687424`}, {613.60306807287`,
    424.48130393096676`}, {607.2444870565707`,
    432.42953020134064`}, {600.8859060402716`,
    438.7881112176399`}, {589.758389261748`,
    448.3259827420886`}, {573.8619367210001`,
    449.9156279961634`}, {565.9137104506261`,
    467.4017257909861`}, {551.606903163953`,
    486.4774688398836`}, {534.1208053691303`,
    494.4256951102576`}, {522.9932885906068`,
    502.37392138063154`}, {516.6347075743076`,
    511.9117929050803`}, {507.0968360498589`,
    521.4496644295291`}, {497.55896452541003`,
    532.5771812080526`}, {486.43144774688653`,
    543.7046979865761`}, {478.48322147651254`,
    556.4218600191746`}, {464.1764141898394`,
    567.5493767976981`}, {459.40747842761505`,
    581.8561840843712`}, {449.8696069031663`,
    591.3940556088199`}, {443.5110258868672`,
    599.3422818791939`}, {438.7420901246428`,
    605.7008628954931`}, {430.7938638542688`,
    618.4180249280914`}, {426.02492809204443`,
    634.3144774688394`}, {418.07670182167044`,
    648.6212847555125`}, {413.31`, 659.75`}, {405.3595397890721`,
    675.6452540747839`}, {405.3595397890721`,
    686.7727708533075`}, {392.6423777564738`,
    699.4899328859058`}, {387.87344199424945`,
    715.3863854266538`}, {378.3355704698007`,
    728.1035474592521`}, {365.61840843720233`,
    729.6931927133269`}, {349.72195589645435`,
    723.3346116970278`}, {337.004793863856`,
    720.1553211888781`}, {325.8772770853325`,
    716.9760306807286`}, {319.51869606903324`,
    707.4381591562798`}, {305.2118887823601`,
    705.848513902205`}, {295.6740172579114`,
    699.4899328859058`}, {284.5465004793879`,
    694.7209971236814`}, {271.8293384467895`,
    682.0038350910831`}, {262.29146692234076`,
    678.8245445829335`}, {244.80536912751805`,
    678.8245445829335`}, {230.49856184084493`,
    678.8245445829335`}, {222.55033557047093`,
    677.2348993288588`}, {214.602109300097`,
    672.4659635666344`}, {209.83317353787263`,
    659.748801534036`}, {198.70565675934907`,
    645.4419942473628`}, {190.75743048897507`,
    635.904122722914`}, {176.45062320230195`,
    627.9558964525402`}, {170.09204218600277`,
    616.8283796740166`}, {163.73346116970365`,
    607.2905081495678`}, {147.83700862895572`,
    605.7008628954931`}, {143.06807286673134`,
    596.1629913710443`}, {149.42665388303047`,
    588.2147651006703`}, {160.55417066155402`,
    583.445829338446`}, {158.96452540747927`,
    565.9597315436233`}, {152.6059443911801`,
    546.8839884947258`}, {143.06807286673134`,
    538.9357622243517`}, {135.11984659635735`,
    532.5771812080526`}, {114.45445829338504`,
    534.1668264621273`}, {100.14765100671192`,
    530.9875359539778`}, {89.02013422818837`,
    535.7564717162022`}, {79.48226270373962`,
    537.346116970277`}, {66.76510067114128`, 537.346116970277`}};
poly = ConvexHullMesh@data
xData = {52, 128, 300, 375, 510, 693}
yData = {228, 451, 624, 173, 419, 214}
zValues = {100, 110, 120, 60, 90, 70}
fT = Quiet@Interpolation[data, InterpolationOrder -> 1]
polyS = RegionResize[poly, Scaled[1.3]];
ContourPlot[fT[x, y], {x, y} \[Element] polyS,
 ColorFunction -> "BlueGreenYellow", PlotLegends -> Automatic,
 Epilog -> {Red, PointSize[.03], Point[Thread[{xData, yData}]]}]

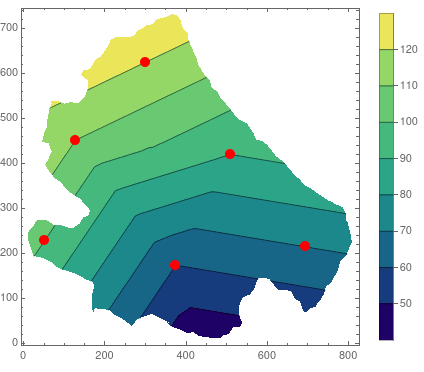

enter image description here
POSTED BY: M.A. Ghorbani
Reply to this discussion
Community posts can be styled and formatted using the Markdown syntax.
Tag limit exceeded
Note: Only the first five people you tag will receive an email notification; the other tagged names will appear as links to their profiles.
Reply Preview
Attachments
Remove
or Discard
