Introduction

Molecular Orbital (MO) theory is among the fundamental models describing molecular structures. Chemical reactivity highly depends on two features of MO: the probability distribution, and corresponding energy levels. The goal of this project is to calculate these features for different combinations of atomic orbitals of one-electron diatomic molecules as a function of internuclear distance.

Implementing the Wave Function

$$\psi (\text{n$\_$},\text{l$\_$},\text{m$\_$})(\text{r$\_$},\theta \_,\phi \_)\text{:=}\frac{2 e^{-\frac{r}{n}} \sqrt{\frac{(-l+n-1)!}{(l+n)!}} \left(\frac{2 r}{n}\right)^l L_{-l+n-1}^{2 l+1}\left(\frac{2 r}{n}\right) Y_l^m(\theta ,\phi )}{n^2}$$ You may notice that the wave function accepts Spherical coordinates. This made it difficult to graph because the built in functions for 3D graphs use cartesian coordinates. To get around this issue, the code also includes a function to convert spherical coordinates to cartesian coordinates.

sphericalToCartesian =
 Thread[{r, \[Theta], \[Phi]} -> {Sqrt[x^2 + y^2 + z^2],
    ArcCos[z/Sqrt[x^2 + y^2 + z^2]], Arg[x + I y]}]

Graphing Atomic Orbitals

Using the wavefunction, It is easy to graph a variety of atomic orbitals. For example, using the appropriate quantum numbers it is trivial to graph the S and P orbitals.

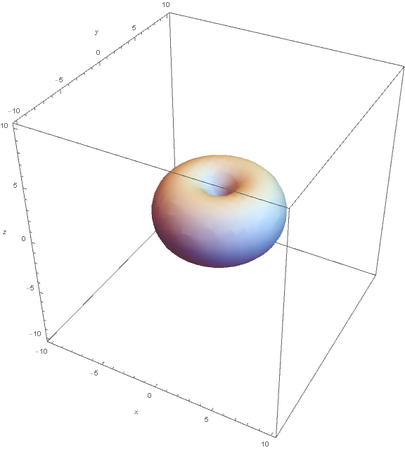

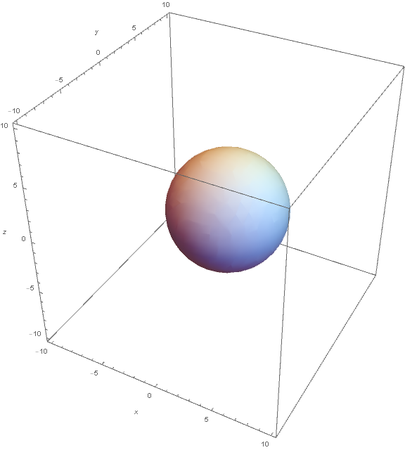

1S OrbitalPx

PyPz Orbital

However, the Px and Py orbitals are not the shape most people are familiar with. This is because the wave function produces complex solutions for l=-1,1. To obtain the real solutions, the following calculations are performed on the complex solutions: $$\text{Px}=-\frac{\psi (2,1,1)(r,\theta ,\phi )-\psi (2,1,-1)(r,\theta ,\phi )}{\sqrt{2}}$$ $$\text{Py}=\frac{i (\psi (2,1,-1)(r,\theta ,\phi )+\psi (2,1,1)(r,\theta ,\phi ))}{\sqrt{2}}$$ And graphing those yields the familiar dumbbell shaped P orbitals

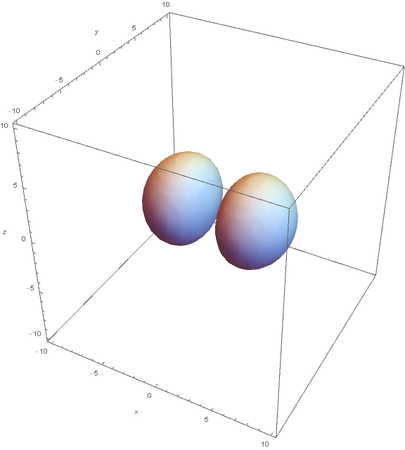

PxPy

Graphing Hybridized Molecular Orbitals

It is also possible to graph hybrid orbitals to observe their shape and orientation. (the latter quality will later allow for some interesting graphs)

SP --

Hybrids of 2S and 2Pz are made by linear combinations of themselves

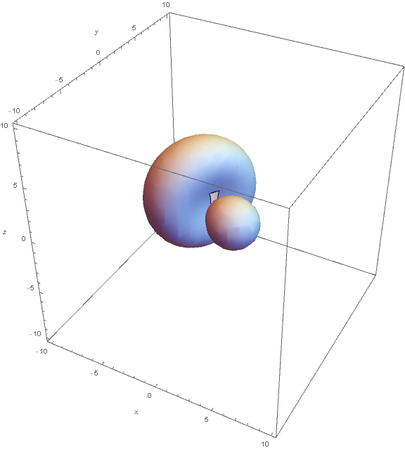

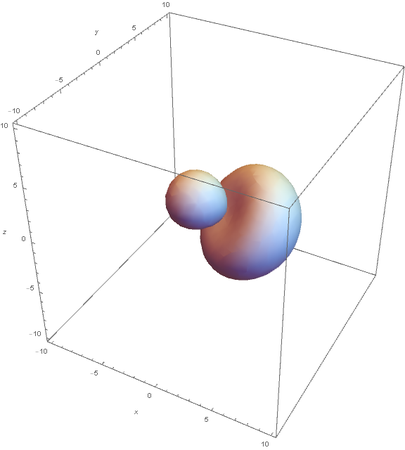

SP11SP12

graph of the remaining 2P orbitals:

PxPy

Now when I graph all of them at once:

SPoverlap

This allows us to see the linear nature of SP hybridized atoms.

SP2

SP2 hybridization:

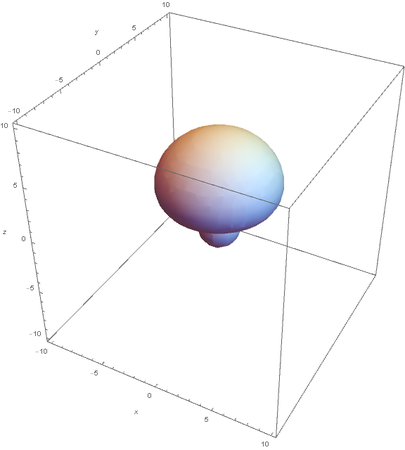

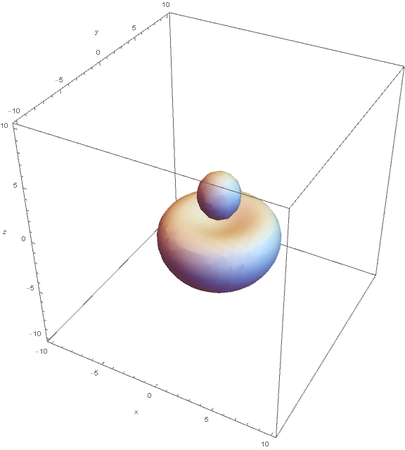

SP21SP22 SP23Pz

Now overlaying them:

SP2overlay

SP3

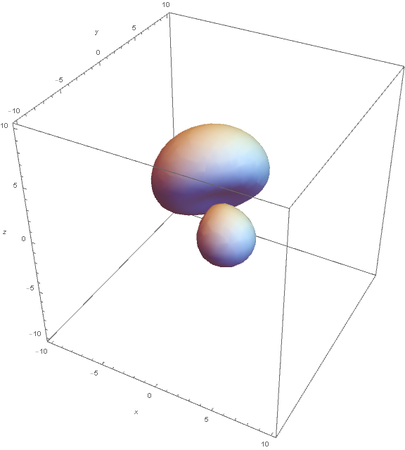

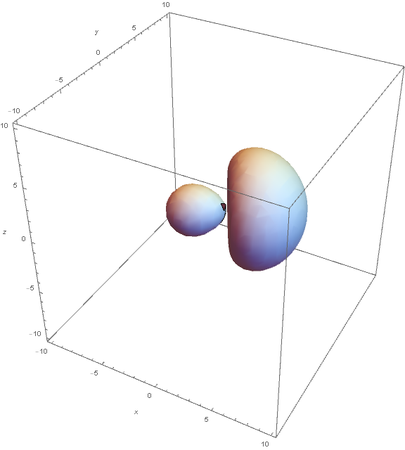

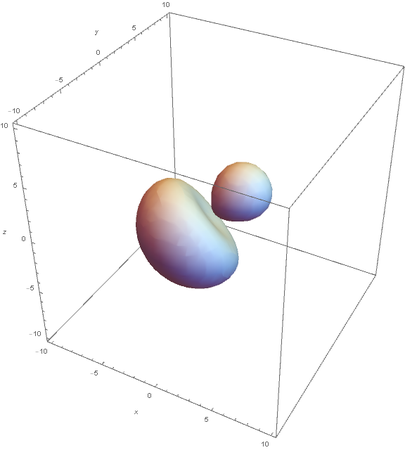

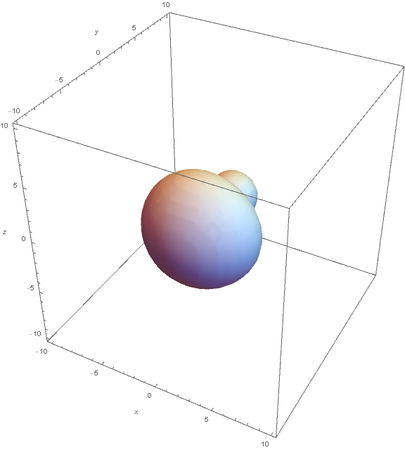

SP31SP32 SP33SP34

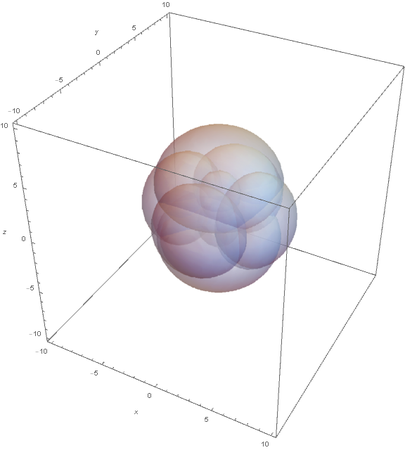

Now overlaying them:

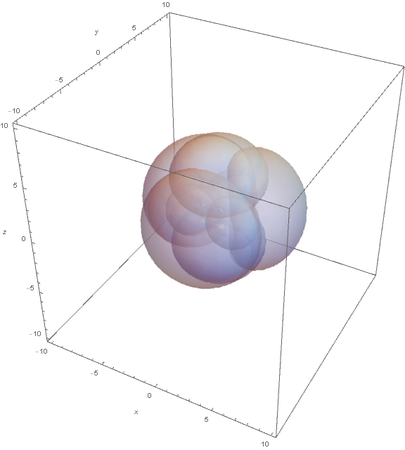

SP3overlay

This image clearly showcases the tetrahedral shape of SP3 hybridized atoms

Graphing Molecular Orbitals

The next step in my project was visualizing molecular orbitals. Using the approximation for constructive and destructive linear combination of atomic orbitals, I numerically calculated the relevant integrals for Hamiltonian, such as overlap, Coulomb, and resonance integrals. With the values of 2x2 Hamiltonian, I found the eigenvalues which are energy levels.

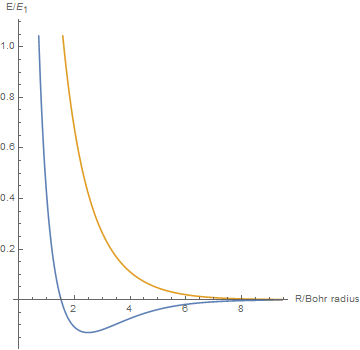

By varying the internuclear distance I obtained a graph that shows how the energy of bonding and antibonding orbitals changes with distance.

Energygraph

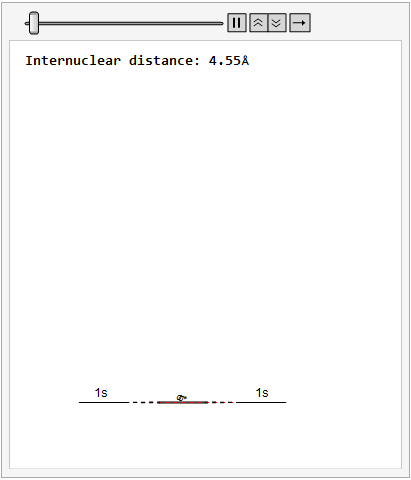

Using list animate, I made this graphic that allows you to visually see how the energies change as the internuclear distance changes.

Gif1

Finally, using a modified version of the wave function(designed to work natively with cartesian coordinates) I could animate the formation of molecular orbitals as the atoms get closer to eachother.

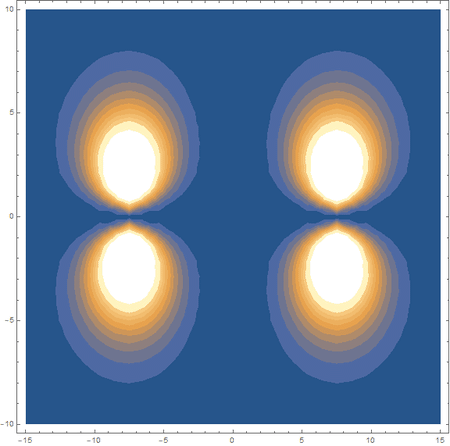

Pi bonding animationPi antibonding animation

In the first animation, you can see the Pi bonding orbital forming due to the overlap of the two P orbitals, and in the second animation you can see the second nodal plane formed along the y-axis as the Pi anti-bonding orbital is formed

Future Work

The clearest path forward is to graph more complex atoms and molecules; doing so would require more complicated wave functions and much more processing power. Graphing different combinations of atomic orbitals. Another intriguing prospect is predicting the 3D shape of organometallic complexes.

That concludes my look into the inner workings of atoms. I hope you found it as interesting as I did (:

Posted 12 days ago

Nice outputs! This seems to have a lot of real world applications. Good job in making this!
