[?] Plot a table with sequence of dates?

Posted 2 years ago
4458 Views
|
21 Replies
|
17 Total Likes
|

Hi,

I am trying to draw a table like below. How can I make this work properly?

list = {{"Washington", "Washington", "Washington", "Washington",
   "Washington", "Washington", "Washington"}, {1990.`, 1991.`, 1992.`,
    1993.`, 1994.`, 1995.`, 1996.`}, {"2", "3", "4", "5", "6", "7",
   "8"}, {"400.3", "60.7", "46.8", "21.7", "16.4", "61.0",
   "12.2"}, {"", "", "", "", "", "", ""}, {"Texas", "Texas", "Texas",
   "Texas", "Texas", "Texas", "Texas"}, {1994.`, 1995.`, 1996.`,
   1997.`, 1998.`, 1999.`, 2000.`}, {"1", "2", "3", "4", "5", "6",
   "7"}, {"29.4", "58.6", "50.7", "56.4", "30.0", "37.5", "35.2"}}

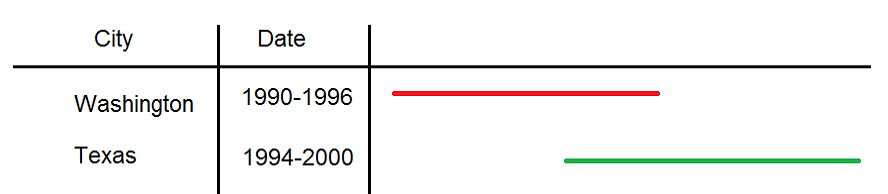

enter image description here

21 Replies
Posted 2 years ago

Which data do you want to show in the third column?

Hi Werner,

The first point is start of the date (1990) and the last point is end of the date(1996).

Thank you

I guess you basically want TimelinePlot. If the diagram does not have to look exactly like the one shown (which is not very obvious anyway!), as a first try you can do like so:

list1 = Association[Rule @@@ Partition[Extract[list, {{1, 1}, {2}, {6, 1}, {7}}], 2]];
minmax = MinMax /@ list1;
list2 = Interval /@ Map[DateObject@*ToString, minmax, {2}];
tlp = TimelinePlot[list2, ImageSize -> {400, 100}];
Grid[{{TableForm[KeyValueMap[List, minmax], TableHeadings -> {None, {"City", "Date"}}, TableDepth -> 2], tlp}}, Frame -> All]

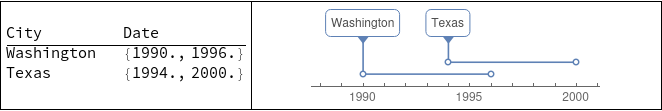

enter image description here

EDIT: Here a minor improvement (for the last line):

Grid[{{TableForm[
    KeyValueMap[
     List, #1 ~~ " - " ~~ #2 & @@@
      Map[StringDelete["."]@*ToString, minmax, {2}]],
    TableHeadings -> {None, {"City", "Date"}}, TableDepth -> 2],
   tlp}}, Frame -> All]

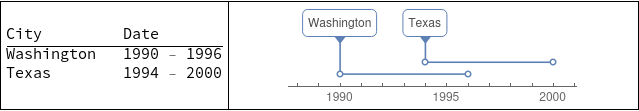

enter image description here

That is a great, Henrik.

i appreciate your time and consideration.

Hi Henrik,

Sometimes there are empty spaces on the list when I import the data from Excel.I couldn't delete these empty spaces using the DeleteCase[m," "] or DeleteCase[m,Null]. Is there any way to get rid of this problem?

In[22]:= m = {{"ACIPAYAM", "ACIPAYAM", "ACIPAYAM", "ACIPAYAM", "",
    ""}, {"1966", "1966", "1966", "1966", "", ""}, {"2", "3", "4",
    "5", "", ""}, {"19.5", "61.1", "17.2", "56.1", "", ""}, {"",
    ""}, {"ADANA BÖLGE", "ADANA BÖLGE", "ADANA BÖLGE", "ADANA BÖLGE",
    "ADANA BÖLGE", "ADANA BÖLGE", "ADANA BÖLGE", "ADANA BÖLGE",
    "ADANA BÖLGE", "ADANA BÖLGE", "ADANA BÖLGE", "ADANA BÖLGE", "",
    ""}, {"1930", "1930", "1930", "1930", "1930", "1930", "1930",
    "1930", "1930", "1930", "1930", "1930", "", ""}, {"1", "2", "3",
    "4", "5", "6", "7", "8", "9", "10", "11", "12", "", ""}, {"29.4",
    "58.6", "50.7", "56.4", "30.0", "37.5", "35.2", "23.2", "33.0",
    "49.2", "80.9", "188.2", "", ""}};

In[23]:= list1 =
 Association[
  Rule @@@ Partition[Extract[m, {{1, 1}, {2}, {6, 1}, {7}}], 2]]

Out[23]= <|"ACIPAYAM" -> {"1966", "1966", "1966", "1966", "", ""},
 "ADANA BÖLGE" -> {"1930", "1930", "1930", "1930", "1930", "1930",
   "1930", "1930", "1930", "1930", "1930", "1930", "", ""}|>

In[24]:= minmax = MinMax /@ list1

Out[24]= <|"ACIPAYAM" -> {Min["", "1966"], Max["", "1966"]},
 "ADANA BÖLGE" -> {Min["", "1930"], Max["", "1930"]}|>

In[25]:= list2 = Interval /@ Map[DateObject@*ToString, minmax, {2}]

Out[25]= <|"ACIPAYAM" ->
  Interval[{DateObject[{1966}, "Year", "Gregorian", 3.5],
    DateObject[{1966}, "Year", "Gregorian", 3.5]}],
 "ADANA BÖLGE" ->
  Interval[{DateObject[{1930}, "Year", "Gregorian", 3.5],
    DateObject[{1930}, "Year", "Gregorian", 3.5]}]|>

In[26]:= tlp = TimelinePlot[list2, ImageSize -> {400, 100}]
Posted 2 years ago

Hi Mohammad,

To remove the empty strings

list1 = Association[Rule @@@ Partition[Extract[m, {{1, 1}, {2}, {6, 1}, {7}}], 2]] //
          Map[DeleteCases[#, ""] &]

Thank you so much Rohit.

Your help is always greatly appreciated

Hi Rohit,

Could you please have a look at the outputs for different intervals?

intervals = <|"Washington" -> Interval[{1966, 2012}],
   "Texas" -> Interval[{1970, 2014}],
   "Ohio" -> Interval[{1930, 2015}], "Utah" -> Interval[{1966, 2010}],
    "Kansas" -> Interval[{1960, 2018}]|>;

intervals //
  Select[IntervalMemberQ[#, Interval[{1966, 2012}]] &] // Keys

{"Washington", "Ohio", "Kansas"}

intervals //
  Select[IntervalMemberQ[#, Interval[{1971, 2012}]] &] // Keys

{"Washington", "Texas", "Ohio", "Kansas"}

intervals //
  Select[IntervalMemberQ[#, Interval[{1930, 2015}]] &] // Keys

{"Ohio"}
Posted 2 years ago

Hi Mohammad,

The results look right to me. What were you expecting to see?

Hi Rohit,

I looked again. You are right absolutly. I really appreciate your help. Rohit, may I ask you about the last status Of complex network program? My friends and I look forward to see the incredible skill of you and the power of Mathematica in these kind of topics .

Thank you for your time.

Why not simply

DeleteCases[#, ""] & /@ m

?

Thank you, Henrik and Rohit,

I got an error when I used the command for my main data. Where am I wrong?

In[35]:= list1 = <|"ACIPAYAM" -> {"1966", "1966", "1966", "1966",
     "1966", "1966", "1966", "1966", "1966", "1967", "1967", "1967",
     "1967", "1967", "1967", "1967", "1967", "1967", "1967", "1967",
     "1967", "1967", "1968", "1968", "1968", "1968", "1968", "1968",
     "1968", "1968", "1968", "1968", "1968", "1968", "1969", "1969",
     "1969", "1969", "1969", "1969", "1969", "1969", "1969", "1969",
     "1969", "1969", "1969", "1970", "1970", "1970", "1970", "1970",
     "1970", "1970", "1970", "1970", "1970", "1970", "1970", "1970",
     "1971", "1971", "1971", "1971", "1971", "1971", "1971", "1971",
     "1971", "1971", "1971", "1971", "1971", "1972", "1972", "1972",
     "1972", "1972", "1972", "1972", "1972", "1972", "1972", "1972",
     "1972", "1972", "1973", "1973", "1973", "1973", "1973", "1973",
     "1973", "1973", "1973", "1973", "1973", "1973", "1974", "1974",
     "1974", "1974", "1974", "1974", "1974", "1974", "1974", "1974",
     "1974", "1974", "1975", "1975", "1975", "1975", "1975", "1975",
     "1975", "1975", "1975", "1975", "1975", "1975", "1975", "1976",
     "1976", "1976", "1976", "1976", "1976", "1976", "1976", "1976",
     "1976", "1976", "1976", "1977", "1977", "1979", "1979", "1979",
     "1979", "1979", "1979", "1979", "1979", "1979", "1979", "1979",
     "1979", "1979", "1980", "1980", "1980", "1980", "1980", "1980",
     "1980", "1980", "1980", "1980", "1980", "1980", "1981", "1981",
     "1981", "1981", "1981", "1981", "1981", "1981", "1981", "1981",
     "1981", "1981", "1981", "1982", "1982", "1982", "1982", "1982",
     "1982", "1982", "1982", "1982", "1982", "1982", "1982", "1982",
     "1983", "1983", "1983", "1983", "1983", "1983", "1983", "1983",
     "1983", "1983", "1983", "1983", "1983", "1984", "1984", "1984",
     "1984", "1984", "1984", "1984", "1984", "1984", "1984", "1984",
     "1984", "1985", "1985", "1985", "1985", "1985", "1985", "1985",
     "1985", "1985", "1985", "1985", "1985", "1986", "1986", "1986",
     "1986", "1986", "1986", "1986", "1986", "1986", "1986", "1986",
     "1986", "1986", "1987", "1987", "1987", "1987", "1987", "1987",
     "1987", "1987", "1987", "1987", "1987", "1987", "1988", "1988",
     "1988", "1988", "1988", "1988", "1988", "1988", "1988", "1988",
     "1988", "1988", "1988", "1989", "1989", "1989", "1989", "1989",
     "1989", "1989", "1989", "1989", "1989", "1989", "1990", "1990",
     "1990", "1990", "1990", "1990", "1990", "1990", "1990", "1990",
     "1990", "1990", "1991", "1991", "1991", "1991", "1991", "1991",
     "1991", "1991", "1991", "1991", "1991", "1991", "1991", "1992",
     "1992", "1992", "1992", "1992", "1992", "1992", "1992", "1992",
     "1992", "1992", "1993", "1993", "1993", "1993", "1993", "1993",
     "1993", "1993", "1993", "1993", "1993", "1994", "1994", "1994",
     "1994", "1994", "1994", "1994", "1994", "1994", "1994", "1994",
     "1994", "1994", "1995", "1995", "1995", "1995", "1995", "1995",
     "1995", "1995", "1995", "1995", "1995", "1995", "1996", "1996",
     "1996", "1996", "1996", "1996", "1996", "1996", "1996", "1996",
     "1996", "1996", "1997", "1997", "1997", "1997", "1997", "1997",
     "1997", "1997", "1997", "1997", "1997", "1997", "1998", "1998",
     "1998", "1998", "1998", "1998", "1998", "1998", "1998", "1998",
     "1998", "1998", "1999", "1999", "1999", "1999", "1999", "1999",
     "1999", "1999", "1999", "1999", "1999", "1999", "1999", "2000",
     "2000", "2000", "2000", "2000", "2000", "2000", "2000", "2000",
     "2000", "2000", "2000", "2000", "2001", "2001", "2001", "2001",
     "2001", "2001", "2001", "2001", "2001", "2001", "2001", "2001",
     "2001", "2002", "2002", "2002", "2002", "2002", "2002", "2002",
     "2002", "2002", "2002", "2002", "2002", "2002", "2003", "2003",
     "2003", "2003", "2003", "2003", "2003", "2003", "2003", "2003",
     "2003", "2004", "2004", "2004", "2004", "2004", "2004", "2004",
     "2004", "2004", "2004", "2004", "2004", "2004", "2005", "2005",
     "2005", "2005", "2005", "2005", "2005", "2005", "2005", "2005",
     "2005", "2005", "2005", "2006", "2006", "2006", "2006", "2006",
     "2006", "2006", "2006", "2006", "2006", "2006", "2006", "2006",
     "2007", "2007", "2007", "2007", "2007", "2007", "2007", "2007",
     "2007", "2007", "2007", "2007", "2008", "2008", "2008", "2008",
     "2008", "2008", "2008", "2008", "2008", "2008", "2008", "2008",
     "2008", "2009", "2009", "2009", "2009", "2009", "2009", "2009",
     "2009", "2009", "2009", "2009", "2009", "2009", "2010", "2010",
     "2010", "2010", "2010", "2010", "2010", "2010", "2010", "2010",
     "2010", "2010", "2010", "2011", "2011", "2011", "2011", "2011",
     "2011", "2011", "2011", "2011", "2011", "2011", "2011", "2012",
     "2012"},
   "ADANA BÖLGE" -> {"1930", "1930", "1930", "1930", "1930", "1930",
     "1930", "1930", "1930", "1930", "1930", "1930", "1930", "1931",
     "1931", "1931", "1931", "1931", "1931", "1931", "1931", "1931",
     "1931", "1931", "1931", "1931", "1932", "1932", "1932", "1932",
     "1932", "1932", "1932", "1932", "1932", "1932", "1932", "1933",
     "1933", "1933", "1933", "1933", "1933", "1933", "1933", "1933",
     "1933", "1933", "1934", "1934", "1934", "1934", "1934", "1934",
     "1934", "1934", "1934", "1934", "1934", "1934", "1935", "1935",
     "1935", "1935", "1935", "1935", "1935", "1935", "1935", "1935",
     "1935", "1935", "1935", "1936", "1936", "1936", "1936", "1936",
     "1936", "1936", "1936", "1936", "1936", "1936", "1936", "1936",
     "1937", "1937", "1937", "1937", "1937", "1937", "1937", "1937",
     "1937", "1937", "1938", "1938", "1938", "1938", "1938", "1938",
     "1938", "1938", "1938", "1938", "1938", "1938", "1939", "1939",
     "1939", "1939", "1939", "1939", "1939", "1939", "1939", "1939",
     "1939", "1940", "1940", "1940", "1940", "1940", "1940", "1940",
     "1940", "1940", "1940", "1940", "1941", "1941", "1941", "1941",
     "1941", "1941", "1941", "1941", "1941", "1941", "1941", "1941",
     "1942", "1942", "1942", "1942", "1942", "1942", "1942", "1942",
     "1942", "1942", "1942", "1942", "1942", "1943", "1943", "1943",
     "1943", "1943", "1943", "1943", "1943", "1943", "1943", "1944",
     "1944", "1944", "1944", "1944", "1944", "1944", "1944", "1944",
     "1944", "1944", "1944", "1945", "1945", "1945", "1945", "1945",
     "1945", "1945", "1945", "1945", "1945", "1946", "1946", "1946",
     "1946", "1946", "1946", "1946", "1946", "1946", "1946", "1946",
     "1947", "1947", "1947", "1947", "1947", "1947", "1947", "1947",
     "1947", "1947", "1947", "1947", "1948", "1948", "1948", "1948",
     "1948", "1948", "1948", "1948", "1948", "1948", "1948", "1948",
     "1948", "1949", "1949", "1949", "1949", "1949", "1949", "1949",
     "1949", "1949", "1949", "1949", "1949", "1950", "1950", "1950",
     "1950", "1950", "1950", "1950", "1950", "1950", "1950", "1950",
     "1950", "1951", "1951", "1951", "1951", "1951", "1951", "1951",
     "1951", "1951", "1951", "1951", "1951", "1952", "1952", "1952",
     "1952", "1952", "1952", "1952", "1952", "1952", "1952", "1952",
     "1952", "1952", "1953", "1953", "1953", "1953", "1953", "1953",
     "1953", "1953", "1953", "1953", "1953", "1953", "1954", "1954",
     "1954", "1954", "1954", "1954", "1954", "1954", "1954", "1954",
     "1954", "1955", "1955", "1955", "1955", "1955", "1955", "1955",
     "1955", "1955", "1955", "1955", "1955", "1955", "1956", "1956",
     "1956", "1956", "1956", "1956", "1956", "1956", "1956", "1956",
     "1956", "1956", "1958", "1958", "1958", "1958", "1958", "1958",
     "1958", "1958", "1958", "1958", "1958", "1958", "1958", "1959",
     "1959", "1959", "1959", "1959", "1959", "1959", "1959", "1959",
     "1959", "1959", "1959", "1959", "1960", "1960", "1960", "1960",
     "1960", "1960", "1960", "1960", "1960", "1960", "1960", "1960",
     "1960", "1961", "1961", "1961", "1961", "1961", "1961", "1961",
     "1961", "1961", "1961", "1961", "1962", "1962", "1962", "1962",
     "1962", "1962", "1962", "1962", "1962", "1962", "1962", "1963",
     "1963", "1963", "1963", "1963", "1963", "1963", "1963", "1963",
     "1963", "1963", "1963", "1964", "1964", "1964", "1964", "1964",
     "1964", "1964", "1964", "1964", "1964", "1964", "1965", "1965",
     "1965", "1965", "1965", "1965", "1965", "1965", "1965", "1965",
     "1965", "1965", "1965", "1966", "1966", "1966", "1966", "1966",
     "1966", "1966", "1966", "1966", "1966", "1966", "1966", "1966",
     "1967", "1967", "1967", "1967", "1967", "1967", "1967", "1967",
     "1967", "1967", "1967", "1967", "1968", "1968", "1968", "1968",
     "1968", "1968", "1968", "1968", "1968", "1968", "1968", "1968",
     "1968", "1969", "1969", "1969", "1969", "1969", "1969", "1969",
     "1969", "1969", "1969", "1969", "1970", "1970", "1970", "1970",
     "1970", "1970", "1970", "1970", "1970", "1970", "1970", "1970",
     "1970", "1971", "1971", "1971", "1971", "1971", "1971", "1971",
     "1971", "1971", "1971", "1971", "1971", "1971", "1972", "1972",
     "1972", "1972", "1972", "1972", "1972", "1972", "1972", "1972",
     "1972", "1973", "1973", "1973", "1973", "1973", "1973", "1973",
     "1973", "1973", "1973", "1973", "1974", "1974", "1974", "1974",
     "1974", "1974", "1974", "1974", "1974", "1974", "1974", "1975",
     "1975", "1975", "1975", "1975", "1975", "1975", "1975", "1975",
     "1975", "1975", "1975", "1976", "1976", "1976", "1976", "1976",
     "1976", "1976", "1976", "1976", "1976", "1976", "1976", "1976",
     "1977", "1977", "1977", "1977", "1977", "1977", "1977", "1977",
     "1977", "1977", "1977", "1977", "1978", "1978", "1978", "1978",
     "1978", "1978", "1978", "1978", "1978", "1978", "1978", "1979",
     "1979", "1979", "1979", "1979", "1979", "1979", "1979", "1979",
     "1979", "1979", "1979", "1980", "1980", "1980", "1980", "1980",
     "1980", "1980", "1980", "1980", "1980", "1980", "1981", "1981",
     "1981", "1981", "1981", "1981", "1981", "1981", "1981", "1981",
     "1981", "1982", "1982", "1982", "1982", "1982", "1982", "1982",
     "1982", "1982", "1982", "1982", "1982", "1982", "1983", "1983",
     "1983", "1983", "1983", "1983", "1983", "1983", "1983", "1983",
     "1983", "1983", "1983", "1984", "1984", "1984", "1984", "1984",
     "1984", "1984", "1984", "1984", "1984", "1984", "1984", "1985",
     "1985", "1985", "1985", "1985", "1985", "1985", "1985", "1985",
     "1985", "1985", "1986", "1986", "1986", "1986", "1986", "1986",
     "1986", "1986", "1986", "1986", "1986", "1987", "1987", "1987",
     "1987", "1987", "1987", "1987", "1987", "1987", "1987", "1987",
     "1987", "1988", "1988", "1988", "1988", "1988", "1988", "1988",
     "1988", "1988", "1988", "1988", "1989", "1989", "1989", "1989",
     "1989", "1989", "1989", "1989", "1989", "1989", "1990", "1990",
     "1990", "1990", "1990", "1990", "1990", "1990", "1990", "1990",
     "1990", "1990", "1990", "1991", "1991", "1991", "1991", "1991",
     "1991", "1991", "1991", "1991", "1991", "1991", "1991", "1991",
     "1992", "1992", "1992", "1992", "1992", "1992", "1992", "1992",
     "1992", "1992", "1992", "1992", "1993", "1993", "1993", "1993",
     "1993", "1993", "1993", "1993", "1993", "1993", "1994", "1994",
     "1994", "1994", "1994", "1994", "1994", "1994", "1994", "1994",
     "1994", "1994", "1994", "1995", "1995", "1995", "1995", "1995",
     "1995", "1995", "1995", "1995", "1995", "1995", "1995", "1996",
     "1996", "1996", "1996", "1996", "1996", "1996", "1996", "1996",
     "1996", "1996", "1996", "1997", "1997", "1997", "1997", "1997",
     "1997", "1997", "1997", "1997", "1997", "1997", "1997", "1997",
     "1998", "1998", "1998", "1998", "1998", "1998", "1998", "1998",
     "1998", "1998", "1998", "1998", "1999", "1999", "1999", "1999",
     "1999", "1999", "1999", "1999", "1999", "1999", "1999", "1999",
     "1999", "2000", "2000", "2000", "2000", "2000", "2000", "2000",
     "2000", "2000", "2000", "2001", "2001", "2001", "2001", "2001",
     "2001", "2001", "2001", "2001", "2001", "2001", "2002", "2002",
     "2002", "2002", "2002", "2002", "2002", "2002", "2002", "2002",
     "2002", "2002", "2002", "2003", "2003", "2003", "2003", "2003",
     "2003", "2003", "2003", "2003", "2003", "2003", "2003", "2004",
     "2004", "2004", "2004", "2004", "2004", "2004", "2004", "2004",
     "2004", "2004", "2005", "2005", "2005", "2005", "2005", "2005",
     "2005", "2005", "2005", "2005", "2005", "2005", "2005", "2006",
     "2006", "2006", "2006", "2006", "2006", "2006", "2006", "2006",
     "2006", "2006", "2007", "2007", "2007", "2007", "2007", "2007",
     "2007", "2007", "2007", "2007", "2007", "2007", "2008", "2008",
     "2008", "2008", "2008", "2008", "2008", "2008", "2008", "2008",
     "2008", "2008", "2009", "2009", "2009", "2009", "2009", "2009",
     "2009", "2009", "2009", "2009", "2009", "2010", "2010", "2010",
     "2010", "2010", "2010", "2010", "2010", "2010", "2010", "2010",
     "2011", "2011", "2011", "2011", "2011", "2011", "2011", "2011",
     "2011", "2011", "2011", "2012", "2012", "2012", "2012", "2012",
     "2012", "2012", "2012", "2012", "2012", "2012", "2012", "2013",
     "2013", "2013", "2013", "2013", "2013", "2013", "2013", "2013",
     "2013", "2013", "2013", "2014", "2014", "2014", "2014", "2014",
     "2014", "2014", "2014", "2014", "2014", "2014", "2014", "2014",
     "2015", "2015", "2015", "2015", "2015", "2015", "2015", "2015",
     "2015", "2015", "2015", "2015", "2015", "2016", "2016", "2016",
     "2016", "2016", "2016", "2016", "2016", "2016", "2016", "2016",
     "2016", "2017", "2017", "2017", "2017", "2017", "2017", "2017",
     "2017", "2017", "2017", "2017", "2018", "2018", "2018", "2018",
     "2018", "2018", "2018", "2018", "2018", "2018"}|>;

In[36]:= minmax = MinMax /@ list1

Out[36]= <|"ACIPAYAM" -> {Min["1966", "1967", "1968", "1969", "1970",
    "1971", "1972", "1973", "1974", "1975", "1976", "1977", "1979",
    "1980", "1981", "1982", "1983", "1984", "1985", "1986", "1987",
    "1988", "1989", "1990", "1991", "1992", "1993", "1994", "1995",
    "1996", "1997", "1998", "1999", "2000", "2001", "2002", "2003",
    "2004", "2005", "2006", "2007", "2008", "2009", "2010", "2011",
    "2012"],
   Max["1966", "1967", "1968", "1969", "1970", "1971", "1972", "1973",
     "1974", "1975", "1976", "1977", "1979", "1980", "1981", "1982",
    "1983", "1984", "1985", "1986", "1987", "1988", "1989", "1990",
    "1991", "1992", "1993", "1994", "1995", "1996", "1997", "1998",
    "1999", "2000", "2001", "2002", "2003", "2004", "2005", "2006",
    "2007", "2008", "2009", "2010", "2011", "2012"]},
 "ADANA BÖLGE" -> {Min["1930", "1931", "1932", "1933", "1934", "1935",
     "1936", "1937", "1938", "1939", "1940", "1941", "1942", "1943",
    "1944", "1945", "1946", "1947", "1948", "1949", "1950", "1951",
    "1952", "1953", "1954", "1955", "1956", "1958", "1959", "1960",
    "1961", "1962", "1963", "1964", "1965", "1966", "1967", "1968",
    "1969", "1970", "1971", "1972", "1973", "1974", "1975", "1976",
    "1977", "1978", "1979", "1980", "1981", "1982", "1983", "1984",
    "1985", "1986", "1987", "1988", "1989", "1990", "1991", "1992",
    "1993", "1994", "1995", "1996", "1997", "1998", "1999", "2000",
    "2001", "2002", "2003", "2004", "2005", "2006", "2007", "2008",
    "2009", "2010", "2011", "2012", "2013", "2014", "2015", "2016",
    "2017", "2018"],
   Max["1930", "1931", "1932", "1933", "1934", "1935", "1936", "1937",
     "1938", "1939", "1940", "1941", "1942", "1943", "1944", "1945",
    "1946", "1947", "1948", "1949", "1950", "1951", "1952", "1953",
    "1954", "1955", "1956", "1958", "1959", "1960", "1961", "1962",
    "1963", "1964", "1965", "1966", "1967", "1968", "1969", "1970",
    "1971", "1972", "1973", "1974", "1975", "1976", "1977", "1978",
    "1979", "1980", "1981", "1982", "1983", "1984", "1985", "1986",
    "1987", "1988", "1989", "1990", "1991", "1992", "1993", "1994",
    "1995", "1996", "1997", "1998", "1999", "2000", "2001", "2002",
    "2003", "2004", "2005", "2006", "2007", "2008", "2009", "2010",
    "2011", "2012", "2013", "2014", "2015", "2016", "2017", "2018"]}|>

In[38]:= list2 = Interval /@ Map[DateObject@*ToString, minmax, {2}]

During evaluation of In[38]:= DateObject::str: String Min[1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012] cannot be interpreted as a date.

During evaluation of In[38]:= DateObject::str: String Max[1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012] cannot be interpreted as a date.

During evaluation of In[38]:= DateObject::str: String Min[1930, 1931, 1932, 1933, 1934, 1935, 1936, 1937, 1938, 1939, 1940, 1941, 1942, 1943, 1944, 1945, 1946, 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018] cannot be interpreted as a date.

During evaluation of In[38]:= General::stop: Further output of DateObject::str will be suppressed during this calculation.

Out[38]= <|"ACIPAYAM" ->
  Interval[{DateObject[
     "Min[1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, \
1976, 1977, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, \
1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, \
1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, \
2010, 2011, 2012]"],
    DateObject[
     "Max[1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, \
1976, 1977, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, \
1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, \
1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, \
2010, 2011, 2012]"]}],
 "ADANA BÖLGE" ->
  Interval[{DateObject[
     "Min[1930, 1931, 1932, 1933, 1934, 1935, 1936, 1937, 1938, 1939, \
1940, 1941, 1942, 1943, 1944, 1945, 1946, 1947, 1948, 1949, 1950, \
1951, 1952, 1953, 1954, 1955, 1956, 1958, 1959, 1960, 1961, 1962, \
1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, \
1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, \
1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, \
1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, \
2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, \
2018]"], DateObject[
     "Max[1930, 1931, 1932, 1933, 1934, 1935, 1936, 1937, 1938, 1939, \
1940, 1941, 1942, 1943, 1944, 1945, 1946, 1947, 1948, 1949, 1950, \
1951, 1952, 1953, 1954, 1955, 1956, 1958, 1959, 1960, 1961, 1962, \
1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, \
1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, \
1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, \
1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, \
2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, \
2018]"]}]|>

Hello Mohammad,

For some reason your year date come as string - but they should be numbers. You can correct that like so:

list1 = Map[ToExpression, list1, {2}]

Dear Henrik and Rohit,

What kind of features can be extracted from the timelines? For example :

Which city's (cities') data is between 1962 and 1970? Answer: Ohio

How many cities have data from 1962 - 1970? Answer: Ohio and Washington.

Is it possible to extract the time series values for a specific city? Thank you.

list1 = <|"Washington" -> {1966, 1967.`, 1968.`, 1969.`},
  "Texas" -> {1930, 1931.`, 1932.`, 1933.`, 1934.`, 1935.`},
  "Ohio" -> {1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970}|>

minmax = MinMax /@ list1

list2 = Interval /@ Map[DateObject@*ToString, minmax, {2}]

tlp = TimelinePlot[list2, ImageSize -> {1000, 200}]
Posted 2 years ago

Hi Mohammad,

Here is one way to do that

intervals = MinMax /* Round /* Interval /@ list1
intervals // Select[IntervalMemberQ[#, Interval[{1962, 1970}]] &] // Keys
(* {"Ohio"} *)

intervals // Select[IntervalMemberQ[Interval[{1962, 1970}], #] &] // Keys
(* {"Washington", "Ohio"} *)

To extract the values for a key

list1["Texas"]
(* {1930, 1931., 1932., 1933., 1934., 1935.} *)

One more way: With

list1 = <|"Washington" -> {1966, 1967.`, 1968.`, 1969.`},
   "Texas" -> {1930, 1931.`, 1932.`, 1933.`, 1934.`, 1935.`},
   "Ohio" -> {1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970}|>;
minmax = MinMax /@ list1;
intv = Interval[{1963, 1969}];  (* the interval you are interested in *)
numlist = Interval /@ minmax;
intersect = Select[IntervalIntersection[#, intv] & /@ numlist, Length[#] != 0 &];

you can do:

Keys@intersect
(*  Out:  {"Washington","Ohio"}  *)
intersect["Ohio"]
(*  Out:  Interval[{1963,1969}]  *)

I found it surprising that I could not do any interval arithmetic with time intervals, e.g. this does not work:

IntervalIntersection[Interval[{DateObject[{1963}, "Year", "Gregorian", 1.`], DateObject[{1969}, "Year", "Gregorian", 1.`]}],
 Interval[{DateObject[{1966}, "Year", "Gregorian", 1.`], DateObject[{1990}, "Year", "Gregorian", 1.`]}]]

Am I missing something?

Posted 2 years ago

Hi Henrik,

I think Interval only works with numeric values. Could use AbsoluteTime / FromAbsoluteTime to convert from / to DataObject. A Google search found this.

Hi Rohit, thank you very much for this very interesting link! This is incredible! And it actually works:

enter image description here

Up to now I was always wondering how people can come up with undocumented functions ...

Best regards -- Henrik

Another option is using NumberLinePlot

With[{opts={Ticks->None,Axes->False,AxesStyle->White,PlotRange->{{1990,2000},Automatic}}},
  Grid[
    {{"City","Date",""},
     {Item["Washington",Alignment->Left],"1990-1996",NumberLinePlot[Style[Interval[{1990,1996}],Red],opts]},
     {Item["Texas",Alignment->Left],"1994-2000",NumberLinePlot[Style[Interval[{1994,2000}],Darker@Green],opts]}},
    Dividers->{{None,Black,Black},{None,Black}}]]

grid

@Gustavo Delfino: NumberLinePlot[Style[Interval[{...}] - Nice solution, I definitely like it!

Posted 2 years ago

A neat solution. Thank you Gustavo.

Reply to this discussion
Community posts can be styled and formatted using the Markdown syntax.
Reply Preview
Attachments
Remove
or Discard

Group Abstract Group Abstract
