3D text modeling and conversion to true vector format

Posted 3 months ago
962 Views
|
12 Replies
|
1 Total Likes
|

I'm unable to export output from the manipulate window in true 3d vector format to produce EPS drawings, the output rasterized. I know this topic as been discussed somewhat but are there any workarounds to export in 3d Vector format? Any suggestions would be helpful

The following code is based upon some work I found in the demonstration file: "Text Positioning in Three Dimensions with Nested Transformations" Much cudos to the original authors.

Gerry

font = "Showcard Gothic";

$FontFamilies;
w = 50;
ii = RegionProduct[
   DiscretizeGraphics[Text[Style["T", FontFamily -> font]], _Text,
    MaxCellMeasure -> 0.10], MeshRegion[{{0}, {w}}, Line[{1, 2}]]];
s = RegionProduct[
   DiscretizeGraphics[Text[Style["e", FontFamily -> font]], _Text,
    MaxCellMeasure -> 0.10], MeshRegion[{{0}, {w}}, Line[{1, 2}]]];
h = RegionProduct[
   DiscretizeGraphics[Text[Style["s", FontFamily -> font]], _Text,
    MaxCellMeasure -> 0.10], MeshRegion[{{0}, {w}}, Line[{1, 2}]]];
u = RegionProduct[
   DiscretizeGraphics[Text[Style["t", FontFamily -> font]], _Text,
    MaxCellMeasure -> 0.10], MeshRegion[{{0}, {w}}, Line[{1, 2}]]];
t = RegionProduct[
   DiscretizeGraphics[Text[Style["i", FontFamily -> font]], _Text,
    MaxCellMeasure -> 0.10], MeshRegion[{{0}, {w}}, Line[{1, 2}]]];
d = RegionProduct[
   DiscretizeGraphics[Text[Style["n", FontFamily -> font]], _Text,
    MaxCellMeasure -> 0.10], MeshRegion[{{0}, {w}}, Line[{1, 2}]]];
o = RegionProduct[
   DiscretizeGraphics[Text[Style["g", FontFamily -> font]], _Text,
    MaxCellMeasure -> 0.10], MeshRegion[{{0}, {w}}, Line[{1, 2}]]];
ww = RegionProduct[
   DiscretizeGraphics[Text[Style["3", FontFamily -> font]], _Text,
    MaxCellMeasure -> 0.10], MeshRegion[{{0}, {w}}, Line[{1, 2}]]];
n = RegionProduct[
   DiscretizeGraphics[Text[Style["D", FontFamily -> font]], _Text,
    MaxCellMeasure -> 0.10], MeshRegion[{{0}, {w}}, Line[{1, 2}]]];
c = RegionProduct[
   DiscretizeGraphics[Text[Style["V", FontFamily -> font]], _Text,
    MaxCellMeasure -> 0.10], MeshRegion[{{0}, {w}}, Line[{1, 2}]]];
a = RegionProduct[
   DiscretizeGraphics[Text[Style["e", FontFamily -> font]], _Text,
    MaxCellMeasure -> 0.10], MeshRegion[{{0}, {w}}, Line[{1, 2}]]];
e = RegionProduct[
   DiscretizeGraphics[Text[Style["c", FontFamily -> font]], _Text,
    MaxCellMeasure -> 0.10], MeshRegion[{{0}, {w}}, Line[{1, 2}]]];
b = RegionProduct[
   DiscretizeGraphics[Text[Style["t", FontFamily -> font]], _Text,
    MaxCellMeasure -> 0.10], MeshRegion[{{0}, {w}}, Line[{1, 2}]]];
l = RegionProduct[
   DiscretizeGraphics[Text[Style["r", FontFamily -> font]], _Text,
    MaxCellMeasure -> 0.10], MeshRegion[{{0}, {w}}, Line[{1, 2}]]];

spc = 5;
geom = {{{{ii}}, spc + 1}, {{{s}}, spc + 3}, {{{h}}, spc - 1}, {{{u}},
     spc}, {{{t}}, spc}, {{{d}}, spc}, {{{o}}, spc - 1}, {{{ww}},
    spc}, {{{n}}, spc + 1}, {{{c}}, spc + 3}, {{{a}},
    spc + 1}, {{{e}}, spc}, {{{b}}, spc}, {{{e}}, spc}, {{{l}},
    spc - 1}, {{{l}}, spc - 1}, {{{ww}}, spc}, {{{n}}, spc}, {{{c}},
    spc}};

graph = Manipulate[
  cyl = Cylinder[{{0, 0, 0}, {0, 0, .50}}, Dynamic[cd]];
  With[{chars = geom},
   Graphics3D[{Translate[cyl, Dynamic[{cx, cy, cz}]],
     Style[Fold[
       Rotate[Rotate[
          Rotate[Translate[
            Translate[{#,
              chars[[#2, 1]]}, {If[#2 < 2, 0, chars[[#2 - 1, 2]]], 0,
              0}], Dynamic[{x, y, z}]], Dynamic[rx], {1, 0, 0}],
          Dynamic[ry], {0, 1, 0}], Dynamic[rz], {0, 0, 1}] &, {},
       Reverse[Range[Length[chars]]]], EdgeForm[]]},
    ImageSize -> {800, 800}, Boxed -> False,
    Lighting -> {{"Point", Red, {0, 0, 120}}, {"Point",
       Yellow, {0, 0, -120}}, {"Point", Red, {120, 0, 0}}, {"Point",
       Yellow, {120, 0, 0}}}, ViewPoint -> Top]],
  {{x, 2.0, "x translation"}, -5, 5, ImageSize -> Small},
  {{y, 0, "y translation"}, -5, 5, ImageSize -> Small},
  {{z, 0, "z translation"}, -5, 5, ImageSize -> Small},
  {{rx, 0, "x rotation"}, -3, 3, ImageSize -> Small},
  {{ry, 0, "y rotation"}, -3, 3, ImageSize -> Small},
  {{rz, 0.3, "z rotation"}, -3, 3, ImageSize -> Small},
  {{cx, 0, "x cyl"}, -30, 30, ImageSize -> Small},
  {{cy, 0, "y cyl"}, -30, 30, ImageSize -> Small},
  {{cz, 30, "z cyl"}, -30, 30, ImageSize -> Small},
  {{cd, 10, "cyl radius"}, -30, 30, ImageSize -> Small},
  ControlPlacement -> Left, SaveDefinitions -> True]

Export["extinct.eps", graph]
12 Replies
Posted 3 months ago

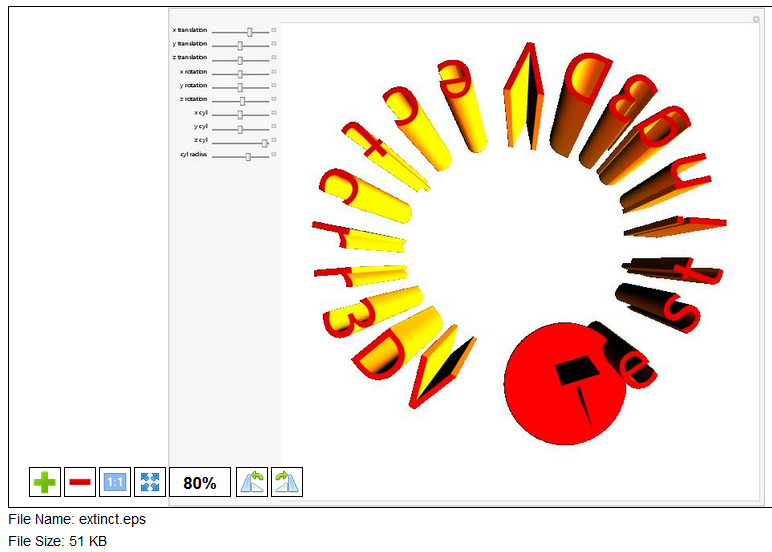

I ran your code. And the exported file does work when I open it in this online EPS viewer

enter image description here

Posted 3 months ago

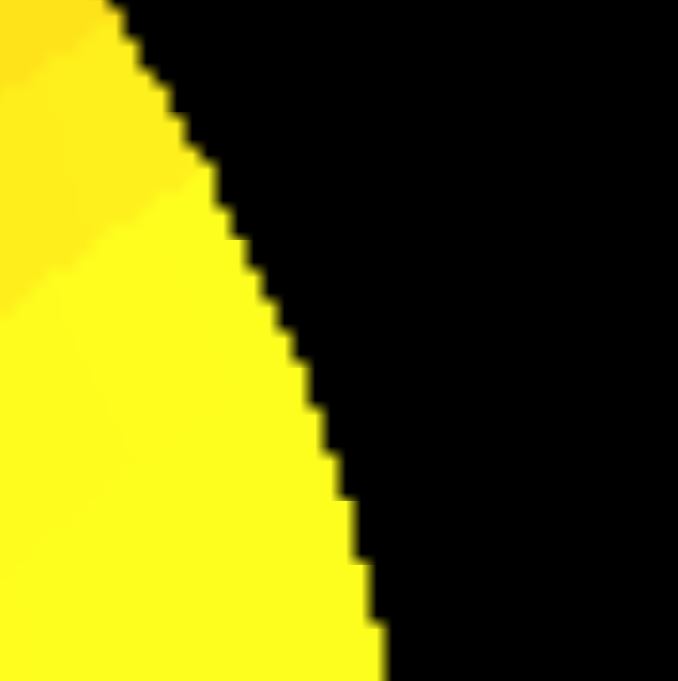

Hi, yes the code works, but the output is a raster image (shown below) than the preferred vector format which would be a smooth line.

Zoomed in view letter edge

Posted 3 months ago

Does the option "AllowRasterization"->False help?

Export["D:\\TempHM\\extinct.eps", graph, "AllowRasterization" -> False]
Posted 3 months ago

That option has no effect, unfortunately.

You can try ImageResolution -> Infinity

Posted 3 months ago

That doesn't help either I'm afraid.

It works when exporting to pdf:

Export["extinct.pdf", graph, ImageResolution -> Infinity]
Posted 3 months ago

I tried again. That worked very nicely!

Posted 2 months ago

I'm wondering if version 12.1 resolves this issue and ouputs a real 3-D vector file.

Unfortunately, with 12.1 the trick ImageResolution -> Infinity does not work any more on my system. For the time being, I have reverted to 12.0 for illustration work.

I received confirmation from Wolfram that 3D vector graphic output is deprecated. We cannot expect support for it in the future.

Posted 2 months ago

This is disappointing, the world remains flat then.
