How to put Frame or borders around subgraphs in single Graph?

Posted 1 month ago
238 Views
|
2 Replies
|
1 Total Likes
|

2 Replies
Posted 1 month ago

I'm between meetings right now, but this one caught my eye. I think the answer lies in figuring out what the coordinates of each node. Then you should be able to draw a polygon around the set of nodes that you want.

Check out GraphEmbedding[].

If I get a chance, I'll try to work through this later this week.

Thanks Mike, That's definitely a solution. I assigned the final graph above to "bigg" and reproduced the graph using GraphEmbedding[] coordinates:

vList = VertexList[bigg];
vCount = Length[vList];
vCoords = GraphEmbedding[bigg];
labeledPoints = Table[Labeled[vCoords[[n]], vList[[n]]], {n, 1, vCount}];
ListPlot[labeledPoints]

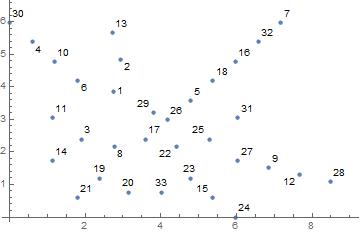

enter image description here
