A two-dimensional vertex model for simulating biological tissues

Posted 1 year ago
2773 Views
|
1 Reply
|
4 Total Likes
|

enter image description here

The introduction to what vertex models are, is given in an earlier post: https://community.wolfram.com/groups/-/m/t/2051277

Below is a simpler two-dimensional vertex model implemented in version 12.1 to minimize an energy function defined on a polygonal mesh (e.g. to simulate how cell shapes and curvature evolve in biological tissues).

Geometrical functions

Clear[getCounterClockwise];
getCounterClockwise[vertex_, vertices_] := Block[{pos, v},
   pos = First @@ Position[vertices, vertex];
   If[pos == Length[vertices], pos = 1, pos += 1];
   vertices[[pos]]
   ];

Clear[getClockwise];
getClockwise[vertex_, vertices_] := Block[{ls, pos},
     pos = First @@ Position[vertices, vertex];
     If[pos == 1, pos = Length[vertices], pos -= 1];
     vertices[[pos]]
     ];

Clear[areaOfPolygon];
areaOfPolygon[cells_ /; Head[cells] === Association] := Map[Area@*Polygon, cells];

Clear[areaPolygon];
areaPolygon[vertices_] := Block[{edges},
  edges = Partition[vertices, 2, 1, 1];
  0.5 Abs@Total[(#[[1, 1]]*#[[2, 2]]) - (#[[2, 1]]*#[[1, 2]]) & /@ edges]
  ];

Clear[perimeterOfPolygon];
perimeterOfPolygon[cells_/; Head[cells] === Association] := (Perimeter@*Polygon)/@cells;


Clear[perimeterPolygon];
perimeterPolygon[vertices_] := Block[{edges},
  edges = Partition[vertices, 2, 1, 1];
  Total[Apply[EuclideanDistance] /@ edges]
  ];

Clear[centroidPolygon];
centroidPolygon[vertices_] := Mean@vertices;

Clear[polyCounterClockwiseQ];
polyCounterClockwiseQ[poly_] :=
 Block[{area = 0, j, vertLength = Length[poly]},
  Do[
   j = Mod[i, vertLength] + 1;
   area += poly[[i, 1]]*poly[[j, 2]];
   area -= poly[[j, 1]]*poly[[i, 2]],
   {i, vertLength}];
  (area/2) > 0
  ];

Clear[sortPointsCC];
sortPointsCC[polyinds_, indTopts_, ptsToInds_] :=
 Block[{cent, ordering, polyPoints},
  polyPoints = Lookup[indTopts, polyinds];
  cent = Mean@polyPoints;
  ordering =
   Ordering[ArcTan[#[[1]], #[[2]]] &@(# - cent) & /@ polyPoints];
  Lookup[ptsToInds, Part[polyPoints, ordering]]
  ];

Mesh Restructuring operations

T1 transition (neighbour switching)

Clear@edgesforT1;
edgesforT1[edgeLs_, indToPts_, threshLength_ : 0.0015] :=
  Block[{edges, dist},
   edges = Lookup[indToPts, #] & /@ edgeLs;
   dist = EuclideanDistance @@ # & /@ edges;
   {Pick[edges, Thread[dist <= threshLength], True],
    Pick[edgeLs, Thread[dist <= threshLength], True]}
   ];

Clear@T1transitionFn;
T1transitionFn[edges_, indToPtsAssoc_, vertexToCellG_, cellToVertexG_, dSep_ : 0.01] :=
  Block[{findEdges, edgeind, connectedcellKeys, edge, newpts, cellvertIndices,
cellvertices, pos, cellpolys, memF, keyscellP, selcellKeys, ptToCell, newptsindices,
indToPts = indToPtsAssoc, ptsToInds, PtIndToCell, keysToMap, cellindicesAssoc, f1,
otherkeys, f2, polysharingEdge, bag = CreateDataStructure["DynamicArray"],
    vertToCellG = vertexToCellG, cellToVertG = cellToVertexG, testpts, edgechanged},
   {edgechanged, findEdges} = edgesforT1[edges, indToPts];

(* finding all possible edges for T1 transition *)
   If[findEdges != {},
    Scan[
     (edgeind = #;
       If[ContainsAll[Keys[indToPts], edgeind],
        (* should be an edge not connected to an edge that has already undergone a T1 *)
        connectedcellKeys =
         DeleteDuplicates[Flatten@Lookup[vertToCellG, edgeind]];
        cellvertIndices = Lookup[cellToVertG, connectedcellKeys];
        edge = Lookup[indToPts, edgeind];
        newpts = With[{midPt = Mean[edge]},
           midPt + dSep Normalize[(# - midPt)] & /@Flatten[RotationTransform[-(\[Pi]/2), midPt] /@ {edge}, 1]
          ];
        testpts = With[{midPt = Mean[edge]},
          midPt + 0.000001 Normalize[(# - midPt)] & /@ newpts
          ];
        pos = Position[cellvertIndices, {OrderlessPatternSequence[___,
            First@edgeind, ___, Last@edgeind, ___]}, {1}];
        polysharingEdge = Extract[cellvertIndices, pos];
        (* the edge should not be part of any \[CapitalDelta] *)
        If[(AllTrue[polysharingEdge, Length[#] != 3 &]) &&
          ContainsNone[edgeind, Union@*Flatten@*Normal@bag],
         cellvertices = Map[Lookup[indToPts, #] &, cellvertIndices];
         cellpolys = Polygon /@ cellvertices;
         memF = Function[x, RegionMember@x, Listable][Extract[cellpolys, pos]];
         If[k == 17, Print["conn cells:", connectedcellKeys]];
         keyscellP = Extract[connectedcellKeys, pos];
         selcellKeys = Thread[keyscellP -> memF];
         ptToCell = Quiet[# -> First@@Select[selcellKeys, Function[x, Last[x][#]]] & /@
             testpts /. HoldPattern[_ -> First[]] -> Nothing] ;(*pt to cell *)
         ptToCell = ptToCell /. Thread[testpts -> newpts];
         newptsindices = Range[# + 1, # + 2] &[Max[Keys@indToPts]];
         KeyDropFrom[indToPts, edgeind];
         AppendTo[indToPts, Thread[newptsindices -> newpts]];
         ptsToInds = AssociationMap[Reverse, indToPts];
         bag["Append", edgeind];
         PtIndToCell = MapAt[ptsToInds, ptToCell, {All, 1}] /. Rule -> List ;(*index to cell*)
         keysToMap = MapAt[Key, PtIndToCell, {All, 2}];
         cellindicesAssoc = AssociationThread[connectedcellKeys, cellvertIndices];
         f1 =
          Fold[MapAt[
             Function[x,
              DeleteDuplicates[
               x /. Thread[ edgeind -> #2[[1]] ]]], #1, #2[[2]]] &,
           cellindicesAssoc, keysToMap];
         otherkeys = List@*Key /@ Complement[connectedcellKeys, keyscellP];
         f2 =
          MapAt[(# /. (Alternatives @@ edgeind) ->
                Splice[newptsindices] //
              sortPointsCC[#, indToPts, ptsToInds] &) &, f1,
           otherkeys];
         AppendTo[cellToVertG, f2];
         vertToCellG = GroupBy[Flatten[(Reverse[#, 2] &)@*Thread /@Normal@cellToVertG], First -> Last];
         ]
        ]) &,
     findEdges]
    ];
   {edgechanged, indToPts, cellToVertG, vertToCellG}
   ];

T2 transitions (cell removal)

Clear@cellsforT2;
cellsforT2[areaAssoc_, cellVertexG_, thresh_ : 10^-5] :=
  Block[{keys, ls, inds},
   keys = Keys@Select[areaAssoc, # < thresh &];
   ls = Lookup[cellVertexG, keys];
   inds = Flatten@Position[ls, x_ /; (3 <= Length[x] <= 6), {1}];
   If[inds != {}, {keys[[inds]], ls[[inds]]}, {{}, {}}] (*cell inds, vertices*)
   ];

Clear@T2TransitionFn;
T2TransitionFn[{cellsToRemove_, vertindsRemove_}, indTopts_,
   cellToVertexG_, areaPolygonAssoc_, periPolygonAssoc_] :=
  Block[{newVertices, maxkey, newindices,
     newentries, indToPts = indTopts, ruleDisp, removeentries,
     CVG = cellToVertexG, notaCell, VertCellGrouping},
    newVertices = Mean@Lookup[indTopts, #] & /@ vertindsRemove;
    maxkey = Max@*Keys@indTopts;
    newindices = Range[maxkey + 1, maxkey + Length[newVertices]];
    newentries = Thread[newindices -> newVertices];
    KeyDropFrom[indToPts, Union@Flatten[vertindsRemove]];
    AppendTo[indToPts, newentries];
    ruleDisp =
     Dispatch@
      Flatten[MapThread[
        Thread[#1 -> #2] &, {vertindsRemove, newindices}]];
    removeentries = Union@Flatten@cellsToRemove;
    KeyDropFrom[CVG, removeentries];
    CVG = DeleteDuplicates /@ Replace[CVG, ruleDisp, {2}];
    notaCell = Keys@Select[Length /@ CVG, # < 3 &];
    KeyDropFrom[CVG, notaCell];
    VertCellGrouping =
     GroupBy[Flatten[(Reverse[#, 2] &)@*Thread /@ Normal@CVG],
      First -> Last];
    {indToPts, CVG, VertCellGrouping,
     KeyDrop[areaPolygonAssoc, removeentries~Join~notaCell],
     KeyDrop[periPolygonAssoc, removeentries~Join~notaCell]}
    ] /; vertindsRemove != {};

Cell Divisions

probability of cell division is based on the cell area

Clear[selectDivCells];
selectDivCells[areaPolygon_, areathresh_ : 2.2, thresh_ : 0.0025] :=
  Block[{candidates, pos},
   candidates =
    Normal@Select[areaPolygon/Mean[areaPolygon], # > areathresh &];
   pos = Position[0.1 RandomReal[1, Length@candidates],
     x_ /; x < thresh];
   Keys@Extract[candidates, pos]
   ];

Clear[cellDivision];
cellDivision[polygonind_, indToPoints_, areaAssoc_, perimAssoc_,
   cellToVertG_] :=
  Block[{x, y, num, matrix, xx, xy, yy, eigvals, eigVecs, maxeigpos,
    cent, edges, edgesL, intersects, intersectionPts,
    posIntersections, repPart, \[Alpha], \[Beta], polygonPts,
    newkeys = Range[# + 1, # + 2] &[Max@Keys[indToPoints]],
    newPtToInds, indtoPtAssoc = indToPoints, ptToIndAssoc, edgeinds,
    contour, poly1, poly2, res, seq,
    newcells = Range[# + 1, # + 2] &[Max@Keys[areaAssoc]],
    CVG = cellToVertG, addcellsRule, polygonPtsInds, VCG},
   VCG = GroupBy[Flatten[(Reverse[#, 2] &)@*Thread /@ Normal@CVG],
     First -> Last];
   polygonPtsInds = CVG[polygonind];
   num = Length@polygonPtsInds;
   ptToIndAssoc = AssociationMap[Reverse, indToPoints];
   polygonPts = Lookup[indToPoints, polygonPtsInds];
   Evaluate[Table[{Subscript[x, i], Subscript[y, i]}, {i, num}]] =
    polygonPts;
   Subscript[I, xx] = (1/12) \!\(
\*UnderoverscriptBox[\(\[Sum]\), \(i = 1\), \(num - 1\)]\(\((
\*SubscriptBox[\(x\), \(i\)]
\*SubscriptBox[\(y\), \(i + 1\)]\  -
\*SubscriptBox[\(x\), \(i + 1\)]
\*SubscriptBox[\(y\), \(i\)]\ )\) \((
\*SuperscriptBox[
SubscriptBox[\(y\), \(i\)], \(2\)] +
\*SubscriptBox[\(y\), \(i\)]
\*SubscriptBox[\(y\), \(i + 1\)] +
\*SuperscriptBox[
SubscriptBox[\(y\), \(i + 1\)], \(2\)])\)\)\);
   Subscript[I, yy] = (1/12) \!\(
\*UnderoverscriptBox[\(\[Sum]\), \(i = 1\), \(num - 1\)]\(\((
\*SubscriptBox[\(x\), \(i\)]
\*SubscriptBox[\(y\), \(i + 1\)]\  -
\*SubscriptBox[\(x\), \(i + 1\)]
\*SubscriptBox[\(y\), \(i\)]\ )\) \((
\*SuperscriptBox[
SubscriptBox[\(x\), \(i\)], \(2\)] +
\*SubscriptBox[\(x\), \(i\)]
\*SubscriptBox[\(x\), \(i + 1\)] +
\*SuperscriptBox[
SubscriptBox[\(x\), \(i + 1\)], \(2\)])\)\)\);
   Subscript[I, xy] = (1 /24) \!\(
\*UnderoverscriptBox[\(\[Sum]\), \(i = 1\), \(num - 1\)]\(\((
\*SubscriptBox[\(x\), \(i\)]
\*SubscriptBox[\(y\), \(i + 1\)]\  -
\*SubscriptBox[\(x\), \(i + 1\)]
\*SubscriptBox[\(y\), \(i\)]\ )\) \((
\*SubscriptBox[\(x\), \(i\)]
\*SubscriptBox[\(y\), \(i + 1\)] + 2
\*SubscriptBox[\(x\), \(i\)]
\*SubscriptBox[\(y\), \(i\)] + 2
\*SubscriptBox[\(x\), \(i + 1\)]
\*SubscriptBox[\(y\), \(i + 1\)] +
\*SubscriptBox[\(x\), \(i + 1\)]
\*SubscriptBox[\(y\), \(i\)])\)\)\);
   Table[{Unevaluated[Subscript[x, j]] =.,
     Unevaluated[Subscript[y, j]] =.}, {j, num}];
   matrix = ( {
      {Subscript[I, xx], -Subscript[I, xy]},
      {-Subscript[I, xy], Subscript[I, yy]}
     } );
   {eigvals, eigVecs} = Eigensystem@matrix;
   maxeigpos = Position[eigvals, Max@eigvals];
   {edges, edgeinds} =
    Partition[#, 2, 1, 1] & /@ {polygonPts, polygonPtsInds};
   edgesL = Line /@ edges;
   cent = centroidPolygon[polygonPts];
   intersects =
    RegionIntersection[
       InfiniteLine[{cent,
         cent + Extract[eigVecs, maxeigpos][[1]]}], #] & /@ edgesL;
   intersectionPts = Cases[intersects, {(_Real | _Integer) ..}, {3}];
   newPtToInds = Thread[intersectionPts -> newkeys];
   posIntersections = Flatten@Position[intersects, _Point, {1}];
   MapThread[
    (res = Complement[Intersection @@ Lookup[VCG, #2], {polygonind}];
      If[res != {},
       seq = Partition[CVG[First@res], 2, 1, 1];
       AppendTo[CVG,
        First@res ->
         DeleteDuplicates@
          Flatten@SequenceSplit[
            seq, {x___,
              p : {OrderlessPatternSequence[#2[[1]], #2[[-1]]]},
              y___} :> {x, Insert[p, #1, 2], y}]
        ];
       ]) & , {newkeys, edgeinds[[posIntersections]]}];

   repPart =
    Thread[{Thread[{ReverseSort@posIntersections, 2}],
      Reverse[intersectionPts]}];
   {\[Alpha], \[Beta]} = intersectionPts;
   AppendTo[ptToIndAssoc, newPtToInds];
   AppendTo[indtoPtAssoc, Reverse[newPtToInds, 2]];
   contour =
    DeleteDuplicates@
     Flatten[Fold[Insert[#1, #2[[2]], #2[[1]]] &, edges, repPart], 1];
   poly1 =
    Join @@ SequenceCases[contour, {___, \[Alpha]} | {\[Beta], ___}];
   poly2 = Join @@ SequenceCases[contour, {\[Alpha], __, \[Beta]}];
   KeyDropFrom[CVG, polygonind];
   addcellsRule = Thread[newcells -> {poly1, poly2}];
   AppendTo[CVG, addcellsRule /. ptToIndAssoc];
   {indtoPtAssoc, CVG,
    Append[KeyDrop[areaAssoc, polygonind],
     MapAt[Area@*Polygon, addcellsRule, {All, 2}]],
    Append[KeyDrop[perimAssoc, polygonind],
     MapAt[Perimeter@*Polygon, addcellsRule, {All, 2}]]}
   ];

Compute Forces

Subscript[F, AreaElasticity][indTopts_, vertexToCellG_,
  cellToVertexG_, areaPolygonAssoc_] :=
 Block[{cellinds, temp, vertKeys = Keys[indTopts],
   vertLs, vertex, gc, gcc, diffVec, grad, coeff},
  First@*Last@Reap@Do[
     cellinds = Lookup[vertexToCellG, i];
     temp = {0, 0};
     vertex = indTopts[i];
     Do[
      vertLs = Lookup[indTopts, Lookup[cellToVertexG, j]];
      gcc = getCounterClockwise[vertex, vertLs];
      gc = getClockwise[vertex, vertLs];
      diffVec = gcc - gc;
      grad = 0.5*{{0, 1}, {-1, 0}}.diffVec;
      coeff = ka  (areaPolygonAssoc[j] - A0);
      temp += grad*coeff, {j, cellinds}
      ];
     Sow@temp, {i, vertKeys}]
  ];

Subscript[F, PerimeterElasticity][indTopts_, vertexToCellG_,
  cellToVertexG_, periPolygonAssoc_] :=
 Block[{cellinds, temp, vertKeys = Keys[indTopts], vertLs,
   vertex, gc, gcc, v1, v2, coeff, grad},
  First@*Last@Reap@Do[
     cellinds = Lookup[vertexToCellG, i];
     temp = {0, 0};
     vertex = indTopts[i];
     Do[
      vertLs = Lookup[indTopts, Lookup[cellToVertexG, j]];
      gc = getClockwise[vertex, vertLs];
      gcc = getCounterClockwise[vertex, vertLs];
      v1 = Normalize[vertex - gc];
      v2 = Normalize[vertex - gcc];
      grad = v1 + v2;
      coeff = \[Gamma] (periPolygonAssoc[j] - P0);
      temp += grad*coeff, {j, cellinds}];
     Sow@temp, {i, vertKeys}]
  ];

Subscript[F, LineTension][indTopts_, vertexToCellG_, cellToVertexG_] :=
  Block[{cellinds, temp, vertKeys = Keys@indTopts, vertLs,
   vertex, gc, gcc, v1, v2},
  First@*Last@Reap@Do[
     cellinds = Lookup[vertexToCellG, i];
     temp = {0, 0};
     vertex = indTopts[i];
     Do[
      vertLs = Lookup[indTopts, Lookup[cellToVertexG, j]];
      gc = getClockwise[vertex, vertLs];
      gcc = getCounterClockwise[vertex, vertLs];
      v1 = Normalize[vertex - gc];
      v2 = Normalize[vertex - gcc];
      temp += \[Kappa] v1 + \[Kappa] v2, {j, cellinds}];
     Sow@temp, {i, vertKeys}]
  ];

Subscript[F, ActiveContraction][indTopts_, vertexToCellG_,
  cellToVertexG_, areaPolygonAssoc_] :=
 Block[{cellinds, temp, vertKeys = Keys@indTopts, vertLs,
   vertex, gc, gcc, diffVec, grad, coeff},
  First@*Last@Reap@Do[
     cellinds = Lookup[vertexToCellG, i];
     temp = {0, 0};
     vertex = indTopts[i];
     Do[
      vertLs = Lookup[indTopts, Lookup[cellToVertexG, j]];
      gcc = getCounterClockwise[vertex, vertLs];
      gc = getClockwise[vertex, vertLs];
      diffVec = gcc - gc;
      grad = 0.5*{{0, 1}, {-1, 0}}.diffVec;
      coeff = 0.1 ka *(areaPolygonAssoc[j]);
      temp += grad*coeff, {j, cellinds}];
     Sow@temp, {i, vertKeys}]
  ];

Subscript[F, T][indTopts_, vertexToCellG_, cellToVertexG_,
   areaPolygonAssoc_, periPolygonAssoc_] := -(
    Subscript[F, AreaElasticity][indTopts, vertexToCellG,
      cellToVertexG, areaPolygonAssoc] +
     Subscript[F, PerimeterElasticity][indTopts, vertexToCellG,
      cellToVertexG, periPolygonAssoc] +
     Subscript[F, LineTension][indTopts, vertexToCellG,
      cellToVertexG] +
     Subscript[F, ActiveContraction][indTopts, vertexToCellG,
      cellToVertexG, areaPolygonAssoc]
    );

Initialize parameters, create mesh and run simulation

ka = 1; A0 = 1; \[Gamma] =  0.04*ka*A0; \[Delta]t = 0.02; P0 = 0; \[Kappa] = 0.025;

SeedRandom[3];
mesh = VoronoiMesh[RandomReal[1, {200, 2}], {{0, 1}, {0, 1}},
   ImageSize -> Medium];
pts = MeshPrimitives[mesh, 0] /. Point -> Sequence;
cornerpts = pts[[-4 ;;]];
pts = pts[[1 ;; -5]];
$ptsToInd = ptsToInd = AssociationThread[pts -> Range@Length@pts];
$indTopts = indTopts = AssociationMap[Reverse][ptsToInd];
cellmeshprim = MeshPrimitives[mesh, 2];
cells = (MeshPrimitives[#, 0] & /@ cellmeshprim) /.
    Point -> Sequence /. Thread[cornerpts -> Nothing];
$cellToVertexG =
  cellToVertexG =
   AssociationThread[Range[Length@cells] -> Map[ptsToInd, cells, {2}]];
$vertexToCell =
  vertexToCell =
   GroupBy[Flatten[(Reverse[#, 2] &)@*Thread /@ Normal@cellToVertexG],
     First -> Last];

Lets see the initial mesh

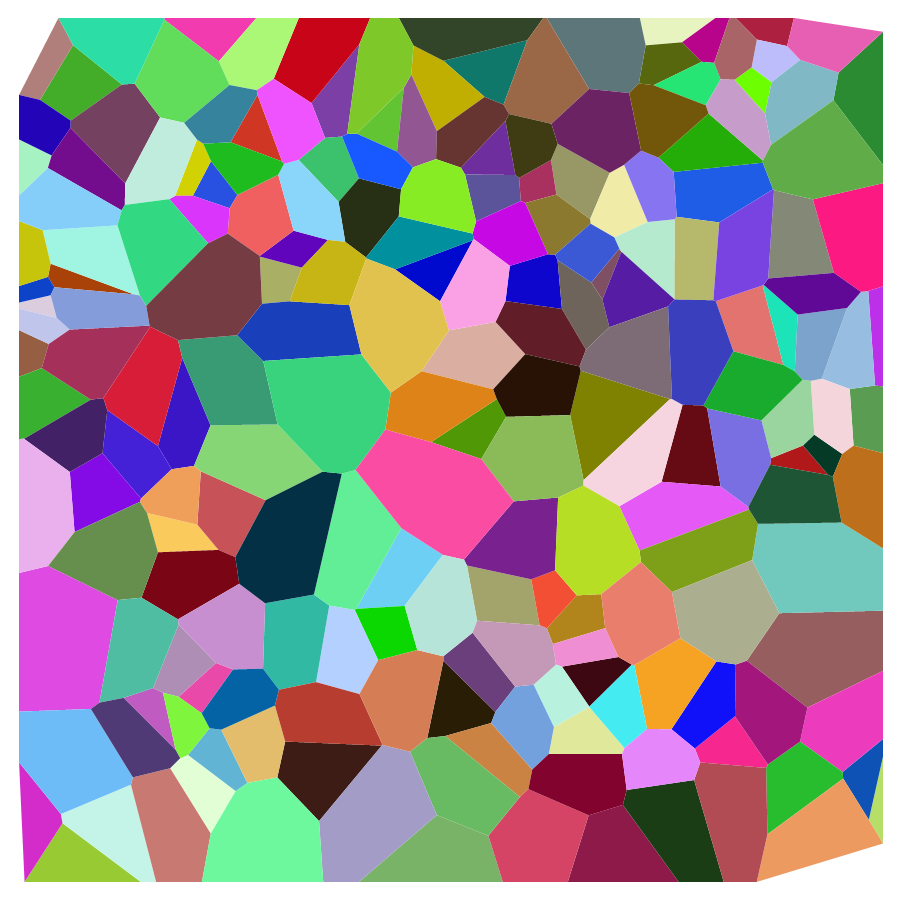

Graphics[Map[{RandomColor[], Polygon@Lookup[indTopts, #]} &,
  Values@cellToVertexG], ImageSize -> Medium]

enter image description here

$cellToPts = cellToPts = Lookup[indTopts, #] & /@ cellToVertexG;
$periPolygonAssoc = periPolygonAssoc = perimeterPolygon /@ cellToPts;
$areaPolygonAssoc = areaPolygonAssoc = areaPolygon /@ cellToPts;

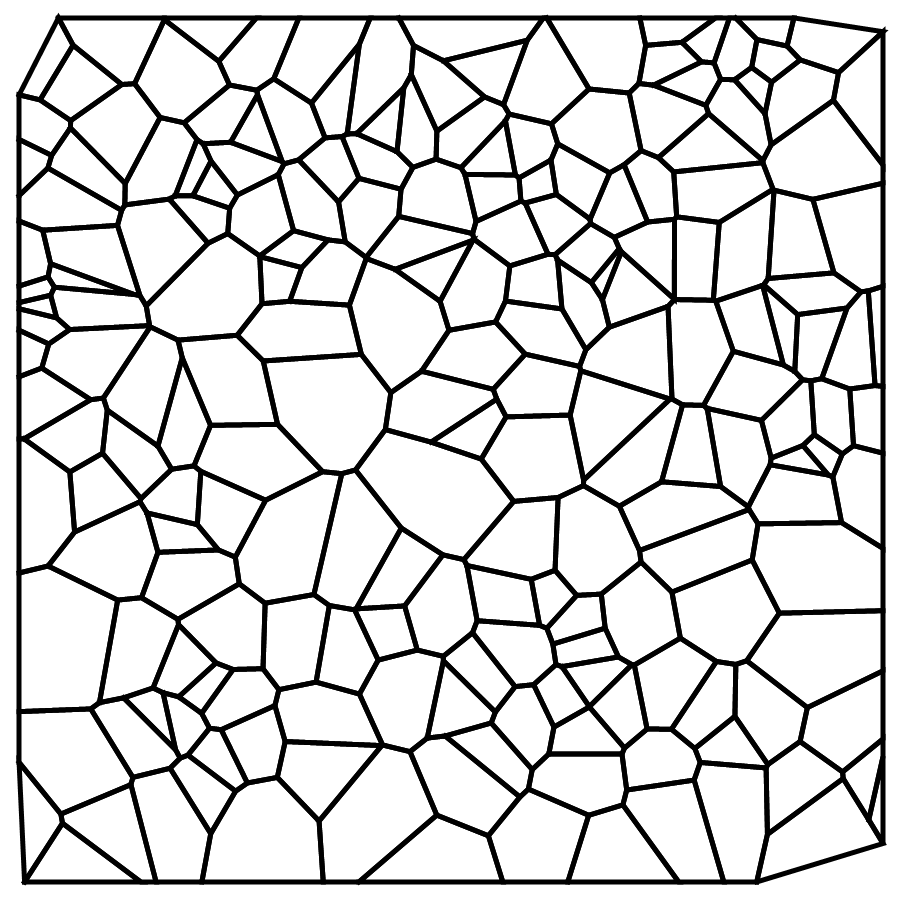

pltOriginal = Graphics[{Black, Thick, Values@Map[Line[Join[##, {First@#}]] &@
       Lookup[$indTopts, #] &, $cellToVertexG]}];

enter image description here

Running the simulation:

t = \[Delta]t;
indTopts = $indTopts;
ptsToInd = $ptsToInd;
vertexToCell = $vertexToCell;
cellToVertexG = $cellToVertexG;
periPolygonAssoc = $periPolygonAssoc;
areaPolygonAssoc = $areaPolygonAssoc;
cellToPts = $cellToPts;
edges = DeleteDuplicatesBy[
   Flatten[Map[Partition[#, 2, 1, 1] &, Values@$cellToVertexG], 1],
   Sort];

Module[{cellsToRemove, vertsToRemove, edgechanged, polydiv},
  saveres = First@Last@Reap@Monitor[
       While[t <= 80 \[Delta]t,
        (* T2 transitions *)
        {cellsToRemove, vertsToRemove} =
         cellsforT2[areaPolygonAssoc, cellToVertexG];
        If[cellsToRemove != {},
         {indTopts, cellToVertexG, vertexToCell, areaPolygonAssoc,
           periPolygonAssoc} =
          T2TransitionFn[{cellsToRemove, vertsToRemove}, indTopts,
           cellToVertexG, areaPolygonAssoc, periPolygonAssoc]
         ];
        (* T1 transitions *)
        edges =
         DeleteDuplicatesBy[
          Flatten[Map[Partition[#, 2, 1, 1] &, Values[cellToVertexG]],
            1], Sort];
        {edgechanged, indTopts, cellToVertexG, vertexToCell} =
         T1transitionFn[edges, indTopts, vertexToCell, cellToVertexG];
        cellToPts = Lookup[indTopts, #] & /@ cellToVertexG;
        areaPolygonAssoc = areaPolygon /@ cellToPts;
        periPolygonAssoc = perimeterPolygon /@ cellToPts;
        (* Divisions *)
        polydiv = selectDivCells[areaPolygonAssoc];
        (*polydiv=pickcellsDiv[cellToVertexG,areaPolygonAssoc];*)
        If[polydiv != {},
         Scan[
          ({indTopts, cellToVertexG, areaPolygonAssoc,
              periPolygonAssoc} =
             cellDivision[#, indTopts, areaPolygonAssoc,
              periPolygonAssoc, cellToVertexG]) &,
          polydiv];
         vertexToCell =
          GroupBy[Flatten[(Reverse[#, 2] &)@*Thread /@
             Normal@cellToVertexG], First -> Last];
         ];
        (* update positions *)
        indTopts =
         AssociationThread[
          Keys[indTopts] -> (Values[indTopts] +
             Subscript[F, T][indTopts, vertexToCell, cellToVertexG,
               areaPolygonAssoc, periPolygonAssoc] \[Delta]t)];
        cellToPts = Lookup[indTopts, #] & /@ cellToVertexG;
        areaPolygonAssoc = areaPolygon /@ cellToPts;
        periPolygonAssoc = perimeterPolygon /@ cellToPts;
        (*plt=Graphics[{ColorData[1][3],Thick,Values@Map[Line[
        Join[##,{First@#}]]&@Lookup[indTopts,#]&,cellToVertexG]},
        ImageSize\[Rule]Medium];*)

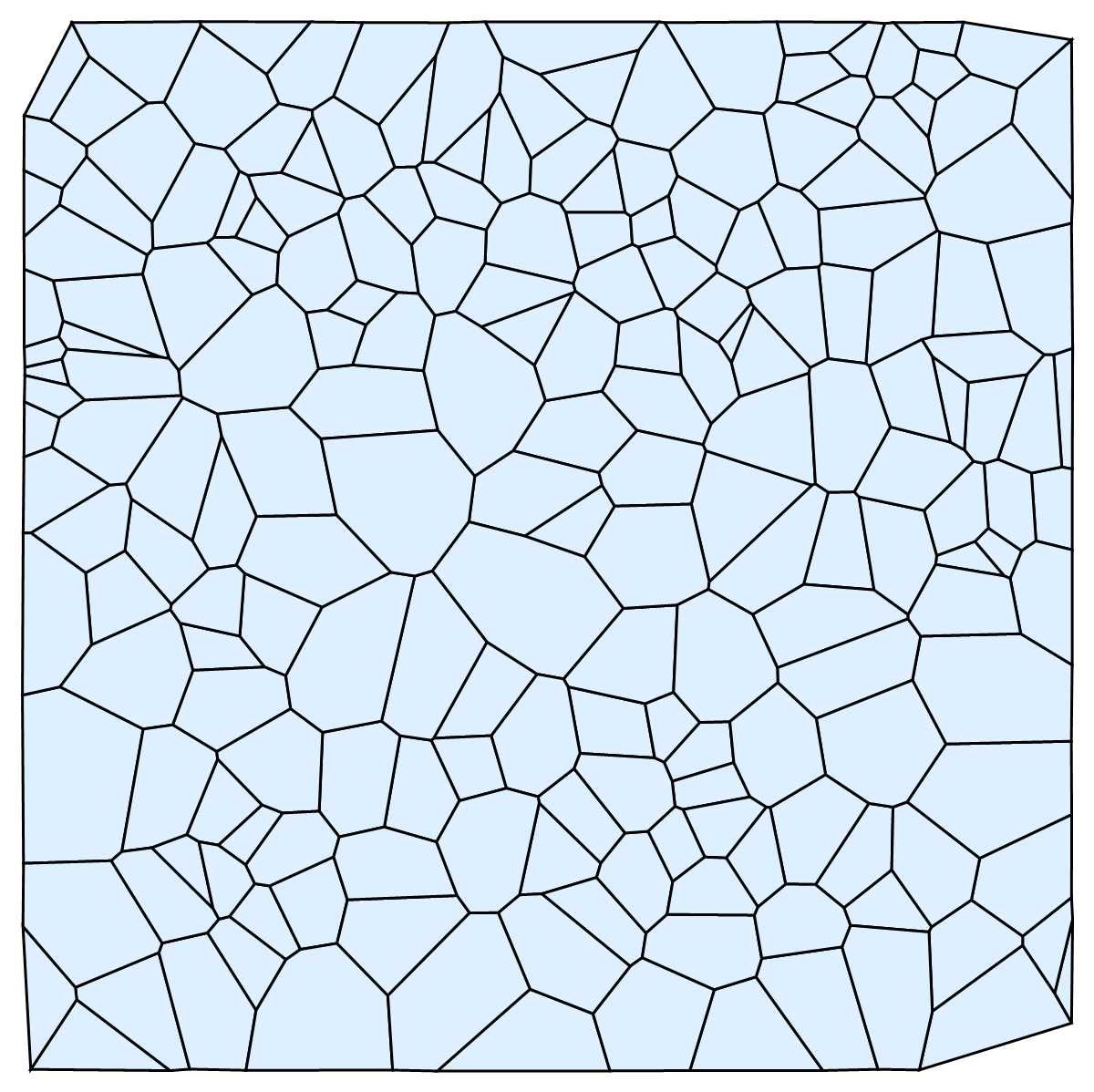

        plt =
         Graphics[{FaceForm[LightBlue], EdgeForm[Black],
           Values[Polygon@Lookup[indTopts, #] & /@ cellToVertexG]}];
        Sow[plt];
        t += \[Delta]t;
        ], plt
       ]
  ];

enter image description here

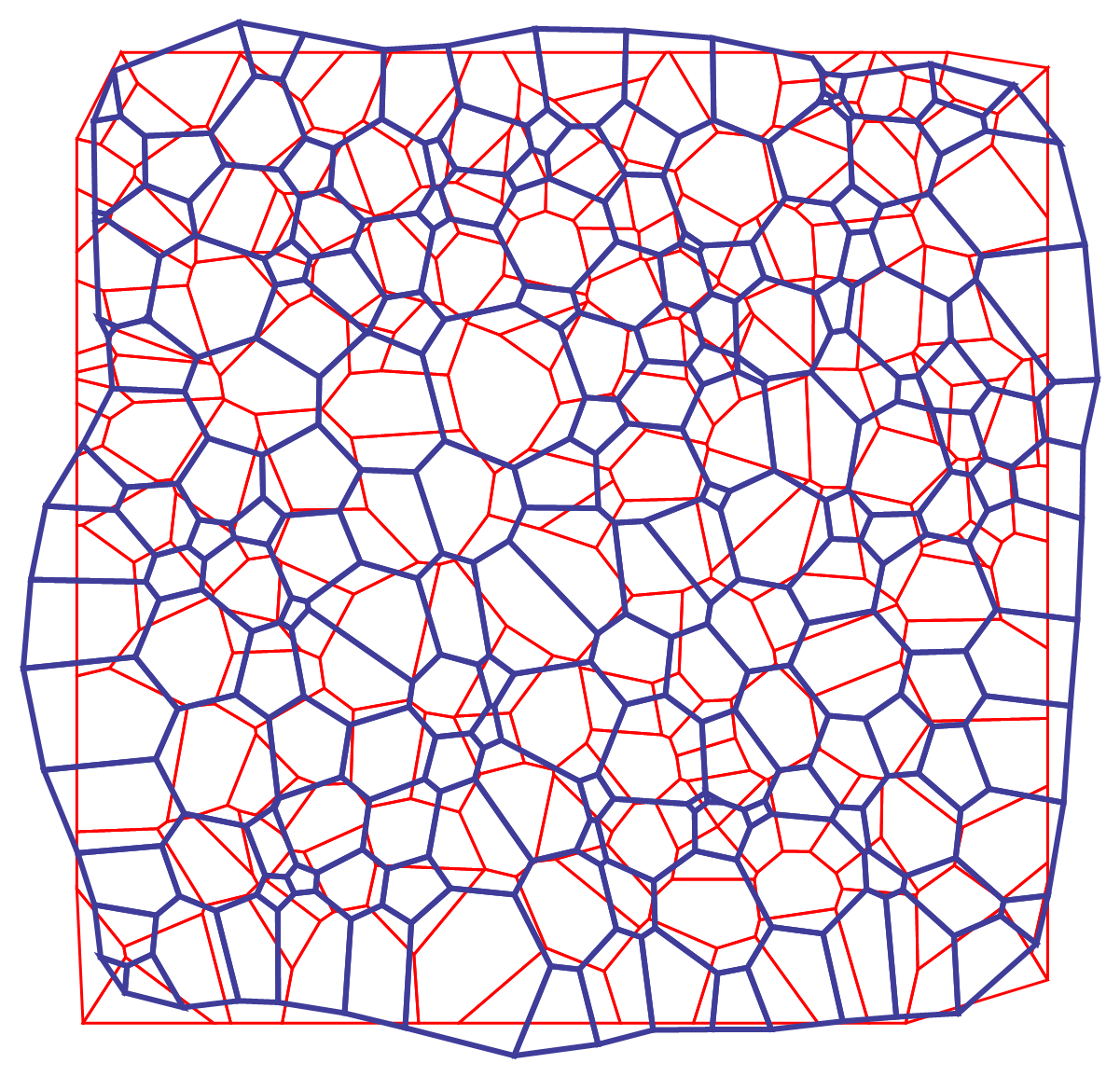

the initial and and final geometry of the mesh are superimposed:

enter image description here

The code is also present on my github repository: https://github.com/alihashmiii/2D-vertex-model

Attachments:

enter image description here -- you have earned Featured Contributor Badge enter image description here

Your exceptional post has been selected for our editorial column Staff Picks http://wolfr.am/StaffPicks and Your Profile is now distinguished by a Featured Contributor Badge and is displayed on the Featured Contributor Board. Thank you!

Reply to this discussion
Community posts can be styled and formatted using the Markdown syntax.
Reply Preview
Attachments
Remove
or Discard

Group Abstract Group Abstract
