Combined plots looking different from the individual ones?

Nathan Stronkowsky

Posted 5 years ago

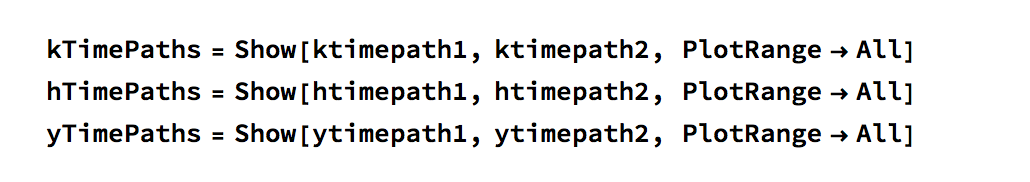

Hello, I am trying to combine two graphs that are identical in their formulas but slightly different with their parameters. Every time I try to combine them using "Show[ ]" the combined graph shows just two straight lines instead of showing the proper curves. Could it be a coding error? A size issue? I have no idea. I have attached the whole program below, plus screen shots of the specific areas and what the graphics look like. Help is much appreciated Thank you. Attachments: Combined Graph e...pdf Nathan Stronkows...nb example of combi...png individual graph...pdf individual graph...pdf

POSTED BY: Nathan Stronkowsky

5 Replies

Sort By:

Nathan Stronkowsky

Posted 5 years ago

Thats great! however it looks like they're the same time path; one should be a bit different. Let me try what you sent me and see if I can make it work. Thank you sm!

POSTED BY: Nathan Stronkowsky

Rohit Namjoshi

Posted 5 years ago

One option is to use the resource function `CombinePlots`. Will require some changes. ktimepath1 = Plot[{Evaluate[k[t] /. solm]}, {t, 0, 200}, PlotRange -> All, AxesLabel -> {"t", "k"}, PlotLegends -> {"k"}, Frame -> True, PlotStyle -> Thickness[0.01]] (* The two overlay exactly so increase thickness *) ktimepath2 = Plot[{Evaluate[k2[t] /. solm2]}, {t, 0, 200}, PlotRange -> All, AxesLabel -> {"t", "k2"}, PlotLegends -> {"k2"}, Frame -> True, FrameStyle -> Red, PlotStyle -> Red] ResourceFunction["CombinePlots"][ktimepath1, ktimepath2, "AxesSides" -> "TwoY", ImageSize -> 600]

One option is to use the resource function CombinePlots. Will require some changes.

ktimepath1 =
  Plot[{Evaluate[k[t] /. solm]}, {t, 0, 200},
    PlotRange -> All,
    AxesLabel -> {"t", "k"},
    PlotLegends -> {"k"},
    Frame -> True,
    PlotStyle -> Thickness[0.01]] (* The two overlay exactly so increase thickness *)

ktimepath2 =
  Plot[{Evaluate[k2[t] /. solm2]}, {t, 0, 200},
    PlotRange -> All,
    AxesLabel -> {"t", "k2"},
    PlotLegends -> {"k2"}, Frame -> True,
    FrameStyle -> Red,
    PlotStyle -> Red]

ResourceFunction["CombinePlots"][ktimepath1, ktimepath2,
 "AxesSides" -> "TwoY",
 ImageSize -> 600]

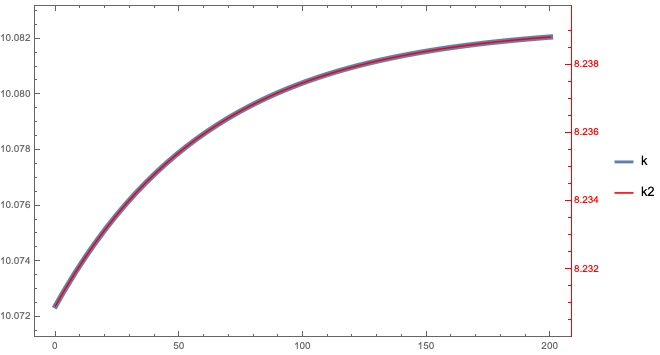

enter image description here

POSTED BY: Rohit Namjoshi

Nathan Stronkowsky

Posted 5 years ago

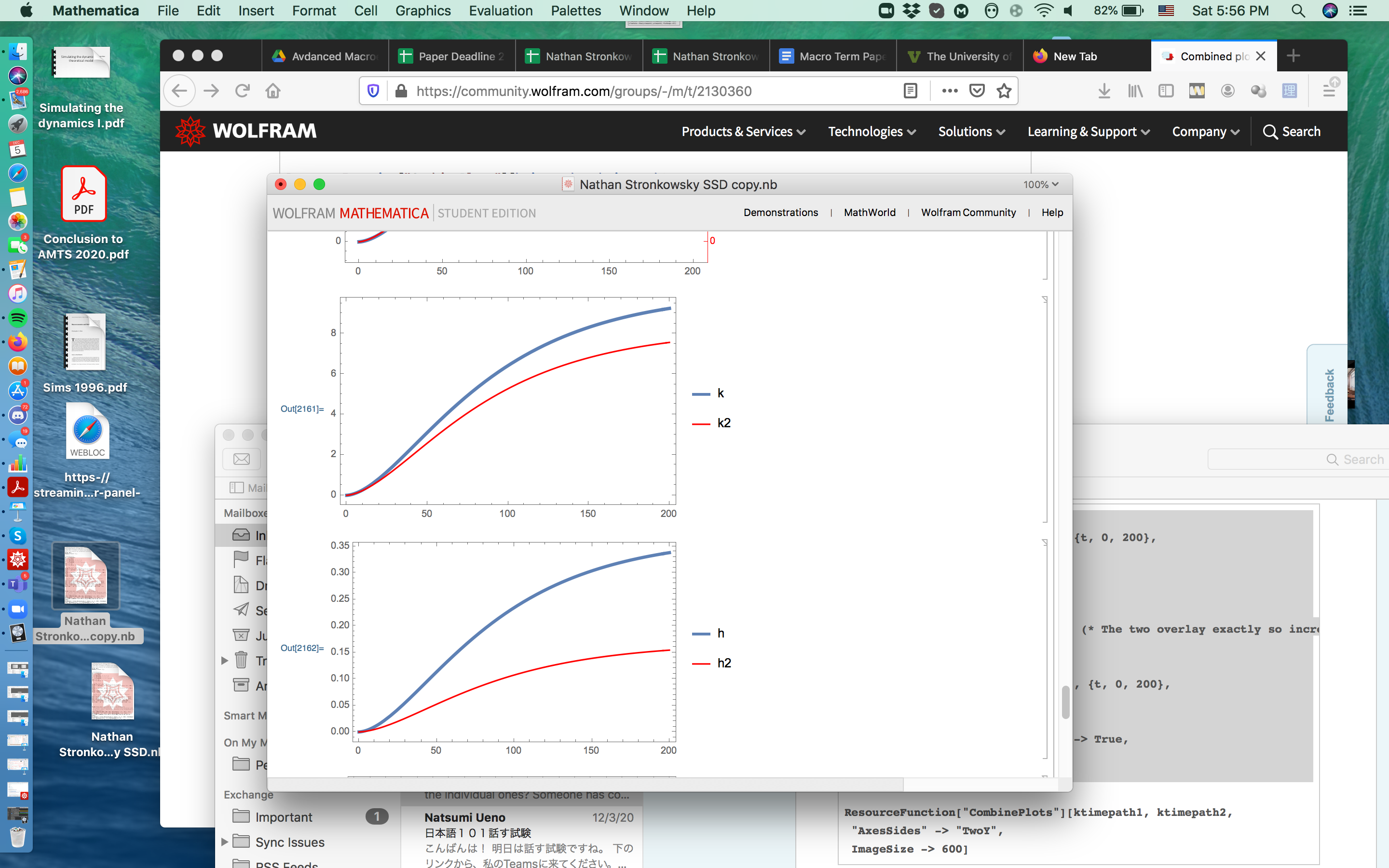

Hey so I think your suggestion worked, however I just have an economics question about the graphs if you could maybe give your opinion. Individually the time paths for each variable (h, k, y) have a logarithmic style graph from the beginning, but when I combined them using your suggestion using Resource Function, the time paths for h and k specifically look like the are exponential at first, then counter an inflection point after a certain point. Could this be because in the beginning of economic growth, there are positive returns to scale? It seems k and h do not possess diminishing returns in the beginning. Is that normal? Btw I am using the Mankiw Romer and Weil model of semi endogenous growth, and I am not sure if this is a phenomenon of the model, or an error in how I combined the two time paths. Interestingly, when I combine y (output) using your method, I do not see this which makes sense kind of? Sorry I know this is a little bit off topic, but I am just concerned that I combined the time paths in a way that messed up there individual time paths. Screenshot is below Attachments: Screen Shot 2020...png

Hey so I think your suggestion worked, however I just have an economics question about the graphs if you could maybe give your opinion.

Individually the time paths for each variable (h, k, y) have a logarithmic style graph from the beginning, but when I combined them using your suggestion using Resource Function, the time paths for h and k specifically look like the are exponential at first, then counter an inflection point after a certain point. Could this be because in the beginning of economic growth, there are positive returns to scale? It seems k and h do not possess diminishing returns in the beginning. Is that normal? Btw I am using the Mankiw Romer and Weil model of semi endogenous growth, and I am not sure if this is a phenomenon of the model, or an error in how I combined the two time paths.

Interestingly, when I combine y (output) using your method, I do not see this which makes sense kind of? Sorry I know this is a little bit off topic, but I am just concerned that I combined the time paths in a way that messed up there individual time paths. Screenshot is below

POSTED BY: Nathan Stronkowsky

Nathan Stronkowsky

Posted 5 years ago

Hi thanks for responding. How can I go about fixing it? All I want is to show the two time paths as they appear on their individual graphs but on one graph. I want to see both of them on the same time scales graph. They should look as they do (logarithmic shape) on the combined graph.

POSTED BY: Nathan Stronkowsky

Rohit Namjoshi

Posted 5 years ago

Hi Nathan, The plots being combined with `Show` each have a very small y range that is separated by a relatively large y value between the two plots. On a combined scale they appear as straight lines. You will have to add an offset or use a log scale, or... Really depends on what you are trying to convey by combining them.

POSTED BY: Rohit Namjoshi
