How do I set the range for Histogram[]?

Jay Gourley

Jay Gourley, George Mason University

Posted 3 years ago

I want to create multiple histograms of different data sets but with the same range for comparison. How do I do it? I want the binning and height scales to be automatic for the each set. But I want the range to be uniform among the histograms.

POSTED BY: Jay Gourley

4 Replies

Sort By:

Jim Baldwin

Posted 3 years ago

An alternative to the Histogram that would elevate you to the 21st century is the nonparametric density estimate. Two advantages is that you wouldn't have to do any calculations to determine the overall range and each can be viewed without obstruction when placed on the same figure (unlike overlapping histograms). SeedRandom[12345]; data1 = RandomVariate[NormalDistribution[0, 1], 100]; data2 = RandomVariate[NormalDistribution[5, 3], 200]; Show[SmoothHistogram[data1, Automatic, "PDF", PlotStyle -> Red], SmoothHistogram[data2, Automatic, "PDF", PlotStyle -> Green, PlotLegends -> LineLegend[{Red, Green}, {"data1", "data2"}]], PlotRange -> All]

An alternative to the Histogram that would elevate you to the 21st century is the nonparametric density estimate. Two advantages is that you wouldn't have to do any calculations to determine the overall range and each can be viewed without obstruction when placed on the same figure (unlike overlapping histograms).

SeedRandom[12345];
data1 = RandomVariate[NormalDistribution[0, 1], 100];
data2 = RandomVariate[NormalDistribution[5, 3], 200];

Show[SmoothHistogram[data1, Automatic, "PDF", PlotStyle -> Red],
 SmoothHistogram[data2, Automatic, "PDF", PlotStyle -> Green,
  PlotLegends -> LineLegend[{Red, Green}, {"data1", "data2"}]],
 PlotRange -> All]

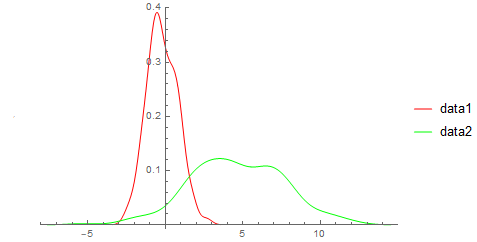

Plot of two histograms

POSTED BY: Jim Baldwin

Rohit Namjoshi

Posted 3 years ago

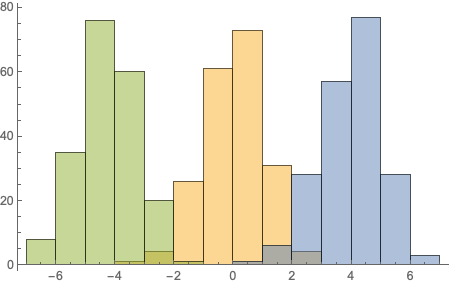

Hi Jay, Do you mean something like this? d1 = RandomVariate[NormalDistribution[0, 1], 200]; d2 = RandomVariate[NormalDistribution[4, 1], 200]; d3 = RandomVariate[NormalDistribution[-4, 1], 200]; Histogram[{d1, d2, d3}] If not, can you provide a specific example illustrating what you are looking for.

POSTED BY: Rohit Namjoshi

Jim Baldwin

Posted 3 years ago

Finding the joint range of values is one way with adding in a little flexibility. SeedRandom[12345]; data1 = RandomVariate[NormalDistribution[0, 1], 100]; data2 = RandomVariate[NormalDistribution[5, 3], 200]; (* Get minimum and maximum of all datasets combined ) {xmin, xmax} = MinMax[Join[data1, data2]]; ( Allow for some flexibility *) xlow = xmin - 0.1 (xmax - xmin); xhigh = xmax + 0.1 (xmax - xmin); Histogram[data1, Automatic, PlotRange -> {{xlow, xhigh}, Automatic}] Histogram[data2, Automatic, PlotRange -> {{xlow, xhigh}, Automatic}]

Finding the joint range of values is one way with adding in a little flexibility.

SeedRandom[12345];
data1 = RandomVariate[NormalDistribution[0, 1], 100];
data2 = RandomVariate[NormalDistribution[5, 3], 200];
(* Get minimum and maximum of all datasets combined *)
{xmin, xmax} = MinMax[Join[data1, data2]];
(* Allow for some flexibility *)
xlow = xmin - 0.1 (xmax - xmin);
xhigh = xmax + 0.1 (xmax - xmin);
Histogram[data1, Automatic, PlotRange -> {{xlow, xhigh}, Automatic}]
Histogram[data2, Automatic, PlotRange -> {{xlow, xhigh}, Automatic}]

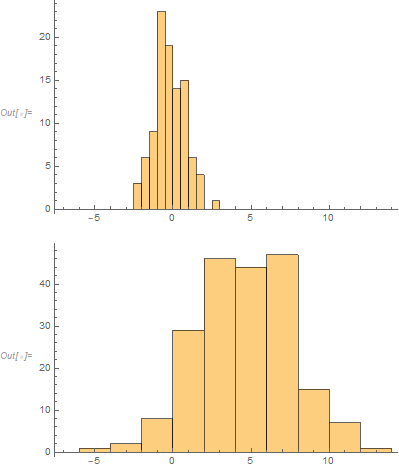

Two histograms with the same horizontal range.
