Understanding Graphics3D's view options: the intuitive way

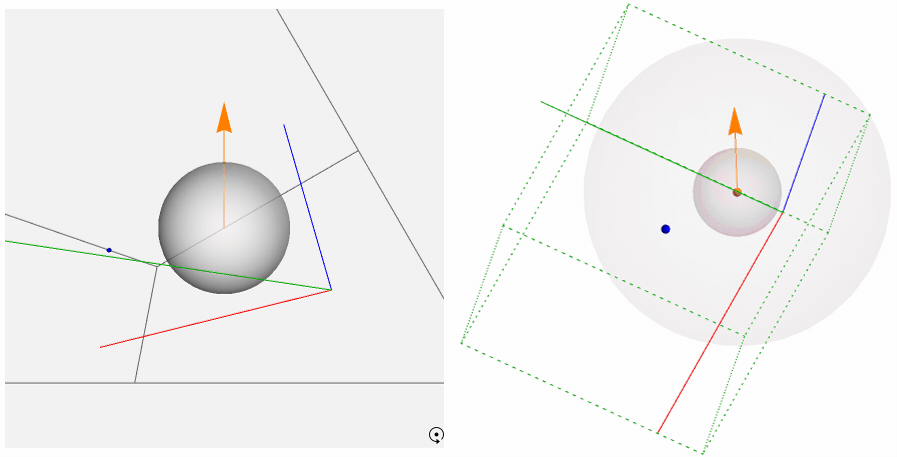

Graphics3D with anchored rotation axis

Attachments:
POSTED BY: Silvia Hao
10 Replies
Posted 3 years ago

Sometimes I read the manual and think "Wow, this doesn't make sense, not intuitive. Vectors are points?". But your explanation helped me fix the test case:

obj = {Cos[#/50 Pi], Sin[#/50 Pi], 0} & /@ Range[110];
viewPt = 2 {1 + Sin[#/20 Pi], 0, Cos[#/20 Pi]} & /@ Range[40];
viewVec = With[{tan = #[[3]] - #[[1]] & /@
      RotateRight[Partition[viewPt, 3, 1, 1]]},
   Divide[# - 2 Cross[#, {0, 1, 0}] & /@ tan, 5]];
viewNorm = Cross[#, {0, 1, 0}] & /@ viewVec;

gOBJ = {
   Darker@Red, Tube[{0, 0, 1/2} + # & /@ obj, 1/10],
   Darker@Blue, Tube[{0, 0, -1/2} + # & /@ obj, 1/10],
   Blend[{Orange, Brown}], Sphere[{2, 0, 0}],
   Blend[{Brown, Yellow}], Tube[obj, 1/2],
   Black,
   Sphere[#/2 + {1, 0, 0}, 1/10] & /@
    viewPt[[{-7, -5, -1, 5, 13, 19, 23, 25}]]
   };

Graphics3D[{
  Red, MapThread[Arrow[{#1, #1 + #2}] &, {viewPt, viewVec}],
  Blue, MapThread[Arrow[{#1, #1 + #2}] &, {viewPt, viewNorm}],
  gOBJ}, ViewVertical -> {0, 0, 1}, Boxed -> False,
 ViewPoint -> 3 {0, 1, 1}]

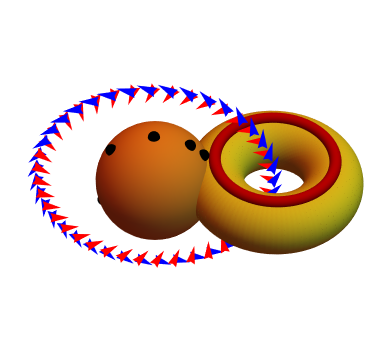

model

ListAnimate[Graphics3D[gOBJ,
    ViewVector -> {viewPt[[#]], viewPt[[#]] + viewVec[[#]]},
    ViewVertical -> viewNorm[[#]],
    ViewAngle -> Pi/3, Boxed -> False] & /@ Range[40]]

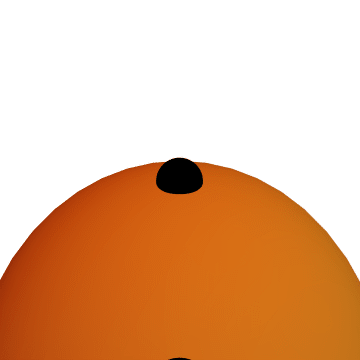

Through the hoop

Turns out ViewVertical needs to be set, see also this wikipedia article on Frenet-Serret perspective. This is still along way from having a meebits character walking around the surface of an elliptic curve and looking around at the scenery.

POSTED BY: Brad Klee
Posted 3 years ago

Silvia, you are probably right about that change in Version 12, according to the change log:

Major OS integration updates to Mac and Linux notebook interfaces using the 64-bit Cocoa API and Qt 5, respectively, with the Linux interface no longer requiring a supporting X server

Good, hope to move on from that error soon.

Your credentials appear impressive, so it looks like you could probably accept a challenge from my dissertation. If you want, see Fig. 2.13:

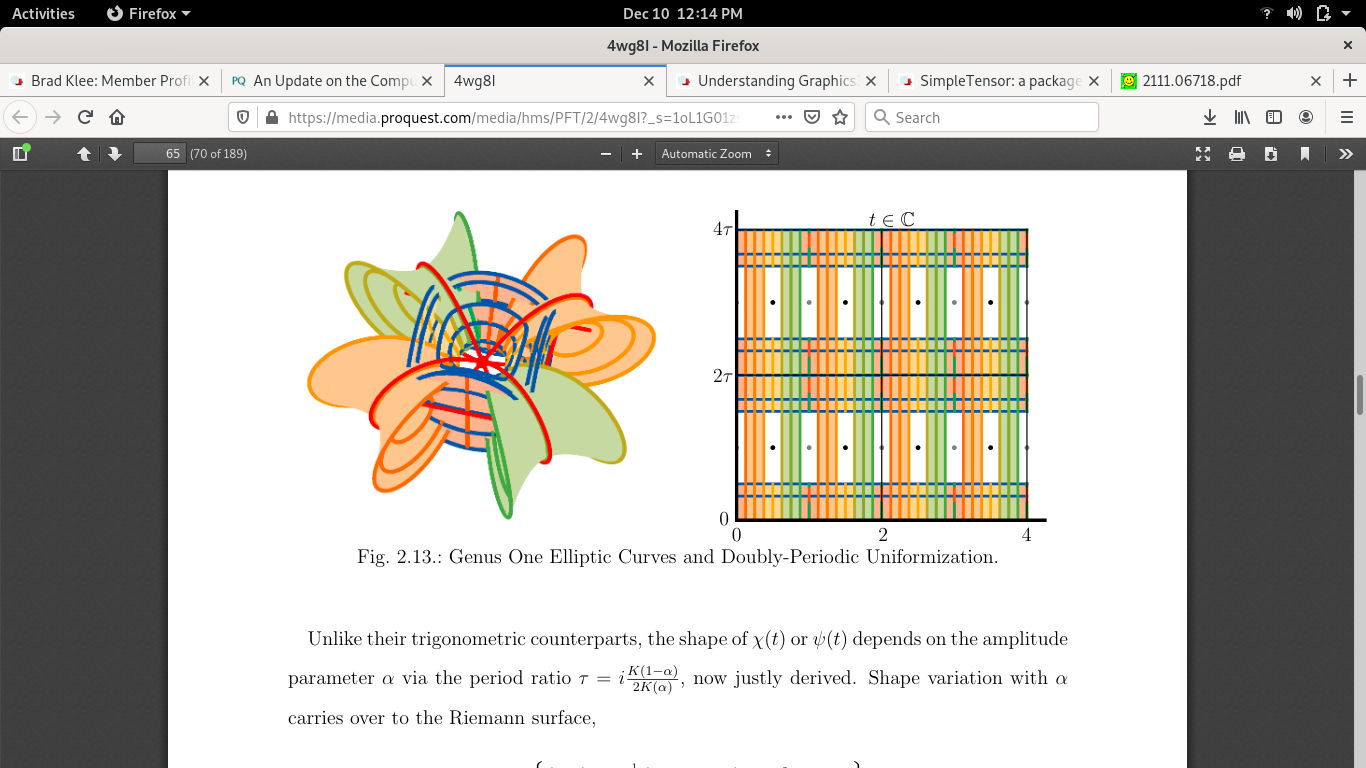

screen cap

Is it possible to put in a camera (where projection to $\mathbb{R}^3$ is reasonably finite) that zooms around the surface, showing its features from different perspectives? I'm hoping for something like this:

obj = {Cos[#/50 Pi], Sin[#/50 Pi], 0} & /@ Range[110];
viewPt = 2 {1 + Sin[#/10 Pi], 0, Cos[#/10 Pi]} & /@ Range[20];
viewVec =   With[{tan = #[[3]] - #[[1]] & /@
      RotateRight[Partition[viewPt, 3, 1, 1]]},
   Divide[# - Cross[#, {0, 1, 0}] & /@ tan, 5]];

Graphics3D[{Blend[{Brown, Yellow}], Tube[obj, 1/2], Red,
  MapThread[Arrow[{#1, #1 + #2}] &, {viewPt, viewVec}]},
 ViewVertical -> {0, 0, 1}, Boxed -> False, ViewPoint -> 3 {0, 1, 1}]

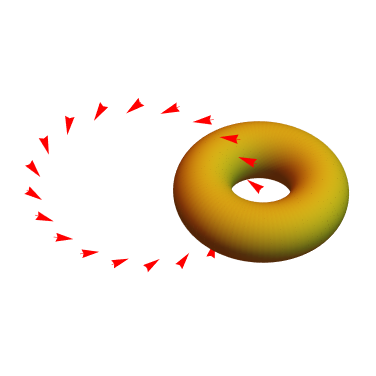

camera path

But the animation doesn't look anything like I would expect it to:

ListAnimate[Graphics3D[{Blend[{Brown, Yellow}], Tube[obj, 1/2]},
    ViewPoint -> viewPt[[#]], ViewVector -> viewVec[[#]],
    ViewAngle -> Pi/4] & /@ Range[20]]

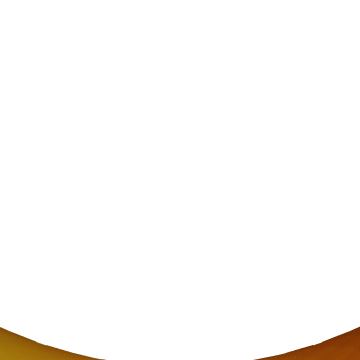

fail image

There's plenty of vector space to play around with inventive angles, but the options so far are not very intuitive, agree with you.

POSTED BY: Brad Klee

Hi Brad, I'm not sure I fully understand the view config you want, but I noticed in your code MapThread[Arrow[{#1, #1 + #2}] &, {viewPt, viewVec}] , which might not be doing what you meant for.

ViewPoint is the position of the camera in a scaled coordinate system, while ViewVector is either the position of the camera or a pair of positions corresponding to ViewPoint and ViewCenter, BUT either way they're in the "absolute" (or non-scaled) coordinate system. So adding an absolute vector to a scaled position does not give immediately meaningful result.

Also, if we are using explicit ViewVector option in Graphics3D, then ViewPoint won't affect the result, as according to the documentation:

Explicit settings for ViewVector override settings for ViewPoint.

POSTED BY: Silvia Hao

Silvia's exploration is a common problem for all of us. The technical setting in details of Wolfram functions are always puzzles for users from old version to new version.

So, I dared not to rotate the camera; I usually rotate the object or model.

POSTED BY: Frederick Wu

Hopefully my post encourages you enough to rotate the camera now. :)

POSTED BY: Silvia Hao
Posted 3 years ago
POSTED BY: Brad Klee

Hi Brad, I tried your Penrose tiling example on 12.3 for Windows 10 and recorded ListAnimate's result on my screen with an external camera. I think the testing result on my side is "pixel-perfect". Please check attached notebook for detail.

However, I do remember seeing the jittery issue on certain older Mathematica version. (I can't really remember it, maybe 11?) As my personal understanding, since version 12, there has been some change in FrontEnd in order to support 4K display, which might be related to this kind of issues. I guess they are likely OS-related.

POSTED BY: Silvia Hao
Posted 3 years ago

Hi Silvia, nice post. Thought to add a note, since I've been on this topic lately.

Usually setting ViewVertical & ViewPoint is enough to get a good result. ViewVertical defines a directed line in space, and ViewPoint a point (obviously). Looking from the point there is one rotational degree of freedom, which is then fixed to the vector of ViewVertical. Perspective can be controlled by taking near or far ViewPoints, with limit to infinity approaching ViewProjection->"Orthographic" (?). The problem is with bounding box. Using some of the previous chess assets:

glist1 = Show[GameState[TwoKnights],
     Graphics3D[{Black, Sphere[{0, 0, 2}],
       Sphere[RotationMatrix[Pi/50 #, {0, 0, 1}].{0, 64, 0}] & /@
        Range[100]}],
     ViewPoint ->  100 ({Sqrt[2] Cos[Pi/50 *#], Sqrt[2] Sin[Pi/50 *#], 1}),
     Boxed -> True, ViewVertical -> {0, 0, 1},
     PlotRange -> {{-65, 65}, {-65, 65}, {-2, 16}},
     ImageSize -> 500] & /@ Range[0, 100];
ListAnimate[glist1]

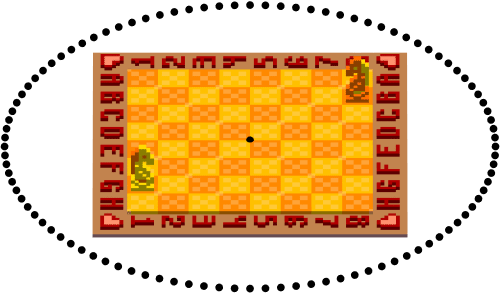

Two Knights Error

This is not what we want, and setting Boxed->False does not change much. According to stack exchange, there is another option to set "ShrinkWrap"?? Anyways, here's an improved rotation:

glist2 = Show[GameState[TwoKnights],
     Graphics3D[{Black, Sphere[{0, 0, 2}],
       Sphere[RotationMatrix[Pi/50 #, {0, 0, 1}].{0, 64, 0}] & /@
        Range[100]}],
     Boxed -> False, Method -> {"ShrinkWrap" -> True},
     ViewPoint -> 100 ({Sqrt[2] Cos[Pi/50 *#], Sqrt[2] Sin[Pi/50 *#], 1}),
     ViewVertical -> {0, 0, 1},
     PlotRange -> {{-65, 65}, {-65, 65}, {-2, 16}},
     ImageSize -> 500] & /@ Range[0, 100];
ListAnimate[glist2]

Two Knights Okay

This looks much better, though the animation still has a bit of jitter. If I were to mask out the black spheres on the boundary, probably it would look slightly more smooth.

POSTED BY: Brad Klee

Hi Brad, nice post there!

Regarding the automatic resizing in your example, I guess it could be eliminated by either specifying a fixed ViewAngle, or by using SphericalRegion -> True (maybe along with RotationAction option). My feeling is the SphericalRegion is smarter, but appropriate ViewAngle is probably works better for your jittery issue. Regarding "ShrinkWrap", I think it used to be "hidden", but it's now a documented option! :)

Indeed I'm planning to build a 3D viewer inside the FrontEnd. It's not for a particular scene, but hopefully works as a general viewer and pre-rendering camera editor. Right now my plan is using Graphics3D with some dynamic mechanism under the curtain, which will only be used to generate camera settings for rendering, but leaving the scene edit functionality to plain WL code.

POSTED BY: Silvia Hao
