How to integrate a piecewise function?

Orest Gogosha

Posted 2 years ago

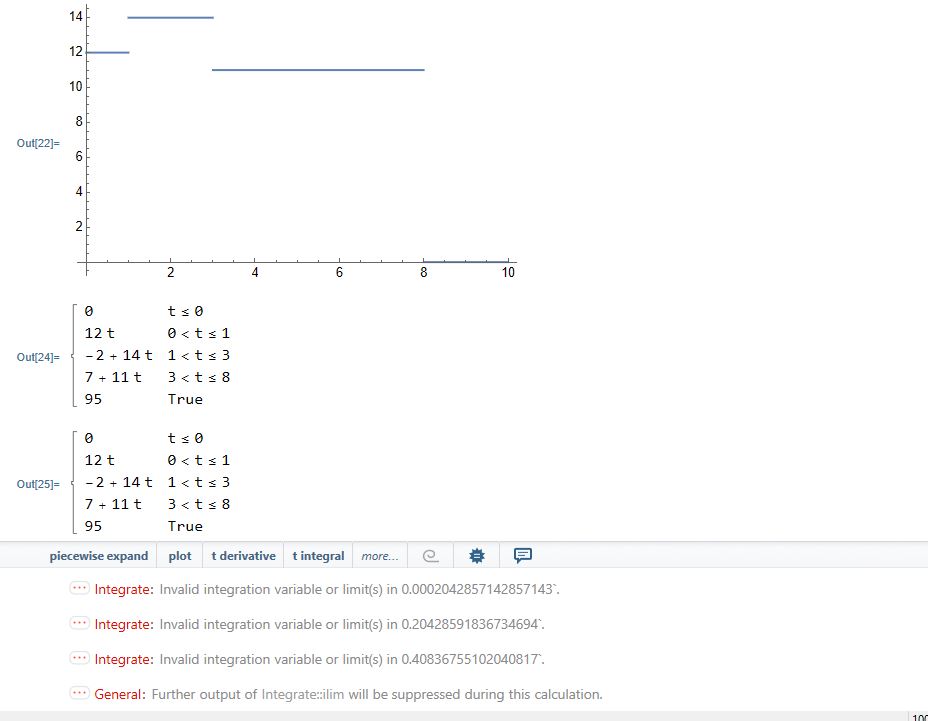

I keep getting funny errors when trying to do this: g[t_] := -9.8; a[t_] := Piecewise[{{0, t < 0}, {12, 0 <= t < 1}, {14, 1 <= t < 3}, {11, 3 <= t < 8}, {0, t >= 8}}]; Plot[a[t], {t, 0, 10}] v[t_] := Integrate[a[t], t]; v[t] Integrate[a[t], t] Plot[v[t], {t, 0, 10}] Plot[g[t], {t, 0, 10}] Attachments: Piecewise Results.JPG

I keep getting funny errors when trying to do this:

g[t_] := -9.8;
a[t_] := Piecewise[{{0, t < 0}, {12, 0 <= t < 1}, {14,
     1 <= t < 3}, {11, 3 <= t < 8}, {0, t >= 8}}];
Plot[a[t], {t, 0, 10}]
v[t_] := Integrate[a[t], t];
v[t]
Integrate[a[t], t]
Plot[v[t], {t, 0, 10}]
Plot[g[t], {t, 0, 10}]

POSTED BY: Orest Gogosha

4 Replies

Sort By:

Orest Gogosha

Posted 2 years ago

I tried this first and was getting errors. Obviously, you don't. Wonder why. I'll try again. Thank you! GOGO

POSTED BY: Orest Gogosha

Rohit Namjoshi

Posted 2 years ago

Hi Orest, An alternative to Martijn's answer (* Acceleration ) a[t_] := Piecewise[{{0, t < 0}, {12, 0 <= t < 1}, {25, 1 <= t < 3}, {11, 3 <= t < 8}, {0, t >= 8}}] ( Velocity ) v[t_] := Integrate[a[t], t]; ( Distance *) s[t_] := Integrate[v[t], t]; Plot[Evaluate[{a[t], v[t], s[t]}], {t, 0, 10}, PlotTheme -> "Detailed", PlotRange -> All, ImageSize -> 600] The `117 True` in the `Piecewise` means the value is 117 everywhere else in the domain `t > 8`.

Hi Orest,

An alternative to Martijn's answer

(* Acceleration *)
a[t_] :=
 Piecewise[{{0, t < 0}, {12, 0 <= t < 1}, {25, 1 <= t < 3}, {11, 3 <= t < 8}, {0, t >= 8}}]

(* Velocity *)
v[t_] := Integrate[a[t], t];

(* Distance *)
s[t_] := Integrate[v[t], t];

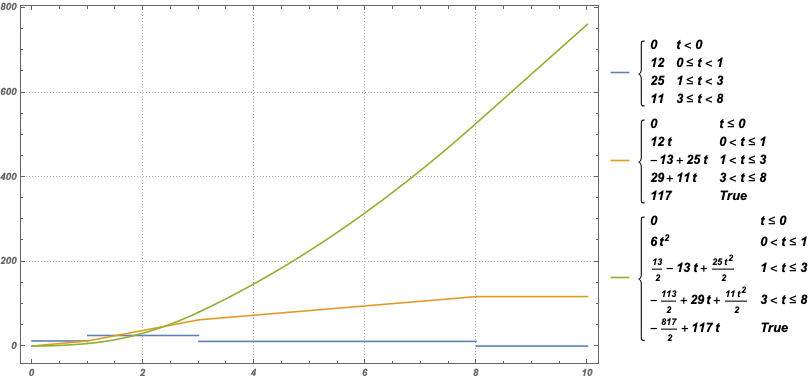

Plot[Evaluate[{a[t], v[t], s[t]}], {t, 0, 10},
 PlotTheme -> "Detailed",
 PlotRange -> All,
 ImageSize -> 600]

enter image description here

The 117 True in the Piecewise means the value is 117 everywhere else in the domain t > 8.

POSTED BY: Rohit Namjoshi

Orest Gogosha

Posted 2 years ago

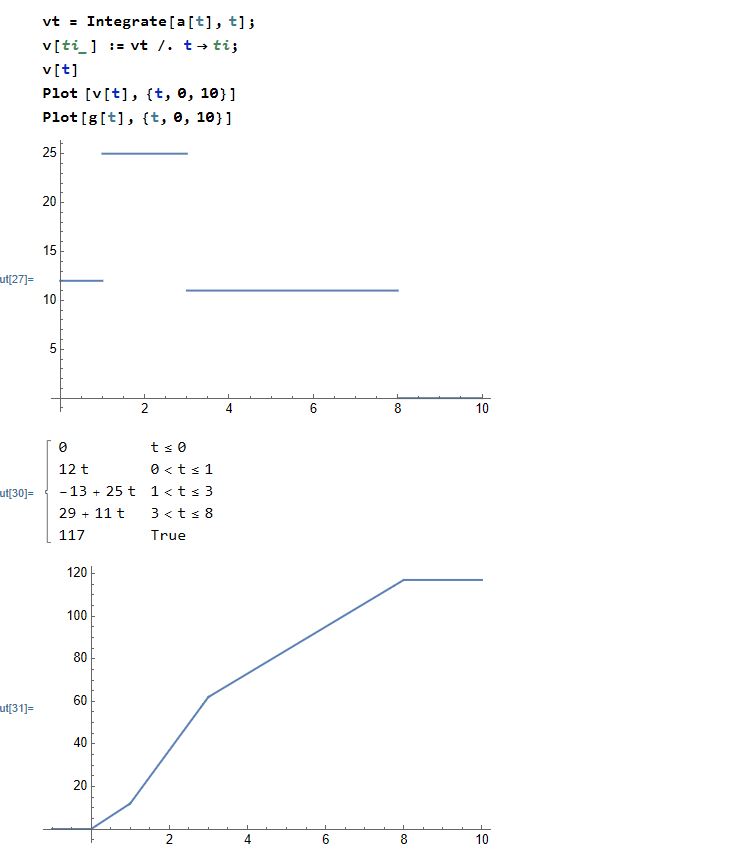

Thank you very much!! I don't know how I could have divined this from the documentation. What is the last line (117 Ture) trying to tell me? I would now like to integrate v[t]. Do I proceed in the same way?` g[t_] := -9.8; a[t_] := Piecewise[{{0, t < 0}, {12, 0 <= t < 1}, {25, 1 <= t < 3}, {11, 3 <= t < 8}, {0, t >= 8}}]; Plot[a[t], {t, 0, 10}] v1 = Integrate[a[t], t]; v2[tj_] := v1 /. t -> tj v2[t] Plot[v2[t], {t, -1, 10}] vt = Integrate[a[t], t]; v[ti_] := vt /. t -> ti; v[t] Plot [v[t], {t, 0, 10}] Plot[g[t], {t, 0, 10}] Attachments: Piecewise Results 2.JPG

Thank you very much!! I don't know how I could have divined this from the documentation. What is the last line (117 Ture) trying to tell me? I would now like to integrate v[t]. Do I proceed in the same way?`

g[t_] := -9.8;
a[t_] := Piecewise[{{0, t < 0}, {12, 0 <= t < 1}, {25,
     1 <= t < 3}, {11, 3 <= t < 8}, {0, t >= 8}}];
Plot[a[t], {t, 0, 10}]
v1 = Integrate[a[t], t];
v2[tj_] := v1 /. t -> tj
v2[t]
Plot[v2[t], {t, -1, 10}]

vt = Integrate[a[t], t];
v[ti_] := vt /. t -> ti;
v[t]
Plot [v[t], {t, 0, 10}]
Plot[g[t], {t, 0, 10}]

POSTED BY: Orest Gogosha

Martijn Froeling

Martijn Froeling, University Medical Center Utrecht

Posted 2 years ago

When you definve `v[t_]:=Integrate [f[t],t]` and you try to plot it you are basically solving for each t Plot[{ Integrate[f[0],0] Integrate[f[1],1] Integrate[f[2],2] ... }] That won't work, so first calculate the integral and then define a function that replaces after integration. vt = Integrate[a[t], t] v[ti_] := vt /. t -> ti Plot[v[t], {t, 0, 10}]

POSTED BY: Martijn Froeling
