How to make callouts shown completely?

Zhenyu Zeng

Posted 2 years ago

Hello, I find some callouts not shown as in the cases: b = {10.87879506236326`, 4.422716326078678`, 1.7514084881143595`, 0.4999269951534548`, 0.24806350212476258`, 0.11320167639145937`, 0.047420192372644485`, 0.020075858870852656`, 0.01839189853053173`, 7.682574680449371`^-16, 4.1035512803413054`^-16, 2.0648251682593608`^-16, 1.0122677161223855`^-16, 3.9381700198138145`^-17, -1.8908005728695487`^-16, \ -3.8926543619326004`^-16, -4.253531537094531`^-16, \ -8.61448309250942`*^-16} ListLinePlot[ Callout[#, Rotate[Style[ToString@NumberForm[#, {3, 2}], Red], -60 \[Degree]], Background -> None, LabelVisibility -> 1] & /@ (Flatten@b)] So we can see that some callous missing. Thanks.

Hello, I find some callouts not shown as in the cases:

b = {10.87879506236326`, 4.422716326078678`, 1.7514084881143595`,
  0.4999269951534548`, 0.24806350212476258`, 0.11320167639145937`,
  0.047420192372644485`, 0.020075858870852656`, 0.01839189853053173`,
  7.682574680449371`*^-16, 4.1035512803413054`*^-16,
  2.0648251682593608`*^-16, 1.0122677161223855`*^-16,
  3.9381700198138145`*^-17, -1.8908005728695487`*^-16, \
-3.8926543619326004`*^-16, -4.253531537094531`*^-16, \
-8.61448309250942`*^-16}
ListLinePlot[
 Callout[#,
    Rotate[Style[ToString@NumberForm[#, {3, 2}], Red], -60 \[Degree]],
     Background -> None, LabelVisibility -> 1] & /@ (Flatten@b)]

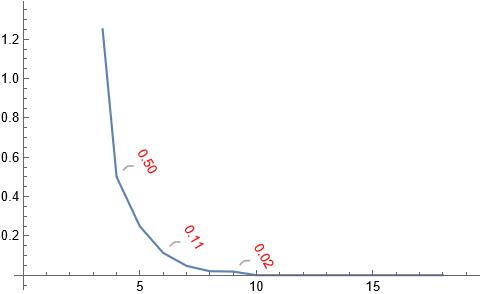

enter image description here

So we can see that some callous missing. Thanks.

POSTED BY: Zhenyu Zeng

7 Replies

Sort By:

Rohit Namjoshi

Posted 2 years ago

And LabelVisibility -> All

POSTED BY: Rohit Namjoshi

Henrik Schachner

Henrik Schachner, Radiation Therapy Center, Weilheim, Germany

Posted 2 years ago

You might try the additional option ListLinePlot[..., PlotRange -> All]

POSTED BY: Henrik Schachner

Zhenyu Zeng

Posted 2 years ago

Hello, it doesn't show all and a little too dense.

POSTED BY: Zhenyu Zeng

Rohit Namjoshi

Posted 2 years ago

Well, yes. You have to put in a little effort to make a good visualization. I think this is a small improvement callout = Callout[#, Rotate[Style[ToString@NumberForm[#, {3, 2}], Red, 12, Bold], 45 °], Background -> None, LabelVisibility -> All] &; ListLogPlot[callout /@ b, PlotRange -> All, Mesh -> All, Joined -> True, MeshStyle -> Directive[PointSize[Medium], Red], PlotTheme -> "Detailed", ImageSize -> 800]

Well, yes. You have to put in a little effort to make a good visualization. I think this is a small improvement

callout = Callout[#,
    Rotate[Style[ToString@NumberForm[#, {3, 2}], Red, 12, Bold], 45 °],
    Background -> None,
    LabelVisibility -> All] &;

ListLogPlot[callout /@ b,
 PlotRange -> All,
 Mesh -> All,
 Joined -> True,
 MeshStyle -> Directive[PointSize[Medium], Red],
 PlotTheme -> "Detailed",
 ImageSize -> 800]

enter image description here
