Why is the graph for UnitStep not visible at certain points?

Cornel B.
Posted 2 years ago

Hello,

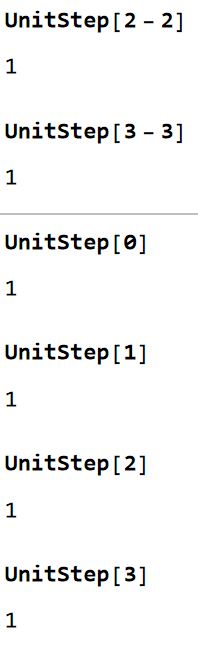

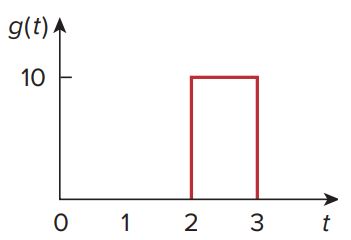

u(t) is the unit step:
enter image description here

enter image description here enter image description here

g[t_] := 10*(UnitStep[t - 2] - UnitStep[t - 3])

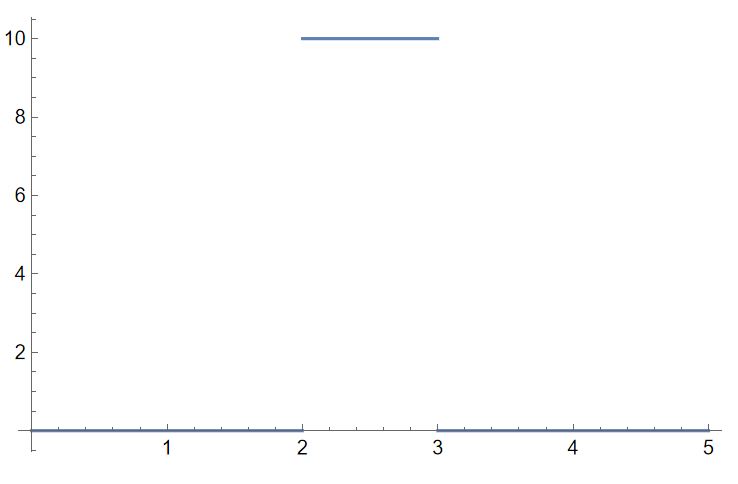

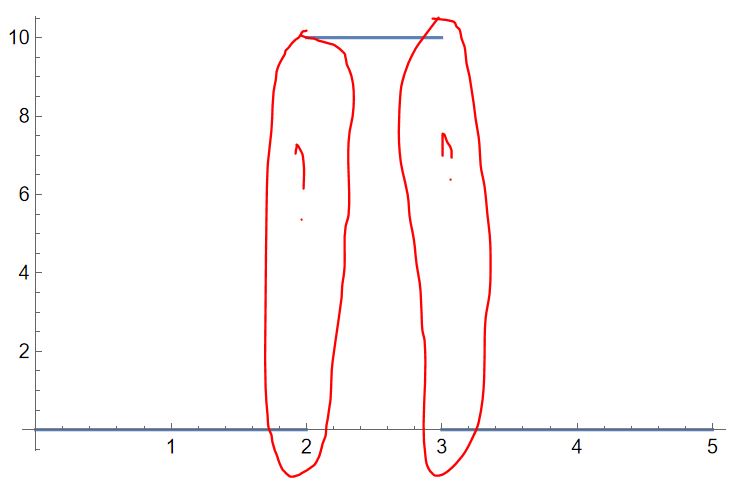

Plot[g[t], {t, 0, 5}]

enter image description here

enter image description here enter image description here

Another Example:
enter image description here enter image description here

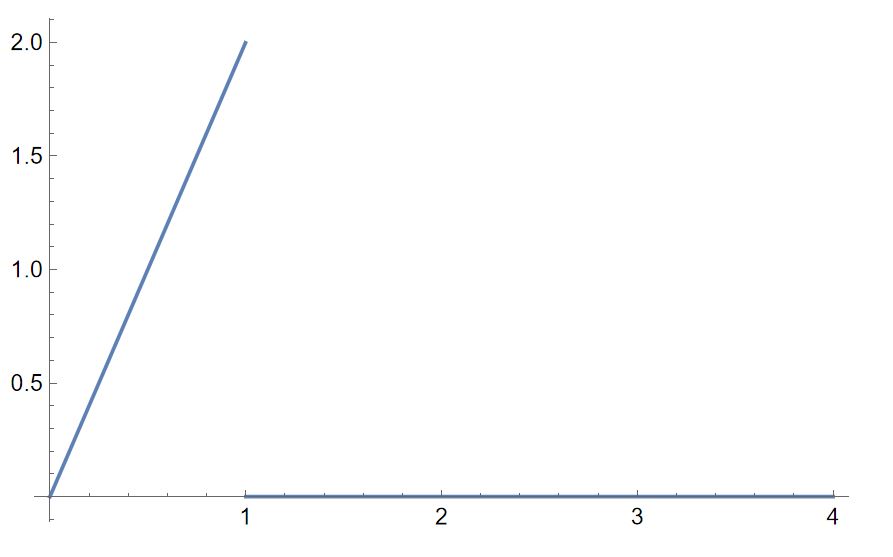

Plot[2*t*(UnitStep[t] - UnitStep[t - 1]), {t, 0, 4}]

enter image description here

Thank you.
POSTED BY: Cornel B.
5 Replies
Sort By:

Try extending the interval a little bit, for example -10.01 to 10.01
POSTED BY: Gianluca Gorni
Cornel B.
Cornel B.
Posted 2 years ago

Ok. Thank you. I thought also about this kind of doing, but I said that maybe there is some option by which this can be done automatically.
POSTED BY: Cornel B.
Cornel B.
Cornel B.
Posted 2 years ago

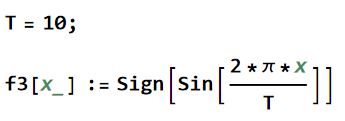

T = 10;
f3[x_] := Sign[Sin[(2*\[Pi]*x)/T]]

enter image description here

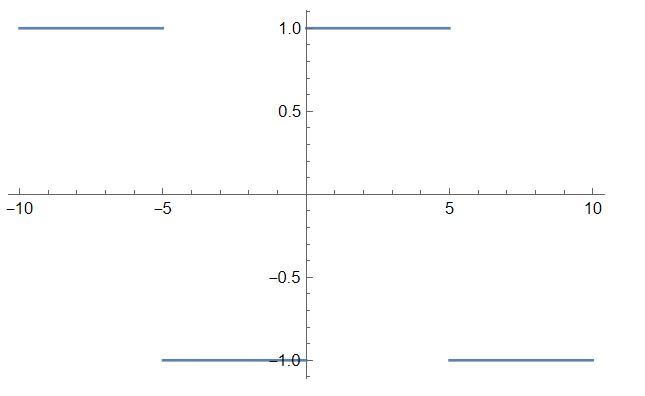

a) Plot[f3[x], {x, -10, 10}]

enter image description here

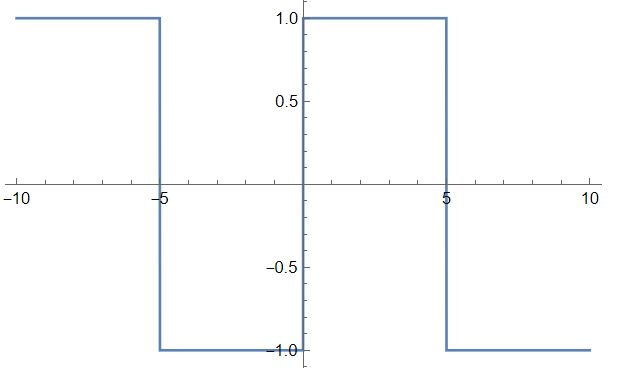

b) `Plot[f3[x], {x, -10, 10}, Exclusions -> None]

enter image description here`

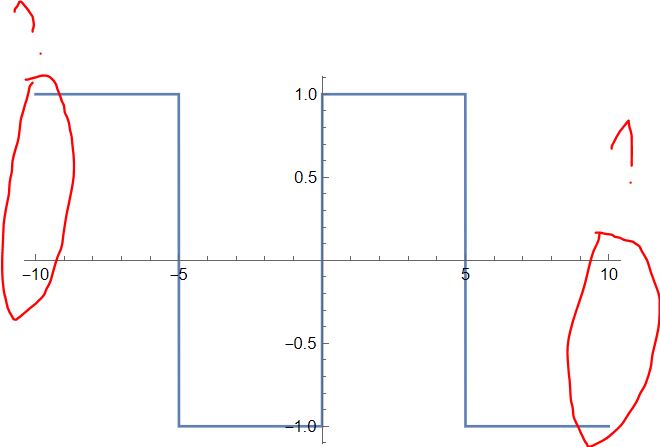

But to include also the points x=-10 and x=10, i.e. the ends of the function definition interval, how can it be done?

enter image description here

Thank you.

Attachments:
Untitled-2.nb
POSTED BY: Cornel B.

You can also play around with ExclusionsStyle:

g[t_] := 10*(UnitStep[t - 2] - UnitStep[t - 3])
Plot[g[t], {t, 0, 5}, ExclusionsStyle -> Red]
POSTED BY: Gianluca Gorni

Try the option Exclusions:

g[t_] := 10*(UnitStep[t - 2] - UnitStep[t - 3])
Plot[g[t], {t, 0, 5}, Exclusions -> None]

Mathematica has an excellent documentation - you should use it!
POSTED BY: Henrik Schachner
