How to customize complex solution regions for NDSolve like the example in Mathematica？

HAO XU
Posted 5 days ago

The example of mathematica for solving PDE on a irregular region

Hello, everyone!

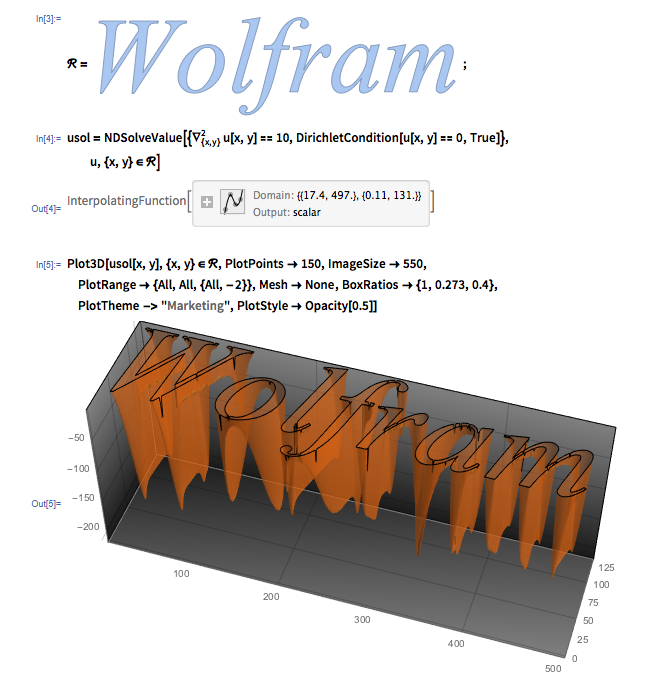

I have came across an interesting example of solving PDE on a customize complex solution regions like the alphabet region of "Wolfram" in the Official Example (see the picture or the website https://www.wolfram.com/mathematica/new-in-10/symbolic-geometry/solve-partial-differential-equations-over-regions.html ）
. I am wondering that how can I define this kind of region, since I want to try this example using different alphabet like "EIAS"? I cannot find any functions or codes to realize this example.

I am using Mathematica 14 now.
Thanks very much.
POSTED BY: HAO XU
5 Replies
Sort By:

Perhaps something like this:

reg = BoundaryDiscretizeGraphics[
  First@ImportString[
    ExportString[Style["HAO XU", 64], "PDF"],
    {"PDF", "PageGraphics"}],
  MaxCellMeasure -> 0.5] (* adapt MaxCellMeasure as desired *)

If you want letters in a certain font, change the Style[]:

Style["HAO XU", 64, FontFamily -> "Times", FontSlant -> Italic]
Style["数学", 48]

And so forth.
POSTED BY: Michael Rogers

Here's a silly toy:

Needs["NDSolve`FEM`"];
reg = BoundaryDiscretizeGraphics[
   First@ImportString[
     ExportString[Style["钨", 64, FontFamily -> "Songti SC"], "PDF"],
     {"PDF", "PageGraphics"}],
   MaxCellMeasure -> 0.05];
usol = NDSolveValue[{Laplacian[u[x, y], {x, y}] == -2,
    DirichletCondition[u[x, y] == 0, True]}, u, {x, y} \[Element] reg];
Animate[
 ElementMeshPlot3D[
  ElementMeshInterpolation[usol["ElementMesh"],
   a  usol["ValuesOnGrid"]]
  , ColorFunction -> Function[{u}, Blend[{Black, Red}, u/2.]],
  ColorFunctionScaling -> False, PlotRange -> {All, All, {0, 4}}
 ],
 {a, 0, 1},
 AnimationDirection -> ForwardBackward,
 AnimationRate -> 0.2]

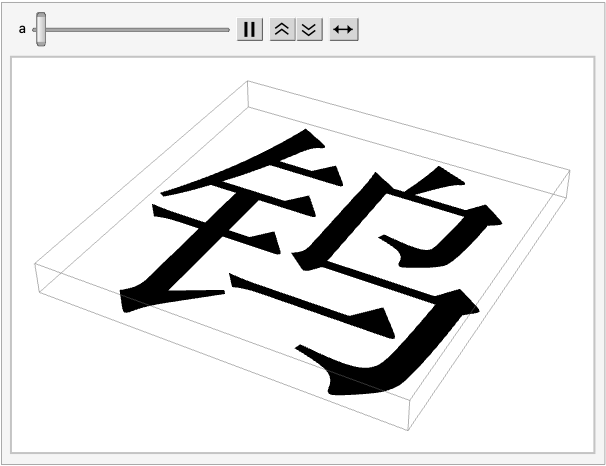

Chinese character for tungsten, animated to turn from black to red

Google translate tells me this is the Chinese character for the Latin wolframium.
POSTED BY: Michael Rogers
