Define a sparse matrix from triplets

Terry Hendicott

Posted 5 months ago

Have four binary files. Two of int32 being the indices or positions i and j. Two of double being the matching values in the sparse matrix A and b the RHS. My question is I know how to read the binary files to get lists "i", "j" and "val". How do I define the sparse matrix from the lists?

POSTED BY: Terry Hendicott

7 Replies

Sort By:

Bill Nelson

Posted 5 months ago

Please test this very carefully (Given that you have read your three lists into i,j,val) triple=Thread[{i,j,val}]; mat=SparseArray[Map[{{#[[1]],#[[2]]}->#[[3]]}&,triple]] If that is working exactly correctly then you might be able to see how to construct your RHS.

POSTED BY: Bill Nelson

Bill Nelson

Posted 5 months ago

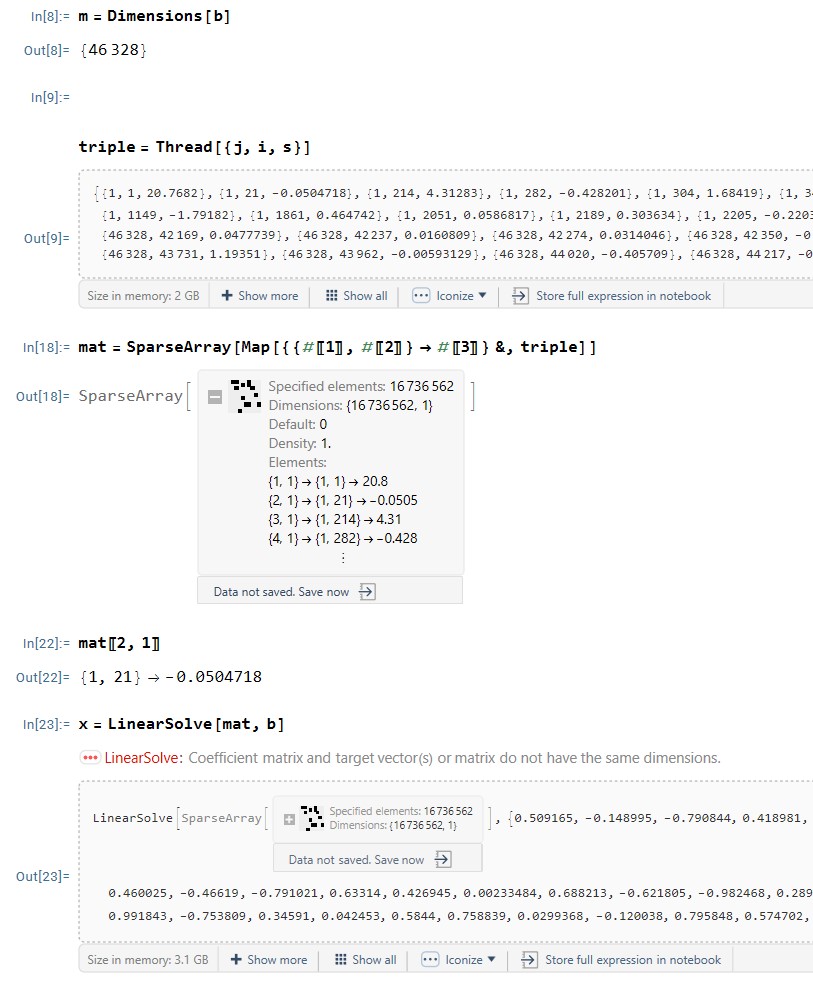

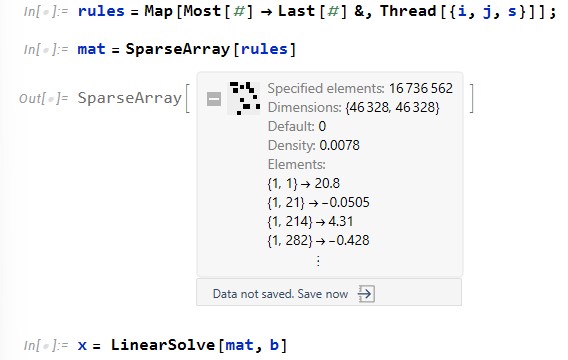

Your second little grey information box including Sparsearray[ ... {1,1}->{1,1}->20.8 .... shows something is very wrong for you to get {1,1}->{1,1}->20.8 Maybe I broke something in the way I coded that. I apologize. Let me try coding that slightly differently i={1,2,7};j={2,5,3};val={1.3,2.9,3.1}; rules=Map[Most[#]->Last[#]&,Thread[{i,j,val}]]; mat=SparseArray[rules] MatrixForm[mat] which I thought should be equivalent and which displays for me Sparsearray[ Specified Elements 3, Dimensions (7,5) ( 0 1.3 0 0 0 ) ( 0 0 0 0 2.9 ) ( 0 0 0 0 0 ) ( 0 0 0 0 0 ) ( 0 0 0 0 0 ) ( 0 0 0 0 0 ) ( 0 0 3.1 0 0 ) Please try my tiny example and see if you get exactly the same result. And, again this example is only doing the left hand side of your problem. Hopefully you can see how to use these ideas to do the right hand side of your problem. If so then start with a tiny tiny subset of your 16.7 million elements and see if that works and if so then gradually work up by small amounts and see if it keeps working for larger and larger lists.

POSTED BY: Bill Nelson

Michael Rogers

Michael Rogers, Emory University

Posted 5 months ago

A couple of additional variants: (* SET UP ) SeedRandom[0]; ( optional, for reproducibility ) dim = 2^16; rowIdcs = RandomSample[Range[dim], 1000];(i) colIdcs = RandomSample[Range[dim], 1000];(j) entries = RandomReal[1, 1000];(vals) sa1 = SparseArray[ ( first variant ) MapThread[{#1, #2} -> #3 &, {rowIdcs, colIdcs, entries}], {dim, dim}]; sa2 = SparseArray[ ( second variant ) Thread[Transpose[{rowIdcs, colIdcs}] -> entries], {dim, dim}]; sa2 == sa1 ( True ) Some are uncomfortable with `#` and anonymous (or pure) functions. One can make a utility function on the fly. Here a couple variant, plus an anonymous one with named arguments. ClearAll[entryRule]; entryRule[{i_, j_, val_}] := {i, j} -> val; ( Note {} in argument ) sa3 = SparseArray[ entryRule /@ Thread[{rowIdcs, colIdcs, entries}],( = triples ) {dim, dim}]; ClearAll[entryRuleL]; ( uses Listability instead of Map/Thread ) SetAttributes[entryRuleL, Listable]; entryRuleL[i_, j_, val_] := {i, j} -> val; ( No {} in arguments ) sa4 = SparseArray[entryRuleL[rowIdcs, colIdcs, entries], {dim, dim}]; sa5 = SparseArray[ ( anonymous variant of entryRuleL ) Function[{i, j, val}, {i, j} -> val, Listable][ rowIdcs, colIdcs, entries], {dim, dim}]; sa5 == sa4 == sa3 == sa2 == sa1 ( True *) Oh well, now it feels embarrassingly like overkill. :)

A couple of additional variants:

(* SET UP *)
SeedRandom[0]; (* optional, for reproducibility *)
dim = 2^16;
rowIdcs = RandomSample[Range[dim], 1000];(*i*)
colIdcs = RandomSample[Range[dim], 1000];(*j*)
entries = RandomReal[1, 1000];(*vals*)

sa1 = SparseArray[ (* first variant *)
   MapThread[{#1, #2} -> #3 &, {rowIdcs, colIdcs, entries}],
   {dim, dim}];

sa2 = SparseArray[ (* second variant *)
   Thread[Transpose[{rowIdcs, colIdcs}] -> entries],
   {dim, dim}];

sa2 == sa1
(*  True  *)

Some are uncomfortable with # and anonymous (or pure) functions. One can make a utility function on the fly. Here a couple variant, plus an anonymous one with named arguments.

ClearAll[entryRule];
entryRule[{i_, j_, val_}] := {i, j} -> val; (* Note {} in argument *)
sa3 = SparseArray[
   entryRule /@
    Thread[{rowIdcs, colIdcs, entries}],(* = triples *)
   {dim, dim}];

ClearAll[entryRuleL]; (* uses Listability instead of Map/Thread *)
SetAttributes[entryRuleL, Listable];
entryRuleL[i_, j_, val_] := {i, j} -> val; (* No {} in arguments *)
sa4 = SparseArray[entryRuleL[rowIdcs, colIdcs, entries], {dim, dim}];

sa5 = SparseArray[ (* anonymous variant of entryRuleL *)
   Function[{i, j, val}, {i, j} -> val, Listable][
    rowIdcs, colIdcs, entries],
   {dim, dim}];

sa5 == sa4 == sa3 == sa2 == sa1
(*  True  *)

Oh well, now it feels embarrassingly like overkill. :)

POSTED BY: Michael Rogers
