Efficiently mowing a concave with obstacle region

Posted 1 day ago

Efficiently mowing a concave with obstacle grass region

In response to the question and some answers here: https://mathematica.stackexchange.com/q/291951

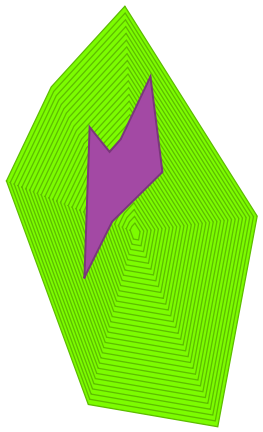

where we need to efficiently mowing a grass region using the least amount of time/fuel. The region can be concave and/or contain obstacles such as for example:
enter image description here

Here's my attempt, which is to take Vitaliy's method but try to mow along isolines of the region as much as possible. Essentially to try to 'spiral' inwards.

eq = x^2/2 - y^2 <= 1 && x^2 + y^2/7 > 1/2 && -3 < x < 3 && -3 < y < 3;
R = ImplicitRegion[eq, {x, y}];

reg = BoundaryDiscretizeRegion[R];

Attempt 1 (times out)

The idea is to discretize the region a certain distance from the boundary, then add 'bridge' edges across the isolines, where these bridges are weighted with a larger penalty. Then call FindShortestTour.

$bds = {};

reg2 = reg;
w = 0.1;

While[reg2 =!= EmptyRegion[2],
 (* remesh the curve to have nice sampling *)
 AppendTo[$bds, RegionBoundary@BoundaryDiscretizeRegion[
   ImplicitRegion[SignedRegionDistance[reg2][{x, y}] <= 0 && -3 < x < 3 && -3 < y < 3, {x, y}], MaxCellMeasure -> {1 -> w}]];
 reg2 = BoundaryDiscretizeRegion[RegionErosion[reg2, w]];
]

Length[crossedges = (Join @@ ((Join @@ MapThread[Function[{c1, c2},c1 \[UndirectedEdge] #& /@ c2[[1;;UpTo[1]]]],{#1, Nearest[#2, #1, {All, 1.25w}]}])& @@@ Partition[MeshCoordinates /@ $bds, 2, 1]))]

Output: 2377

Length[cycleedges = UndirectedEdge @@@ MeshPrimitives[UTJoin[$bds], 1][[All, 1]]]

Output: 2683

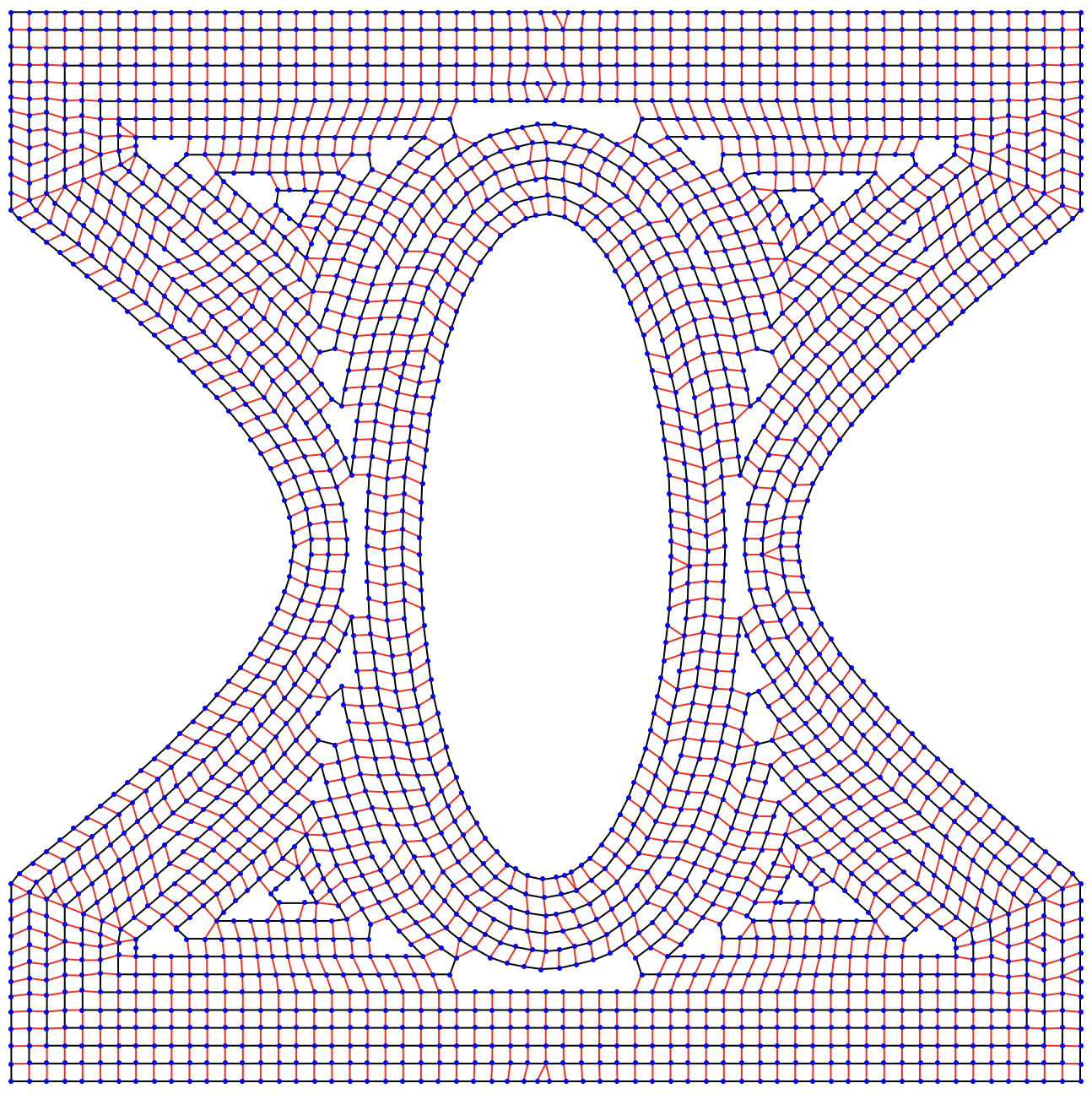

Here we want to travel along the black edges, and will sometimes bridge across the red edges:

Graphics[{
  Line[List @@@ cycleedges[[1 ;; -1]]],
  {Red, Line[List @@@ crossedges[[1 ;; -1 ;; 1]]]},
  {Blue, Point[MeshCoordinates[UTJoin[$bds]]]}
}]

enter image description here

Build the (weighted) graph:

g = Graph[
  MeshCoordinates[UTJoin[$bds]],
  Join[cycleedges, crossedges],
  EdgeWeight ->
    Join[(# -> EuclideanDistance @@ #) & /@
      cycleedges, (# -> 100 EuclideanDistance @@ #) & /@ crossedges],
  VertexCoordinates -> MeshCoordinates[UTJoin[$bds]]
];

But FindShortestTour times out:

FindShortestTour[g]

$Aborted

Attempt 2

To work around this time out, we can pass a point cloud to FindShortestTour instead, lifting into 3D where each isoline will be in its own plane. Jumping 'up' in 3D will be the penalty for changing isolines.

Using $bds from above:

pts = Join @@ MapIndexed[Append[1.25 w (First[#2] - 1)] /@ #1 &, MeshCoordinates /@ $bds];

c = Nearest[pts, {-1000, 1000, 0}][[1]];

tour = FindShortestTour[pts, c, c]; // AbsoluteTiming

Output: {6.93906, Null}

path = pts[[tour[[2]], 1 ;; 2]];

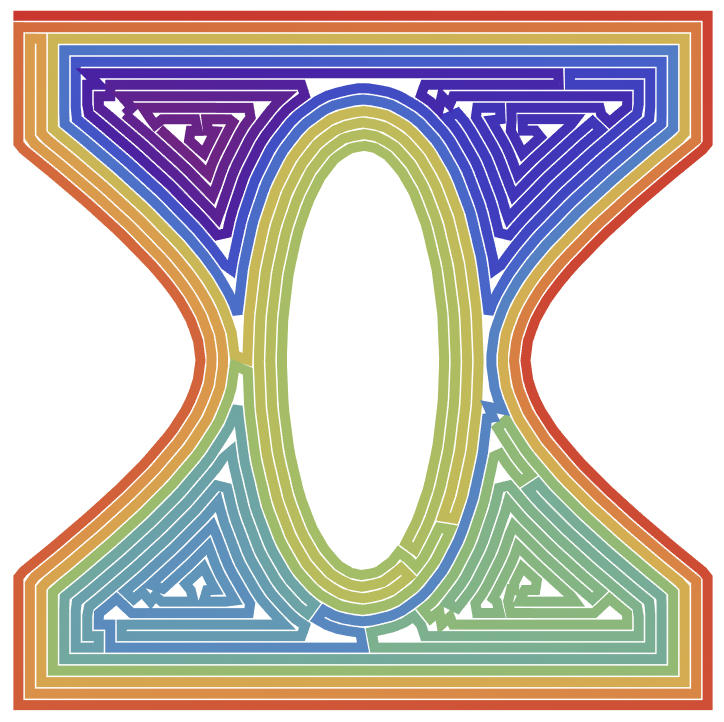

We can visualize the 'spiral' path with a color gradient:

colors = ColorData["Rainbow"] /@ Subdivide[1.0, 0.0, Length[path] - 1]];
Graphics[{AbsoluteThickness[5], Line[path, VertexColors -> colors}]

enter image description here

There's clearly still room for improvement, but it's still a start for sure.

POSTED BY: Greg Hurst
