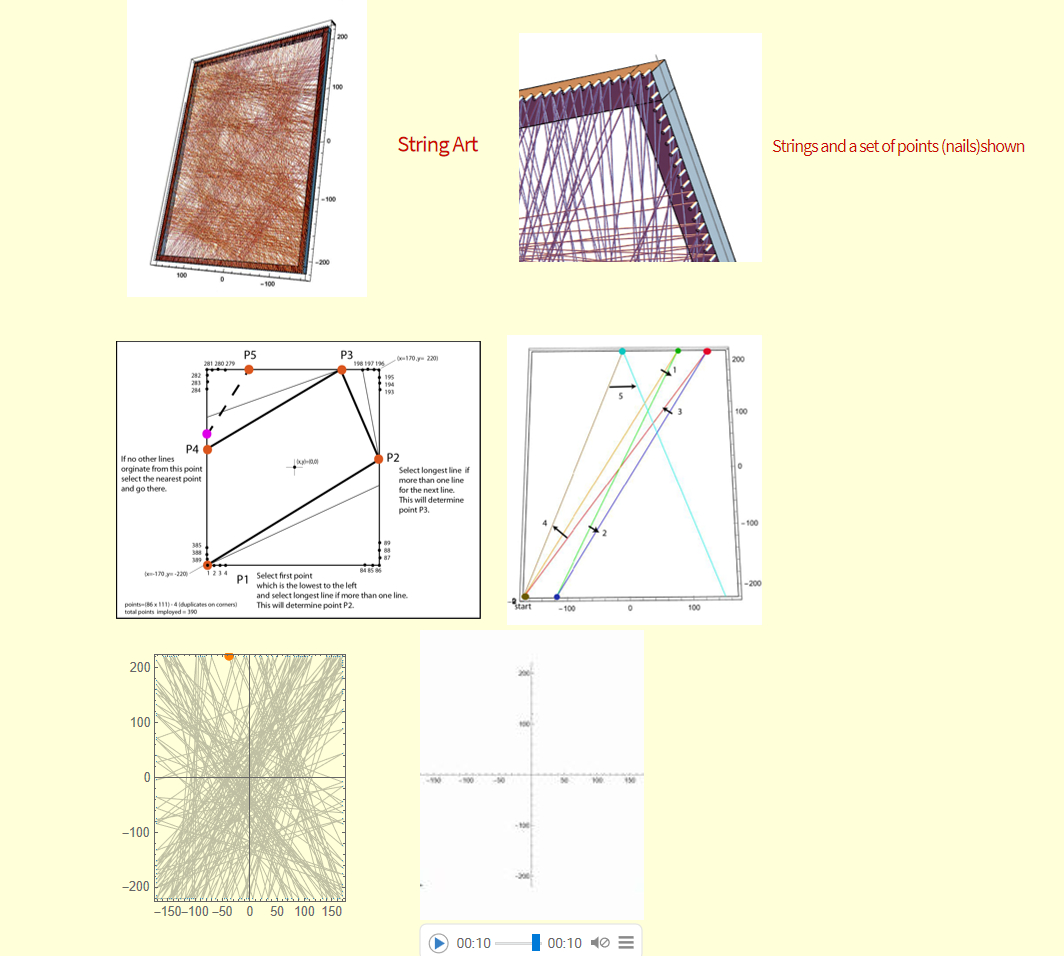

Using nailpoints =ListtOfNailPointsTotal one can use the following to create a framework to actual create the string image using the nails numbering as seen this file image....
umberofNailsUsed = Dimensions[NailPoints][[1]] (* 979 *);
xvalues = Table[i, {i, -170, 170, 4}] (* 86 *);
yvalues = Table[i, {i, -220, 220, 4}] (* 111 *);
PointsaroundFrameBottom =
Table[{xvalues[[i]], yvalues[[1]]}, {i, 1, xno}];
PointsaroundFrameRight =
Table[{xvalues[[xno]], yvalues[[ j]]}, {j, 2, yno}];
PointsaroundFrameTop =
Table[{xvalues[[xno - i]], yvalues[[yno]]}, {i, 1, xno - 1}];
PointsaroundFrameLeft =
Table[{xvalues[[1]], yvalues[[yno - j]]}, {j, 1, yno - 1}];
ptsaround =
Flatten[{{PointsaroundFrameBottom , PointsaroundFrameRight ,
PointsaroundFrameTop , PointsaroundFrameLeft}}, 2];
nopts = Dimensions[ptsaround][[1]] ;
pointswindex = Table[{i, ptsaround[[i]]}, {i, 1, nopts}];
ppdts[i_] := pointswindex[[i]][[2]] (* points around the frame !! *)
framepoints = Table[ppdts[i], {i, 1, nopts}];
pt = {102, -220}; ptext = 4;
(*ListPlot[ framepoints,AspectRatio\[Rule]220./170. ,Epilog->{ \
Black,PointSize[Large], Text[ptext,Offset[{0,-5},pt]]} ]*)
alignn1 = Table[{-170 + (i - 1)*4, -220}, {i, 1, 86}];
textn = Table[Style[Text[ i, alignn1[[i]] , {0, 3}], 4], {i, 1, 86}];
alignn2 = Table[{170, -220 + (i - 1)*4 }, {i, 1, 111}];
textn2 =
Table[Style[Text[ i + 86 - 1, alignn2[[i]] , {-3, 0}], 4], {i, 2,
111}];
alignn3 = Table[{170 - (i)*4, 220}, {i, 1, 86}];
textn3 =
Table[Style[Text[ i + 86 + 111 - 1, alignn3[[i]] , {0, -3}], 4], {i,
1, 85}];
alignn4 = Table[{-170, 220 - (i - 1)*4 }, {i, 1, 111}];
textn4 =
Table[Style[Text[ i + 86 + 111 + 86 - 3, alignn4[[i]] , {3, 0}],
4], {i, 2, 110}];
framenumbers =
ListPlot[ framepoints, AspectRatio -> 220./170. ,
Epilog -> { Black, textn, textn2, textn3, textn4} ] ;
alignn1;
alignn2[[2 ;; 111]];
alignn3[[1 ;; 85]];
alignn4[[2 ;; 110]];
Dimensions[NailCoordinates];
NailCoordinates =
Join[alignn, alignn2[[2 ;; 111]], alignn3[[1 ;; 85]],
alignn4[[2 ;; 110]]] (* 394 *) ;
Dimensions[
NailCoordinates](* \
NailCoordinates=Join[alignn,alignn2,alignn3,alignn4] (* 394 *);*);
Dimensions[NailCoordinates];

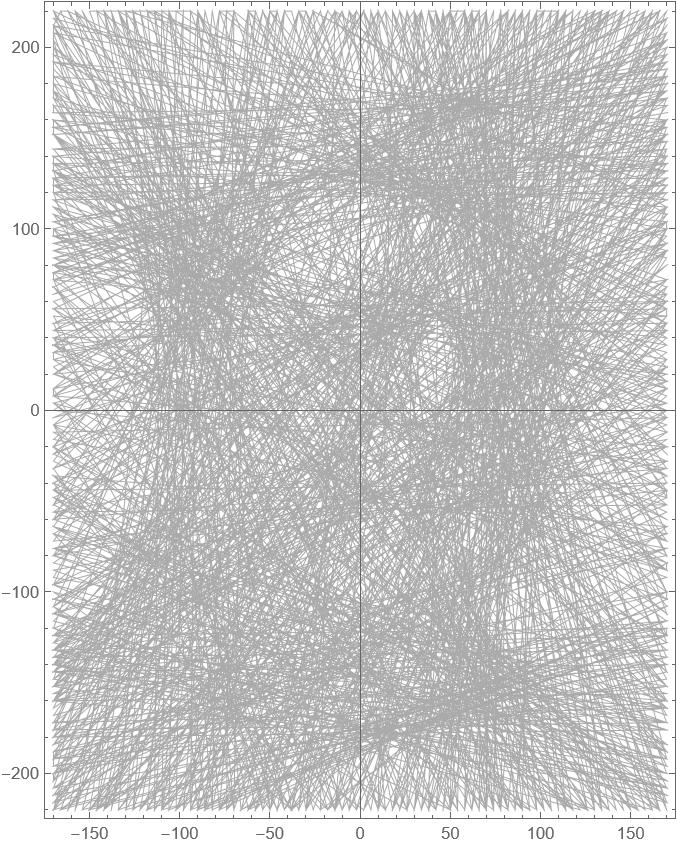

image1 =
ListLinePlot[
Table[NailCoordinates[[NailPoints[[k]]]], {k, NumberofNailsUsed}],
Frame -> True, ImageSize -> 500,
PlotRange -> {{-170, 170}, {-220, 220}}, AspectRatio -> 220./170. ,
PlotStyle -> {Thickness[0.001]} ];
Show[framenumbers, image1]
---------------------------
