Mathematical Games: games with Markov chains or intransitivity

Posted 22 days ago

Mathematical Games: games with Markov chains or intransitivity

Attachments:
POSTED BY: Ed Pegg
2 Replies

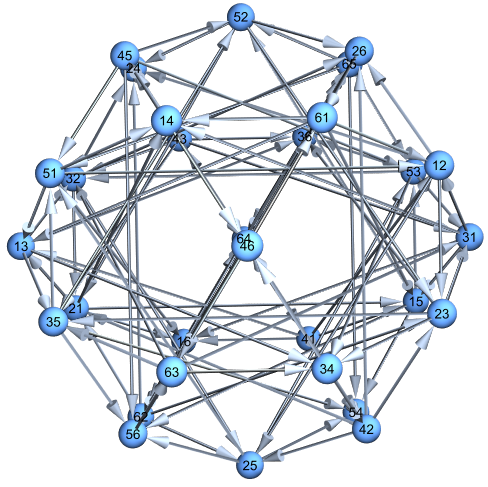

In my talk, I promised that the order 6 dominator graph could be done nicely.

\[Phi] = 1/2 (1 + Sqrt[5]);
icosidodecahedron =
  Join @@ (ResourceFunction["SignedPermutations"][#, "Even"] & /@ {{0,
        0, \[Phi]}, {1, \[Phi], \[Phi]^2}/2});
coord = icosidodecahedron[[{1, 8, 15, 21, 14, 2, 9, 20, 18, 11, 13,
    12, 25, 24, 6, 22, 17, 28, 3, 23, 16, 19, 29, 4, 26, 7, 10, 5, 30,
     27}]];
vert = StringJoin[ToString /@ #] & /@
   Select[Tuples[Range[6], {2}], Length[Union[#]] == 2 &];
edge = (StringJoin[ToString /@ #] & /@ Partition[#, 2, 1]) & /@
   Select[Tuples[Range[6], {3}], Length[Union[#]] == 3 &];
at30d = Graph3D[DirectedEdge @@@ edge,
  VertexCoordinates -> Thread[vert -> coord],
  VertexLabels -> Placed[Automatic, Center], VertexSize -> .2]

enter image description here

POSTED BY: Ed Pegg

enter image description here -- you have earned Featured Contributor Badge enter image description here Your exceptional post has been selected for our editorial column Staff Picks http://wolfr.am/StaffPicks and Your Profile is now distinguished by a Featured Contributor Badge and is displayed on the Featured Contributor Board. Thank you!

POSTED BY: EDITORIAL BOARD
