Problem with SystemModeler and Mathematica using WSMSimulateSensivity

Posted 10 years ago

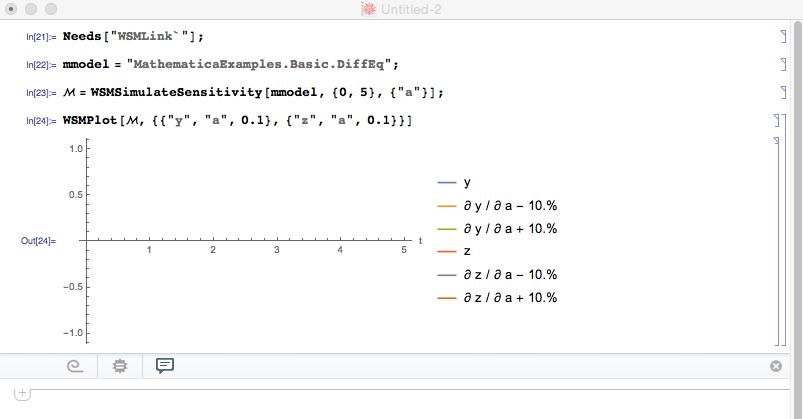

Hi, I have tried the following example from the documentation but the output from WSMPlot is not working. Does someone have an idea what might be wrong. I am using the latest version of Mathematica and SystemModeler and got the same result on a Mac (OS X Yosemite) and a PC (Windows 8.1). enter image description here

POSTED BY: Paul Goergen
3 Replies

This is an issue with the combination SystemModeler 4 and Mathematica 10. It will be fixed with the next version of SystemModeler.

As a workaround, try adding this option to the WSMPlot call:

WSMPlot[\[ScriptCapitalM], {{"y", "a", 0.1}, {"z", "a", 0.1}}, PerformanceGoal -> "Speed"]
POSTED BY: Malte Lenz
Posted 10 years ago

Ok thanks for the information, the workaround .... worked:-)

POSTED BY: Paul Goergen

Glad I could help!

POSTED BY: Malte Lenz
