How do you get the same graph? i've tried without success

Luis Ledesma

Posted 10 years ago

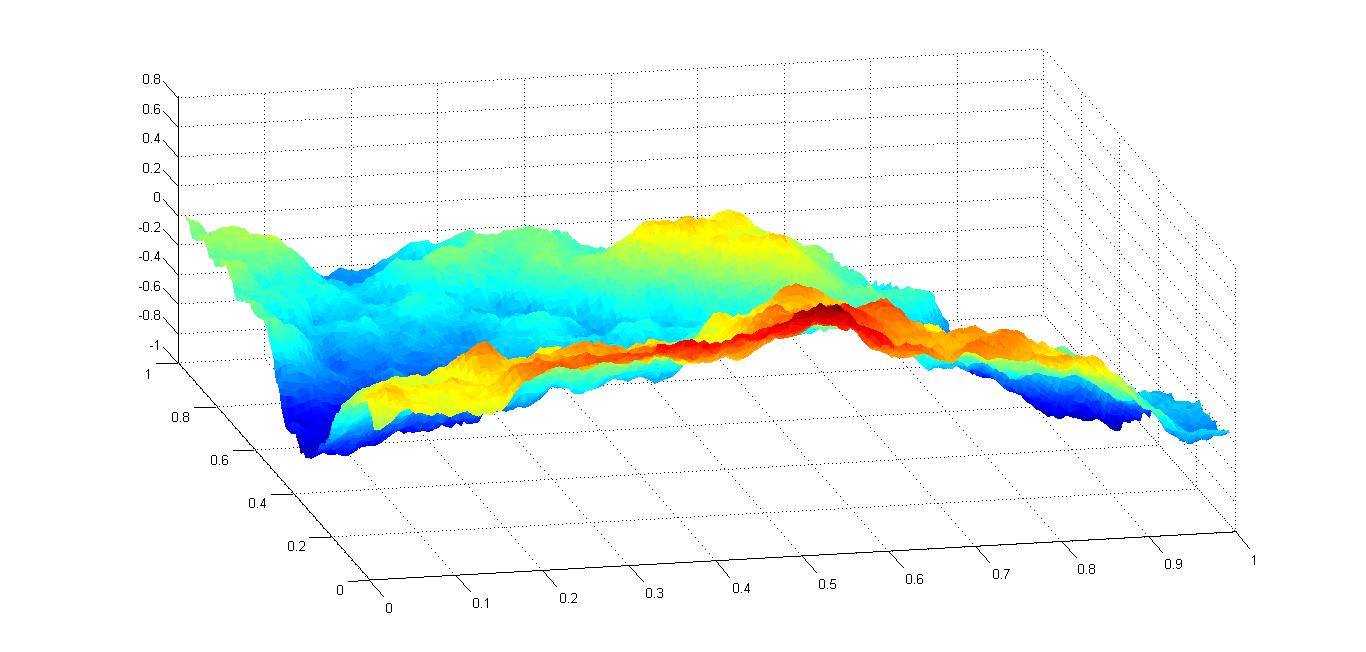

Hello everyone doing research in many places, I found the following matlab code and try to make a translation to mathematica, I share the notebook but the problem arises when comparing the graphs obtained in both programs since they are very different, I wonder if there is anyone in this community who can help me to find the solution to my problem. Thanks in advance and happy new year ! Attachments:

POSTED BY: Luis Ledesma

5 Replies

Sort By:

Luis Ledesma

Posted 10 years ago

Jaebum Jung many thanks for helping me to solve my problem, also thank you to devote your time to find the bug in my code, thanks to your help I could see a beautiful graph.

POSTED BY: Luis Ledesma

Jaebum Jung

Jaebum Jung, Wolfram

Posted 10 years ago

Briefly looked at your code. At the bottom part of your code: fielduno = # - fielduno[[1, 1]] & /@ fielduno; {out, c2, c0} = rhod[{0, 0}, {0, 0}, R, 2H]; fielduno = fielduno + KroneckerProduct[tyRandomVariate[NormalDistribution[], n], txRandomVariate[NormalDistribution[], m]]Sqrt[2*c2]; after that the following will be enough: data = Table[fielduno[[i, j]], {i, n/2}, {j, m/2}]; ListPlot3D[data, Mesh -> None, PlotTheme -> "Detailed", ColorFunction -> ColorData["Rainbow"], DataRange -> {{0, 1}, {0, 1}}, RegionFunction -> Function[{x, y, z}, Norm[{x, y}] < 1]]

Briefly looked at your code.
At the bottom part of your code:

fielduno = # - fielduno[[1, 1]] & /@ fielduno;

{out, c2, c0} = rhod[{0, 0}, {0, 0}, R, 2*H];

fielduno =
  fielduno +
   KroneckerProduct[ty*RandomVariate[NormalDistribution[], n],
     tx*RandomVariate[NormalDistribution[], m]]*Sqrt[2*c2];

after that the following will be enough:

data = Table[fielduno[[i, j]], {i, n/2}, {j, m/2}];

ListPlot3D[data, Mesh -> None, PlotTheme -> "Detailed",
 ColorFunction -> ColorData["Rainbow"], DataRange -> {{0, 1}, {0, 1}},
  RegionFunction -> Function[{x, y, z}, Norm[{x, y}] < 1]]

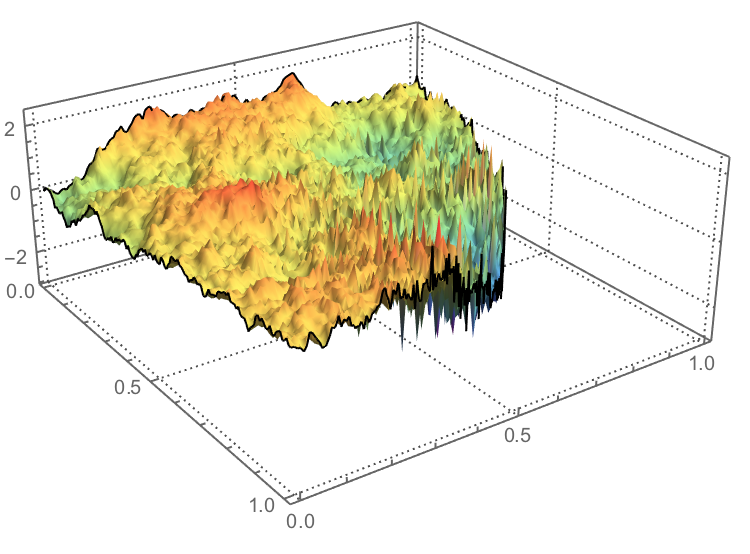

enter image description here

POSTED BY: Jaebum Jung

Luis Ledesma

Posted 10 years ago

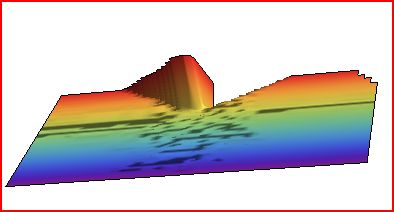

Hello again I've been working to get this graphic, from my previous comment, but I can still not get it, the maximum that I could do is the following graphic that com will see does not seem anything, I will continue to work but i would like some help in the community if possible. Thanks in advance

POSTED BY: Luis Ledesma

Luis Ledesma

Posted 10 years ago

Hello Sam after searching for help to get the graphic as your ask here it, I must remind you that I not is much of matlab, did my notebook of mathematica with the help of some friends at the University but they could not help me to find my failure in the graph I hope someone can help me
