Moving Average of NDSolve result

saysics saja

Posted 10 years ago

Hello In the flowing code, I plot the function X by using the result of the NDSolve. The result I get have frequency noise " see the figure " what I went to do is taking the time-averaged for X , it should be nearly zero but how I can do that in Mathematica ? Clear[t] z = 0; r = 0.7071; s = 4.2758; y = 2.2758; system = {u'[t] == 2.2758v[t], v'[t] == - 2.2758u[t] - 2sE^(-(r^2) - ((t^2(1.177^2))/(13.8)^2))Cos[kz - yt]w[t], w'[t] == 2sE^(-(r^2) - (t^2(1.177^2))/(13.8)^2)Cos[kz - yt]v[t]}; initialvalues = {u[-20] == 0, v[-20] == 0, w[-20] == -1}; sol = NDSolve[Join[system, initialvalues], {u[t], v[t], w[t]}, {t, -20, 20}]; X = (- 2su[t]r)E^(-(r^2) - (t^2(1.177^2))/(13.8)^2)Cos[kz - yt]; P1 = Plot[Evaluate[X /. sol], {t, -20, 20}, Frame -> True, FrameLabel -> {"t", "X"}, FrameTicks -> All]

Hello

In the flowing code, I plot the function X by using the result of the NDSolve. The result I get have frequency noise " see the figure " what I went to do is taking the time-averaged for X , it should be nearly zero but how I can do that in Mathematica ?

Clear[t]
z = 0;
r = 0.7071;
s = 4.2758;
y = 2.2758;

system = {u'[t] ==  2.2758*v[t],
   v'[t] == -  2.2758*u[t] - 2*s*E^(-(r^2) - ((t^2*(1.177^2))/(13.8)^2))*Cos[k*z - y*t]*w[t],
   w'[t] == 2*s*E^(-(r^2) - (t^2*(1.177^2))/(13.8)^2)*Cos[k*z - y*t]*v[t]};
initialvalues = {u[-20] ==  0, v[-20] ==  0, w[-20] ==  -1};
sol = NDSolve[Join[system, initialvalues], {u[t], v[t], w[t]}, {t, -20, 20}];

X = (- 2*s*u[t]*r)*E^(-(r^2) - (t^2*(1.177^2))/(13.8)^2)*Cos[k*z - y*t];


P1 = Plot[Evaluate[X /. sol], {t, -20, 20}, Frame -> True, FrameLabel -> {"t", "X"}, FrameTicks -> All]

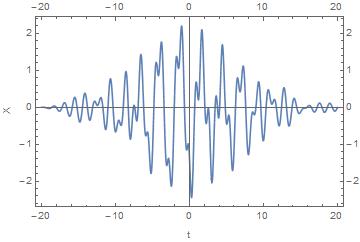

The result

POSTED BY: saysics saja

4 Replies

Sort By:

saysics saja

Posted 10 years ago

Thanks Nasser and Henrik ok now I went to try the code for average with different values of constant c data = Table[{i, [FT /. sol /. t -> i}, {i, -20, 20, .1}]; area = Integrate[x[t] /. sol, {t, -20, 20}]; average = area/(40); with this code Clear[t] \[Tau] = 13.8; r = 0.7071; n = 1.7758; \[Omega] = 0.5; k = 1666666.667; s = 2.2758; cVals = {2.2758, 2.04822, 1.82064, 1.59306, 1.36548}; color = {Red, Yellow, Green, Cyan, Blue}; Do[c = cVals[[i]]; system1 = {x'[t] == ny[t], y'[t] == -nx[t] - cE^(-(r^2) - ((t^2(1.177^2))/\[Tau]^2))z[t], z'[t] == cE^(-(r^2) - ((t^2(1.177^2))/\[Tau]^2))y[t]}; initialvalues1 = {x[-20] == 0, y[-20] == 0, z[-20] == -1}; sol1 = NDSolve[ Join[system1, initialvalues1], {x[t], y[t], z[t]}, {t, -20, 20}]; F = -srx[t]E^(-(r^2) - ((t^2(1.177^2))/\[Tau]^2)); FT = -cry[t]E^(-(r^2) - ((t^2(1.177^2))/\[Tau]^2)); Subscript[plotF, i] = Plot[Evaluate[F /. sol1], {t, -20, 20}, FrameLabel -> {"t", "F"}, Frame -> True, FrameTicks -> All, PlotStyle -> color[[i]]]; Subscript[plotFT, i] = Plot[Evaluate[FT /. sol1], {t, -20, 20}, FrameLabel -> {"t", "FT"}, Frame -> True, FrameTicks -> All, PlotStyle -> color[[i]]];, {i, Length[cVals]}] Show[{Subscript[plotF, 1], Subscript[plotF, 2], Subscript[plotF, 3], Subscript[plotF, 4], Subscript[plotF, 5]}] Show[{Subscript[plotFT, 1], Subscript[plotFT, 2], Subscript[plotFT, 3], Subscript[plotFT, 4], Subscript[plotFT, 5]}] here in this code I have plot FT and F for different values of c (see the photo) and what i want now is plot a variety of different graphs for the average F and FT over the range of c

Thanks Nasser and Henrik ok now I went to try the code for average with different values of constant c

 data = Table[{i, [FT /. sol /. t -> i}, {i, -20, 20, .1}];
  area = Integrate[x[t] /. sol, {t, -20, 20}];
  average = area/(40);

with this code

Clear[t]
\[Tau] = 13.8;
r = 0.7071;
n = 1.7758;
\[Omega] = 0.5;
k = 1666666.667;
s = 2.2758;
cVals = {2.2758, 2.04822, 1.82064, 1.59306, 1.36548};

color = {Red, Yellow, Green, Cyan, Blue};

Do[c = cVals[[i]];
 system1 = {x'[t] == n*y[t],
   y'[t] == -n*x[t] - c*E^(-(r^2) - ((t^2*(1.177^2))/\[Tau]^2))*z[t],
   z'[t] == c*E^(-(r^2) - ((t^2*(1.177^2))/\[Tau]^2))*y[t]};
 initialvalues1 = {x[-20] == 0, y[-20] == 0, z[-20] == -1};
 sol1 = NDSolve[
   Join[system1, initialvalues1], {x[t], y[t], z[t]}, {t, -20, 20}];
 F = -s*r*x[t]*E^(-(r^2) - ((t^2*(1.177^2))/\[Tau]^2));
 FT = -c*r*y[t]*E^(-(r^2) - ((t^2*(1.177^2))/\[Tau]^2));

 Subscript[plotF, i] =
  Plot[Evaluate[F /. sol1], {t, -20, 20}, FrameLabel -> {"t", "F"},
   Frame -> True, FrameTicks -> All, PlotStyle -> color[[i]]];
 Subscript[plotFT, i] =
  Plot[Evaluate[FT /. sol1], {t, -20, 20}, FrameLabel -> {"t", "FT"},
   Frame -> True, FrameTicks -> All, PlotStyle -> color[[i]]];, {i,
  Length[cVals]}]

Show[{Subscript[plotF, 1], Subscript[plotF, 2], Subscript[plotF, 3],
  Subscript[plotF, 4], Subscript[plotF, 5]}]
Show[{Subscript[plotFT, 1], Subscript[plotFT, 2],
  Subscript[plotFT, 3], Subscript[plotFT, 4], Subscript[plotFT, 5]}]

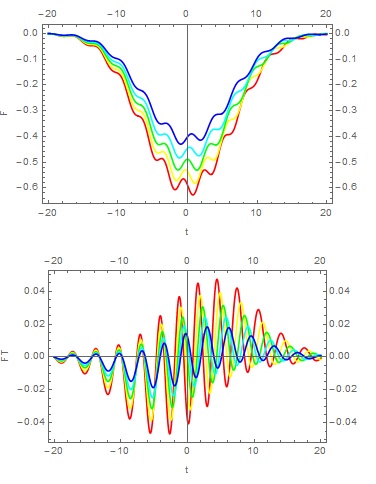

here in this code I have plot FT and F for different values of c (see the photo) and what i want now is plot a variety of different graphs for the average F and FT over the range of c

enter image description here

POSTED BY: saysics saja

Henrik Schachner

Henrik Schachner, Radiation Therapy Center, Weilheim, Germany

Posted 10 years ago

Taking time average over a limited range always means a smoothing, Nassers approach is perfectly appropriate. If you want the overall time average, then: NIntegrate[X /. First[sol], {t, -20, 20}]/40. (* Out: -0.04351207150254093` *) Cheers Henrik @Nasser: I am afraid the red line you are showing in your (nice!) graphic is the average over u[t] ...

POSTED BY: Henrik Schachner

saysics saja

Posted 10 years ago

thank you so much but this is only smoothed the curve, and didn't give me the time-averaged for X

POSTED BY: saysics saja

Nasser M. Abbasi

Nasser M. Abbasi, student

Posted 10 years ago

added time average (which is the integral over the range divided by the range). Here it is again: Manipulate[Module[{data, i, x, area, average}, x = (-2su[t]r)E^(-(r^2) - (t^2(1.177^2))/(13.8)^2)Cos[kz - yt]; data = Table[{i, x /. sol /. t -> i}, {i, -20, 20, .1}]; area = Integrate[u[t] /. sol, {t, -20, 20}]; average = area/(40); (area = widthhight) data[[2]] = ListConvolve[Table[1/windowSize, {windowSize}], data[[All, 2]]]; Show[ ListLinePlot[data[[2]], DataRange -> {-20, 20}, Frame -> True, FrameLabel -> {{"u(t)", None}, {"time (sec)", Row[{"smoothed using windows size ", windowSize, " time average =", average}]}}, ImagePadding -> 30], Plot[average, {x, -20, 20}, PlotStyle -> Red] ] ], {{windowSize, 6, "window size?"}, 3, 20, 1}, ControlPlacement -> Top, Alignment -> Center, ImageMargins -> 0, FrameMargins -> 0, Initialization :> ( z = 0; r = 0.7071; s = 4.2758; y = 2.2758; system = {u'[t] == 2.2758v[t], v'[t] == -2.2758u[t] - 2sE^(-(r^2) - ((t^2(1.177^2))/(13.8)^2))Cos[kz - yt]w[t], w'[t] == 2sE^(-(r^2) - (t^2(1.177^2))/(13.8)^2)Cos[kz - yt]*v[t]}; initialvalues = {u[-20] == 0, v[-20] == 0, w[-20] == -1}; sol = First@NDSolve[Join[system, initialvalues], {u[t], v[t], w[t]}, {t, -20, 20}] ) ]

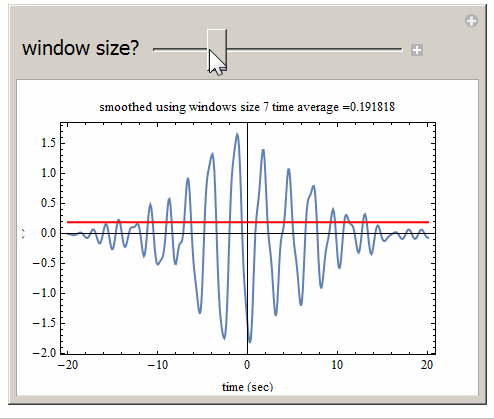

added time average (which is the integral over the range divided by the range).

Here it is again:

enter image description here

Manipulate[Module[{data, i, x, area, average},
  x = (-2*s*u[t]*r)*E^(-(r^2) - (t^2*(1.177^2))/(13.8)^2)*Cos[k*z - y*t];
  data = Table[{i, x /. sol /. t -> i}, {i, -20, 20, .1}];
  area = Integrate[u[t] /. sol, {t, -20, 20}];
  average = area/(40); (*area = width*hight*)
  data[[2]] = ListConvolve[Table[1/windowSize, {windowSize}], data[[All, 2]]];

  Show[
   ListLinePlot[data[[2]], DataRange -> {-20, 20}, Frame -> True,
    FrameLabel -> {{"u(t)", None}, {"time (sec)",
       Row[{"smoothed using windows size ", windowSize, " time average =", average}]}},
    ImagePadding -> 30],
   Plot[average, {x, -20, 20}, PlotStyle -> Red]
   ]
  ],
 {{windowSize, 6, "window size?"}, 3, 20, 1},
 ControlPlacement -> Top, Alignment -> Center,
 ImageMargins -> 0, FrameMargins -> 0,
 Initialization :> (
   z = 0;
   r = 0.7071;
   s = 4.2758;
   y = 2.2758;
   system = {u'[t] == 2.2758*v[t], v'[t] == -2.2758*u[t] - 2*s*E^(-(r^2) - ((t^2*(1.177^2))/(13.8)^2))*Cos[k*z - y*t]*w[t],
     w'[t] == 2*s*E^(-(r^2) - (t^2*(1.177^2))/(13.8)^2)*Cos[k*z - y*t]*v[t]};
   initialvalues = {u[-20] == 0, v[-20] == 0, w[-20] == -1};
   sol = First@NDSolve[Join[system, initialvalues], {u[t], v[t], w[t]}, {t, -20, 20}]
   )
 ]

POSTED BY: Nasser M. Abbasi
