A problem with NDSolve

Hui Sun

Hui Sun, Peking University

Posted 10 years ago

I attached my program. As you can see, the graphs of the 6 solutions are normal. But when graphing the first derivatives of any of the 6 solutions, I got nothing, which is wrong. I don't know why. What should I do if I want to get the right graphs of the first derivatives? Many thanks!! Attachments:

POSTED BY: Hui Sun

2 Replies

Sort By:

Jim Baldwin

Jim Baldwin, Retired

Posted 10 years ago

I think there are two issues you might consider: (1) Explicitly assign the results of NDSolve rather than using a reference (%21) and (2) I think one needs to "create" the derivatives from the results of NDSolve. Here's a modification of your code: \[Kappa]2 = 0.04745; \[Kappa]1 = 0.002832; \[Epsilon] = 0.01; sol = Flatten[ NDSolve[{u1a''[x] == 2 \[Kappa]2^2 (u1a[x] - u2b[x]), u2b''[x] == 2 \[Kappa]2^2 (u2b[x] - u1a[x]), u4a''[x] == 2 \[Kappa]2^2 (u4a[x] - u6b[x]), u6b''[x] == 2 \[Kappa]2^2 (u6b[x] - u4a[x]), u4b''[x] == 2 \[Kappa]2^2 (u4b[x] - u2a[x]), u2a''[x] == 2 \[Kappa]2^2 (u2a[x] - u4b[x]), u1a[0] == 0, u2b'[0] == 0, u4a[1] == u4b[1], u2a'[1] == \[Kappa]1 (u6b[1] - u2a[1]), u6b'[1] == \[Kappa]1 (u6b[1] - u2a[1]), u4b'[1] == u4a'[1], u1a'[1/2] == \[Kappa]1 (u4b[1/2] - u1a[1/2]), u4b'[1/2] == \[Kappa]1 (u4b[1/2] - u1a[1/2]), u2a'[1/2] == u2b'[1/2], u2a[1/2] == u2b[1/2], u6b[3/2] == 3 \[Epsilon]/2, u4a[3/2] == 3 \[Epsilon]/2}, {u1a[x], u2b[x], u4a[x], u6b[x], u4b[x], u2a[x]}, {x, 0, 3/2}]] Table[Plot[(sol[[i]] /. x -> y)[[2]], {y, 0, 1/2}, Frame -> True, FrameLabel -> {{ToString[sol[[i, 1]]], ""}, {"x", ToString[sol[[i, 1]]]}}], {i, 6}] Table[Plot[(D[sol[[i]], x] /. x -> y)[[2]], {y, 0, 1/2}, Frame -> True, FrameLabel -> {{ToString[D[sol[[1, 1]], x]], ""}, {"x", ToString[D[sol[[1, 1]], x]]}}], {i, 6}]

I think there are two issues you might consider: (1) Explicitly assign the results of NDSolve rather than using a reference (%21) and (2) I think one needs to "create" the derivatives from the results of NDSolve. Here's a modification of your code:

\[Kappa]2 = 0.04745;
\[Kappa]1 = 0.002832;
\[Epsilon] = 0.01;
sol = Flatten[
  NDSolve[{u1a''[x] == 2 \[Kappa]2^2 (u1a[x] - u2b[x]),
    u2b''[x] == 2 \[Kappa]2^2 (u2b[x] - u1a[x]),
    u4a''[x] == 2 \[Kappa]2^2 (u4a[x] - u6b[x]),
    u6b''[x] == 2 \[Kappa]2^2 (u6b[x] - u4a[x]),
    u4b''[x] == 2 \[Kappa]2^2 (u4b[x] - u2a[x]),
    u2a''[x] == 2 \[Kappa]2^2 (u2a[x] - u4b[x]), u1a[0] == 0,
    u2b'[0] == 0, u4a[1] == u4b[1],
    u2a'[1] == \[Kappa]1 (u6b[1] - u2a[1]),
    u6b'[1] == \[Kappa]1 (u6b[1] - u2a[1]), u4b'[1] == u4a'[1],
    u1a'[1/2] == \[Kappa]1 (u4b[1/2] - u1a[1/2]),
    u4b'[1/2] == \[Kappa]1 (u4b[1/2] - u1a[1/2]),
    u2a'[1/2] == u2b'[1/2], u2a[1/2] == u2b[1/2],
    u6b[3/2] == 3 \[Epsilon]/2, u4a[3/2] == 3 \[Epsilon]/2}, {u1a[x],
    u2b[x], u4a[x], u6b[x], u4b[x], u2a[x]}, {x, 0, 3/2}]]

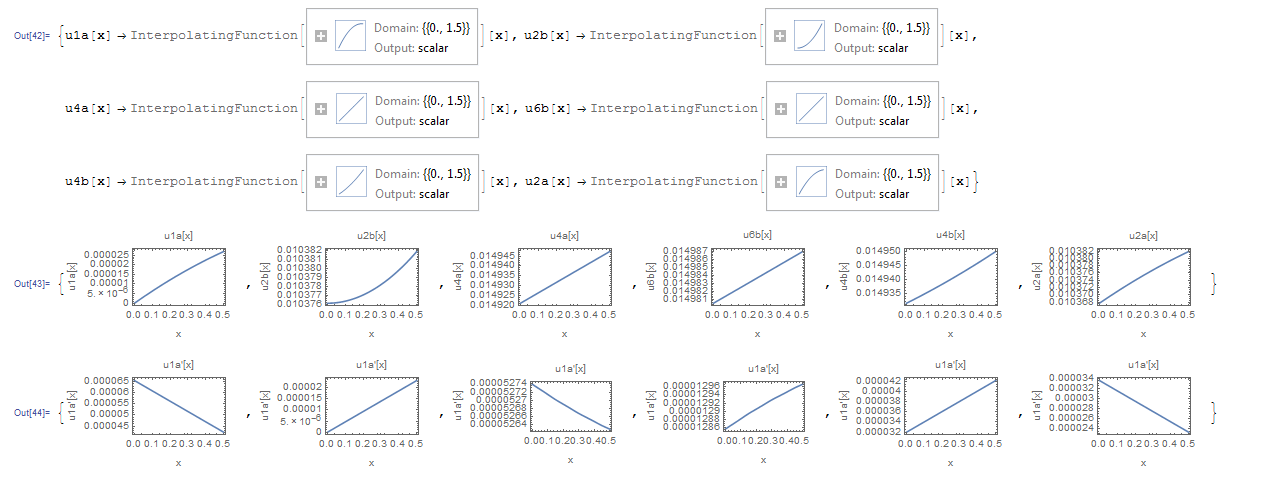

Table[Plot[(sol[[i]] /. x -> y)[[2]], {y, 0, 1/2}, Frame -> True,
  FrameLabel -> {{ToString[sol[[i, 1]]], ""}, {"x", ToString[sol[[i, 1]]]}}], {i, 6}]
Table[Plot[(D[sol[[i]], x] /. x -> y)[[2]], {y, 0, 1/2}, Frame -> True,
  FrameLabel -> {{ToString[D[sol[[1, 1]], x]], ""}, {"x", ToString[D[sol[[1, 1]], x]]}}], {i, 6}]

derivatives
