Encoded Package works in .nb but not in Enterprise CDF?

Erdem Uguz
Posted 8 years ago

Hello I am working on learning Enterprise CDF development. I use encoded package and in .nb format I have no problem but when I export using Enterprise CDF the code is not working. I saved all files ( notebook file, CDF and encoded package) under the same folder inside the $Path. I don't know why .nb file is working but CDF does not.

Manipulate[
 DynamicModule[{f = Sin[x], xR = 1, xL = 0,
   Res = 0.4596976941318603`16},
  Column[{Style["1D Definite Integral Calculator", "Function"] ,
    Row[{"Lower Limit ", InputField[Dynamic[xL], Number]}, Spacer[5]],
     Row[{"Upper Limit ", InputField[Dynamic[xR], Number]},
     Spacer[5]],
    Row[{"Function  ", InputField[Dynamic[f]]}, Spacer[20]],
    Button[Style["Calculate", Green, Bold],
     Dynamic[Res = TF1DINTPackage`D1Int[f, xR, xL, np, nw];]],
    Row[{"Result", InputField[Dynamic[Res], Enabled -> False]},
     Spacer[51]],
    Row[{"Plot the Function ",
      Checkbox[Dynamic[fp], {False, True}]}],
    If[fp == True,
     InputField[
      Dynamic[Plot[f, {x, xL, xR}, Dynamic[PlotLabel -> f],
        ImageSize -> Full]], FieldSize -> {30, 15}]],
    Button[Mouseover[Style["http://www.wolfram.com", "Hyperlink"],
      Style["http://www.wolfram.com", "HyperlinkActive"]],
     NotebookLocate[{URL["http://www.wolfram.com"], None}],
     Appearance -> None]}]], {{np, 16, "NumberFormat"},
  ControlPlacement -> Bottom}, {{nw, 16, "WorkingPrecision"},
  ControlPlacement -> Bottom},
 Initialization :> (Needs["TF1DINTPackage`"])]

And the package is

BeginPackage["TF1DINTPackage`"];
D1Int[f_,xR_,xL_,np_,nw_]:=Module[{xLcheck,xRcheck},xLcheck=NumberQ[xL];
xRcheck=NumberQ[xR];
If[xLcheck==True&&xRcheck==True,ResultTF=SetPrecision[NIntegrate[f,{x,xL,xR},WorkingPrecision->Re[IntegerPart[nw]]],Re[IntegerPart[np]]],"Enter numeric inputs for Lower and Upper Limits"]];
SetAttributes[D1Int,{ReadProtected,Protected,Locked}];
EndPackage[];

I attached the encoded version of the package too. Thank you for the help.

Attachments:
POSTED BY: Erdem Uguz
4 Replies
Sort By:

Hello, this works:

Manipulate[{x,xR,xL,f,Res},Column[{Style["1D Definite Integral Calculator","Subsubitem"],

Row[{"Lower Limit ",InputField[Dynamic[xL],Number]},Spacer[5]],Row[{"Upper Limit ",InputField[Dynamic[xR],Number]},Spacer[5]],Row[{"Function  ",InputField[Dynamic[f]]},Spacer[20]],Button[Style["Calculate",Green,Bold],Res=TF1DINTPackage`D1Int[f,x,xR,xL,np,nw];],Row[{"Result",InputField[Dynamic[Res],Enabled->False]},Spacer[51]],Row[{"Plot the Function ",Checkbox[Dynamic[fp],{False,True}]}],

Dynamic@If[fp,Plot[f[x],{x,xL,xR},PlotLabel->f,ImageSize->200]],

Button[Mouseover[Style["http://www.wolfram.com","Hyperlink"],Style["http://www.wolfram.com","HyperlinkActive"]],NotebookLocate[{URL["http://www.wolfram.com"],None}],Appearance->None]}
],
{{np,16,"NumberFormat"},ControlPlacement->Bottom},{{nw,16,"WorkingPrecision"},ControlPlacement->Bottom},
Initialization:>(f=Sin;xR=1;xL=0;Get[FileNameJoin[{NotebookDirectory[EvaluationNotebook[]],"TF1DINTPackage.m"}]];
Res=TF1DINTPackage`D1Int[f,x,xR,xL,16,16];)]


(* ::Package:: *)

BeginPackage["TF1DINTPackage`"];
D1Int::usage="";
Begin["`Private`"];
D1Int[f_,x_,xR_?NumberQ,xL_,np_,nw_]:=Module[{xLcheck,xRcheck},xLcheck=NumberQ[xL];
xRcheck=NumberQ[xR];
If[xLcheck==True&&xRcheck==True,SetPrecision[NIntegrate[f[x],{x,xL,xR},WorkingPrecision->Re[IntegerPart[nw]]],Re[IntegerPart[np]]],"Enter numeric inputs for Lower and Upper Limits"]];
SetAttributes[D1Int,{ReadProtected,Protected,Locked}];
End[];
EndPackage[]
POSTED BY: Rolf Mertig
Erdem Uguz
Erdem Uguz
Posted 8 years ago

Thank you I have two questions that I could not figure out.

In your version I can't enter function like Cos[x]+Sin[x] because you defined x in the function. I removed that x variable but I am getting an error.

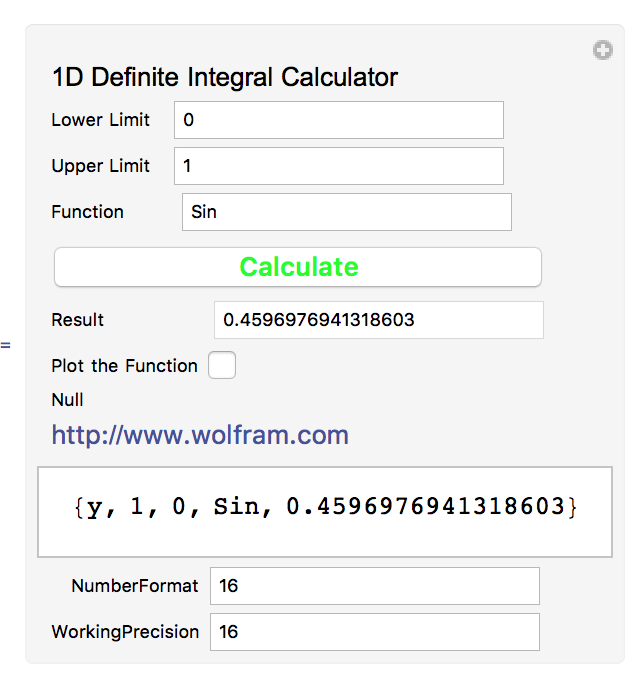

Second, why there is a box of result and variable at the bottom?

Thank you for the help.

enter image description here
POSTED BY: Erdem Uguz

Sorry, this should work better.

Manipulate[
 Column[{Style["1D Definite Integral Calculator", "Subsubitem"],
   Row[{"Lower Limit ", InputField[Dynamic[xL], Number]}, Spacer[5]],
   Row[{"Upper Limit ", InputField[Dynamic[xR], Number]}, Spacer[5]],
   Row[{"Function  ", InputField[Dynamic[f]]}, Spacer[20]],

   Button[Style["Calculate", Green, Bold],
    Res = TF1DINTPackage`D1Int[f, x, xR, xL, np, nw];],

   Row[{"Result", InputField[Dynamic[Res], Enabled -> False]},
    Spacer[51]],
   Row[{"Plot the Function ", Checkbox[Dynamic[fp], {False, True}]}],
   Dynamic@If[fp,
     Plot[f[x], {x, xL, xR}, PlotLabel -> f, ImageSize -> 200], ""],

   Button[
    Mouseover[Style["http://www.wolfram.com", "Hyperlink"],
     Style["http://www.wolfram.com", "HyperlinkActive"]],
    NotebookLocate[{URL["http://www.wolfram.com"], None}],
    Appearance -> None]


   }], {{np, 16, "NumberFormat"}, ControlPlacement -> Bottom},
 {{nw, 16, "WorkingPrecision"}, ControlPlacement -> Bottom},

 Initialization :> (f = Sin[#] + Cos[#] &; xR = 1; xL = 0;
   Get[FileNameJoin[{NotebookDirectory[EvaluationNotebook[]],
      "TF1DINTPackage.m"}]];
   Res = TF1DINTPackage`D1Int[f, x, xR, xL, 16, 16];)]
POSTED BY: Rolf Mertig
Erdem Uguz
Erdem Uguz
Posted 8 years ago

I am trying to adapt you solution to my program but it is not working. I would like to understand the difference because I am working on this example for learning on purpose. I would like to understand why this is not working.

Manipulate[
 DynamicModule[{f = Sin[x], xR = 1, xL = 0,
   Res = 0.4596976941318603`16},
  Column[{Style["1D Definite Integral Calculator", "Function"] ,
    Row[{"Lower Limit ", InputField[Dynamic[xL], Number]}, Spacer[5]],
     Row[{"Upper Limit ", InputField[Dynamic[xR], Number]},
     Spacer[5]],
    Row[{"Function  ", InputField[Dynamic[f]]}, Spacer[20]],
    Button[Style["Calculate", Green, Bold],
     Dynamic[Res = TFPackage`WD1Int[f, xR, xL, np, nw];]],
    Row[{"Result", InputField[Dynamic[Res], Enabled -> False]},
     Spacer[51]],
    Row[{"Plot the Function ",
      Checkbox[Dynamic[fp], {False, True}]}],
    If[fp == True,
     InputField[
      Dynamic[Plot[f, {x, xL, xR}, Dynamic[PlotLabel -> f],
        ImageSize -> Full]], FieldSize -> {30, 15}]],
    Button[Mouseover[Style["http://www.wolfram.com", "Hyperlink"],
      Style["http://www.wolfram.com", "HyperlinkActive"]],
     NotebookLocate[{URL["http://www.wolfram.com"], None}],
     Appearance -> None]}]], {{np, 16, "NumberFormat"},
  ControlPlacement -> Bottom}, {{nw, 16, "WorkingPrecision"},
  ControlPlacement -> Bottom},
 Initialization :> (Get[
     FileNameJoin[{NotebookDirectory[EvaluationNotebook[]],
       "TFPackage.m"}]];)]

And the package is

BeginPackage["TFPackage`"];
WD1Int::usage="";
Begin["`Private`"];
WD1Int[f_,xR_,xL_,np_,nw_]:=Module[{xLcheck,xRcheck},xLcheck=NumberQ[xL];
xRcheck=NumberQ[xR];
If[xLcheck==True&&xRcheck==True,WResultTF=SetPrecision[NIntegrate[f,{x,xL,xR},WorkingPrecision->Re[IntegerPart[nw]]],Re[IntegerPart[np]]],"Enter numeric inputs for Lower and Upper Limits"]];
SetAttributes[WD1Int,{ReadProtected,Protected,Locked}];
End[];
EndPackage[];

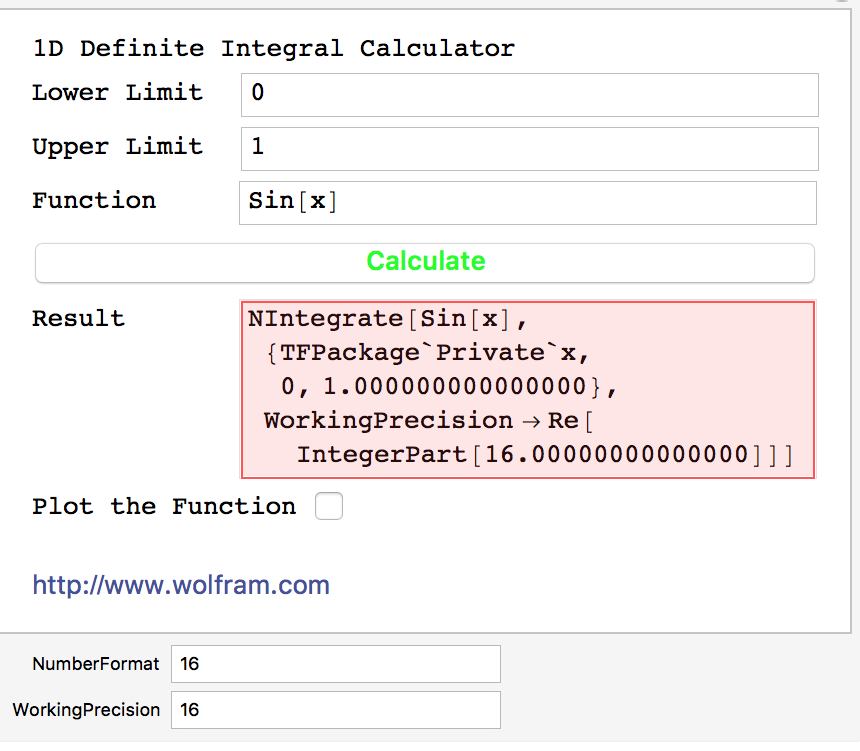

It is almost exactly same I can't understand what is the problem.

Thank you for the help

enter image description here
POSTED BY: Erdem Uguz
