All possible tangent lines to a curve through given point

Posted 11 years ago
Hi,

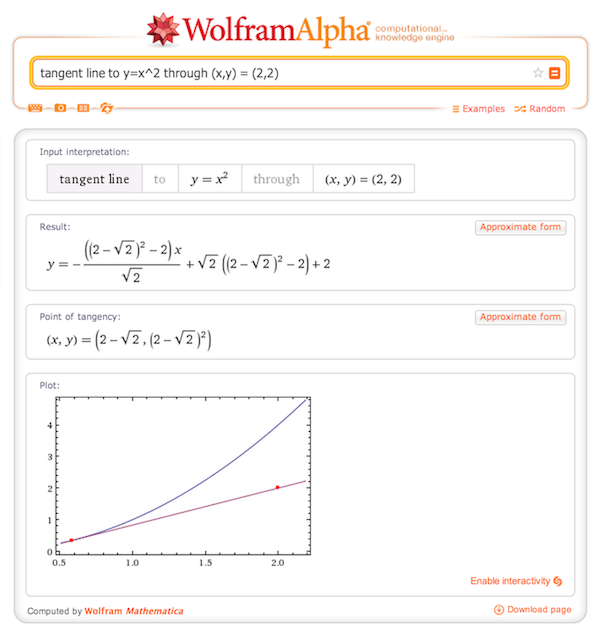

in Wolfram|Alpha I try something like:

tangent line to y=x^2 through (x,y) = (2,2)

and expect both possible tangents as result, but I only get one tangent. How can I make W|A show all possible solutions to that type of problem?

3 Replies
Posted 11 years ago

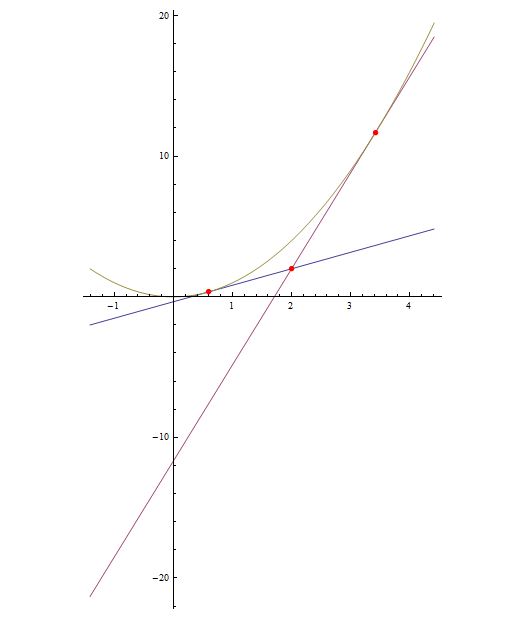

Just a little code to show the 2 tangents in question. Have made a slight change to the code to account for negative co-ordinate points, and it will only only account for quadratics, things are very unpredictable if higher powers are used.

 Clear[x, y, f]; p = {2, 2}; f[x_] := x^2 ;

 dif = D[f[x], x];
 pts = Solve[f[x] - p[[2]] == dif (x - p[[1]]), x];
 pts = x /. pts;
 t1 = Simplify[f[pts[[1]]]];
 t2 = Simplify[f[pts[[2]]]];
 m1 = (p[[2]] - t1)/(p[[1]] - pts[[1]]); m2 = (p[[2]] - t2)/(
 p[[1]] - pts[[2]]);
Plot[{m1 (x - pts[[1]]) + t1, m2 (x - pts[[2]]) + t2, f[x]}, {x,
pts[[1]] - 5, pts[[2]] + 4},
Epilog -> {PointSize[0.015], Red, Point[{p[[1]], p[[2]]}],
Point[{pts[[1]], t1}], Point[{pts[[2]], t2}]}, AspectRatio -> 5/3,
ImageSize -> {600, 600}]



POSTED BY: Paul Cleary
The given point is not part of the curve!
So in this particular case (tangent line to y=x^2 through (x,y) = (2,2)) there are definitly two solutions.
In general, there may be zero, one or even multiple solutions to this kind of problem.
Hi,
There is only one tangent line for a given f(x) at x=x0 if f(x) can be determined uniquely at x0, i.e. d/dx f(x=x0) < |Infinity|
Take a look at http://en.wikipedia.org/wiki/Tangent

I.M.
POSTED BY: Ivan Morozov
